Product Description:

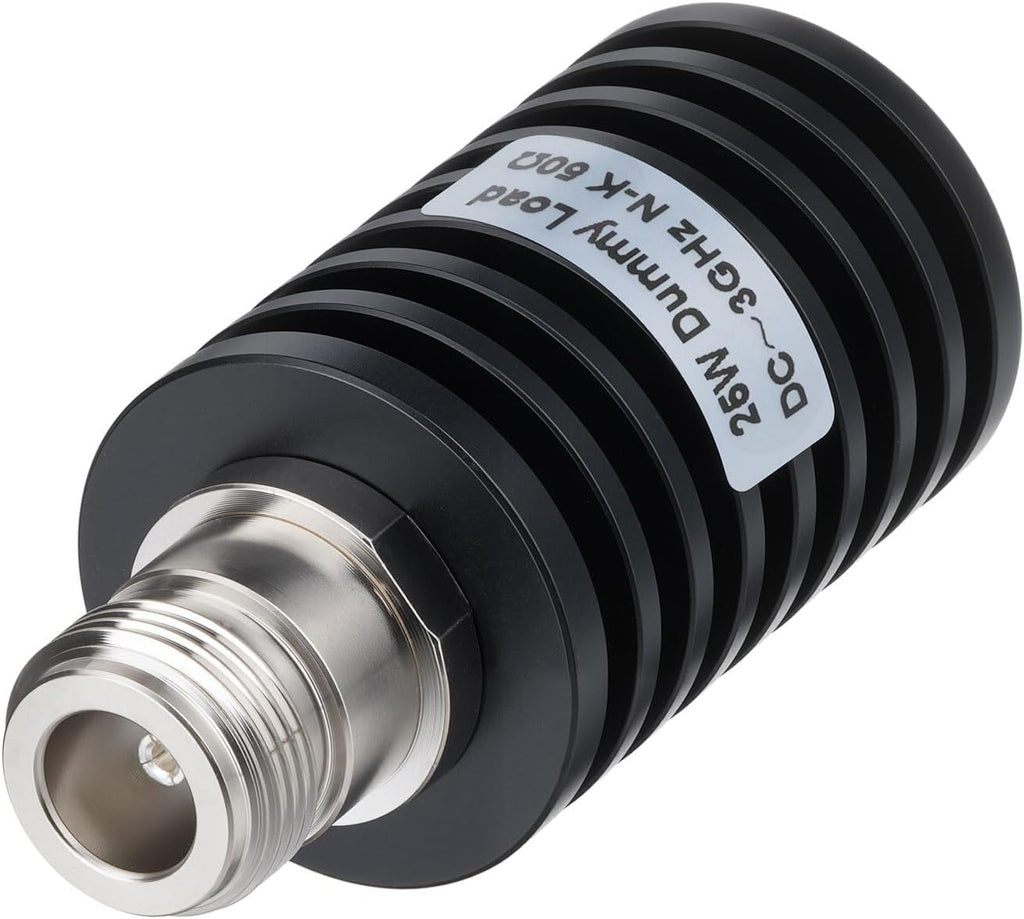

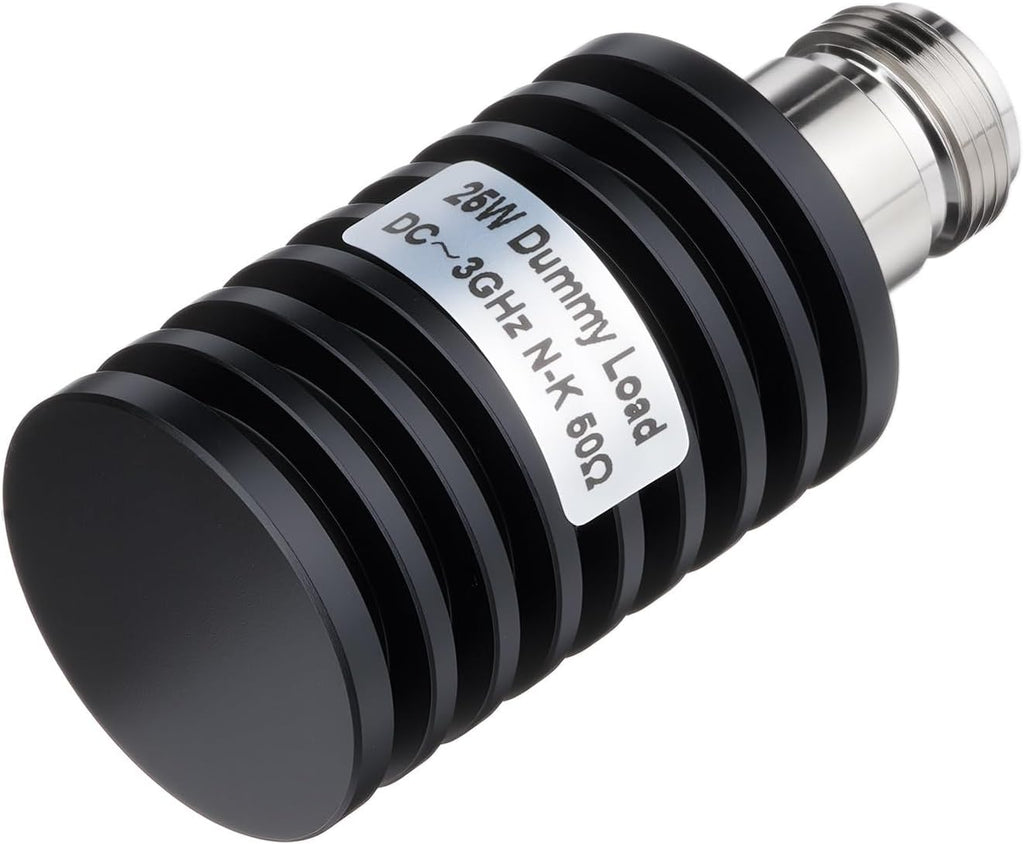

High-Performance RF Termination Load for Precision Testing
The RF Termination Load is engineered to provide reliable signal termination and testing solutions for RF systems, ensuring minimal signal reflection and maximum accuracy.
Specifications:
Frequency Range: DC to 3GHz
Impedance: 50Ω ±2%
VSWR: ≤1.2
Power Capacity: 25W (Continuous)
Connectors: N-Female
Operating Temperature: -55°C to +125°C
Package List: 1 x N Female RF Termination Load.
Applications:
RF amplifier and transmitter testing
Antenna system calibration
Signal termination in communication networks
Laboratory and field measurement setups
Durability & Compliance:
Gold-plated brass connectors for corrosion resistance
RoHS compliant
Industrial-grade materials ensure long-term reliability
Product Features
- Broad Frequency Range: Supports DC to 3GHz with ≤1.2 VSWR; Ideal for RF system testing amplifier tuning and signal termination in labs or field setups
- High Power Capacity: Handles up to 25W continuous power; 50Ω impedance minimizes reflection loss for accurate measurements
- Durable Connectors: N-female interfaces with gold-plated contacts resist corrosion and ensure stable connectivity
- Extreme Temperature Resilience: Operates from -55°C to 125°C; Suitable for military aerospace or outdoor RF systems
- Stable Performance: Features 2% tolerance for consistent performance; Compact design integrates into test benches or portable equipment
