Description
Product Features
- Frequency: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
- Built-in Pure Copper: The main body of the antenna is made of pure copper material, which has more excellent gain performance

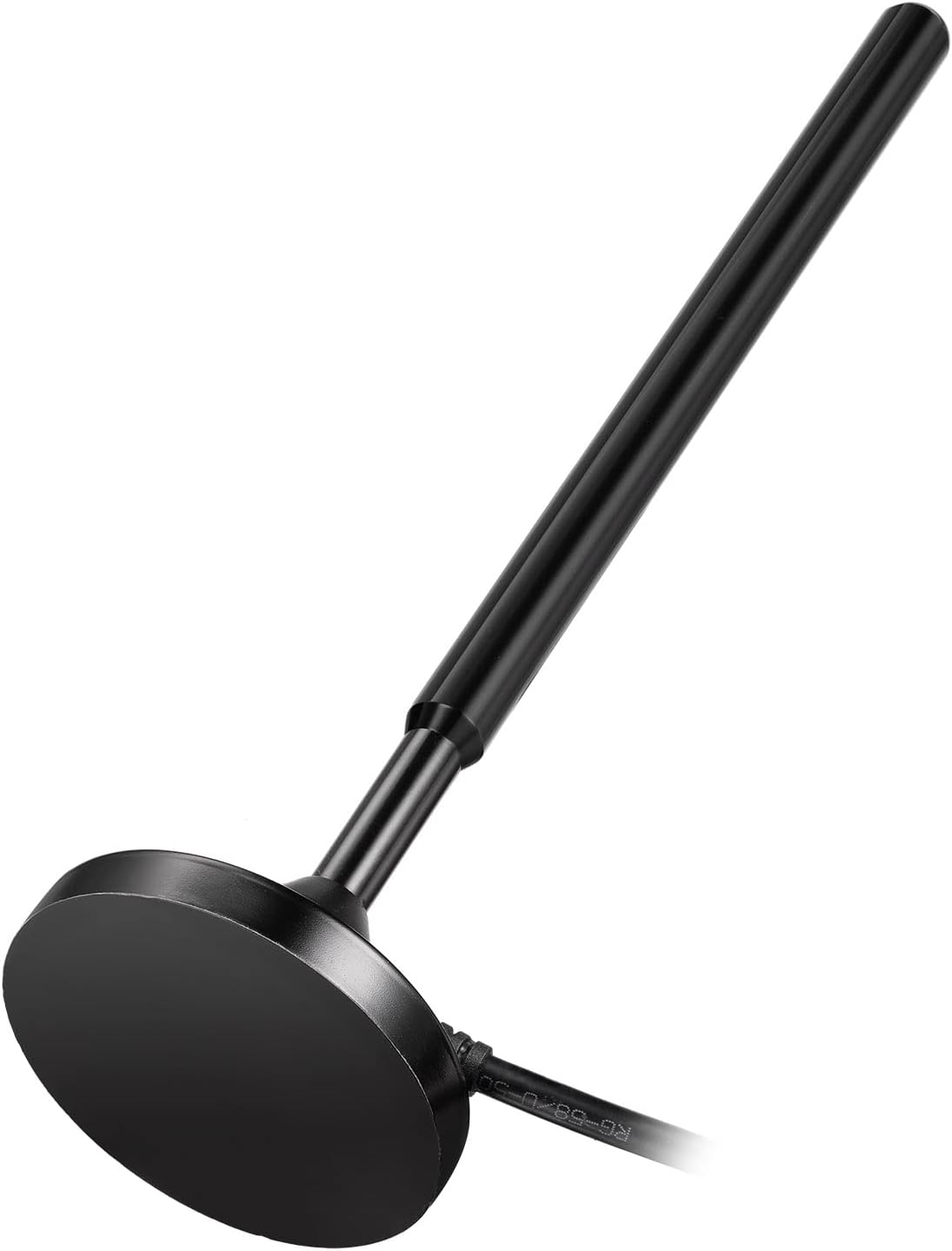

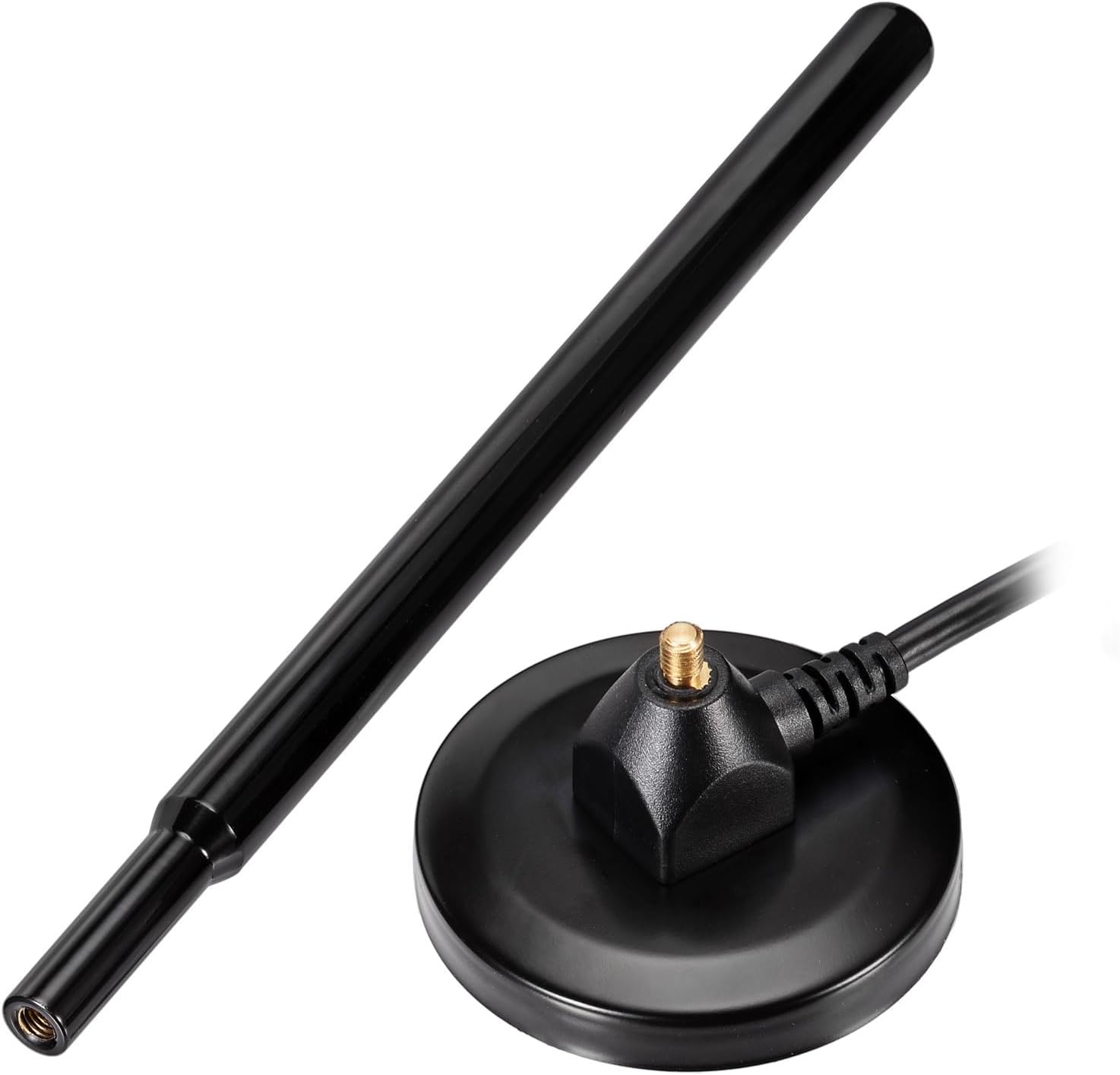

- Magnetic Base: 6 cm/ 2.36inch Strong magnetic Base, for better reception, please try a position with a better view, somewhere like near the window.

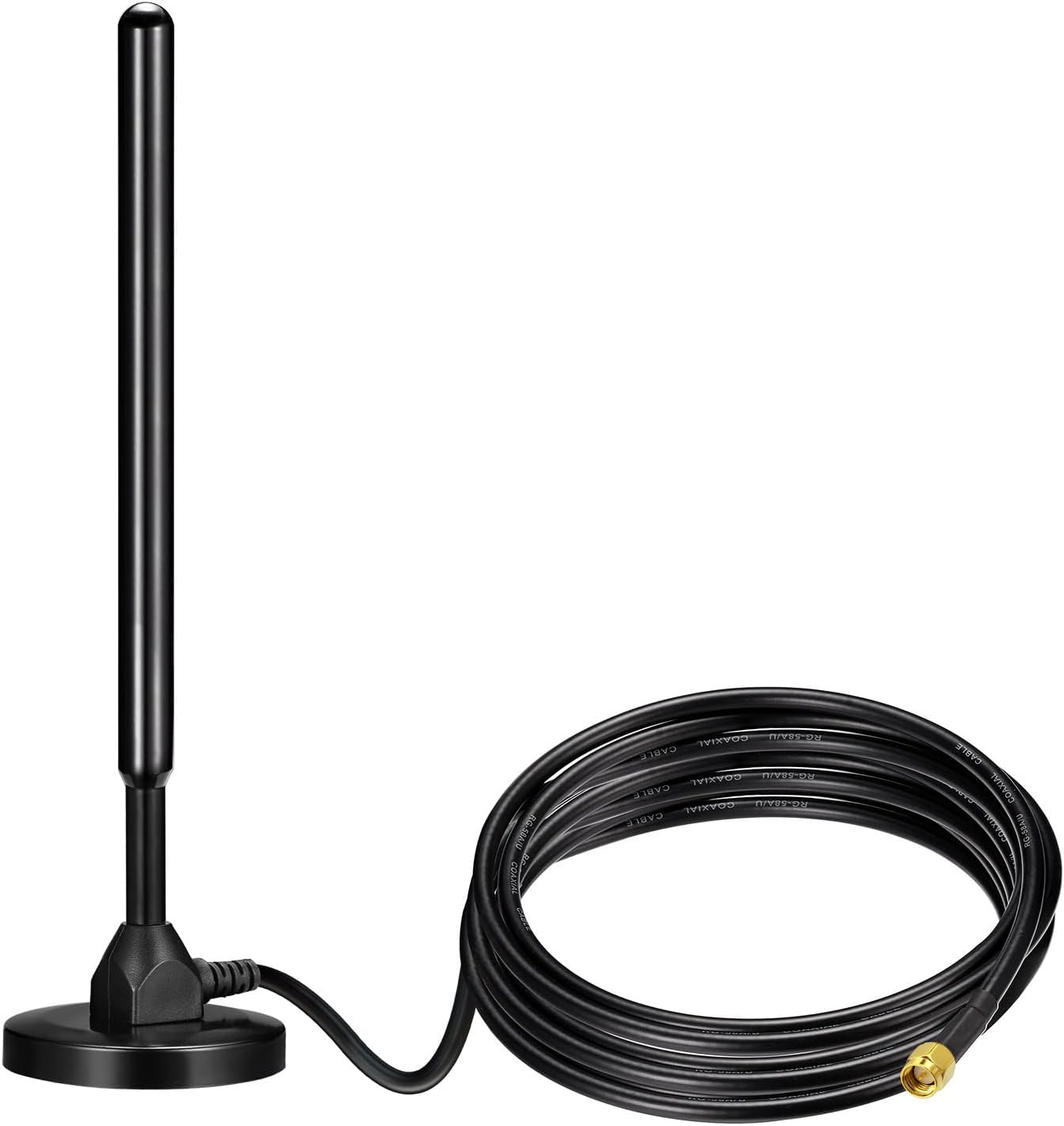

- Coaxial Cable: 9.84ft RG58U extension coaxial cable for mounting the antenna in a suitable location
- Wide Application: Compatible with 4G LTE Router, Cellular Gateway, 4G LTE Mobile Router, Mobile Broadband, CPE Router, Cell Phone Signal Booster Repeater, Vehicle Car Truck RV Bus Van Mobile Cellular Amplifier，4G IoT Terminal Equipment; Compatible with Most 4G LTE Cellular Trail Camera, Game Camera, Hunting Camera, Outdoor Security Camera, Celluar Surveillance Camera; Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder;
-
Product Description
Specification：
Frequency: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
Gain: 3 dBi
Feature: Magnetic base
Cable length: 9.84ft RG58U coaxial cable
VSWR: <1.5
Polarization: vertical polarization
Impedance: 50 Ohm

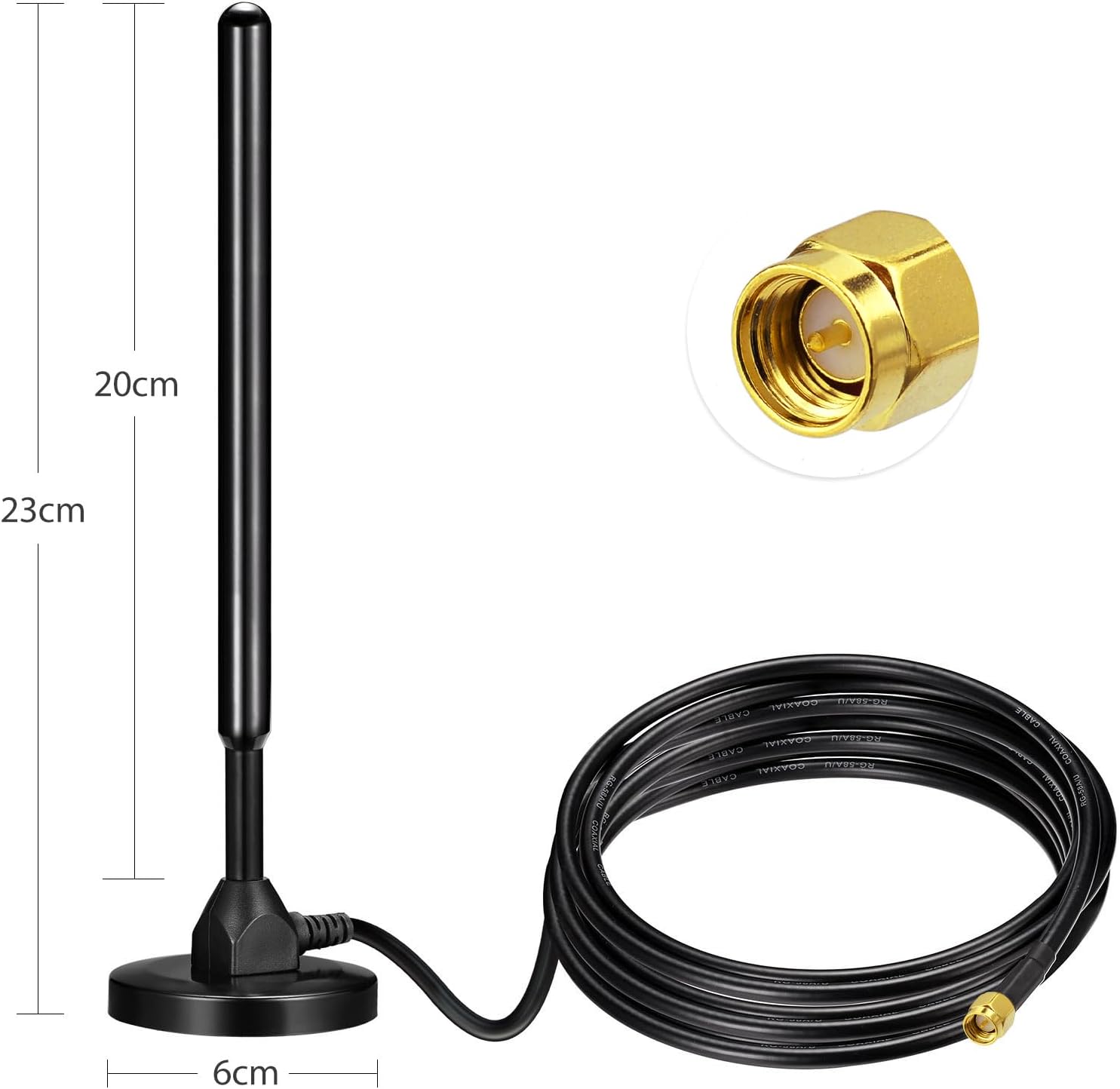

Overall height: 9 inches
Antenna height: 8.66 inches
Magnetic base diameter: 2.36inches

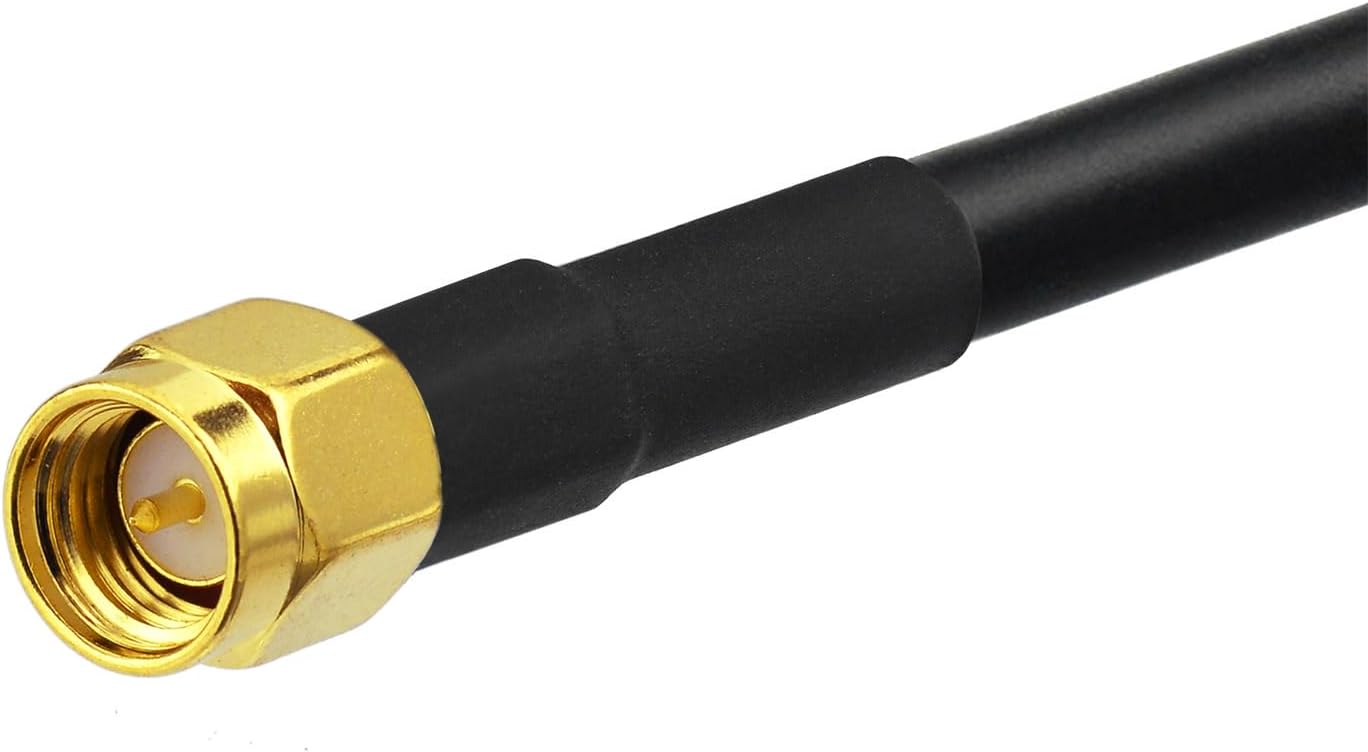

Antenna connector: SMA male
Connection Adapter: SMA Female to RP-SMA Male
Environmentally Friendly : ROHS Compliant
Operating Temperature: -20°С ~ +80°С;
Storage Temperature: -30°С ~ +85°С
Pacakge List:1 x 4G Antenna, 1 x Connector Adapter
