Bingfu 4G LTE Cellular Trail Camera Antenna Fixed Bracket Wall Mount RP-SMA Male Antenna Compatible with 4G LTE Cellular Trail Camera Game Camera Wildlife Hunting Camera Outdoor Mobile Security Camera

SKU: BFN00191
  • $13.99
    Unit price per
Shipping calculated at checkout.


increase signalmountingRP-SMA male connector and sma male adapter

Specifications:

External omni-directional antenna (passive);

Enhances cellular signal (effective in low coverage area);

10 feet cable length, RP-SMA male connector;

Bracket for easy installation;

Do not require any external power;

Compatible with 4G LTE cellular trail cameras;

Gain: 5dBi

Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz

VSWR: < 2.0;

Polarization: Linear Vertical;

Impedance: 50 ohm;

Direction: Omni-directional;

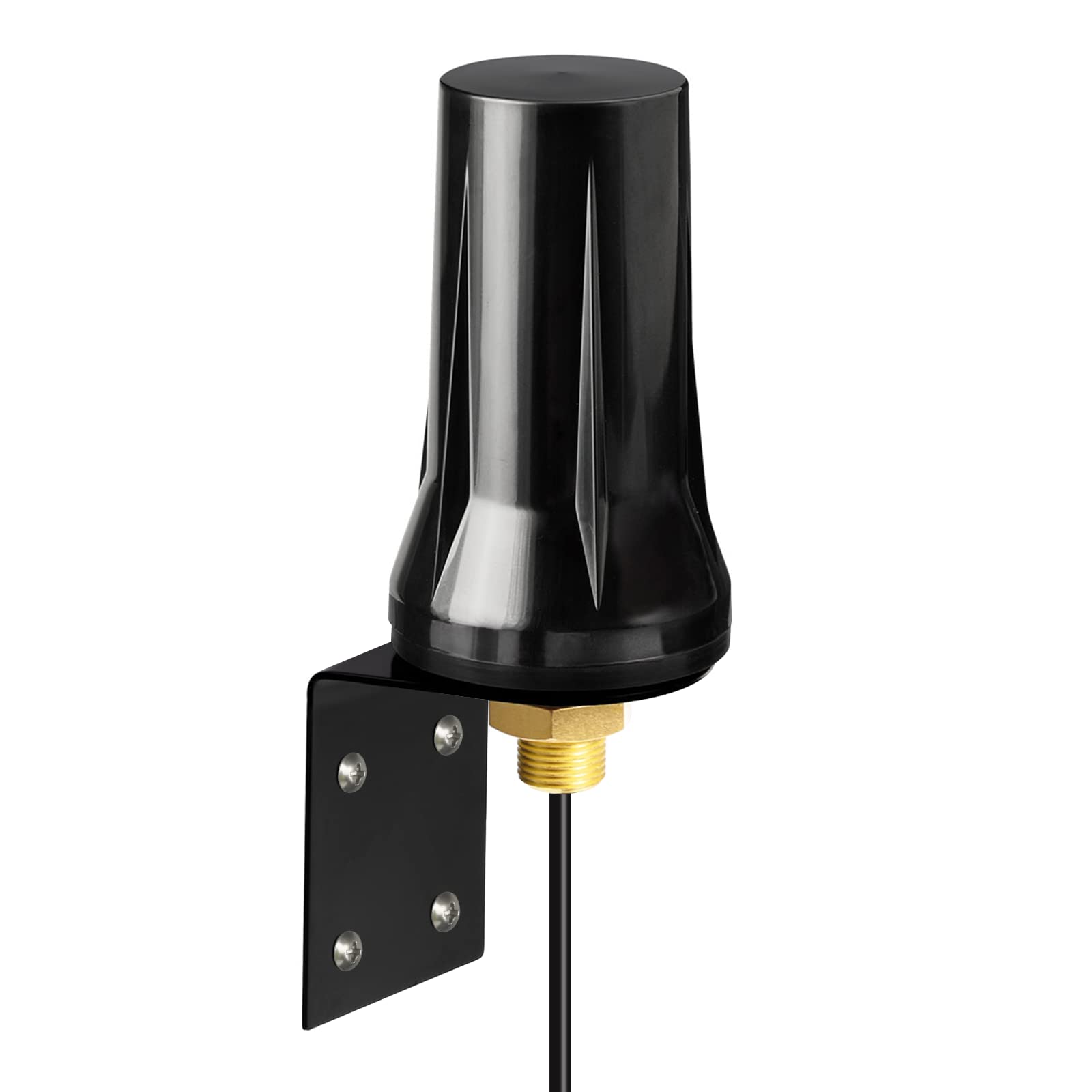

Feature: Fixed Wall Mount; Thru Hole Mount;

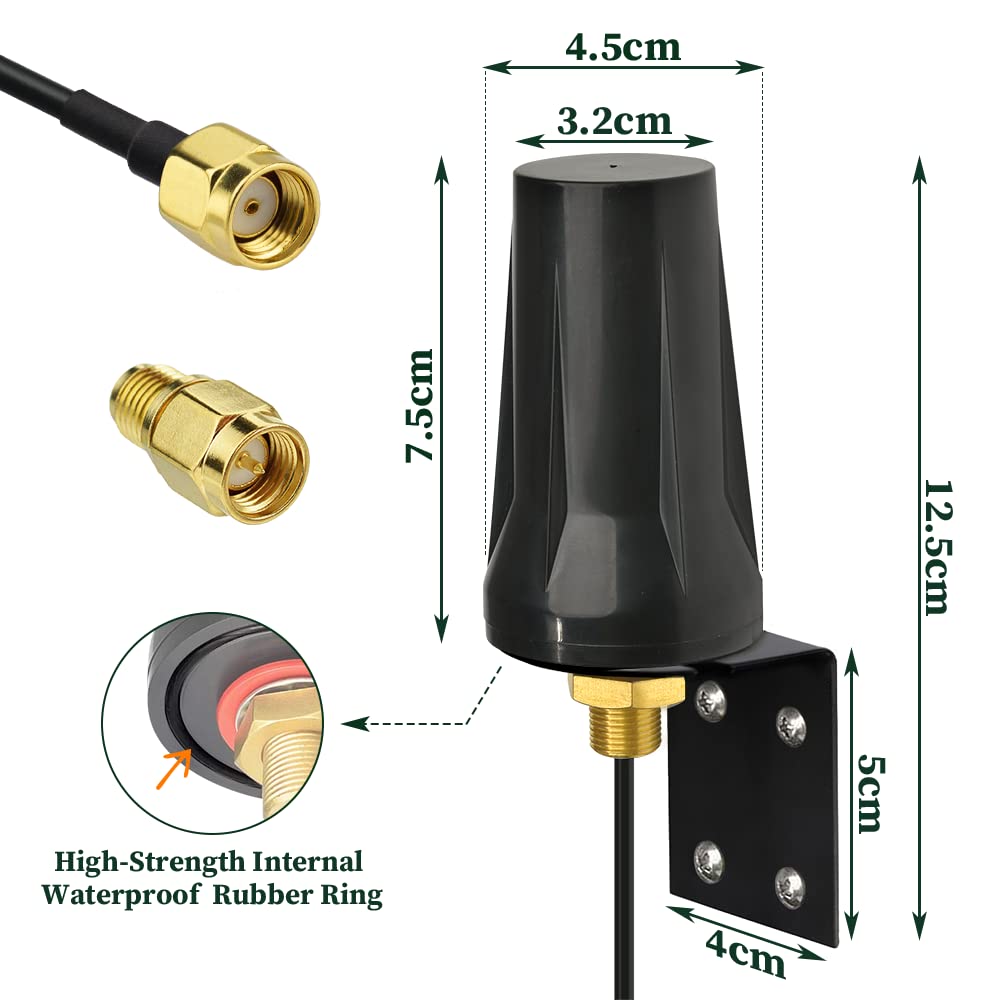

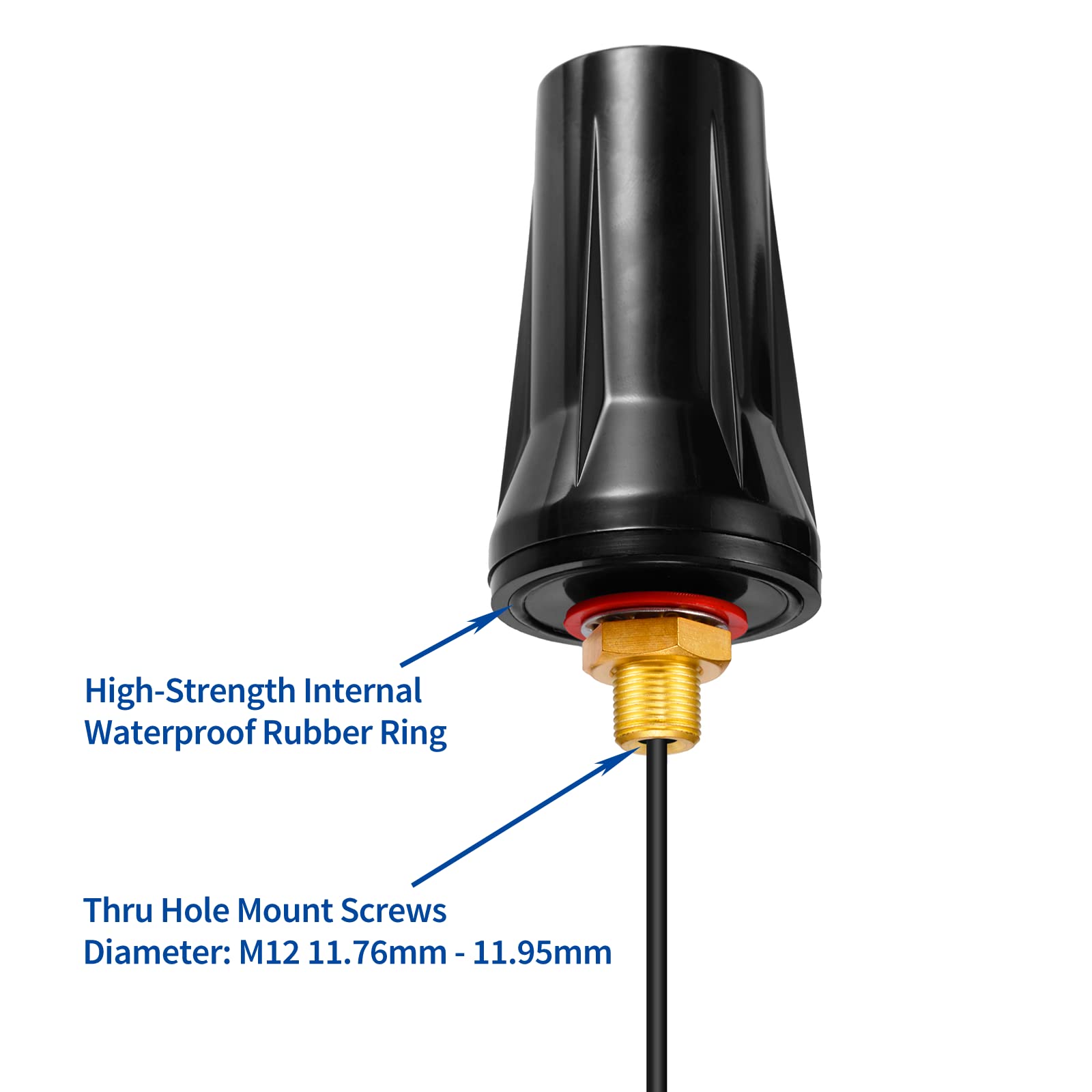

Antenna Mounting Screws Diameter: M12 11.76mm-11.95mm;

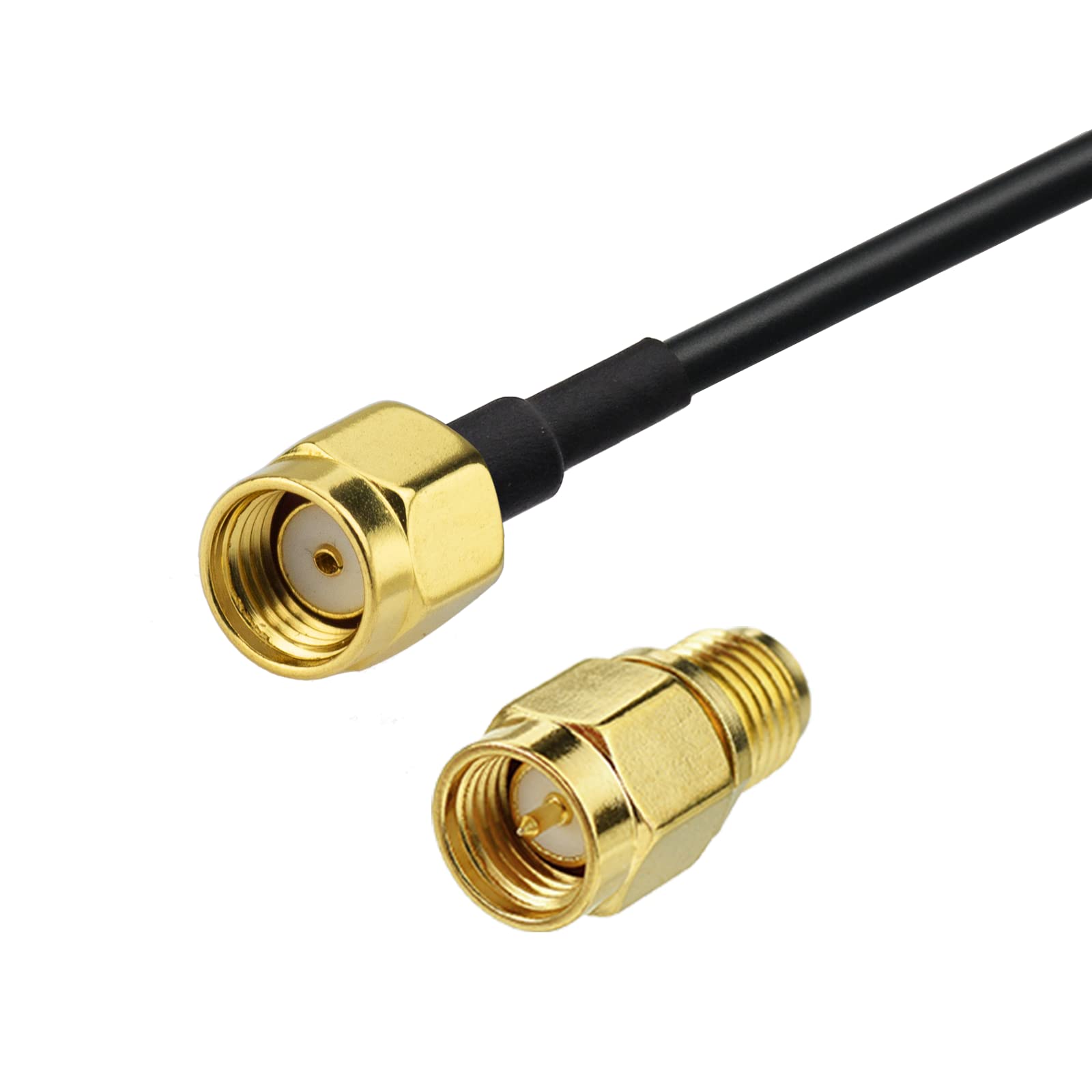

Connector: RP-SMA Male Connector;

Accessoried Connector Adapter: SMA Male Connector Adapter;

Cable Length: 3m/10 feet;

Net Weight: 265g;

Waterproof: Rainning Proof;

Operating Temperature: -20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С

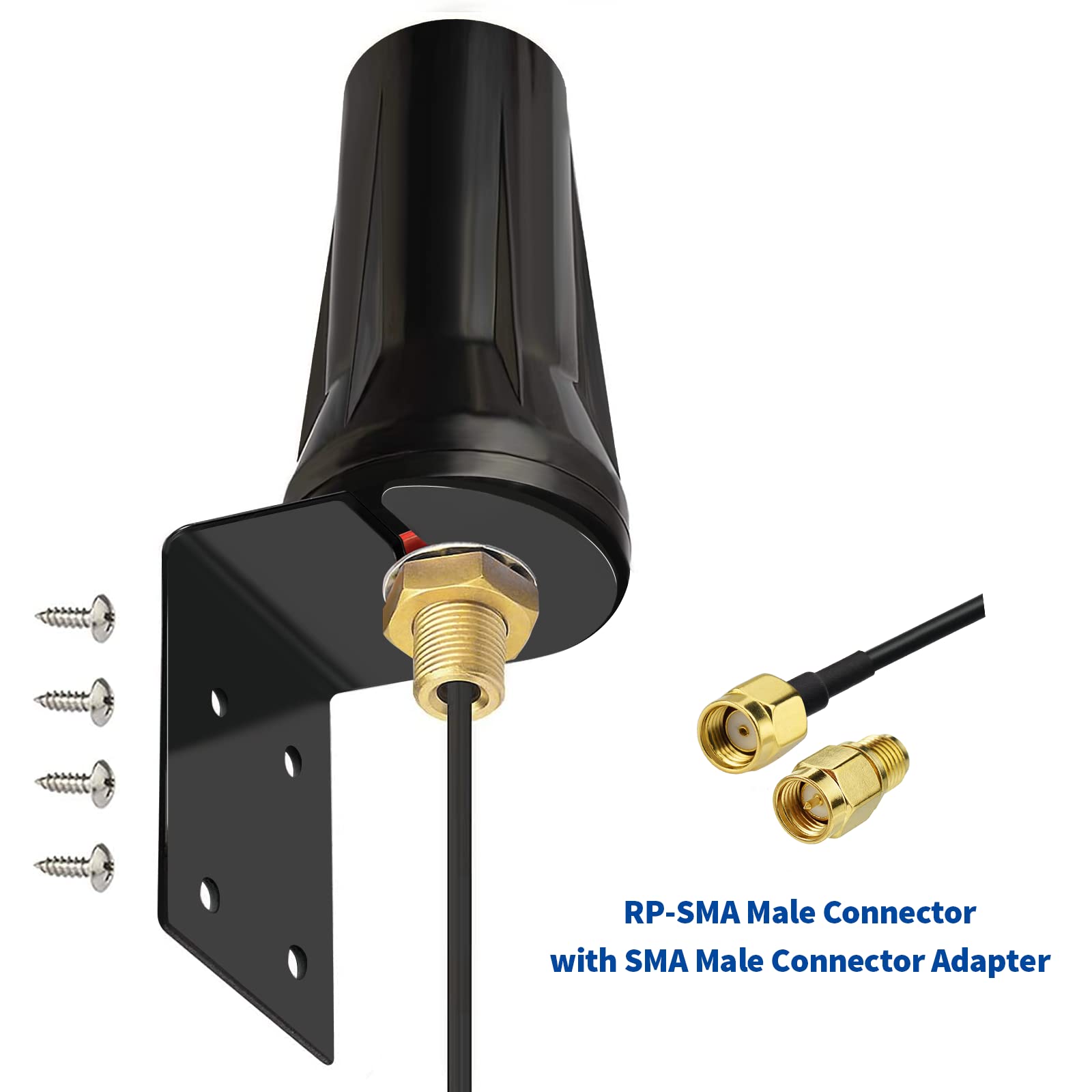

Package List: 1 x Antenna, 1 x SMA Male Connector Adapter, 1 x Wall Mount Bracket, 4 x Screws (As the Picture Shown);

  • Compatible with 4G LTE Cellular Trail Camera, Game Camera, Wildlife Hunting Camera, Outdoor Security Camera, Celluar Surveillance Camera;
