Description
Specifications:
Gain: 3dBi
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
VSWR: <2.0;
Polarization: Linear Vertical;
Impedance: 50 ohm;
Direction: Omni-directional;
Feature: Fixed Wall Mount; Thru Hole Mount;

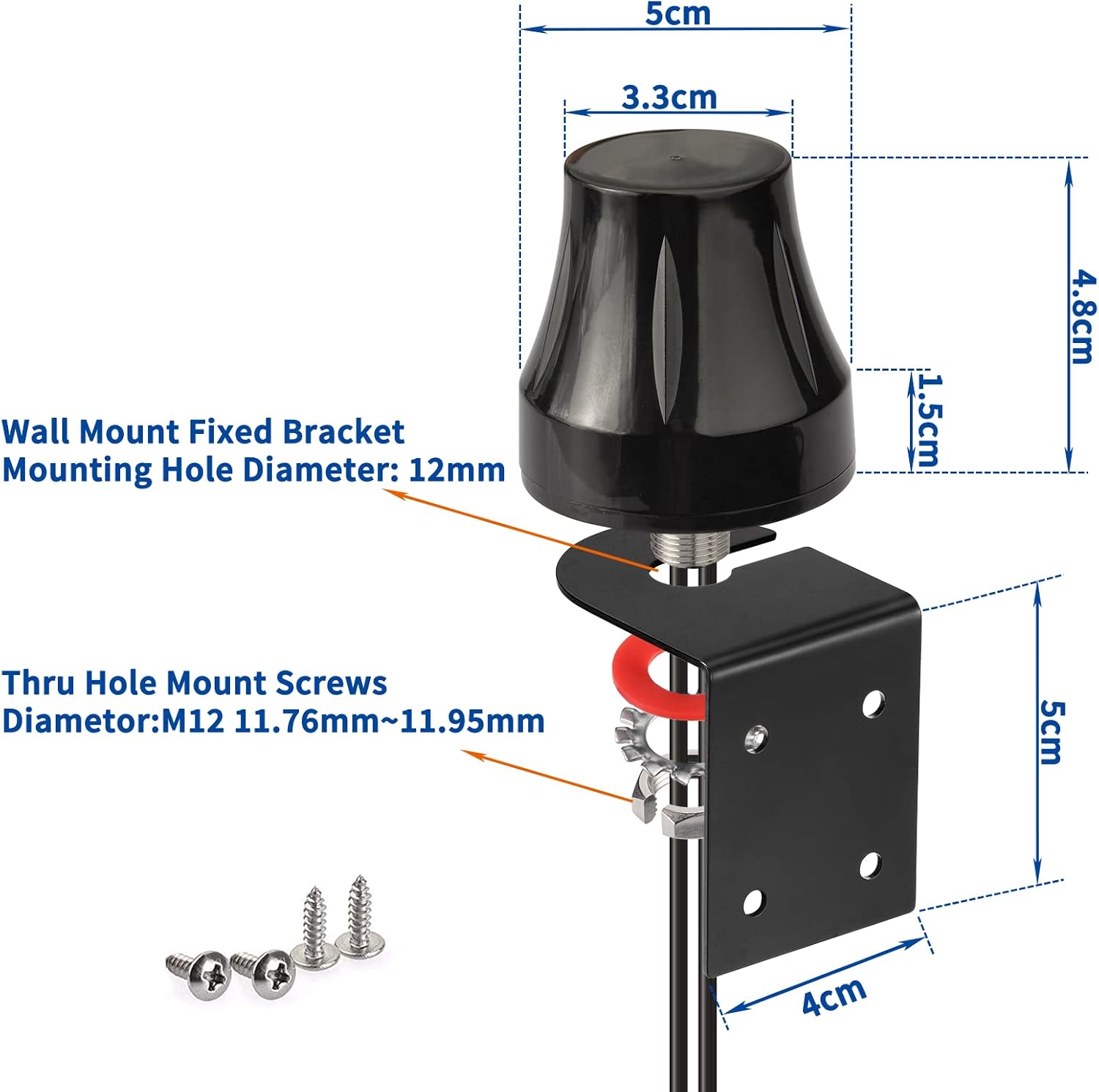

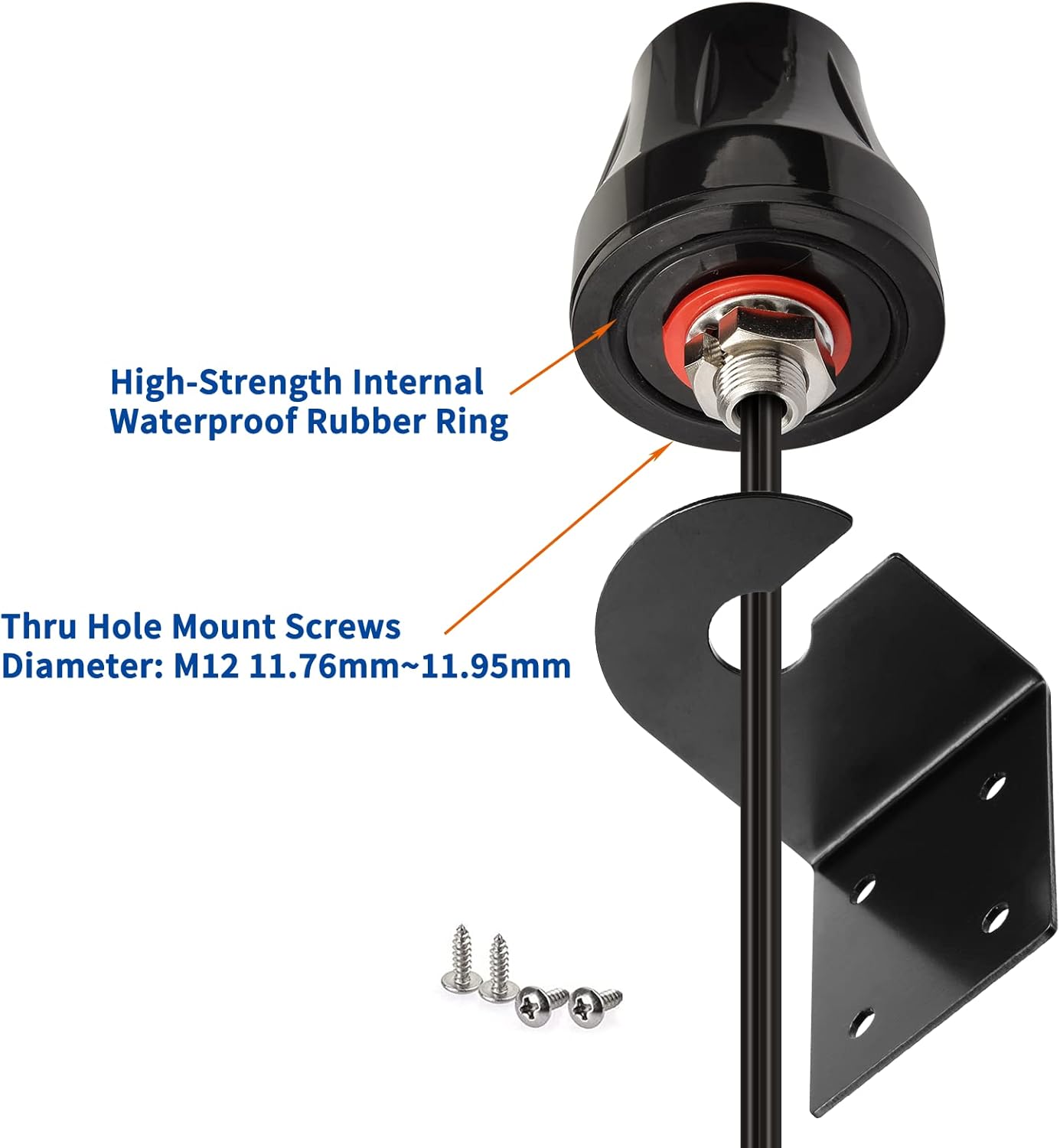

Antenna Mounting Screws Diameter: M12 (Hole Diameter: 11.76mm-11.95mm);

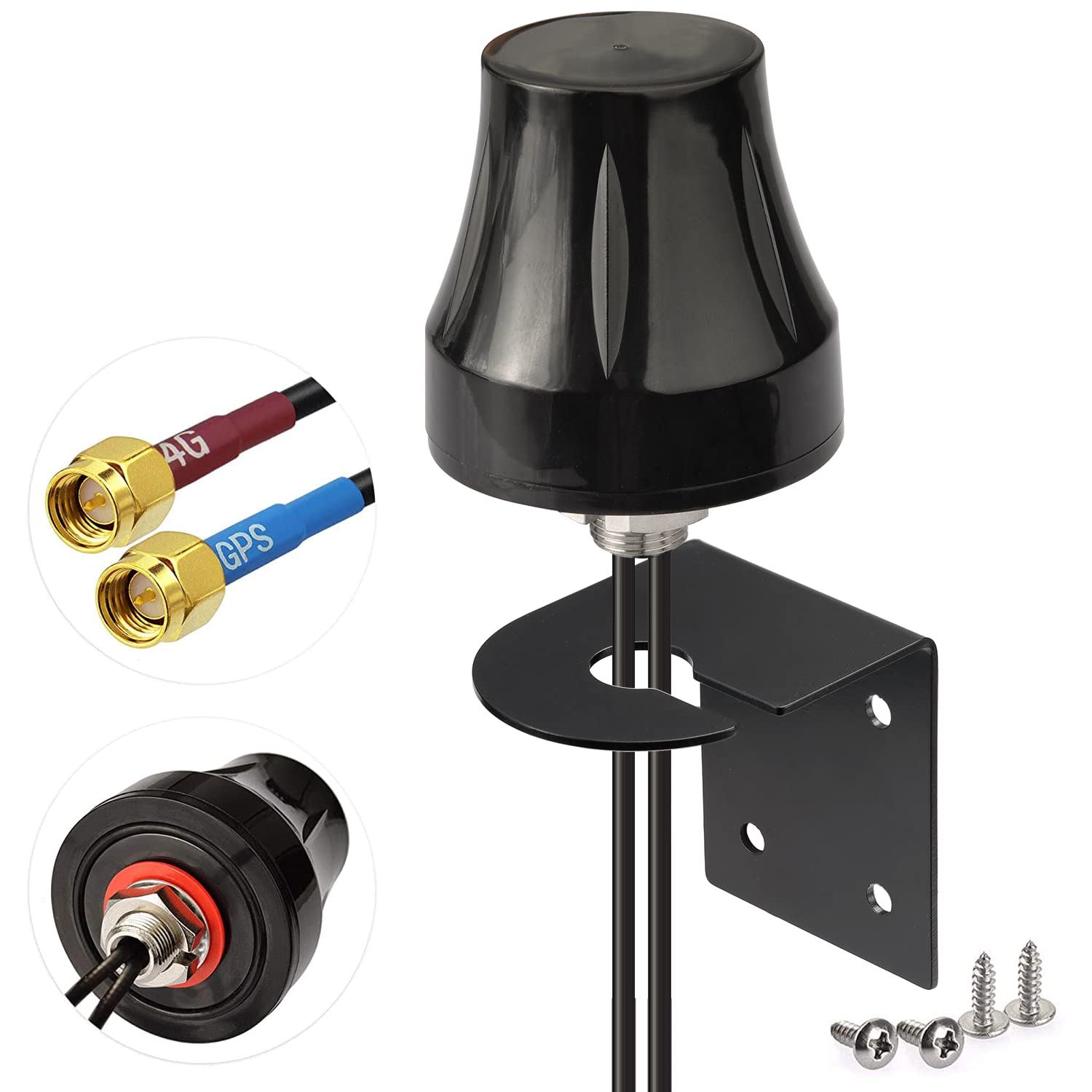

Connector: Dual SMA Male Connector;
Cable Length: 3m / 10 feet;
Net Weight: 265g;
Waterproof: Rainning Proof;
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С

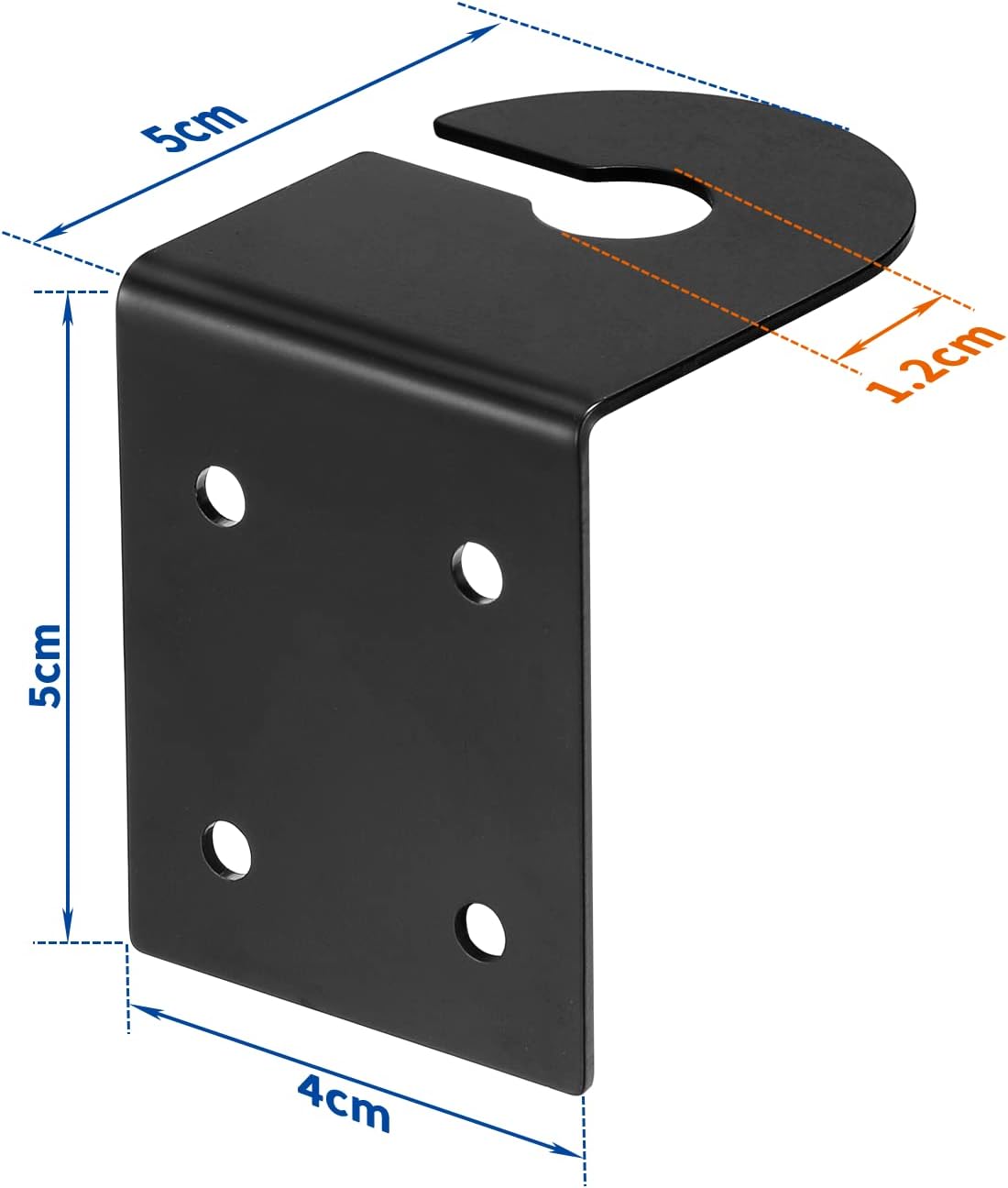

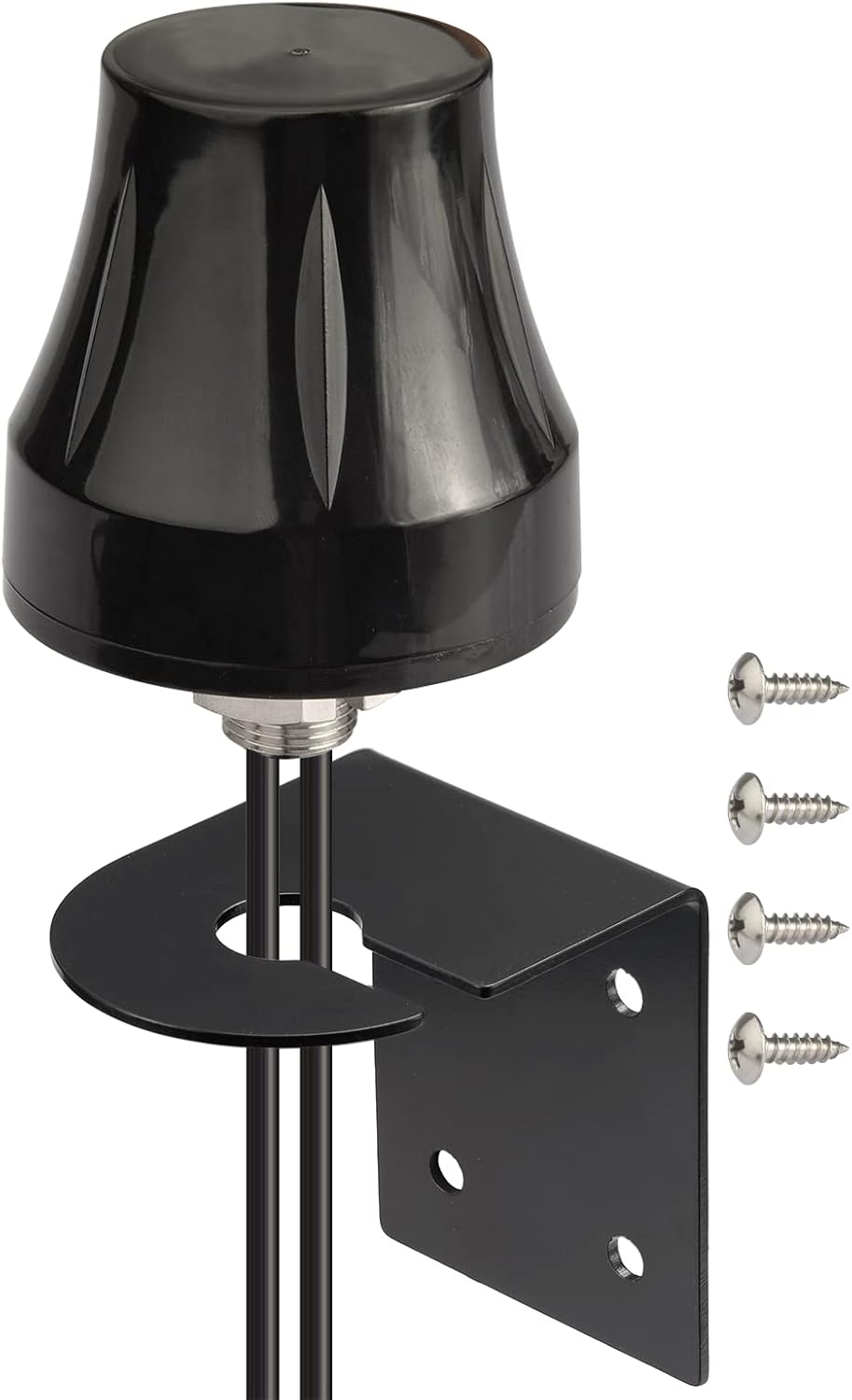

Package List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 4 x Self-tapping Screws (As the Picture Shown);
Compatible with:
4G LTE Mobile Router, Mobile Broadband Modem Hotspot, CPE Router, Cellular Gateway;
4G LTE Cellular Security Camera, Celluar Surveillance Camera;
Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder;
Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert;
Product Overview
- Antenna: Cellular
- Brand: BINGFU
- Color: 4G Antenna with Dual SMA Male Connector
- Number of Channels: 2
- Impedance: 50 Ohm
- Maximum Range: 10 Feet
- Manufacturer: Bingfu
- Number of Items: 5
Product Features
- Compatible Carrier Network: Verizon, AT&T, T-Mobile, Sprint and etc; Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz; Gain: 5dBi; Direction: Omni-directional; Waterproof: Rainning Proof; Feature: Fixed Wall Mount; Thru Hole Mount; Antenna Mounting Screws Diameter: M12 11.76mm-11.95mm; Cable Length: 3m/10 feet; Connector: SMA Male Connector;
- Package List: 1 x Antenna, 1 x Wall Mount Bracket, 4 x Self-tapping Screws (As the Picture Shown);
- Compatible with 4G LTE Mobile Router, Mobile Broadband Modem Hotspot, CPE Router, Cellular Gateway, Vehicle Car Truck RV Bus Van Mobile Cellular;
- Compatible with 4G LTE Cellular Security Surveillance Camera; Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder;
- Compatible with Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert;
Product Information
| Product Dimensions | 4.72 x 6.69 x 1.57 inches |
| Item Weight | 4.9 ounces |
| Manufacturer | Bingfu |
| ASIN | B08TH35CGQ |
| Country of Origin | China |
| Item model number | BFN00568 |
| Customer Reviews | |
| Best Sellers Rank | |
| Date First Available | January 20, 2021 |
