Description
Product Features
- Stable Navigation: Experience satellite tracking with simultaneous BeiDou and GPS reception; Supports 1561 MHz BD and 1575 MHz GPS frequencies for stable navigation
- Enhanced Signal:High gain amplifier and ultra low noise design significantly boost weak satellite signals; Ensures quick location fixes and consistent connection
- All Weather Design:Built tough for your adventures with waterproof enclosure rated IP65; Performs flawlessly from scorching heat 85 degrees C down to freezing cold minus 40 degrees C

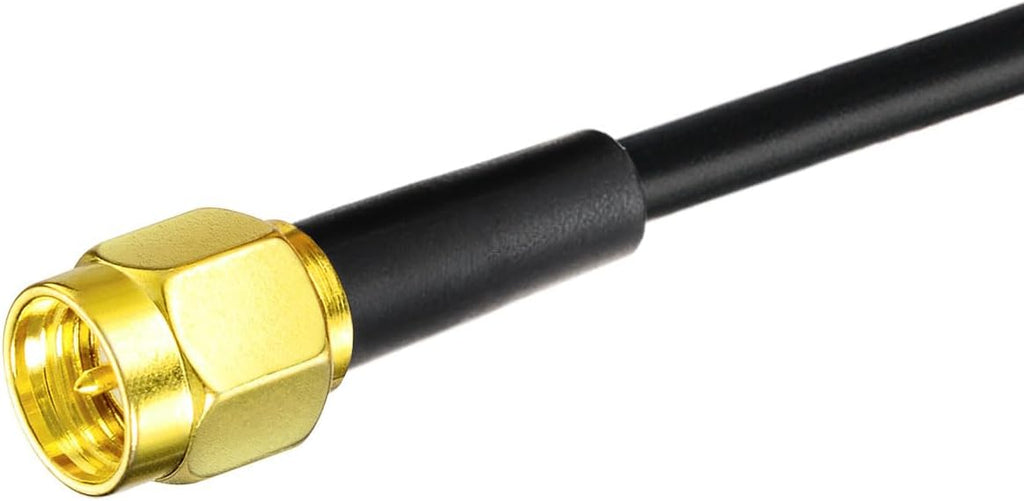

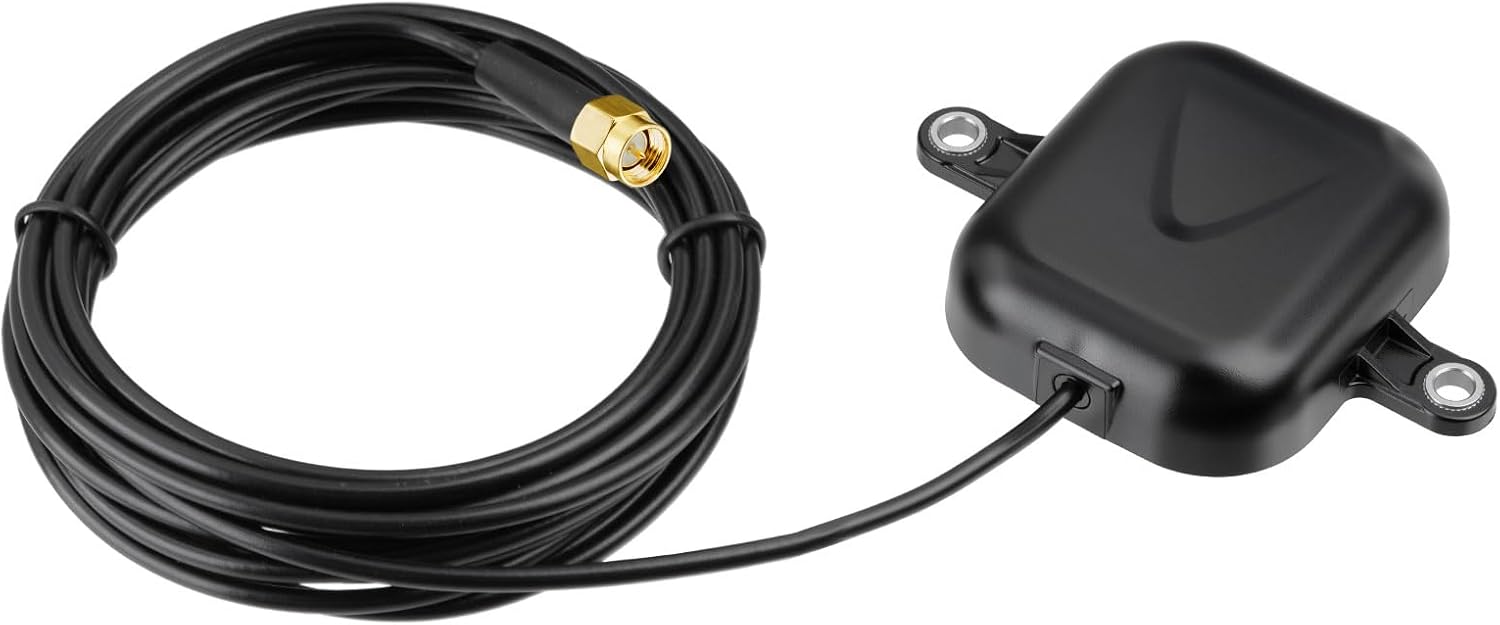

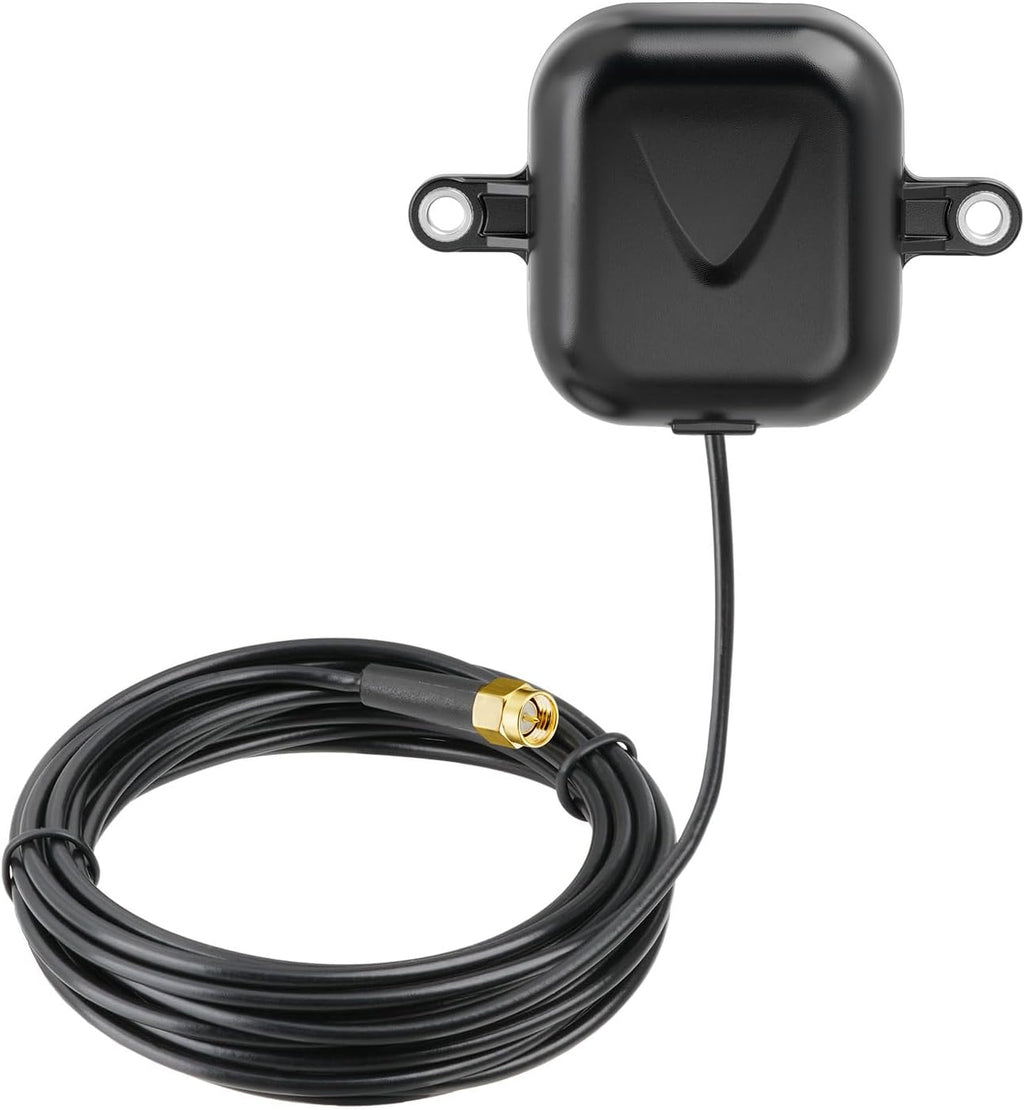

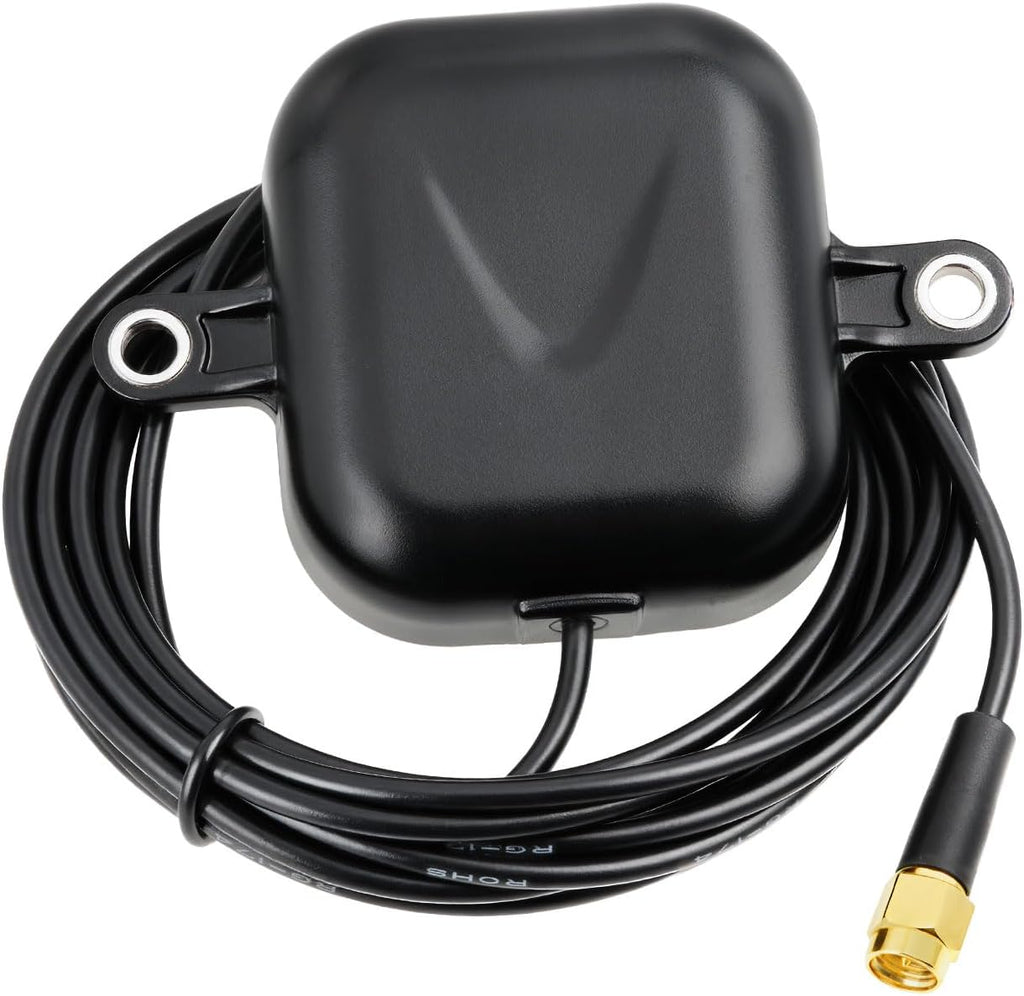

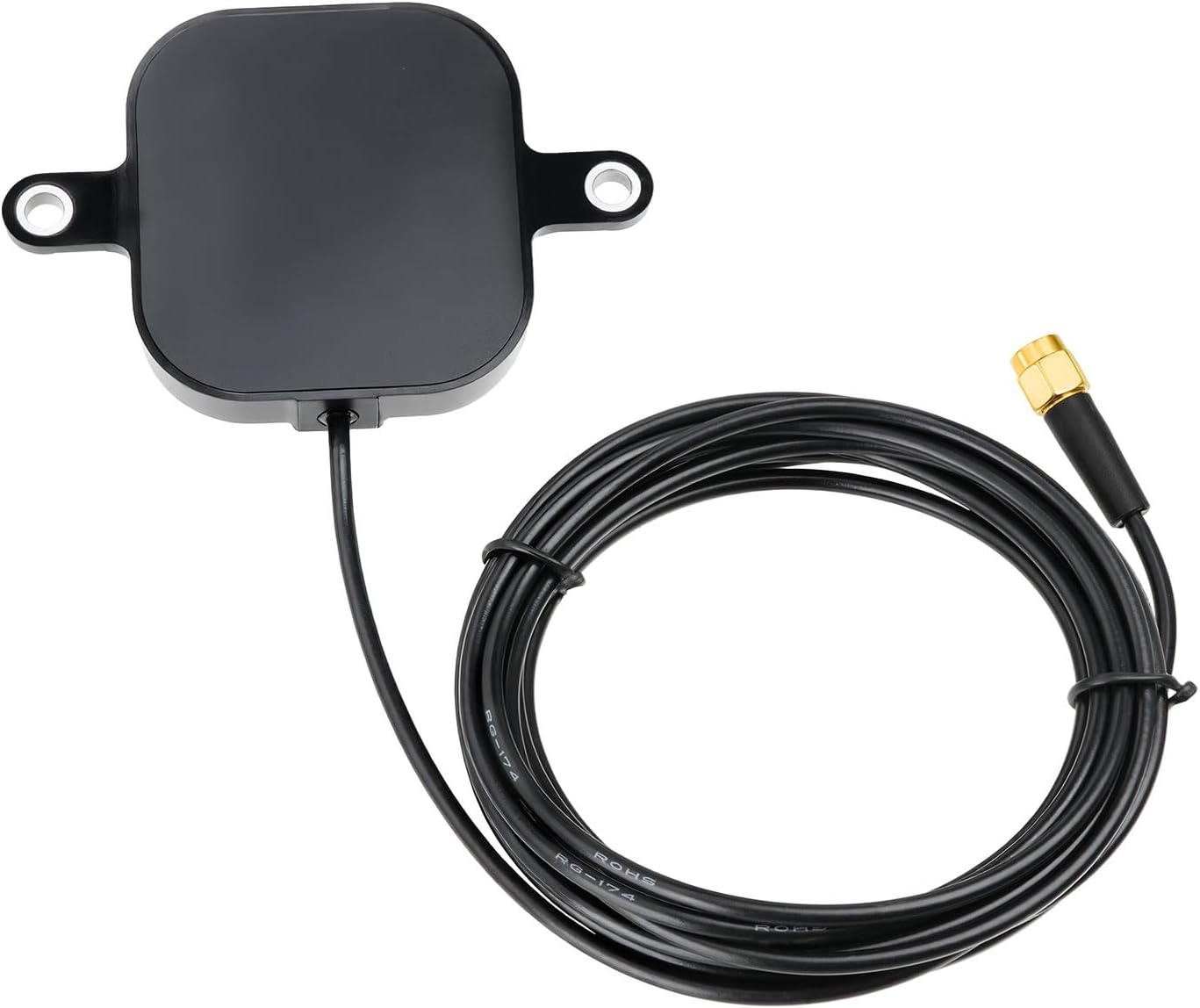

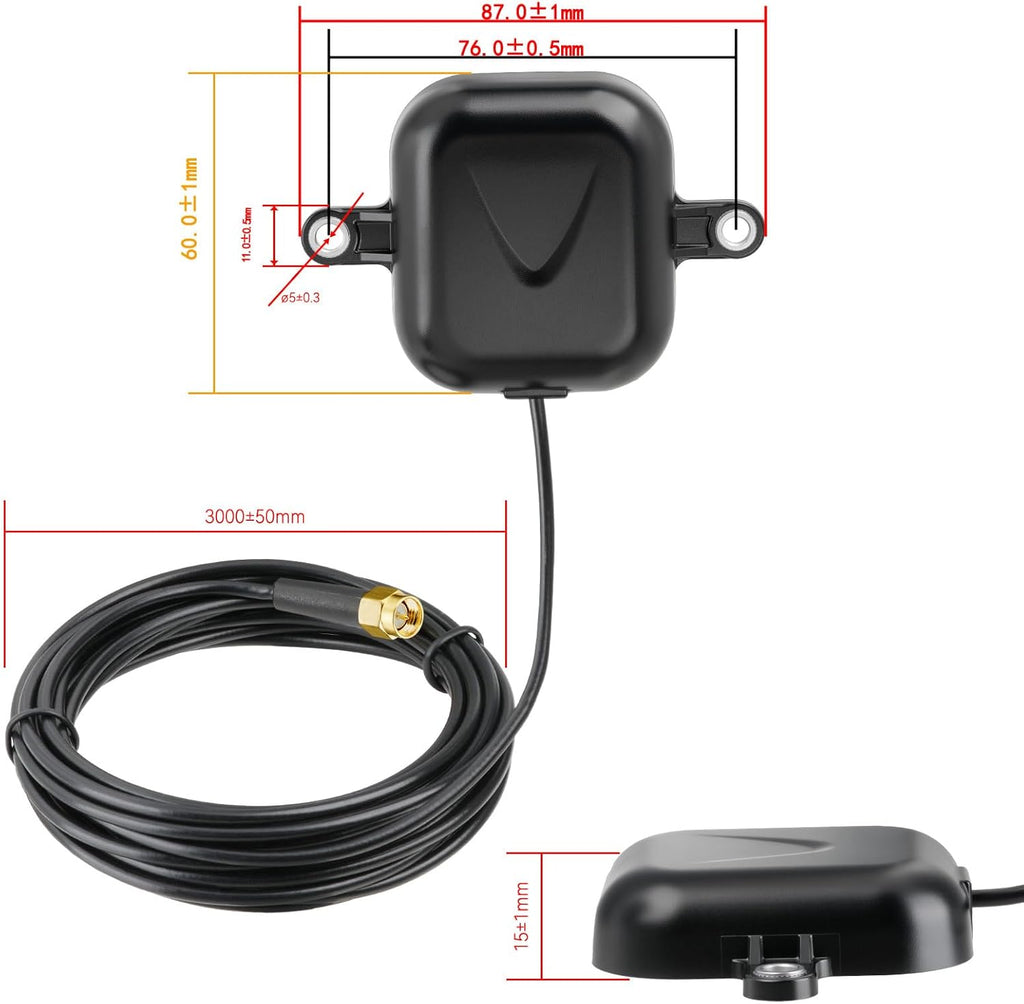

- Easy Plug and Play Setup:Install instantly using the included long 10 ft RG174 cable with SMA male connector; Low power draw under 30 mA at 3.3 V means hassle free integration with your navigation device
- Optimized For Vehicle Use:Horizontally mounted antenna design delivers excellent satellite signal reception; Superior build quality with vibration resistance ensures long lasting performance on any road
-
Specification:
BeiDou: 1561.098±2.046MHz
GPS: 1575.42±1.023MHz
Bandwidth: >5MHz
Gain: 4.5dBic (zenith-mounted)
VSWR: ≤2.0
Polarization: Right-Hand Circular (RHCP)
LNA Specifications:
Gain: 28dB
Noise Figure: <1.5dB
Operating Voltage: 3.0-3.6V DC
Current Consumption: ≤30mA @3.3V
