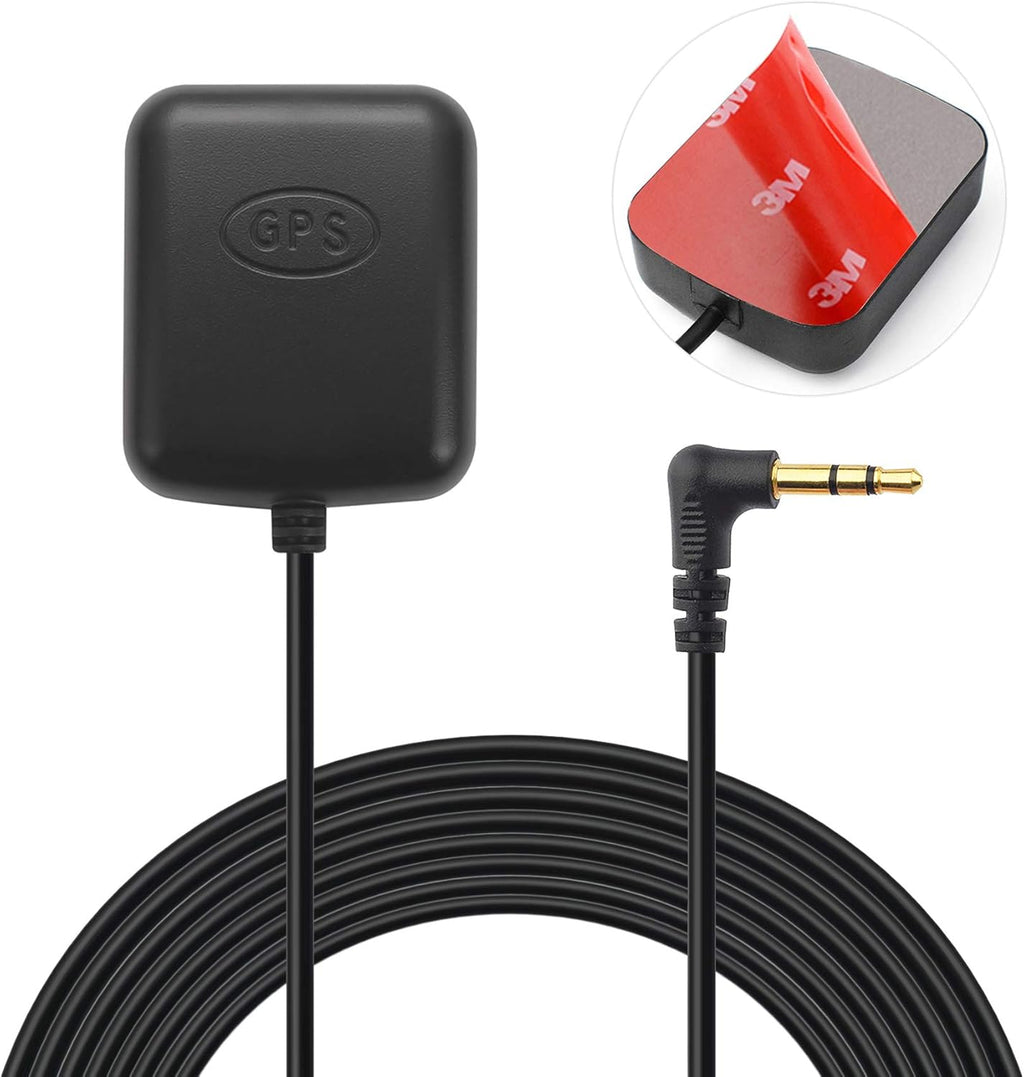

Bingfu Car Dash Cam GPS Antenna 3.5mm Plug - Waterproof Hidden Adhesive Mount for Dashboard Camera, Video DVR Recorder, GPS Tracker Receiver, Enhance Signal Vehicle Accessory

Product Overview

• Antenna: GPS Antenna for Car Dash Cam
• Brand: BINGFU
• Color: Black
• Impedance: 50 Ohm
• Product Dimensions: 5.1"L x 7.1"W x 0.6"H
• UPC: 790404674531
• Manufacturer: Bingfu
• Number of Items: 1

Product Features

• Vehicle Waterproof Active GPS Navigation Antenna with 3.5mm Audio Connector for Car Truck SUV Windshield Mirror Dash Camera Cam Vedio Surveillance Monitoring DVR Recorder GPS Tracker Receiver
• Frequency: GPS 1575.42MHz; LNA Gain: 28dB;
• Feature: Adhesive Mounting;

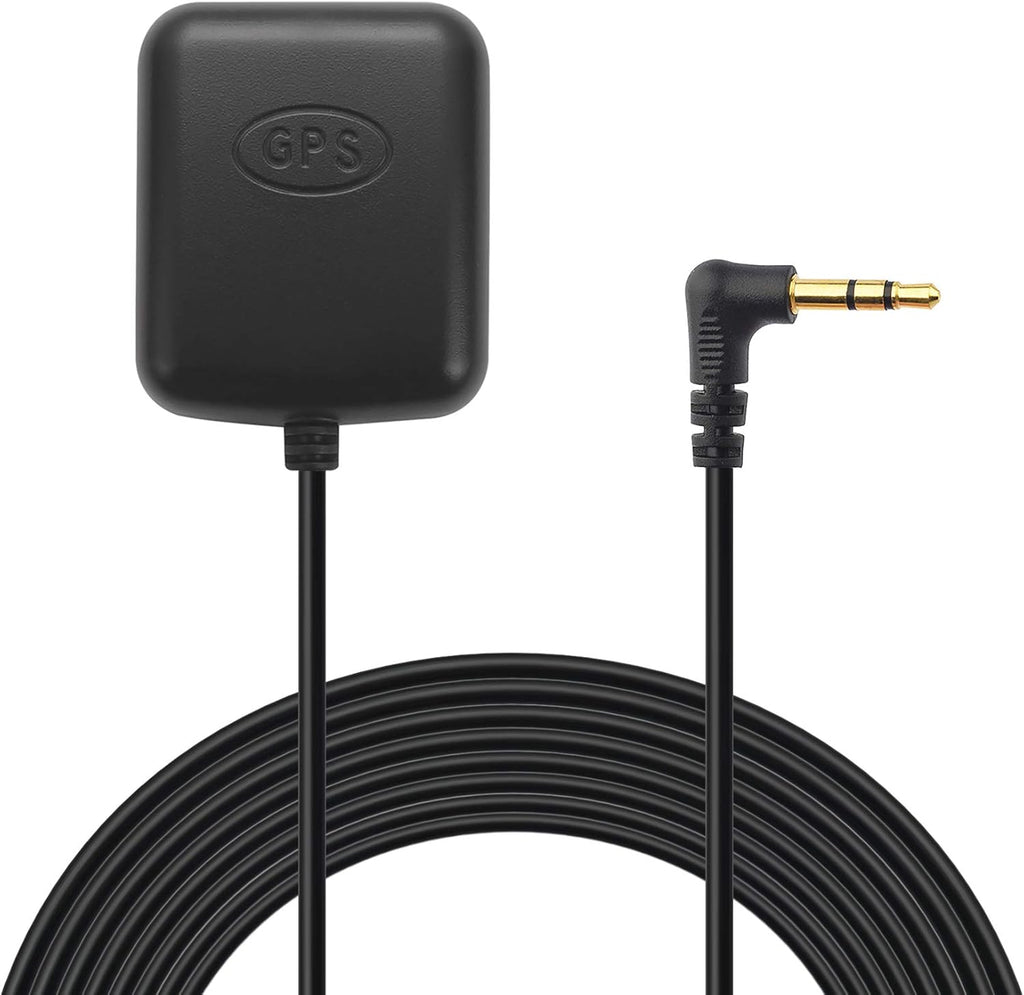

• Cable Length: 6 feet; Connector: 3.5mm Audio Plug Connector;
• Package List: 1 x Antenna (As the Picture Shown)


• Specifications:

  1. Dielectric Antenna



  • Center Frequency: 1575.42MHz ±3MHz
  • V.S.W.R: 2:01
  • Bandwidth: ±5 MHz
  • Impedance: 50
  • Peak Gain: > 3dBic based on 7x7cm ground plane
  • Gain Coverage: > -4dBic at -90 < 0 < 90 (over 75 volume)
  • Polarization: RHCP



  2. LNA/Filter



  • LNA Gain Without cable: 28dB Typical
  • Noise Figure: 2.0dB
  • Filter Out Band Attenuation: (f0=1575.42MHz)
  • 7dB Min f0+/-20MHz;
  • 20dB Min f0+/-50MHz;
  • 30dB Min f0+/-100MHz
  • V.S.W.R: < 2.0
  • DC Voltage: 3V to 5V
  • DC current: 7-10MA



  3. Overall



  • Frequency Range: 1575/1609MHz
  • V.S.W.R: 2.0
  • Gain: 30±3dBic
  • Impedance: 50 Ohm



  4. Mechanical



  • Weight: 60 gram

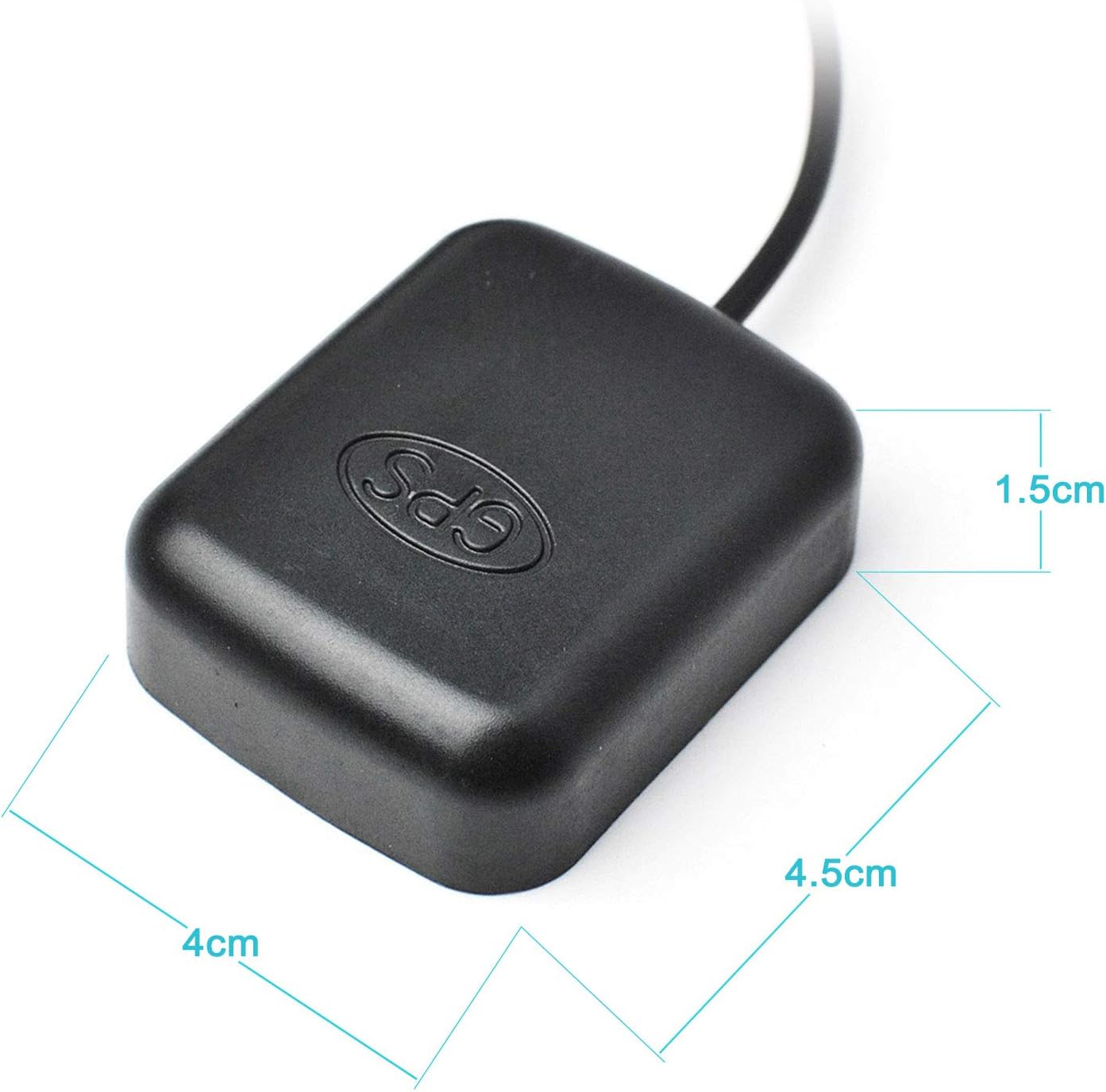

  • Size: 45x38x15mm

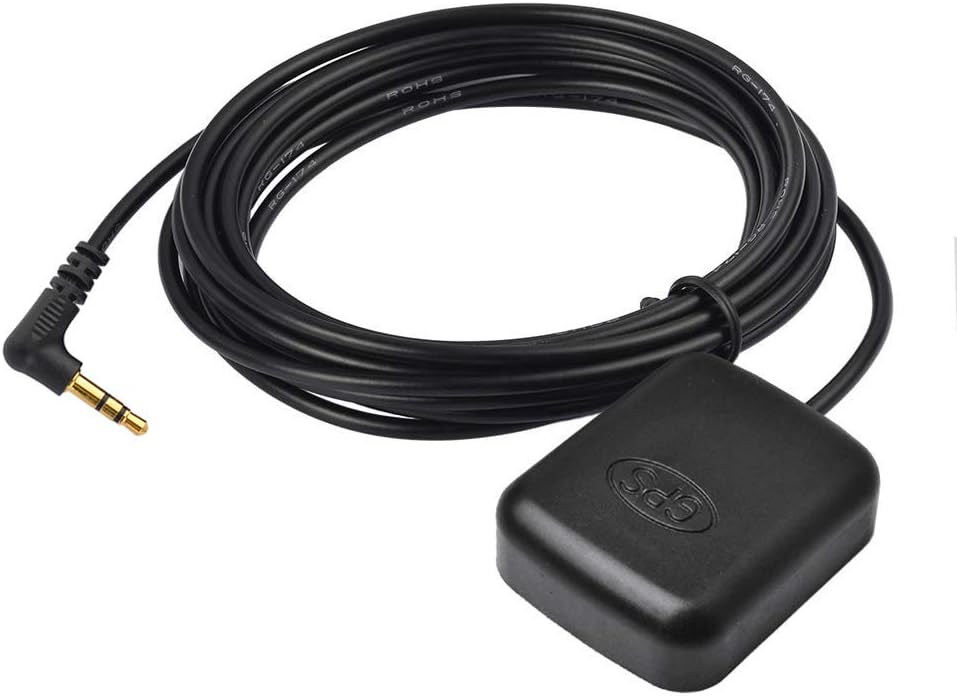

  • Cable: RG174
  • Length: 6 feet

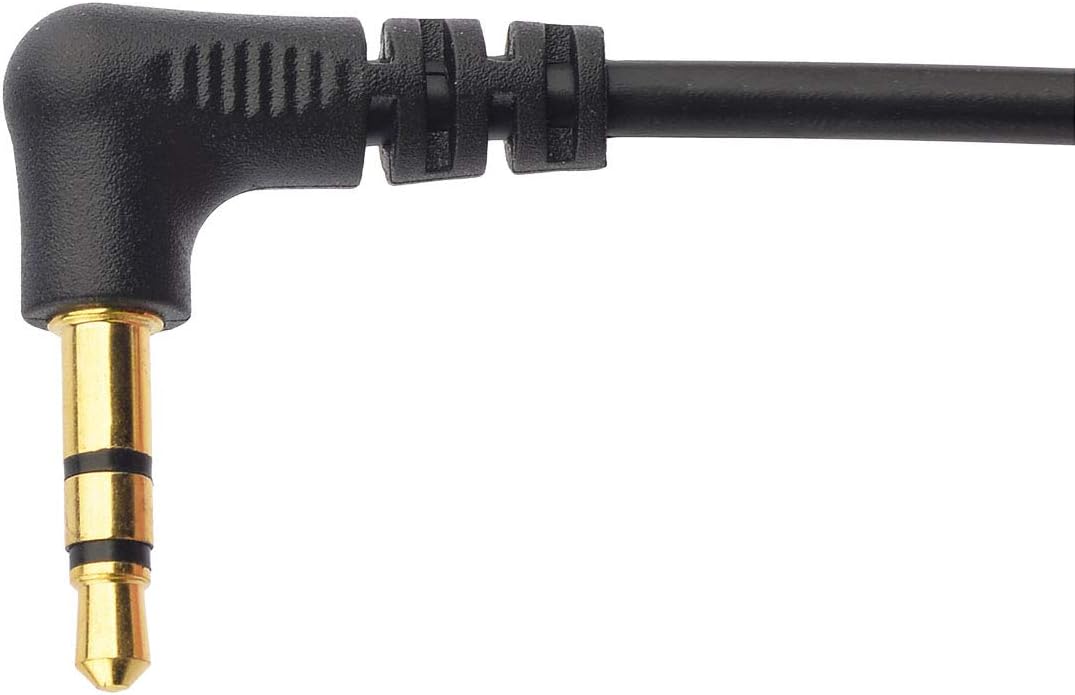

  • Connector: 3.5mm Audio Plug Connector;

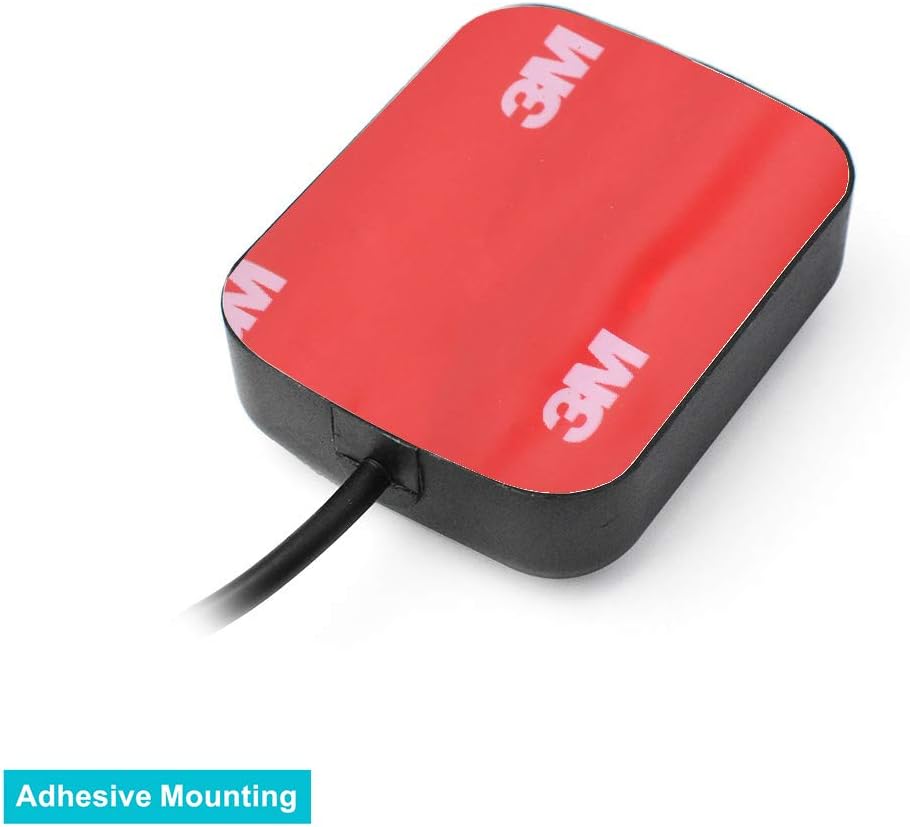

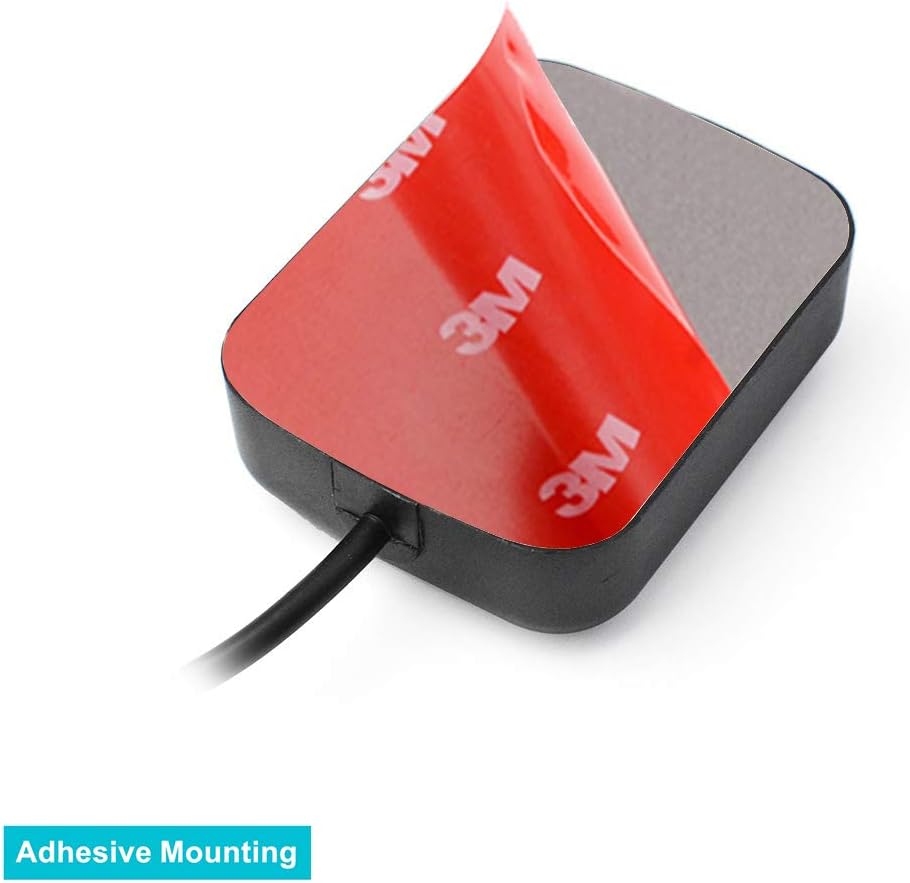

  • Mounting: Adhesive Mounting;
  • Housing: Black



  5. Environmental



  • Working Temp: -40 to 85℃
  • Waterproof test: 4 hours under the tap, let the water rush over the housing;
  • Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
  • Humidity: 95% ~ 100% R
  • Package List: 1 x Antenna (As the Picture Shown)
