Description
Product Features
- Dual-Band GPS/BeiDou + 4G Connectivity Solution: Supports GPS (1575.42 MHz) and BeiDou (1561 MHz) with RHCP polarization for accurate positioning; Integrated 4G module covers 800-960 MHz/1710-2700 MHz bands to enable global IoT and telematics applications
- 28dB High-Gain LNA for Stable Connectivity: Equipped with a low-noise amplifier (≤2.0dB NF) and ≤2.0 VSWR to minimize signal loss, ideal for weak-signal environments like dense urban or industrial sites

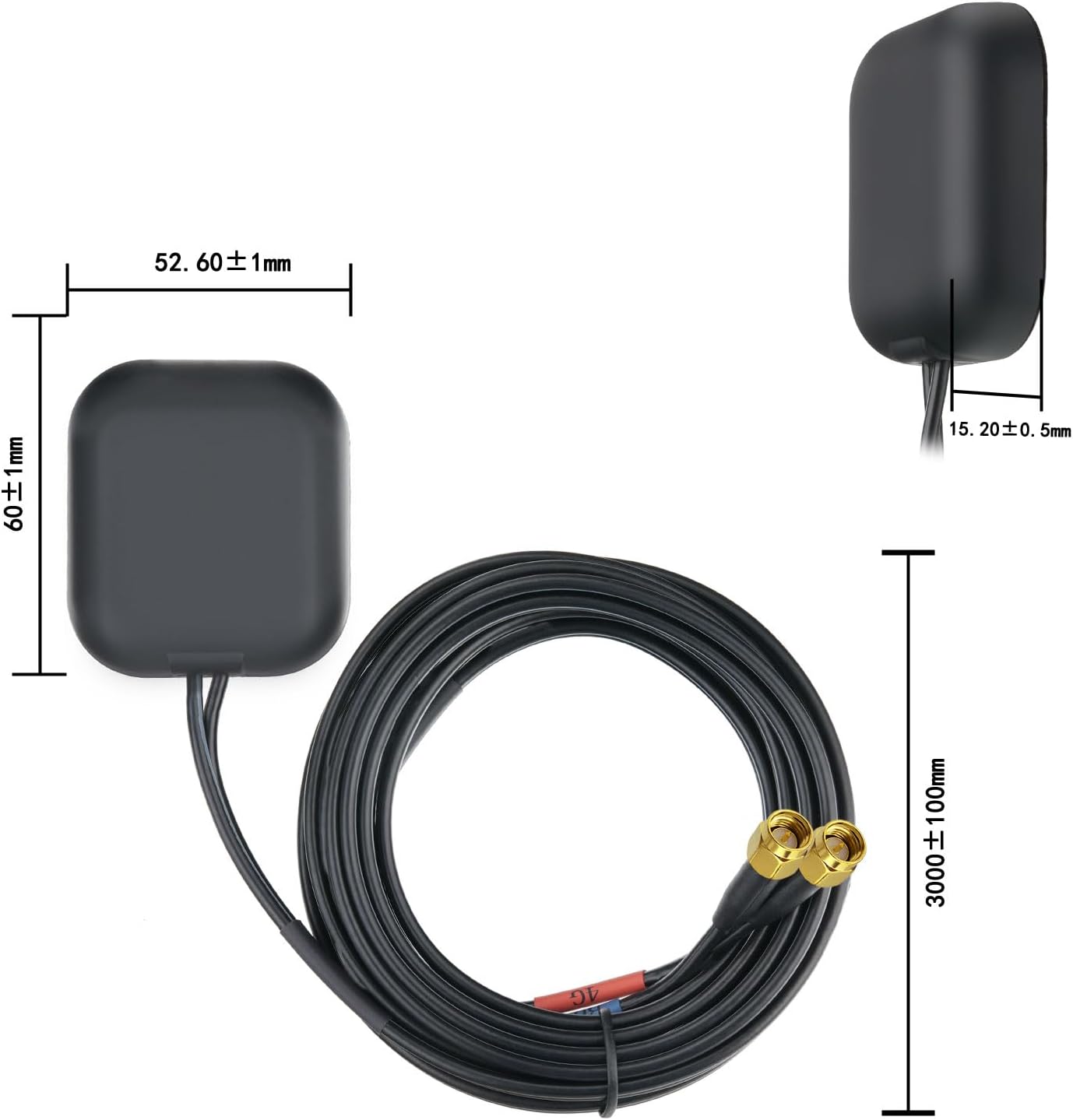

- Industrial-Grade Durability for Harsh Environments: Compact 60 x 52.6 x 16.5 mm design with IP65-rated housing; Operates in -40°C to +85°C temperatures and 95% humidity for automotive and outdoor use

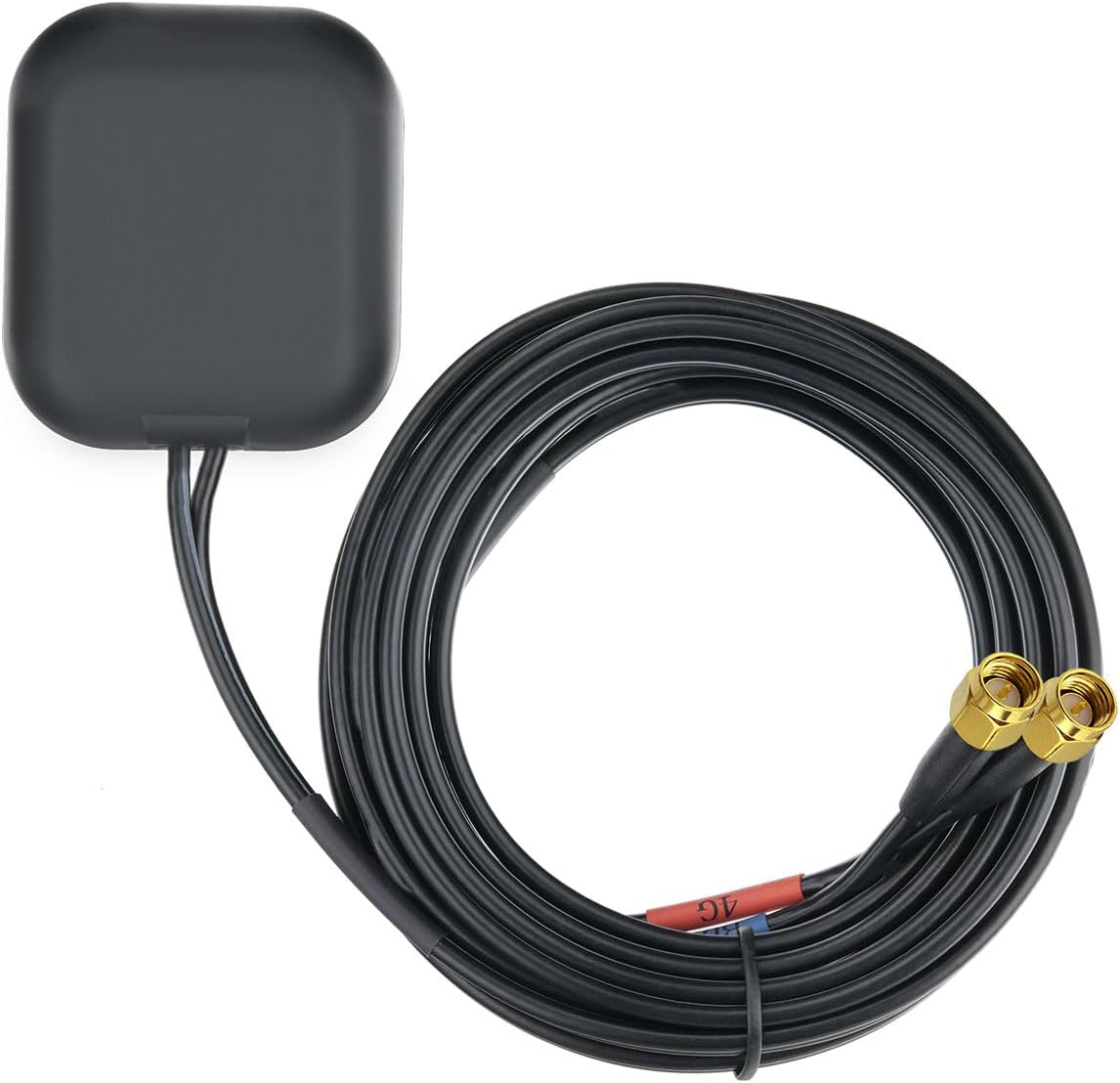

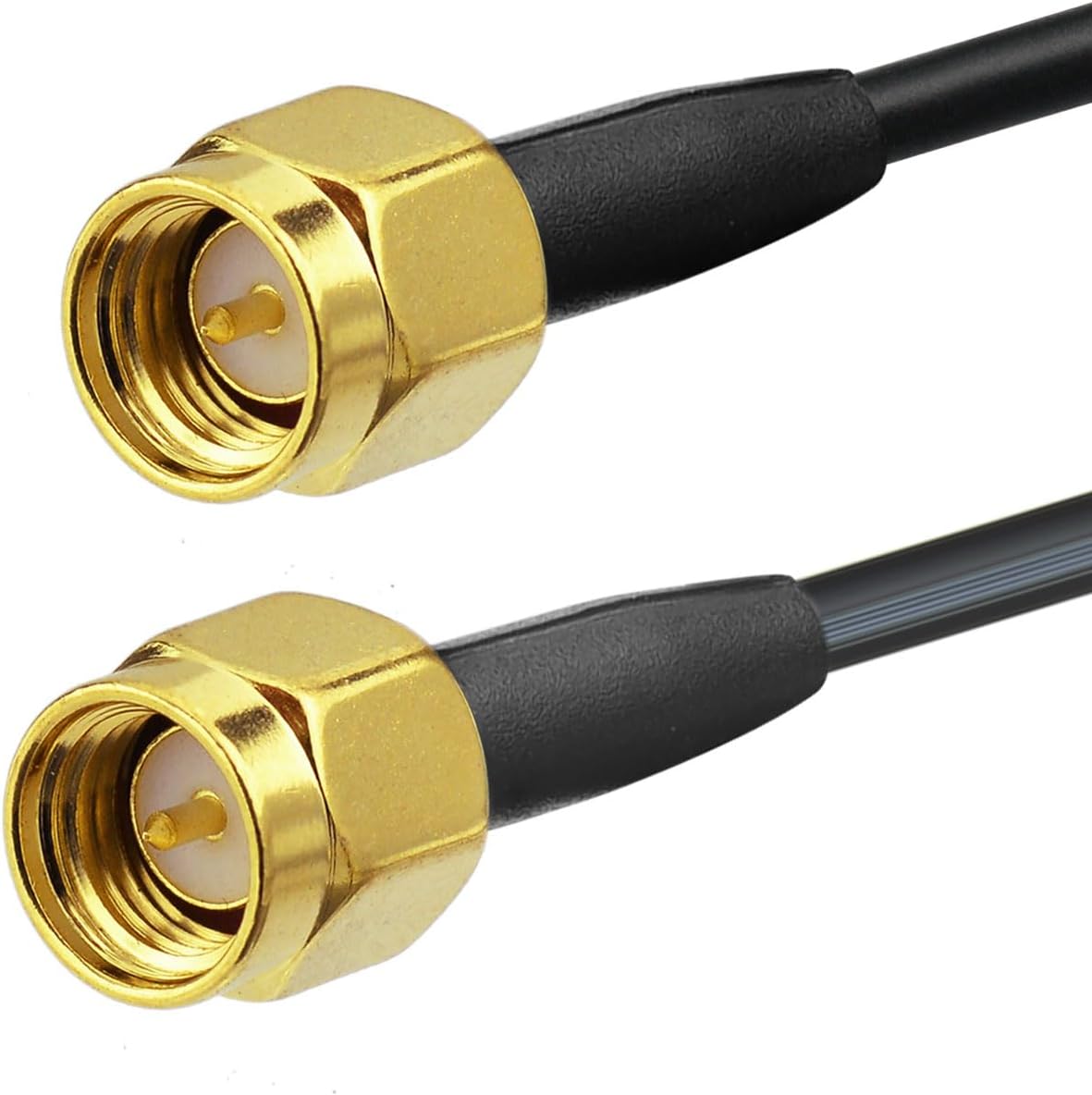

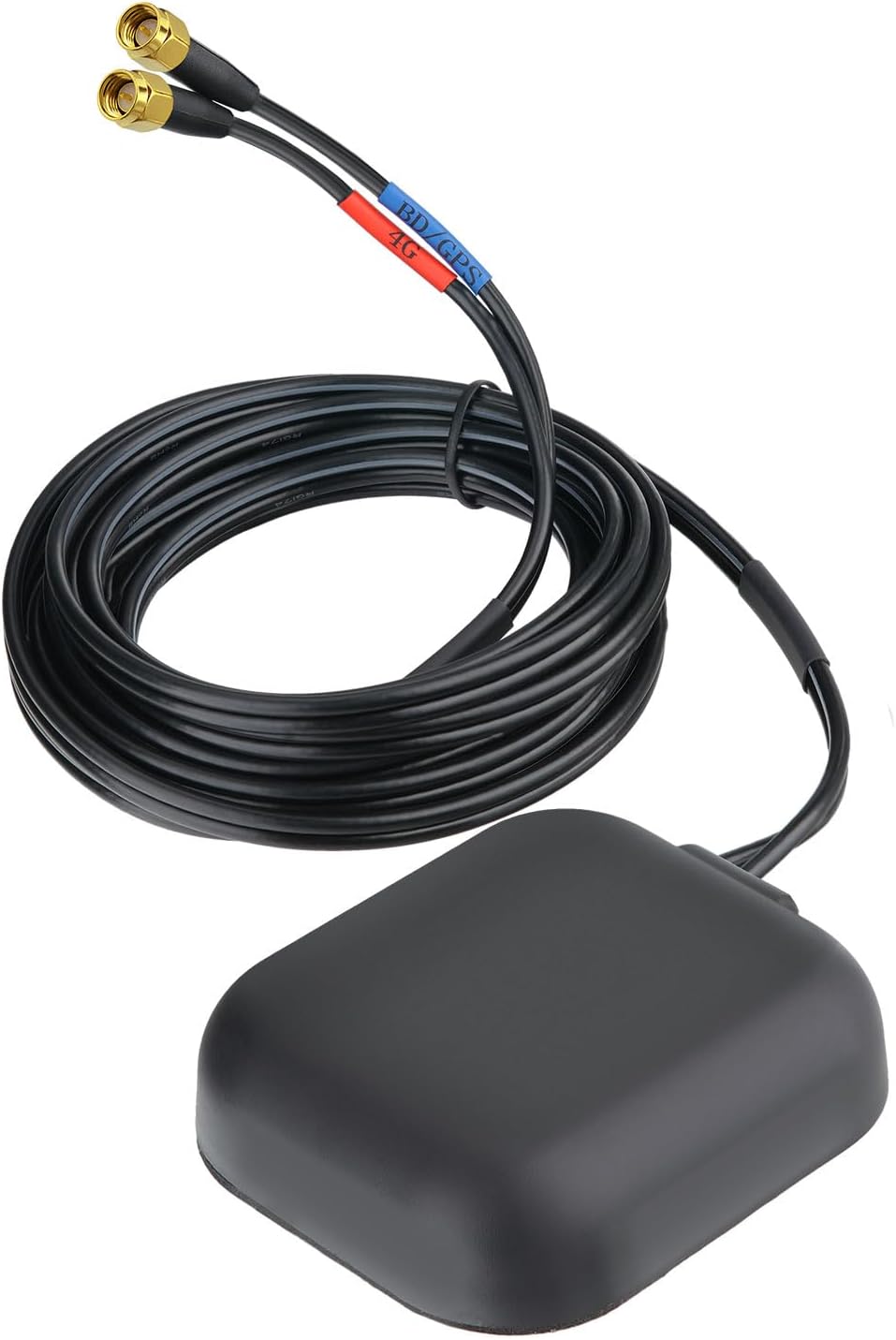

- Dual SMA Male Connectors & Flexible Installation： With 9.84ft/3m RG174 cable for seamless integration with IoT devices, telematics systems, and vehicles
- Global 4G Band Coverage: Operates on 800-960MHz (LTE Band 13/14) and 1710-2700MHz (4G LTE/5G) for worldwide compatibility in public safety, transportation, and industrial IoT
-
Specifications:
GPS/BeiDou Module:
Frequency: 1575.42±2.5MHz (GPS L1), 1561±2.5MHz (BeiDou B1)
Bandwidth: >10MHz
Gain: 3.0Bi (70x70mm patch)
VSWR: ≤2.0
Polarization: Right-Hand Circular (RHCP)
4G LTE Module:
Frequency Range: 800-960MHz & 1710-2700MHz
Impedance: 50±5Ω
VSWR: ≤3.0
Power Handling: 50W
LNA Specifications:
Gain: 28±2dB
Noise Figure: ≤2.0dB
Operating Voltage: 3.0-3.6V DC
Current Consumption: 8±3mA
RoHS/REACH compliant
Environmental Resilience:
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +90°C
Humidity: 0% to 95% (non-condensing)
