Description
Product Features
- Stable BeiDou and GPS Signals: Supports BeiDou at 1561 MHz and GPS at 1575 MHz for high accuracy positioning in automotive and IoT tracking; RHCP polarization provides stable signals in urban or obstructed areas; 28 dB gain with noise figure less than 1.5 dB ensures reliable performance; SAW filtering minimizes interference to enhance real time tracking

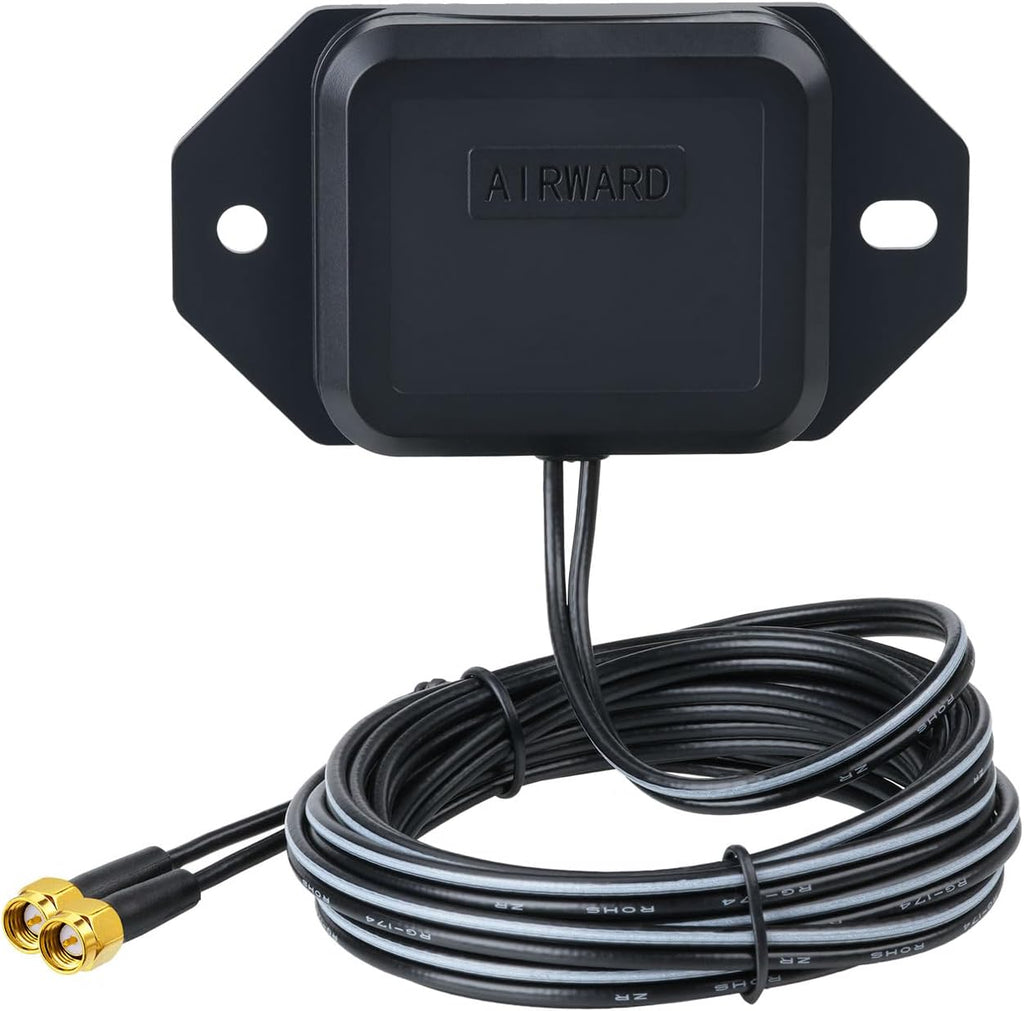

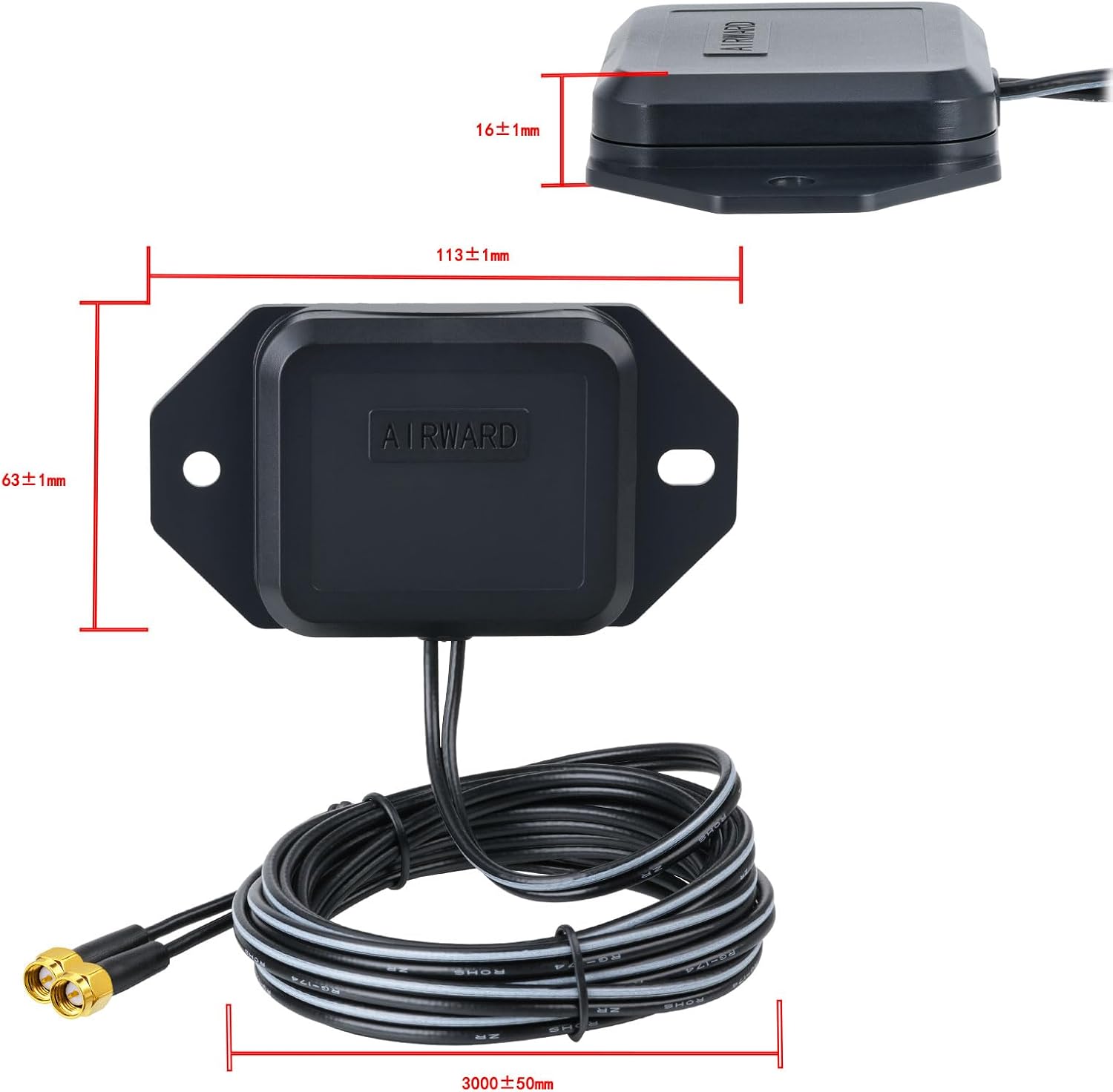

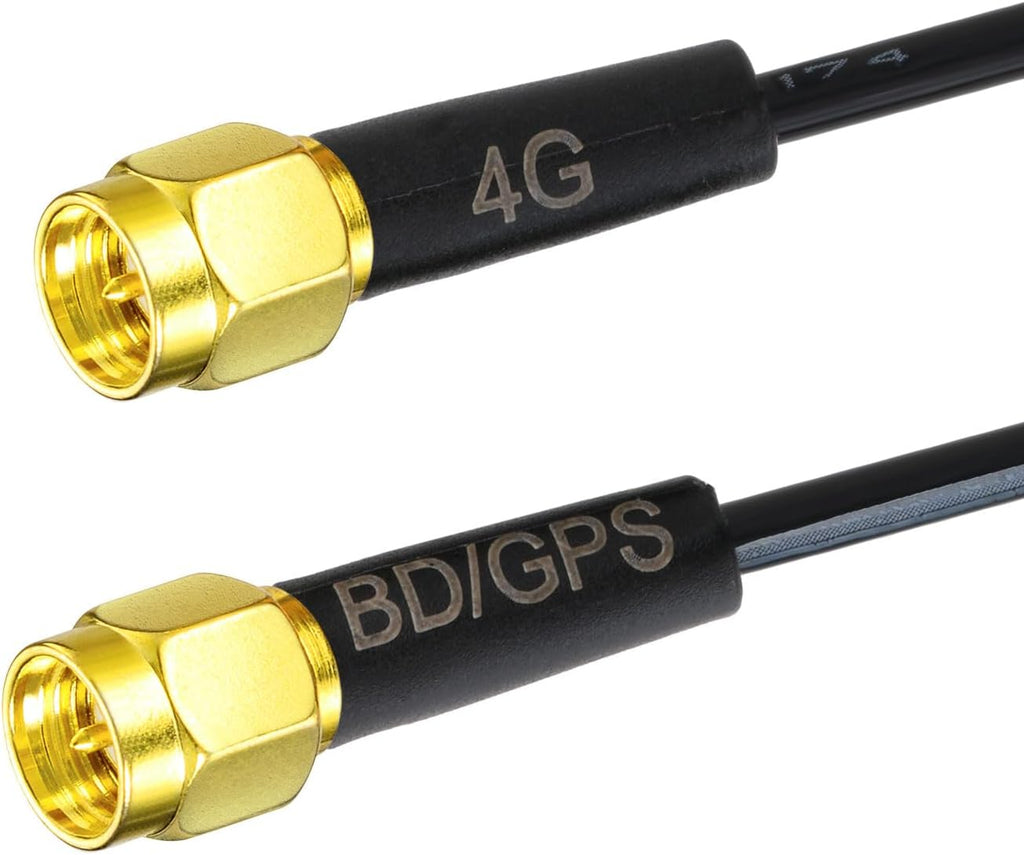

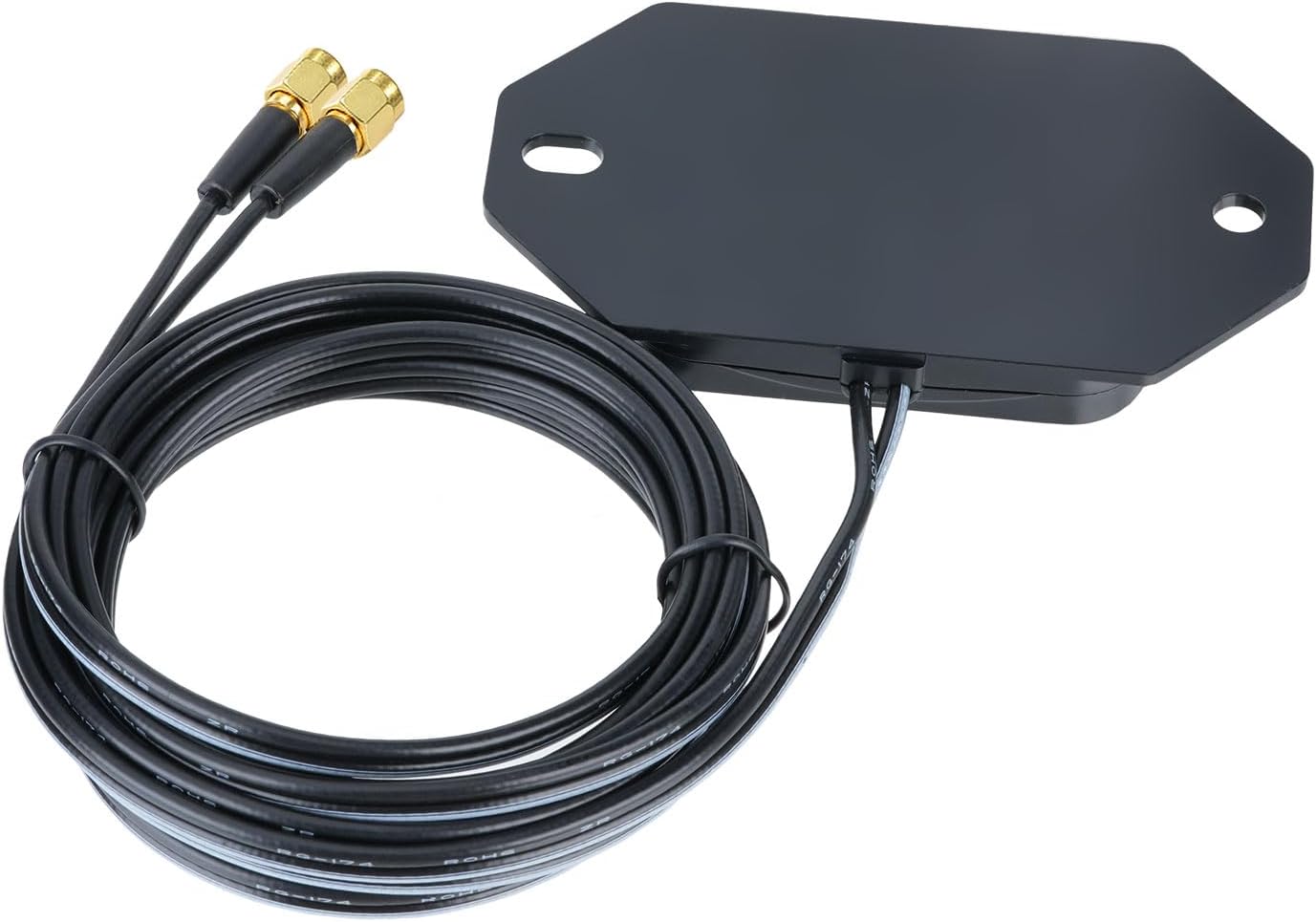

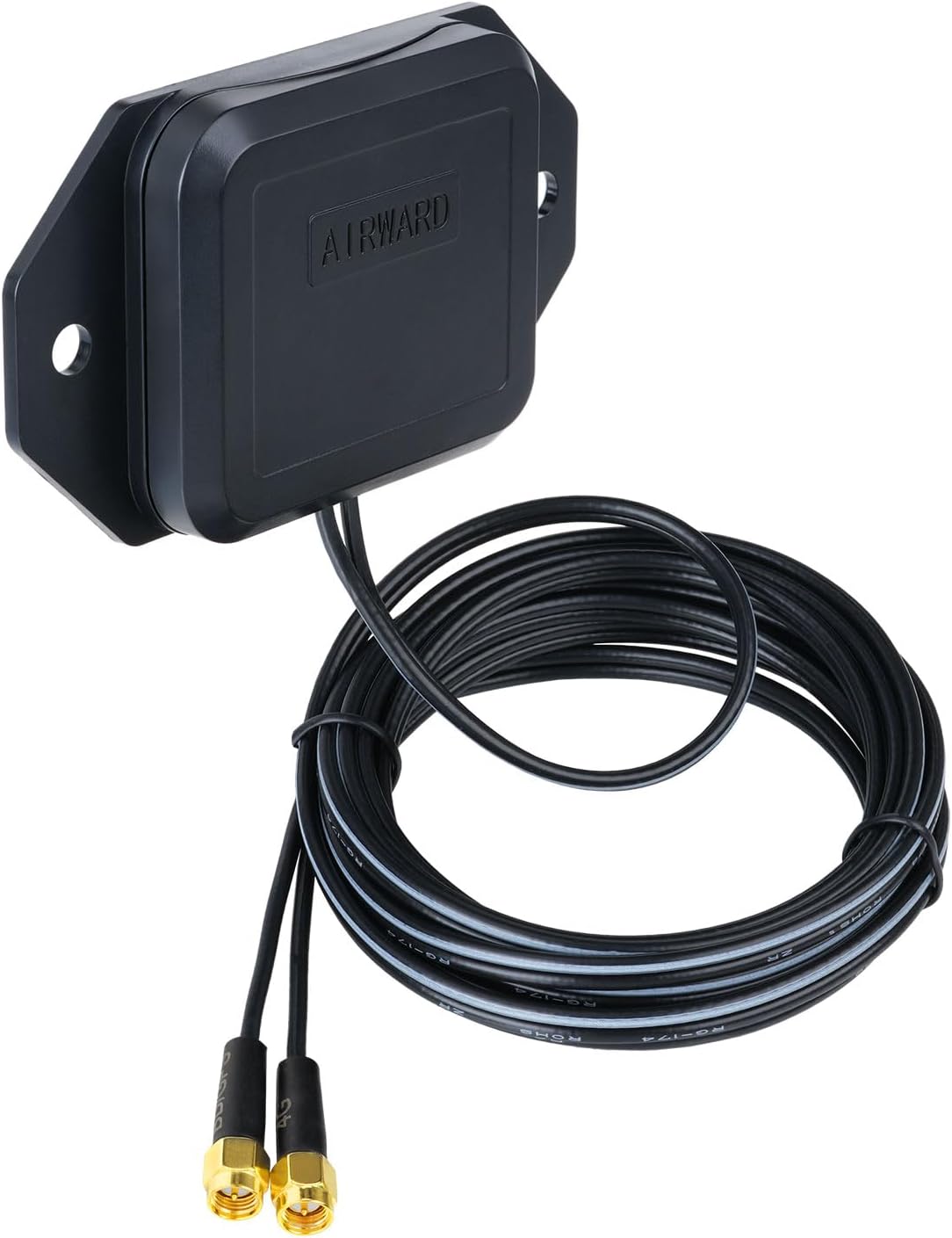

- 4G LTE Coverage:Operates in 824 to 960 MHz and 1710 to 2690 MHz bands for wide network connectivity; 2.5 dB gain improves data transmission for seamless 4G LTE communication; Includes 10 ft RG174 cable with SMA connector for easy plug and play setup in car or IoT devices

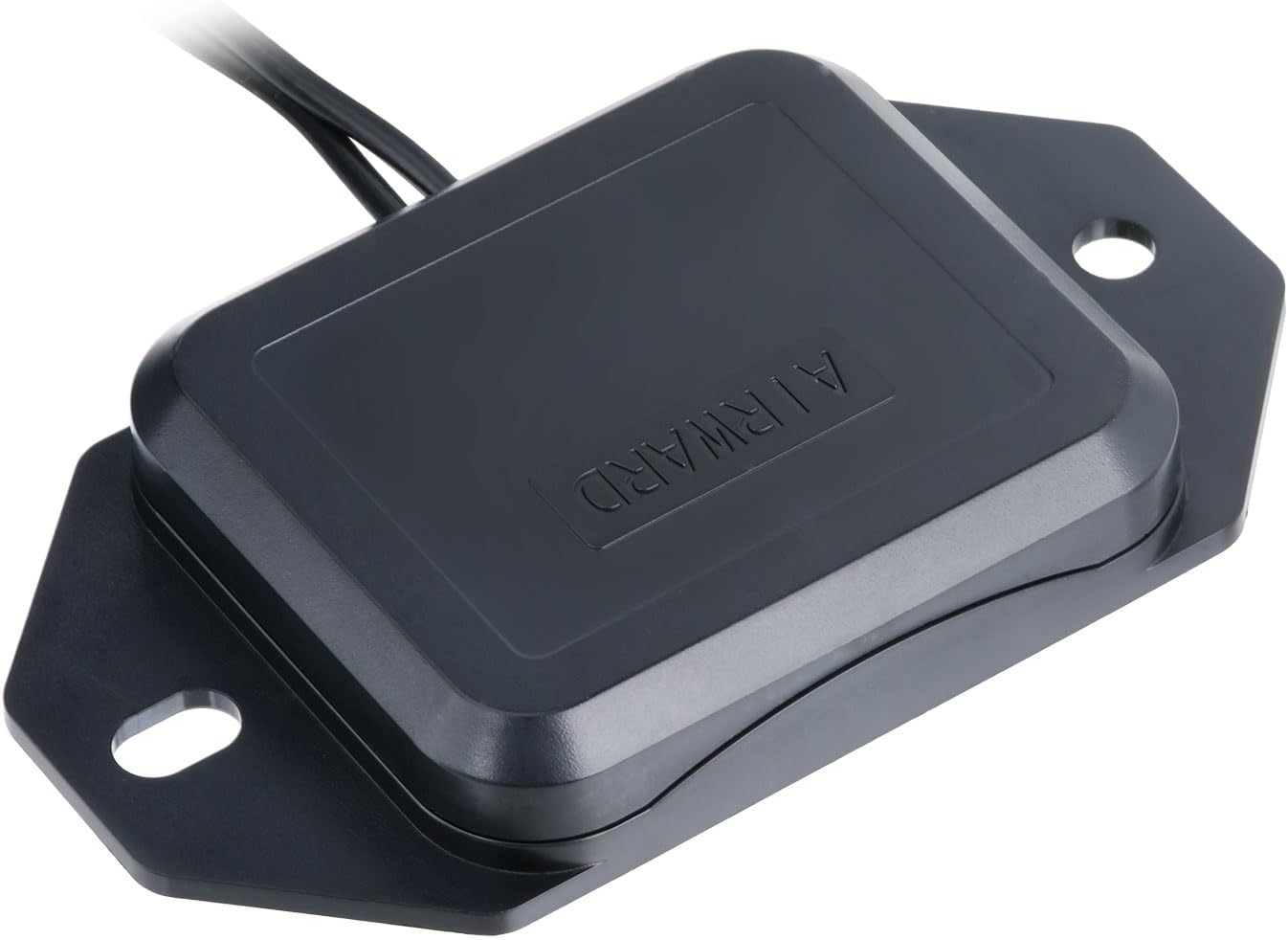

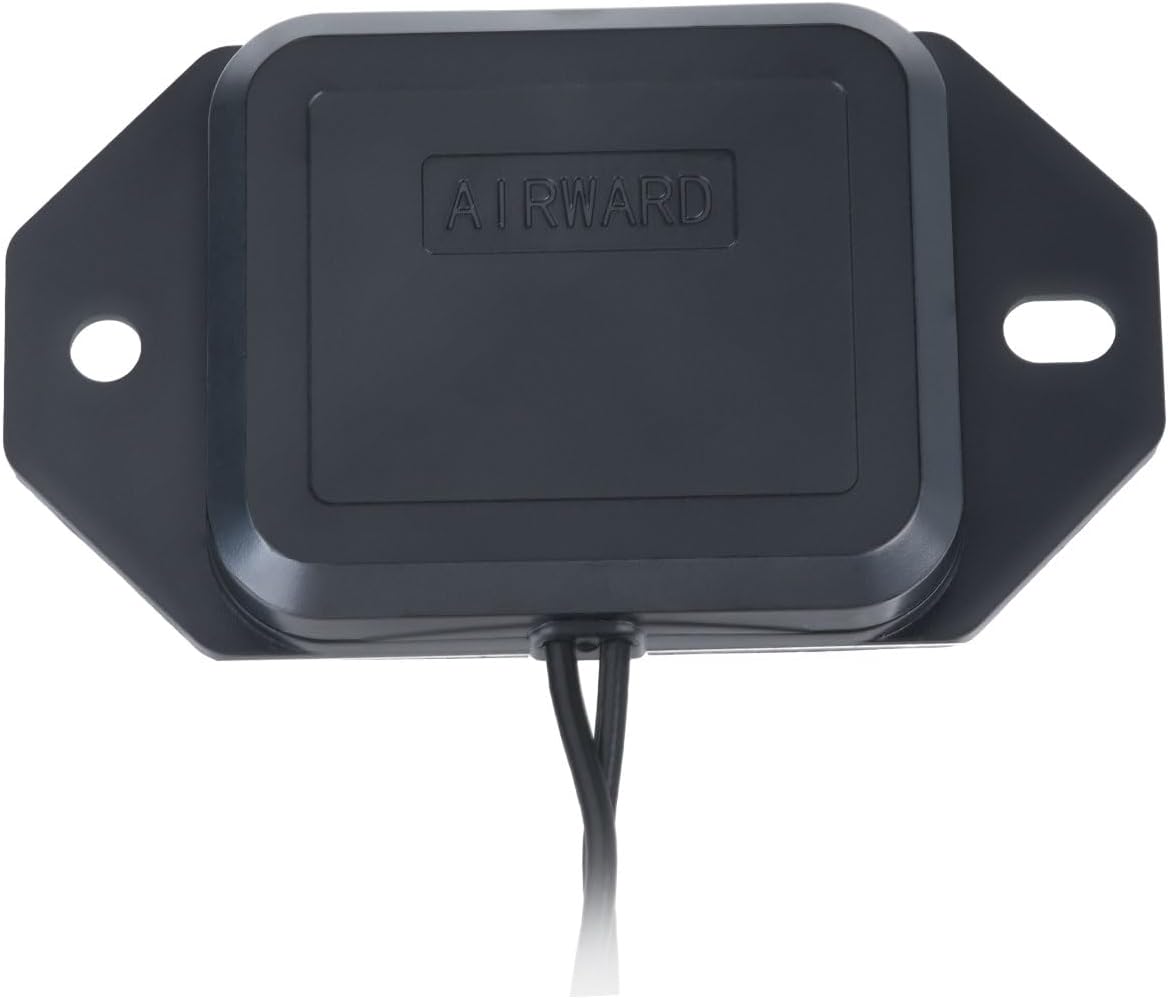

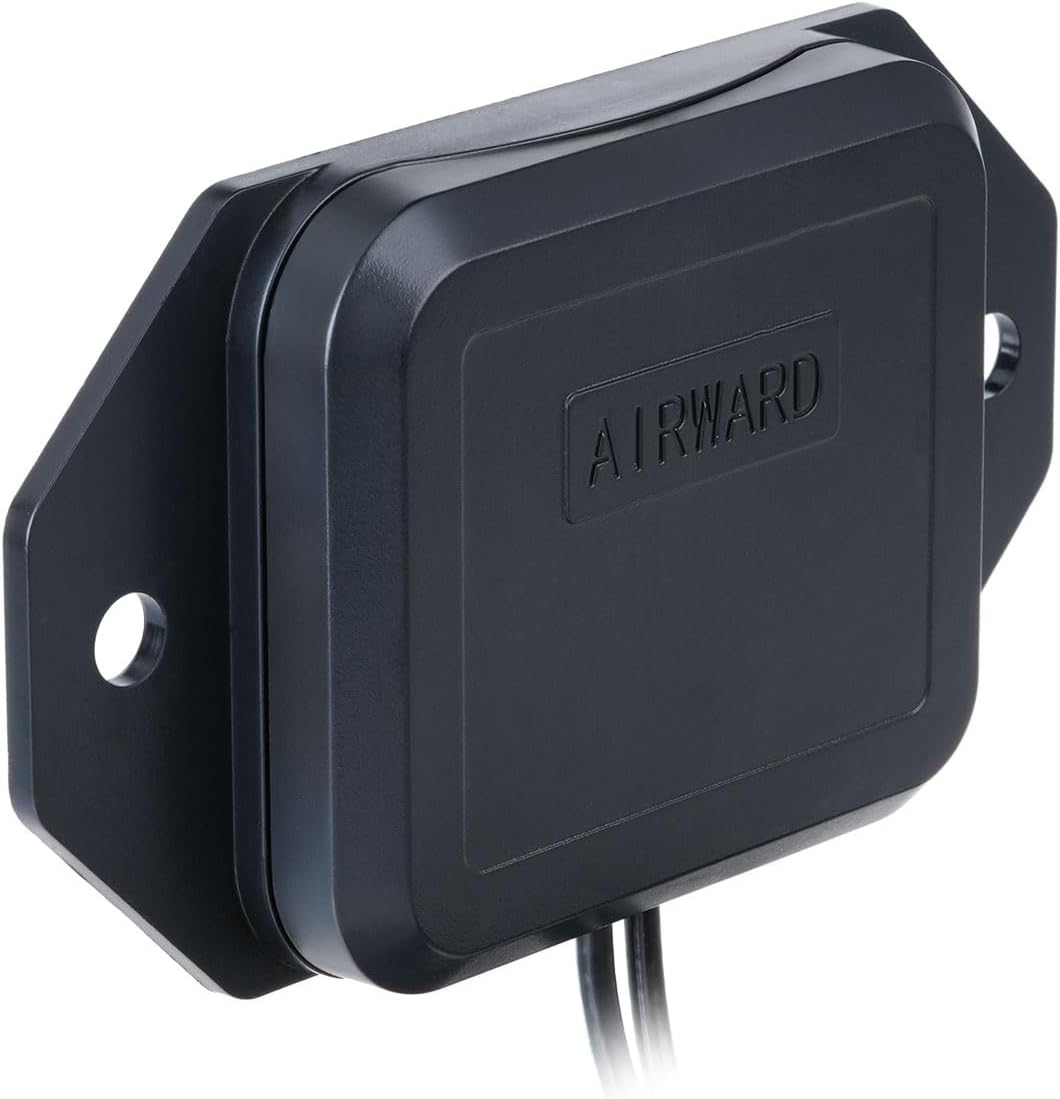

- Industrial Durability:IP65 rated ABS housing resists dust and water for outdoor or harsh environments; Functions in extreme temperatures from minus 40 to 85 degrees C for year round use; Vibration resistant design handles movement up to 50 Hz for automotive applications; RoHS compliance ensures safety and longevity
- Easy Installation:Low power consumption under 30 mA at 3.3 V reduces energy costs and extends battery life; Horizontal mounting optimization simplifies positioning on vehicles or equipment; Plug and play integration saves time for quick global deployments; RoHS compliant for worldwide compatibility
- Reliable Tracking Solution:Designed for automotive tracking and IoT asset monitoring; Dual system support boosts precision for real time location updates; Waterproof and durable construction ensures consistent performance on the go; Combines 4G and GPS capabilities for versatile high precision tracking needs
-
Specification:
GNSS Module:
BeiDou: 1561.098±2.046MHz
GPS: 1575.42±1.023MHz
Bandwidth: >5MHz
Gain: 4.5dBic (zenith-mounted)
VSWR: ≤2.0
Polarization: Right-Hand Circular (RHCP)
LNA Specifications:
Gain: 28dB
Noise Figure: <1.5dB
Operating Voltage: 3.0-3.6V DC
Current Consumption: ≤30mA @3.3V
4G LTE Module:
Frequency Bands: 824-960MHz & 1710-2690MHz
VSWR: ≤3.0 (Typical: 1.32-1.86)
Efficiency: 43.89-57.52%
Gain: 2.5dBi
