Description
Product Overview
- Antenna: Wifi Antenna
- Brand: BINGFU
- Color: 2-Pack & M.2 NGFF Cable
- Impedance: 50 Ohm
- Product Dimensions: 4.7"L x 6.7"W x 0.5"H
- UPC: 790404672872
- Manufacturer: Bingfu
- Number of Items: 1
Product Features

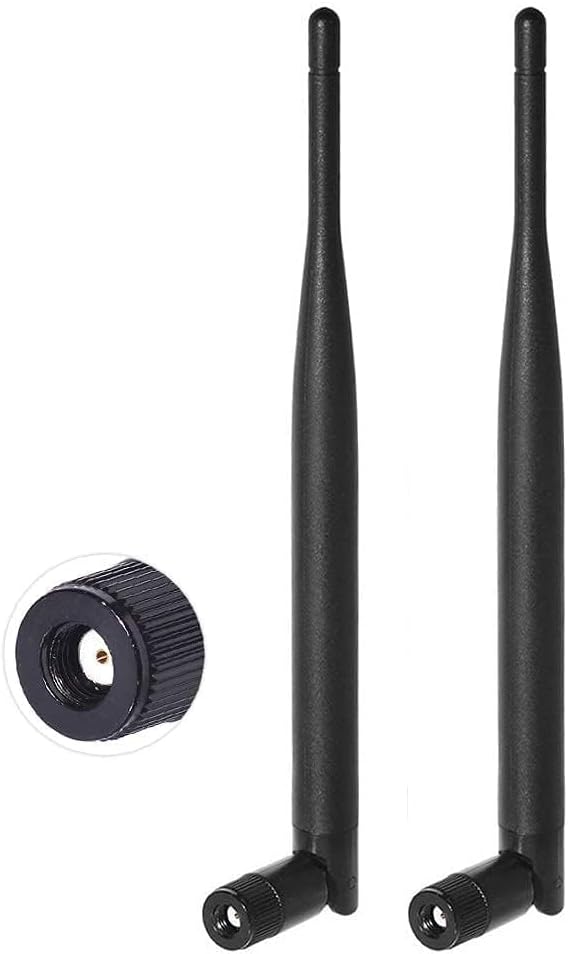

- Dual Band WiFi Antenna: 2.4GHz (2400 - 2485 MHz),5GHz/5.8GHz (5150 - 5850 MHz); Gain: 6dBi; Direction: Omni-directional; Antenna Connector: RP-SMA Male Connector; Accessories Cable: 20cm 8 inch Bulkhead Mount 0.81mm Coaxial Pigtail Cable;

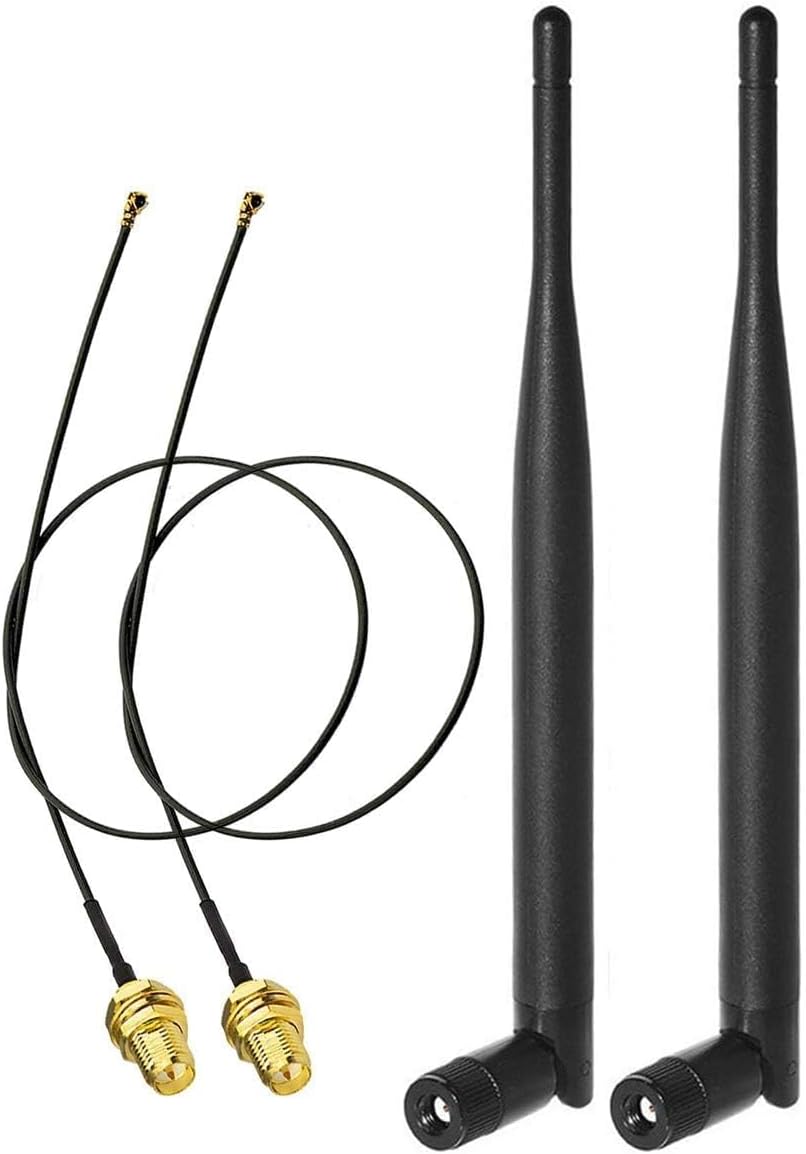

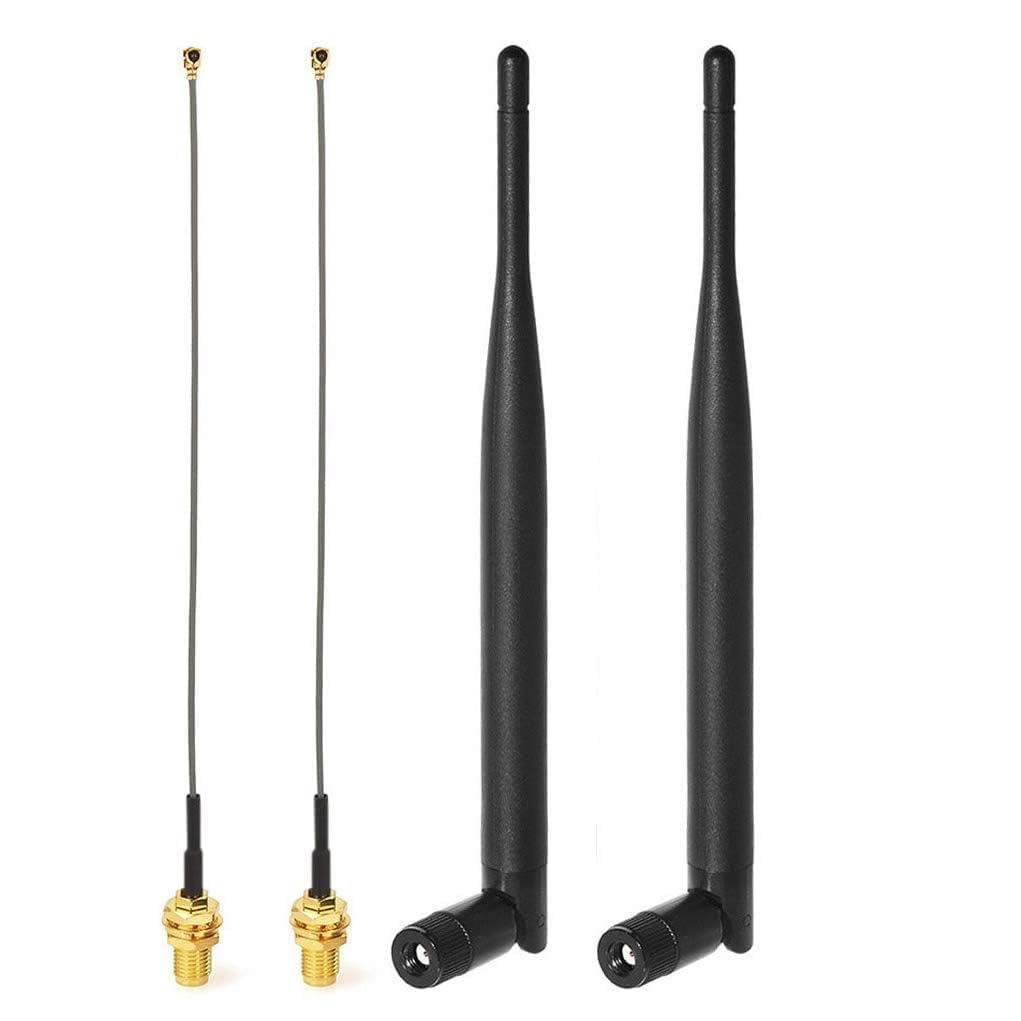

- Package List: 2 x WiFi Antenna, 2 x Coaxial Pigtail Cable;
- The Accessoried Coaxial Pigtail Cables Compatible with M.2 NGFF Interface Wireless Network Card that Built-in External WiFi Antenna Interface.
- Notice: This pigtail cable only use for M.2 NGFF interface network cards, can not fit Mini PCI-E interface network cards, please check your network cards before purchasing.
- Compatible with Intel AX200NGW 8265AC 8265NGW 7265AC 9560AC M.2 NGFF Wireless Network Cards External WiFi Antennas.
-
Specifications
- Gain: 6dBi
- Frequency Range: Dual Band WiFi 2.4GHz 5.8GHz
- VSWR: < 2.0;
- Polarization: Linear Vertical;
- Impedance: 50 ohm;
- Direction: Omni-directional;

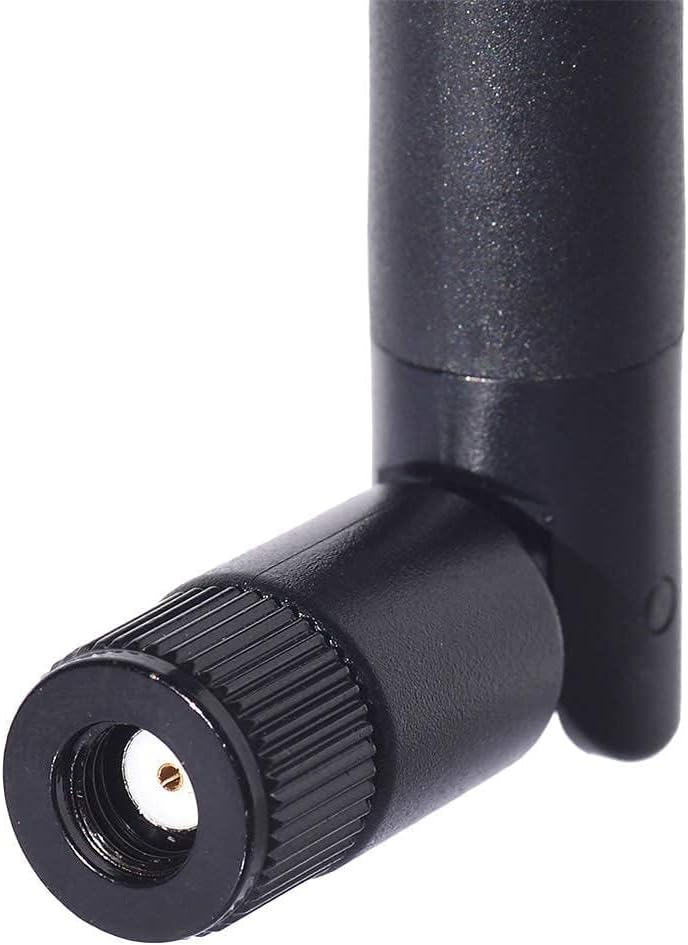

- Connector: RP-SMA Male Connector;

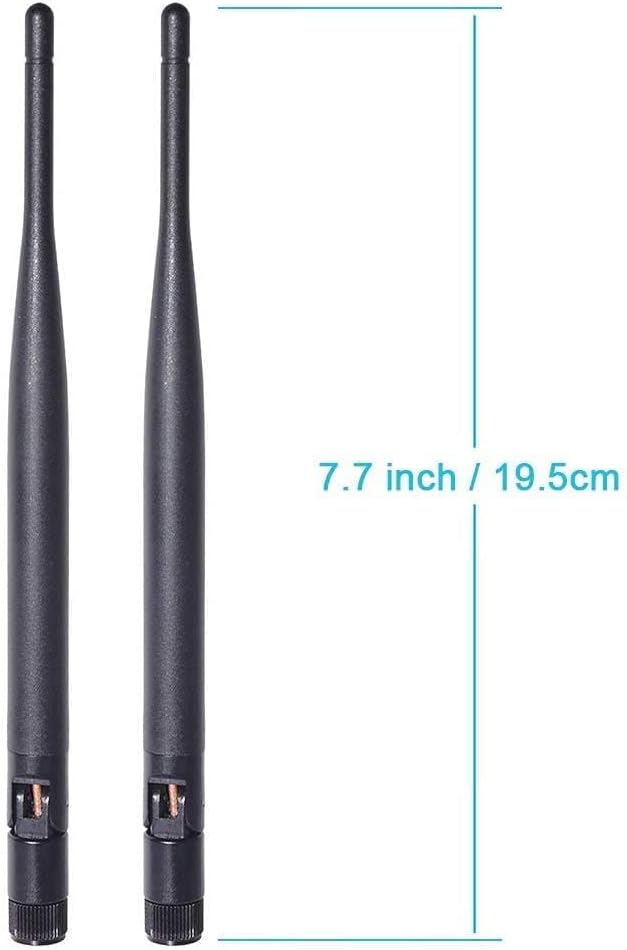

- Antenna Dimension: 19.5cm x 1.5cm Diameter;
- Net Weight: 80g;
- Operating Temperature: -20°С ~ +80°С
- Storage Temperature: -30°С ~ +85°С

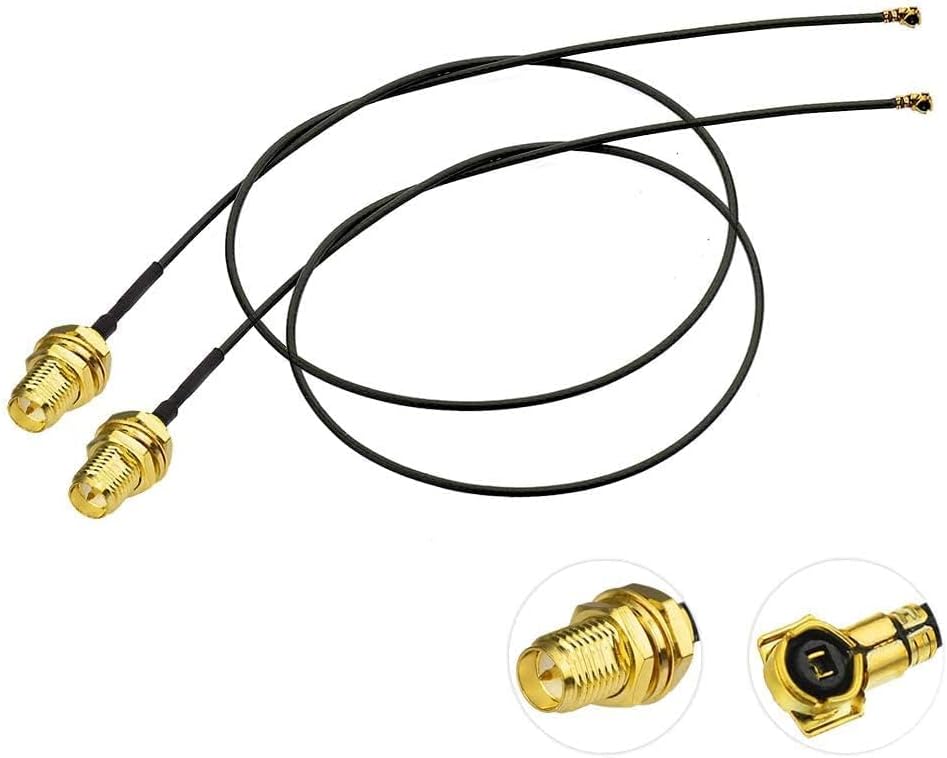

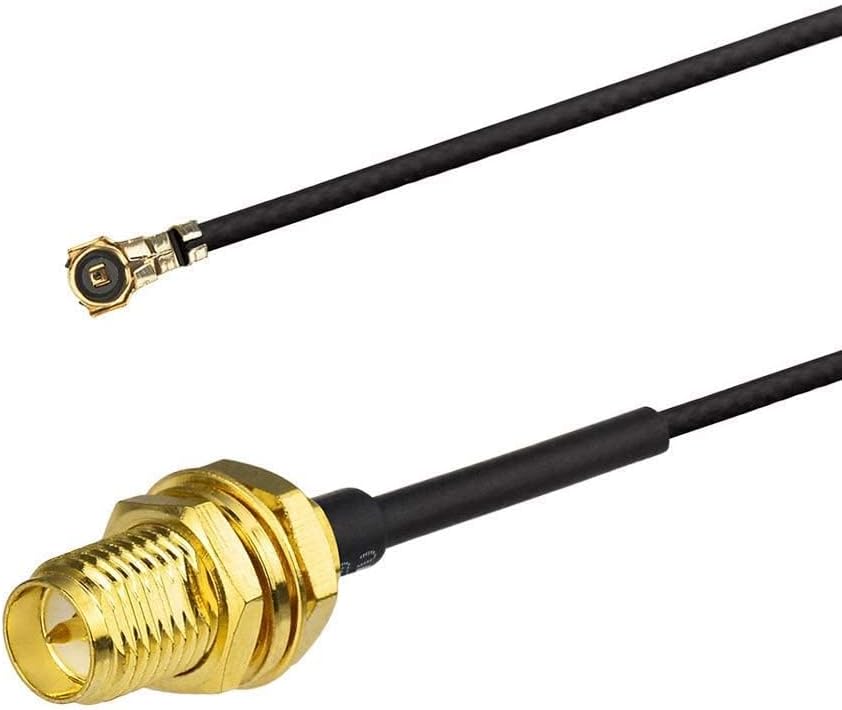

- Cable: 20cm 8 inch Bulkhead Mount 0.81mm Coaxial Pigtail Cable
- Package List: 2 x WiFi Antenna, 2 x Coaxial Pigtail Cable
- Notice: This pigtail cable only use for M.2 NGFF interface network cards, can not fit Mini PCI-E interface network cards, please check your network cards before purchasing.
