Description
Product Overview
- Antenna: Wifi Antenna
- Brand: BINGFU
- Color: 4-Pack & Mini PCIe Cable
- Impedance: 50 Ohm
- Product Dimensions: 4.7"L x 6.7"W x 0.5"H
- UPC: 790404672476
- Manufacturer: Bingfu
- Number of Items: 1
Product Features

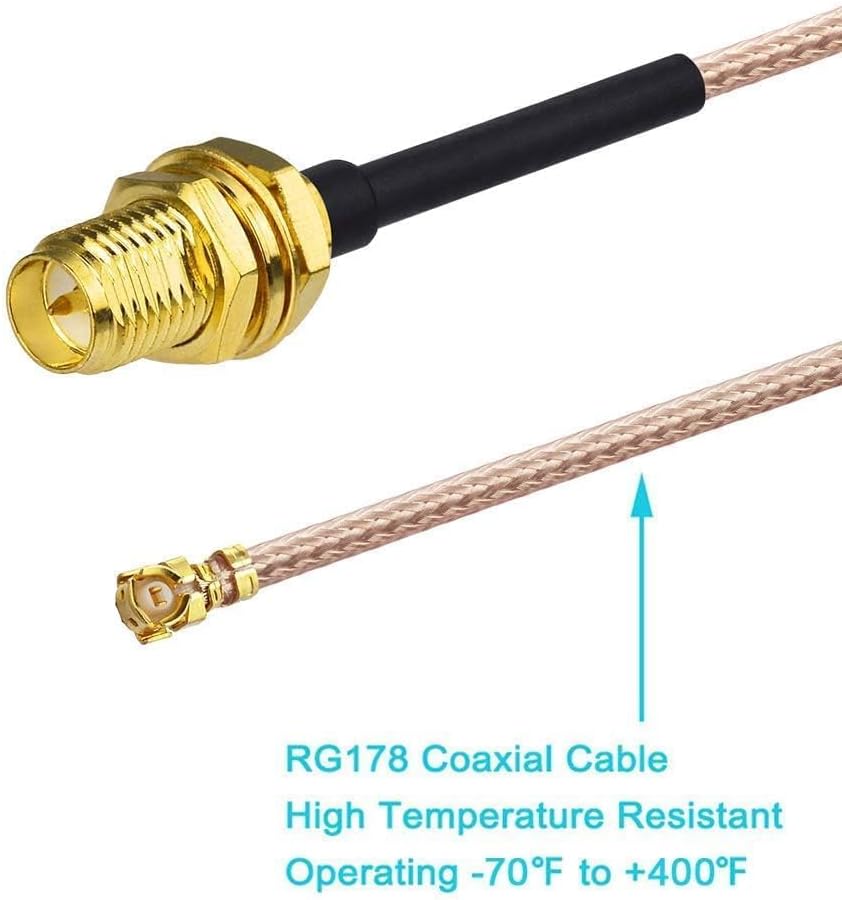

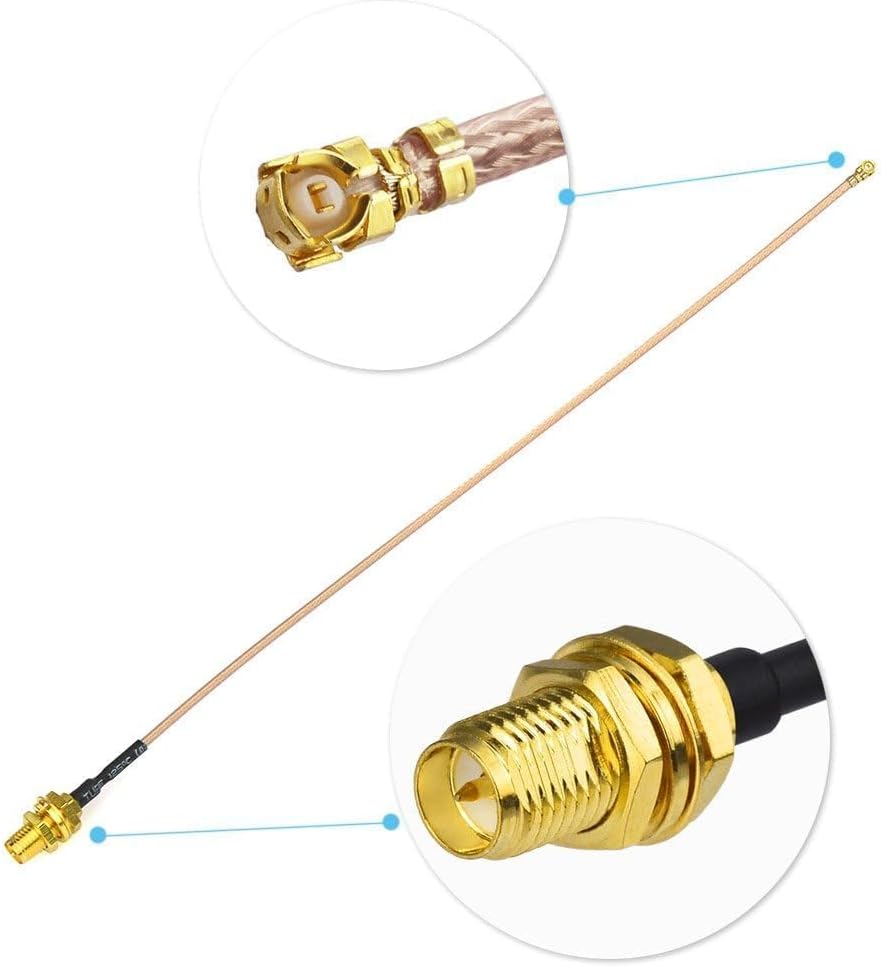

- Dual Band WiFi: 2.4GHz (2400 - 2485 MHz),5GHz/5.8GHz (5150 - 5850 MHz); Gain: 8dBi; Direction: Omni-directional; Antenna Connector: RP-SMA Male Connector; Accessories Cable: 30cm Bulkhead Mount RG178 Coaxial Pigtail Cable;

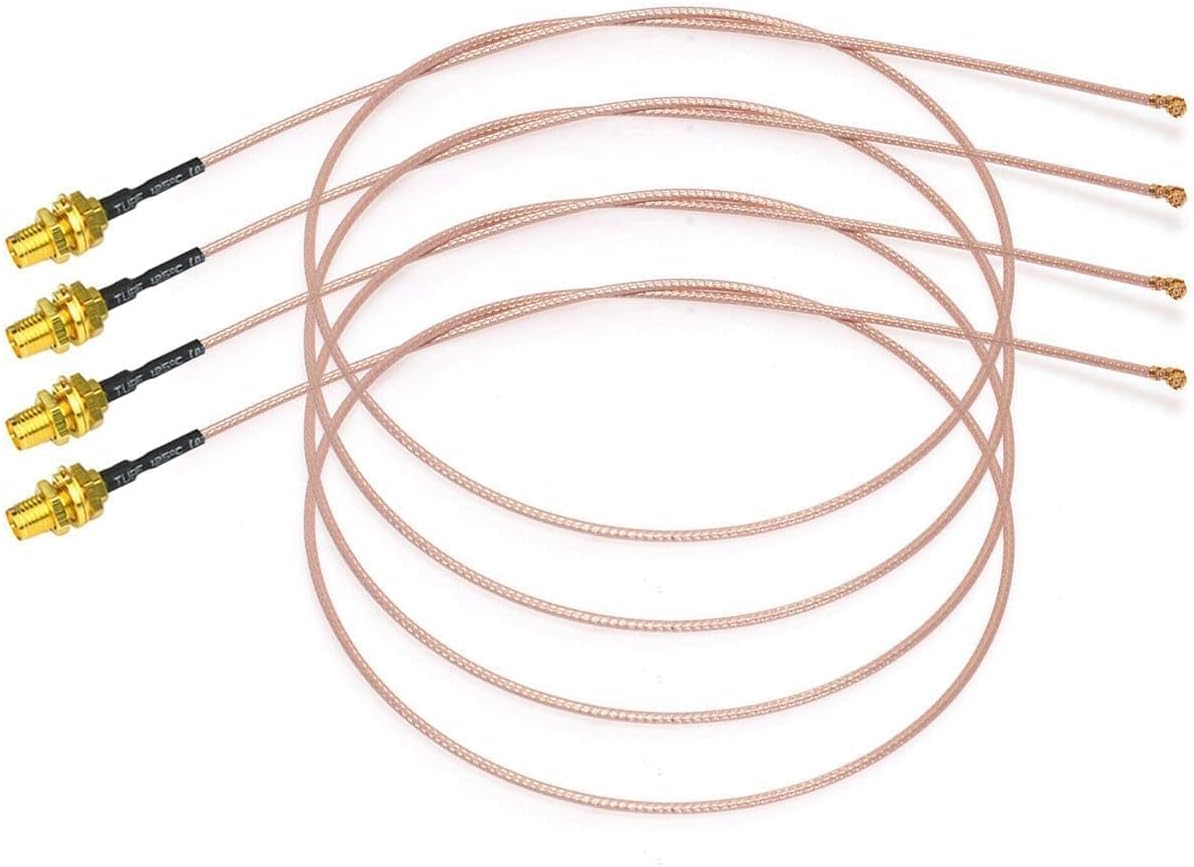

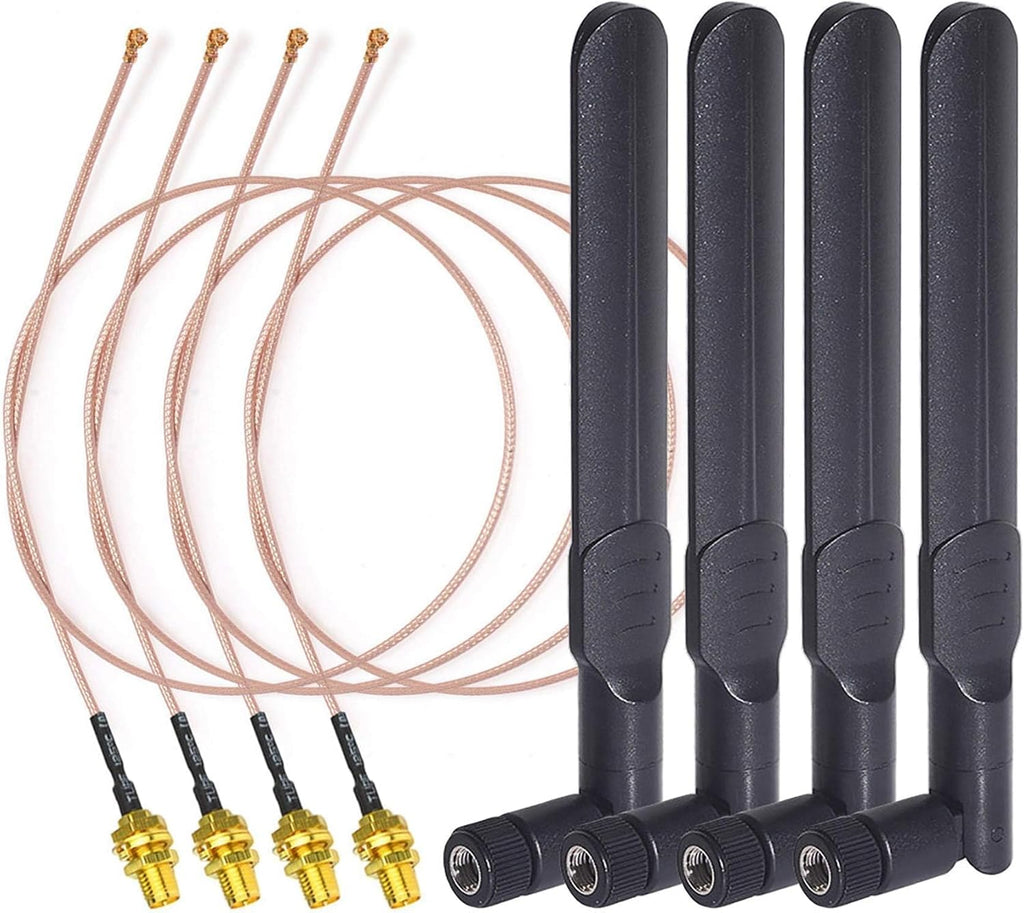

- Package List: 4 x Antenna, 4 x Coaxial Pigtail Cable;(As the Picture Shown), Notice: This pigtail cable only use for Mini PCI-E interface network cards, can not fit M.2 NGFF interface network cards, please check your network cards before purchasing.
- The Accessoried Coaxial Pigtail Cables are Compatible with Most Laptop and Computer Mini PCI Network Card and Most Computer Motherboard that Built-in WiFi Network Card with External Antenna Connector Interface.
- Compatible with: Wireless Network Router, WiFi AP Hotspot Modem, WiFi USB Adapter, Desktop PC Wireless Mini PCI Express PCIE Network Card Adapter;
- Compatible with: WiFi IP Security Camera; Wireless Video Surveillance DVR Recorder; Truck RV Van Trail Rear View Camera, Reverse Camera, Backup Camera, Industrial Router IoT Gateway Modem, M2M Terminal, Remote Monitoring and Control, Wireless Video, Wireless Extender;
-
Specifications

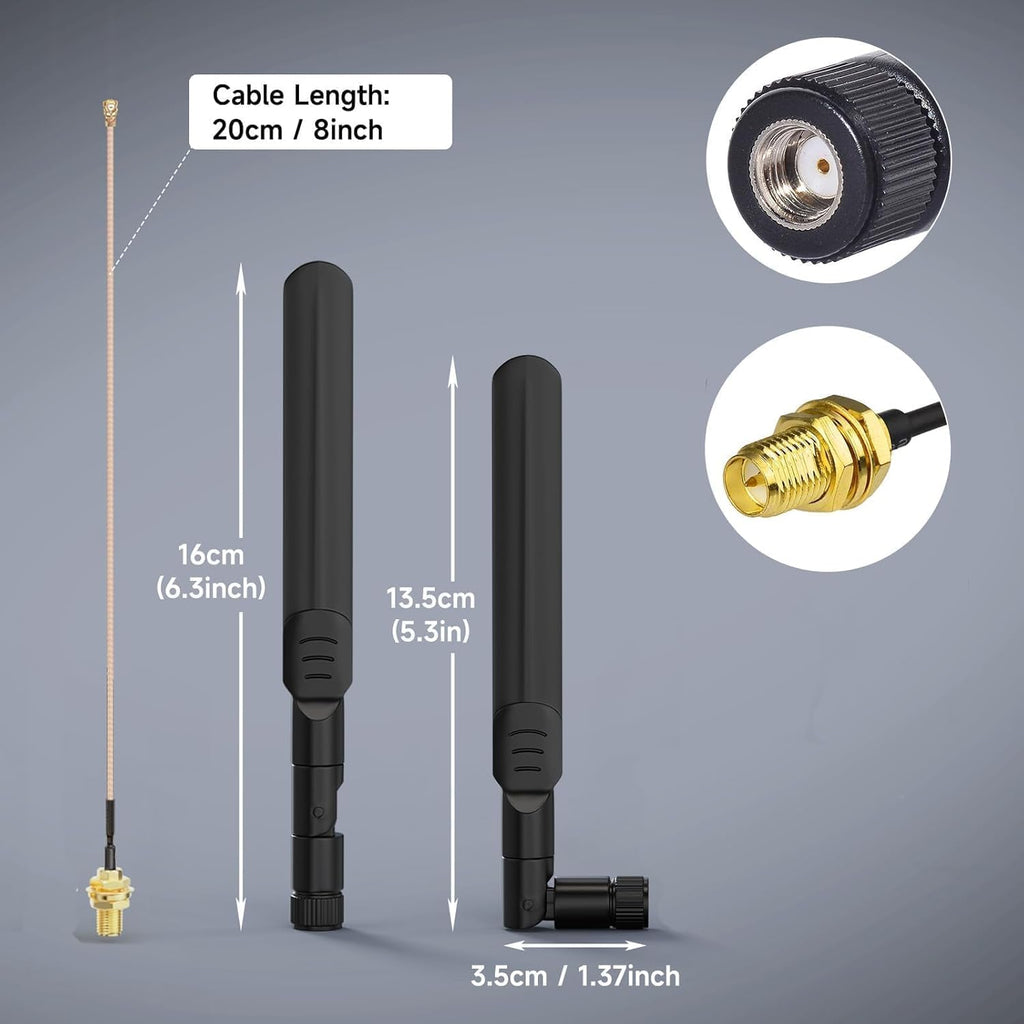

Gain 8dBi Frequency Range Dual Band WiFi 2.4GHz 5.8GHz VSWR <2.0 Polarization Linear Vertical Impedance 50 ohm Direction Omni-directional Antenna Connector RP-SMA Male Connector Antenna Dimension 16cm x 1.5cm Diameter Net Weight 102g Operating Temperature -20°С ~ +80°С Storage Temperature -30°С ~ +85°С Pigtail Cable 20cm / 8inch Bulkhead Mount RG178 Coaxial Pigtail Cable Feature This kit allows you to add high gain external antennas to many wireless wifi products that do not normally support removable antennas. Compatible with Fit most wireless product, such as for PS4/FPV UAV Drone/Green Mountain Wifi Grill/Outdoor Cam/Desktop PC/Mini PCIE Wifi Cards/Most Wireless Routers/Video Game Consoles/Wireless Access Point AP/Gaming Motherboard/Home Theater PC/Wifi TV Box/Wifi NVR/Wifi 6 card/Security Camera Package List 4 x WiFi Antennas, 4 x Coaxial Pigtail Cables Notice This cable only use for (Mini PCI-E interface network cards), can NOT fit (M.2 NGFF interface network cards), please check your network cards before purchasing.
