Bingfu 2-pack foldable CS tactical antennas, 18.5-inch 3.5dBi high gain SMA female antennas for handheld ham radios

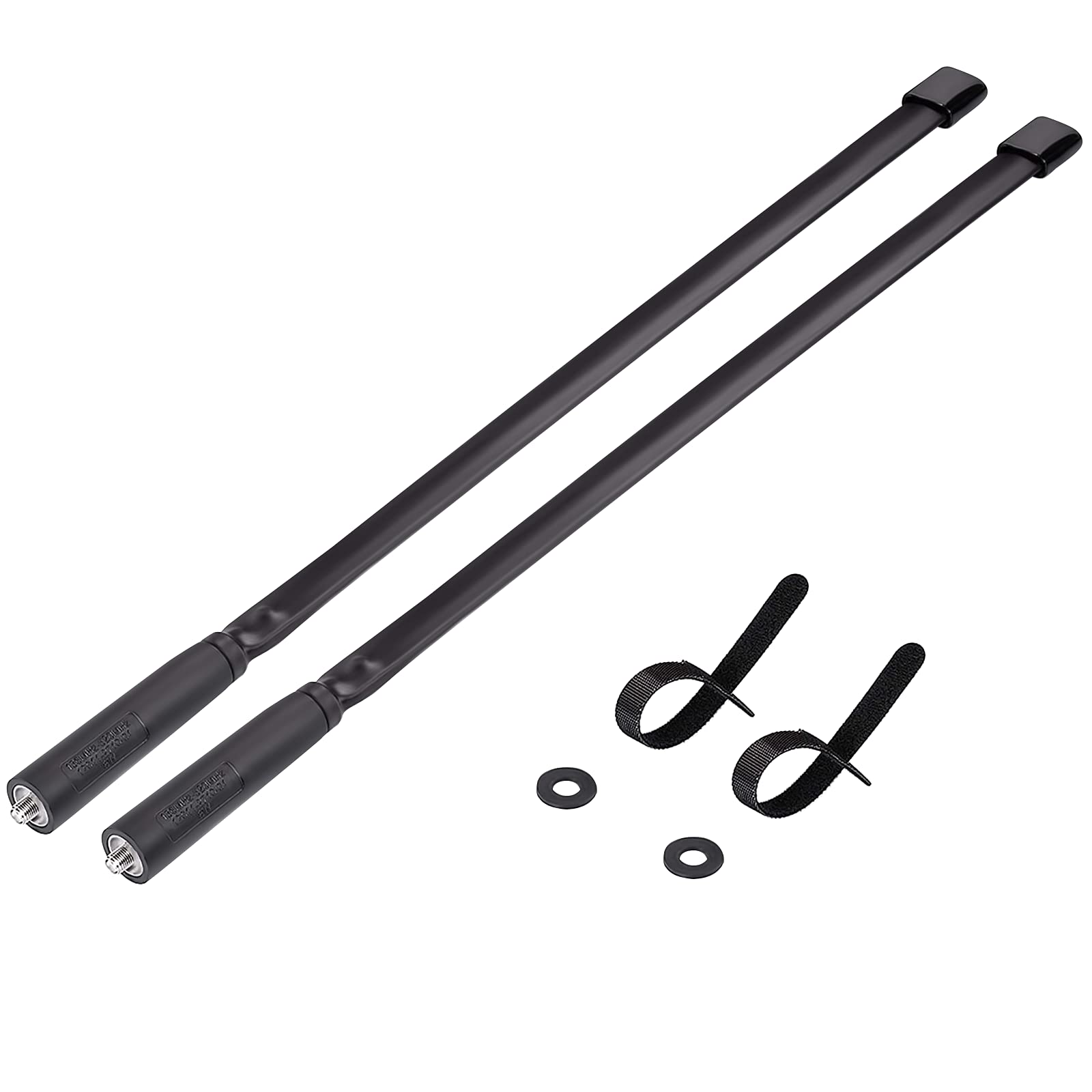

Specification diagram showing the 47cm (18.5") length, the 2-pack bundle contents, and frequency range of 136-520MHz

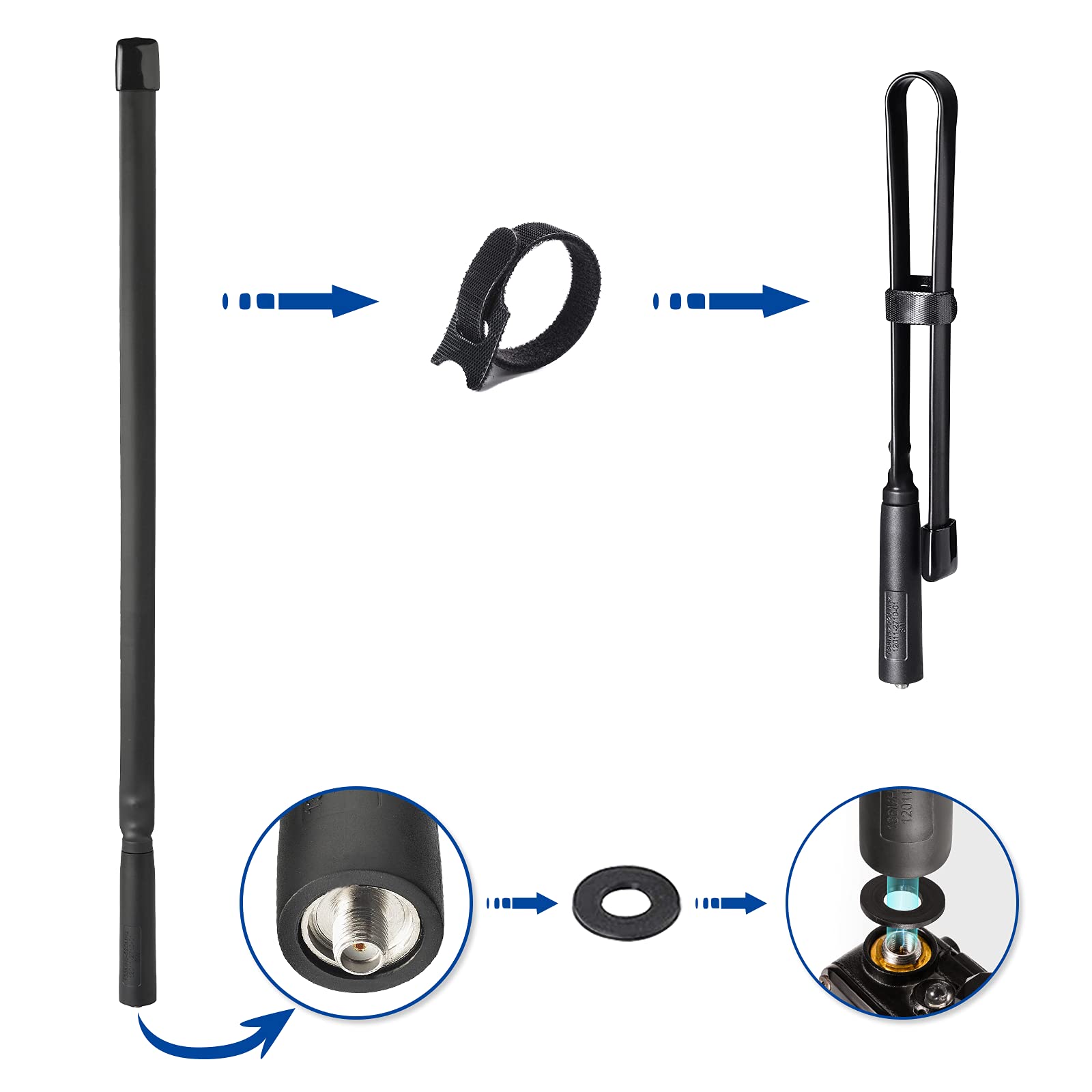

Close-up of the flexible manganese steel ribbon design that allows the antenna to be folded and secured with the included strap

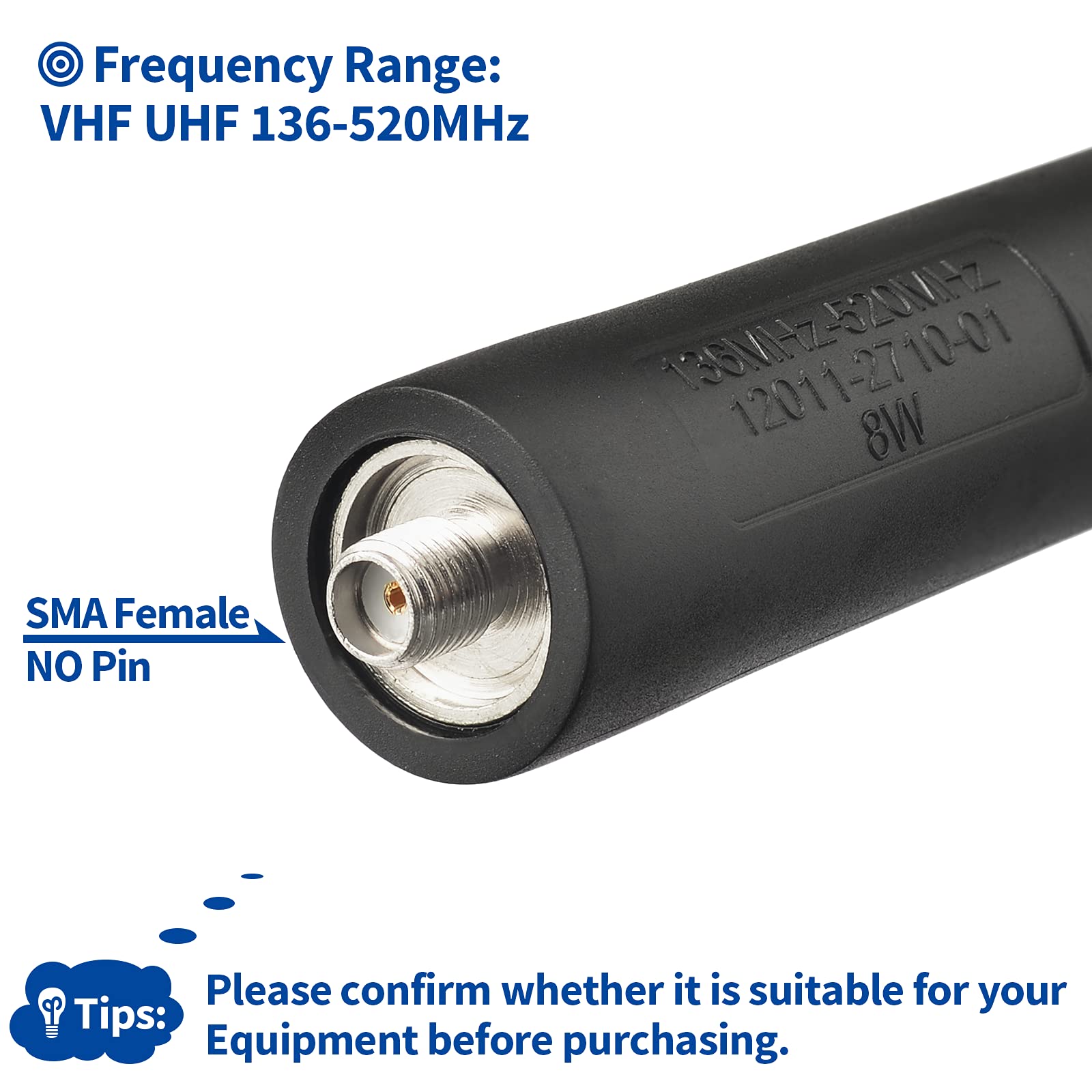

High-quality SMA female connector with gold-plated pin, ensuring a perfect fit for Baofeng and Kenwood handheld walkie talkies

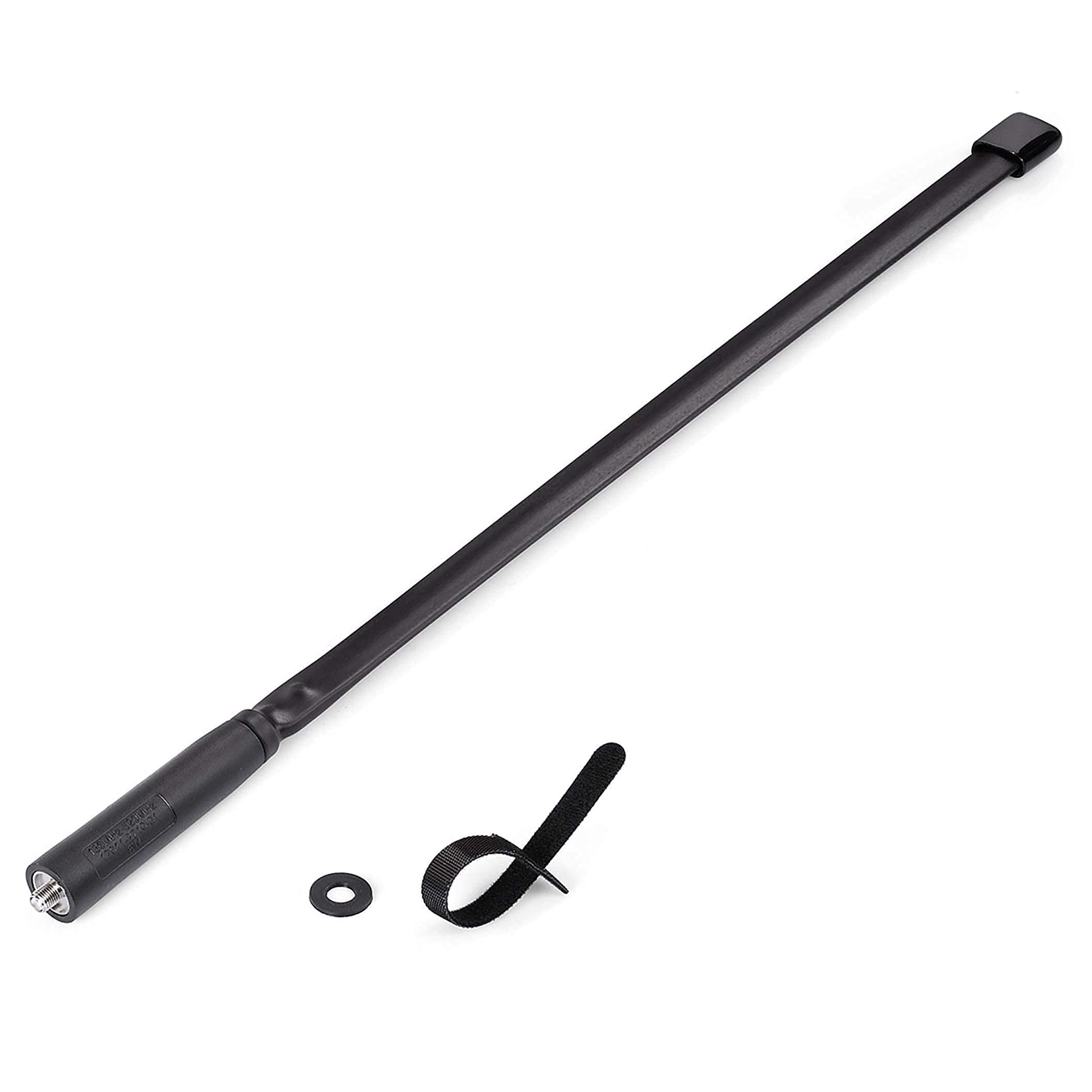

Close-up of the flexible manganese steel ribbon design that allows the antenna to be folded and secured with the included strap
Two users in tactical gear using the Bingfu 18.5" antennas during an outdoor airsoft game and mountain hiking
Close-up of the flexible manganese steel ribbon design that allows the antenna to be folded and secured with the included strap
Bingfu 2-pack foldable CS tactical antennas, 18.5-inch 3.5dBi high gain SMA female antennas for handheld ham radiosSpecification diagram showing the 47cm (18.5") length, the 2-pack bundle contents, and frequency range of 136-520MHzClose-up of the flexible manganese steel ribbon design that allows the antenna to be folded and secured with the included strapHigh-quality SMA female connector with gold-plated pin, ensuring a perfect fit for Baofeng and Kenwood handheld walkie talkiesClose-up of the flexible manganese steel ribbon design that allows the antenna to be folded and secured with the included strapTwo users in tactical gear using the Bingfu 18.5" antennas during an outdoor airsoft game and mountain hikingClose-up of the flexible manganese steel ribbon design that allows the antenna to be folded and secured with the included strap

Bingfu 2-Pack Foldable CS Tactical Antenna - 18.5 inch High Gain 3.5dBi Dual Band VHF UHF 136-520MHz SMA Female Antenna - for Baofeng UV-5R BF-F8HP UV-82 BF-888S Kenwood Wouxun Two Way Radio

Save 14%
BingfuSKU: BFUSAN0213
Price:
$17.99 $20.99

Bulk Pricing

Custom Services

Description

Bingfu 2-Pack 18.8 inch dual band VHF UHF 136-520MHz foldable tactical antennas with SMA female connector for handheld ham radios. Portable and foldable CS tactical antenna made of durable manganese steel, easy to store with hook-and-loop fastener for outdoor use. Bingfu tactical antenna boosts signal strength and communication range for Baofeng and Kenwood walkie talkies during tactical games.

Bingfu 2er-Pack 18,8" Faltbare Taktische Antennen

Professionelle Signalverstärkung im taktischen Design – Robust, Faltbar und Leistungsstark.

🚀 Überlegene Reichweite

Mit 3.5dBi Gewinn und einer optimierten Länge von 48cm bietet diese Antenne eine deutlich stabilere Verbindung als Standard-Antennen, besonders in schwierigem Gelände.

🛡️ Taktische Langlebigkeit

Gefertigt aus hochflexiblem Manganstahl. Die Antenne kann für den Transport gefaltet werden und springt beim Entfalten sofort in ihre leistungsbereite Form zurück.

Umfassende Kompatibilität:

Der SMA-Female (Buchse) Anschluss ist der Standard für die meisten modernen Handfunkgeräte:

  • Baofeng: UV-5R, UV-82, BF-F8HP, BF-888S
  • Kenwood: TK-3100, TK-3200, TK-3207
  • Wouxun: KG-UVD1, KG-669, KG-689
  • TYT: TH-UVF1, F6, 300, 800
  • Quansheng: TG-K4AT, TG-UV2
  • Puxing/HYT/Linton: Alle SMA-M Modelle

Technische Spezifikationen:

Gewinn: 3.5 dBi
Frequenzbereich: VHF UHF 136-520 MHz
Länge: 47 cm / 18,8 Zoll
Anschluss: SMA-Female (Buchse)
Max. Leistung: 8 Watt
VSWR: < 2.0
💡 Hinweis für den Einsatz: Taktische Antennen erreichen ihre volle Leistung im entfalteten Zustand. Der mitgelieferte Klettstreifen dient nur der Sicherung während des Transports oder bei sehr kurzen Distanzen.
