Description
Specification:
Frequency Range: 617-960/1427-1587/ 1710-2690/3300-4200/ 4400-5000/5100-5925MHz
Gain：3dBi
VSWR：<2.0
Polarization：Linear Vertical
Impedance：50 ohm
Direction：Omni-directional

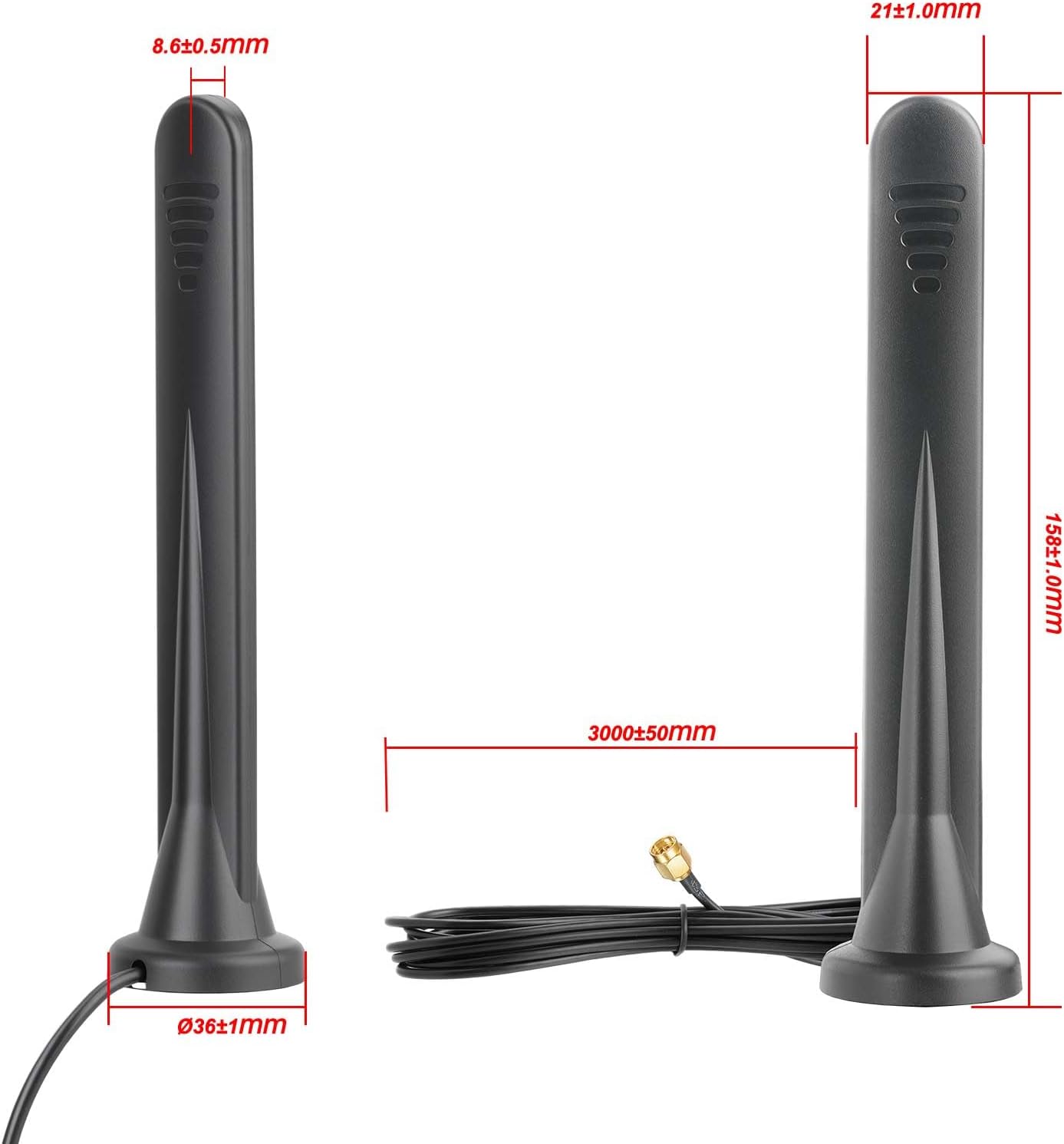

Dimensions: 158mm*36mm
Connector：SMA Male Connector
Cable:3M RG174
Magnetic base diameter: 36 mm
Relative Humidity :10 to 95%
Vibration : 10 to 55Hz with 1.5mm amplitude 2hours
Operating Temperature: -20°С ~ +80°С;
Storage Temperature: -30°С ~ +85°С
Environmentally Friendly : ROHS Compliant

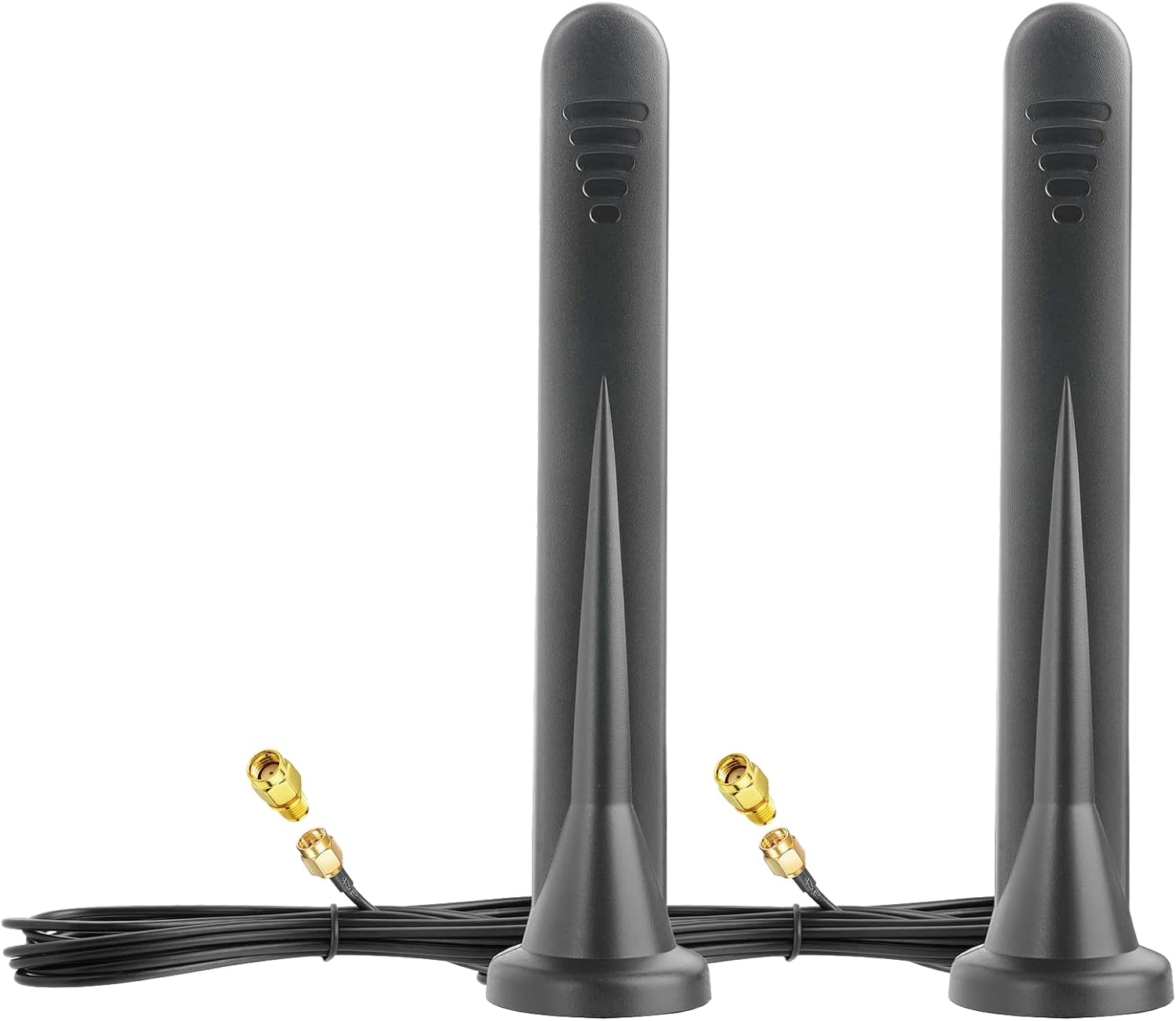

Package List: 2 x Antennas, 2 x RP-SMA Adapters
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Impedance: 50 Ohm
- Product Dimensions: 11.8"L x 4.7"W x 1.6"H
- Manufacturer: Bingfu
- Number of Items: 1
Product Features
- Wide Band Compatibility: Supports full frequency spectrum from 600 MHz to 6000 MHz for optimal 5G 4G LTE and 3G connectivity on Verizon AT&T T-Mobile and other major US networks
- 3dBi - Sometimes Lower-gain is Better: An antenna with a high dBi rating focuses signal more directionally, which can be detrimental in environments requiring wide coverage, such as indoors or urban areas. In these use cases, a lower-dBi antenna often provides more reliable and consistent performance
- Universal Connectivity: SMA Male connector with RP-SMA Male Adapter ensures compatibility with cellular routers mobile hotspots wireless home phone modems trail cameras and various 4G LTE industrial equipment
- Flexible Magnetic Installation:Powerful magnetic base provides secure attachment to metal surfaces; includes a 10 foot RG174 cable for optimal placement and signal reception
- Reliable Performance:Engineered for stable wireless signal in diverse environments; ensures consistent internet access for home office outdoor and remote applications
Specification:
Frequency Range: 617-960/1427-1587/ 1710-2690/3300-4200/ 4400-5000/5100-5925MHz
Gain：3dBi
VSWR：<2.0
Polarization：Linear Vertical
Impedance：50 ohm
Direction：Omni-directional
Dimensions: 158mm*36mm
Connector：SMA Male Connector
Cable:3M RG174
Magnetic base diameter: 36 mm
Relative Humidity :10 to 95%
Vibration : 10 to 55Hz with 1.5mm amplitude 2hours
Operating Temperature: -20°С ~ +80°С;
Storage Temperature: -30°С ~ +85°С
Environmentally Friendly : ROHS Compliant
Package List: 2 x Antennas, 2 x RP-SMA Adapters
