Description
Product Features
- Features: [Frequency Range] 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz; [Gain] 6dBi; [Polarization] Linear Vertical; [Antenna Length] 11.8 inches; [Cable Length] 10ft Low Loss KSR195 Coaxial Cable;
- Durable: High quality frosted fiber glass cover, it is waterproof and durable for outdoor Long-term use;
- Compatible with: Spypoint Flex-S / Flex-S Dark / Flex-Plus / Flex-M / Flex Dual-Sim / Cell-Link / LM2 / Flex G-36 and other 4g trail cameras
- Compatible with Most 4G LTE Cellular Trail Camera, Game Camera, Hunting Camera, Outdoor Security Camera, Celluar Surveillance Camera; Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder;
- Compatible with Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert;
- Package List: 1 x Antenna, 1 x RP-SMA Connector Adapter, 1 x Wall Mount Bracket, 4 x Self-tapping Screws (As the Picture Shown)
-
Product Description
Specification:
Frequency Range:698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;
Gain：6dBi
Polarization：Linear Vertical

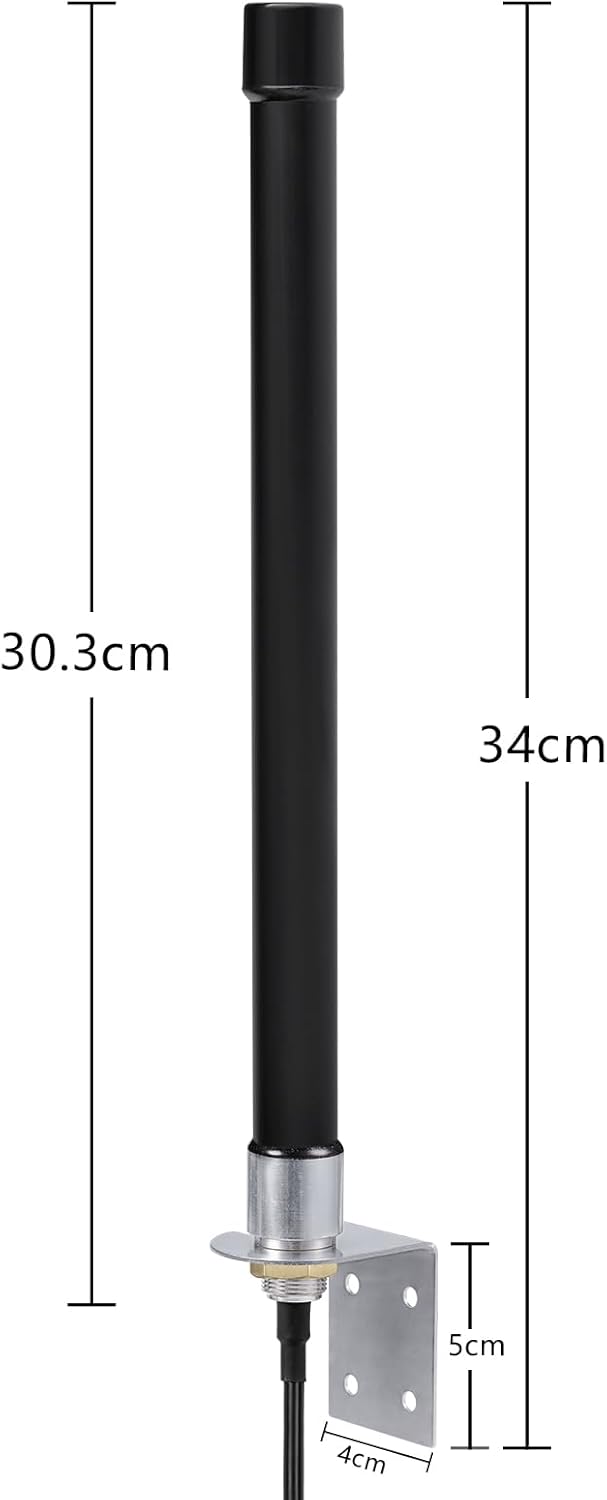

Antenna Length：11.8 inches

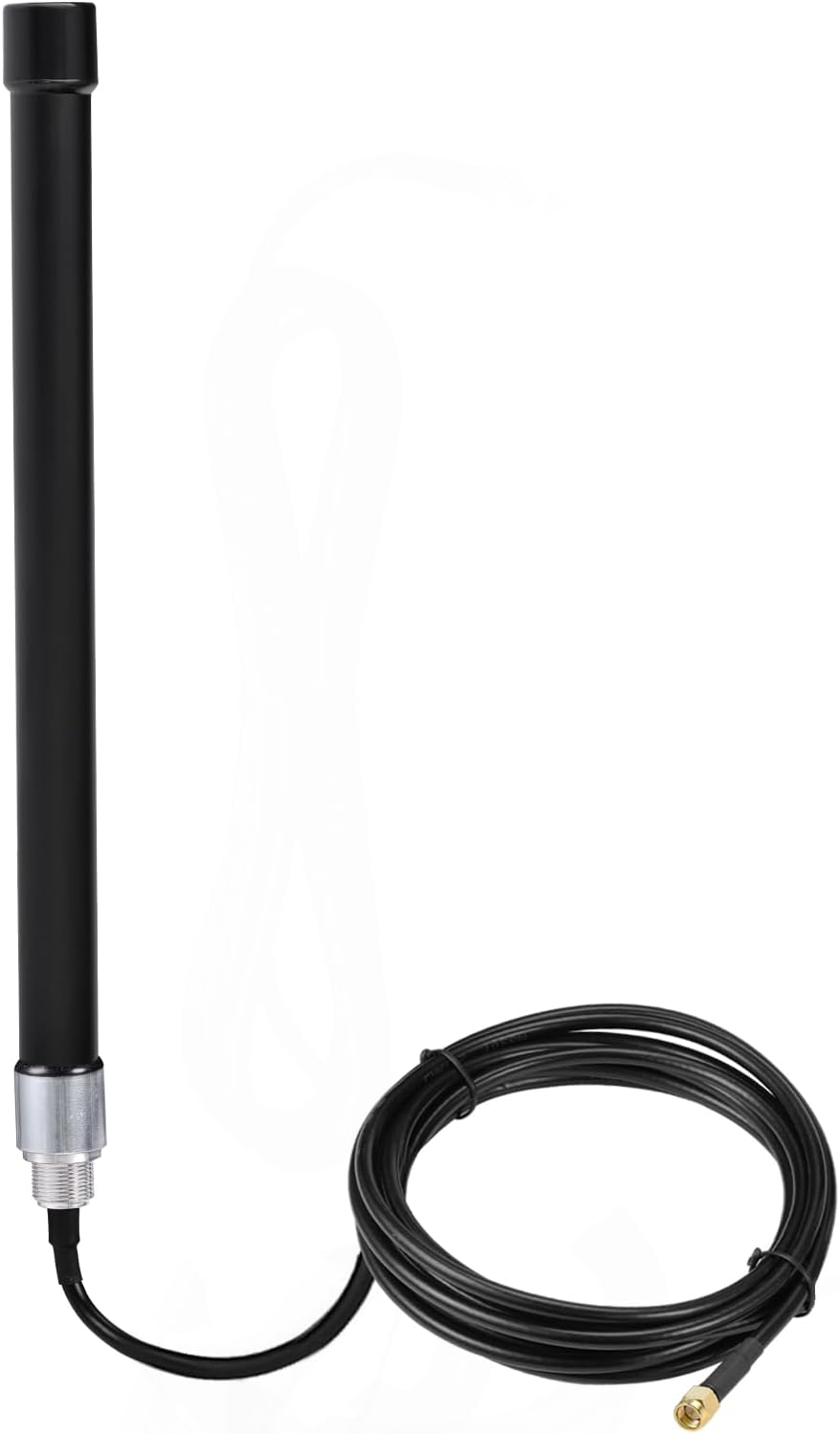

Cable Length：10ft
Cable Type：Low Loss KSR195 Coaxial Cable

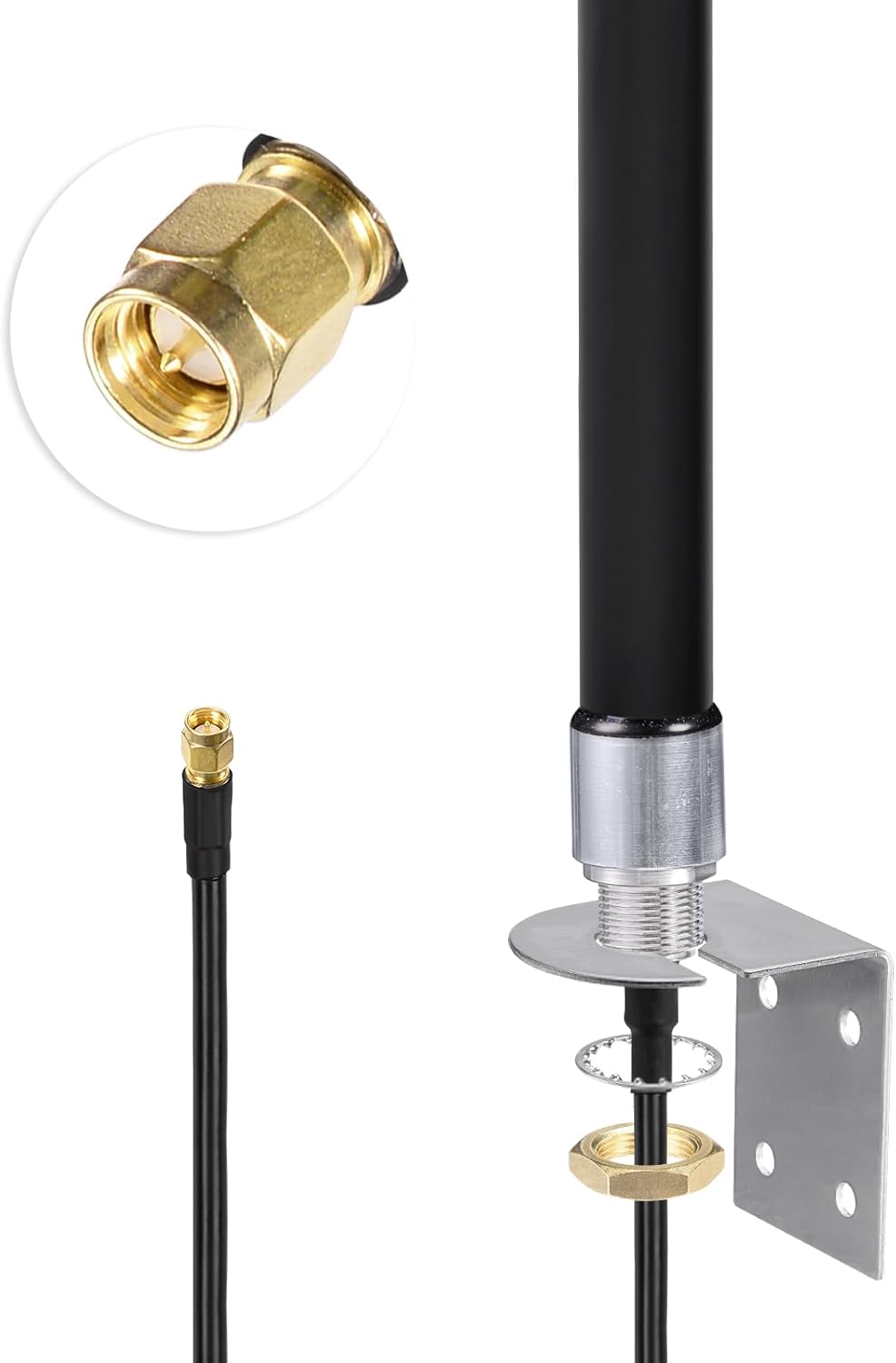

Connector: SMA Male Connector; with RP-SMA Male Connector Adapter;

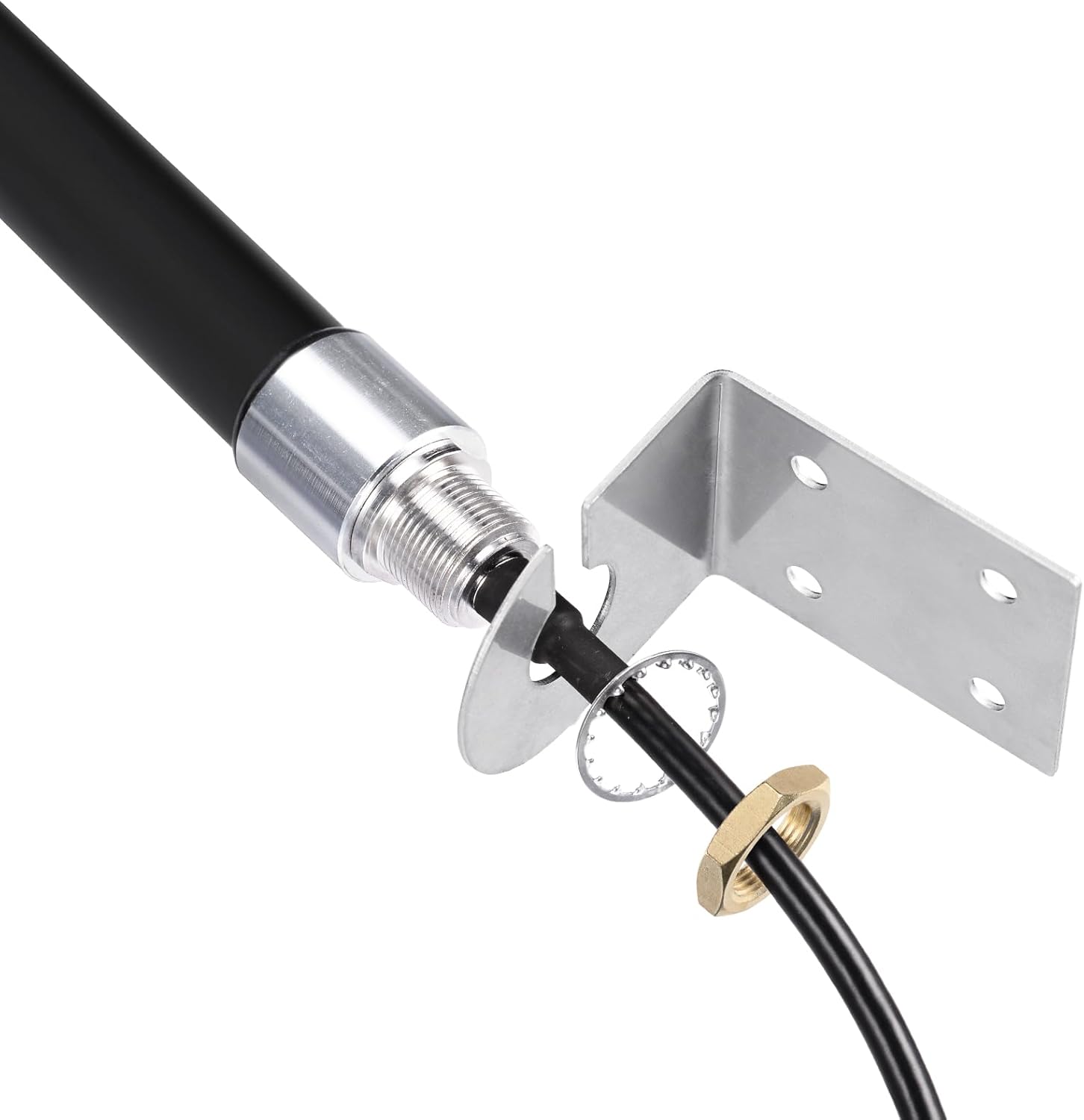

Bracket size: 16mm mounting hole diameter, 5mm nut hole diameter
Mounting Screws Diameter:M18(17.17mm-17.95mm)
Fixed Wall Mount; Thru Hole Mount;
Waterproof: Rainning Proof
Operating Temperature: -40°С ~ +85°С
Storage Temperature: -40°С ~ +85°С
Package List:1 x Antenna, 1 x RP-SMA Connector Adapter, 1 x Wall Mount Fixed Bracket, 4 x Screws
