Bingfu Shark Fin Antenna FM AM Radio GPS BeiDou GNSS with 28dB LNA IP65 Waterproof 9-16V Wide Voltage for Car Truck RV Black

Product Features

• Multi-Band Radio & GNSS Connectivity: Supports FM (87.5-108 MHz) for clear radio reception; AM (522-1710 kHz) for reliable audio; GPS L1 (1575.42 MHz) and BeiDou B1 (1561 MHz) with RHCP polarization to maintain stable navigation in urban or remote areas
• 28 dB High-Gain Low-Noise Amplifier: Delivers 28 dB gain with ≤2.0 dB noise figure; ≤3.0 VSWR for FM/AM and ≤2.0 VSWR for GNSS to reduce signal loss in weak-reception zones
• IP65 Durability: IP65-rated housing resists dust; withstands extreme temperatures (-40 °C to +85 °C) and 95% humidity; built to endure vibrations and corrosion for long-lasting automotive use
• 9-16V Wide Voltage & Energy Efficient Operation: Runs on 9-16V DC with low current—30 mA for radio; 8 mA for LNA—to compatible with most vehicle electrical systems without excessive battery drain

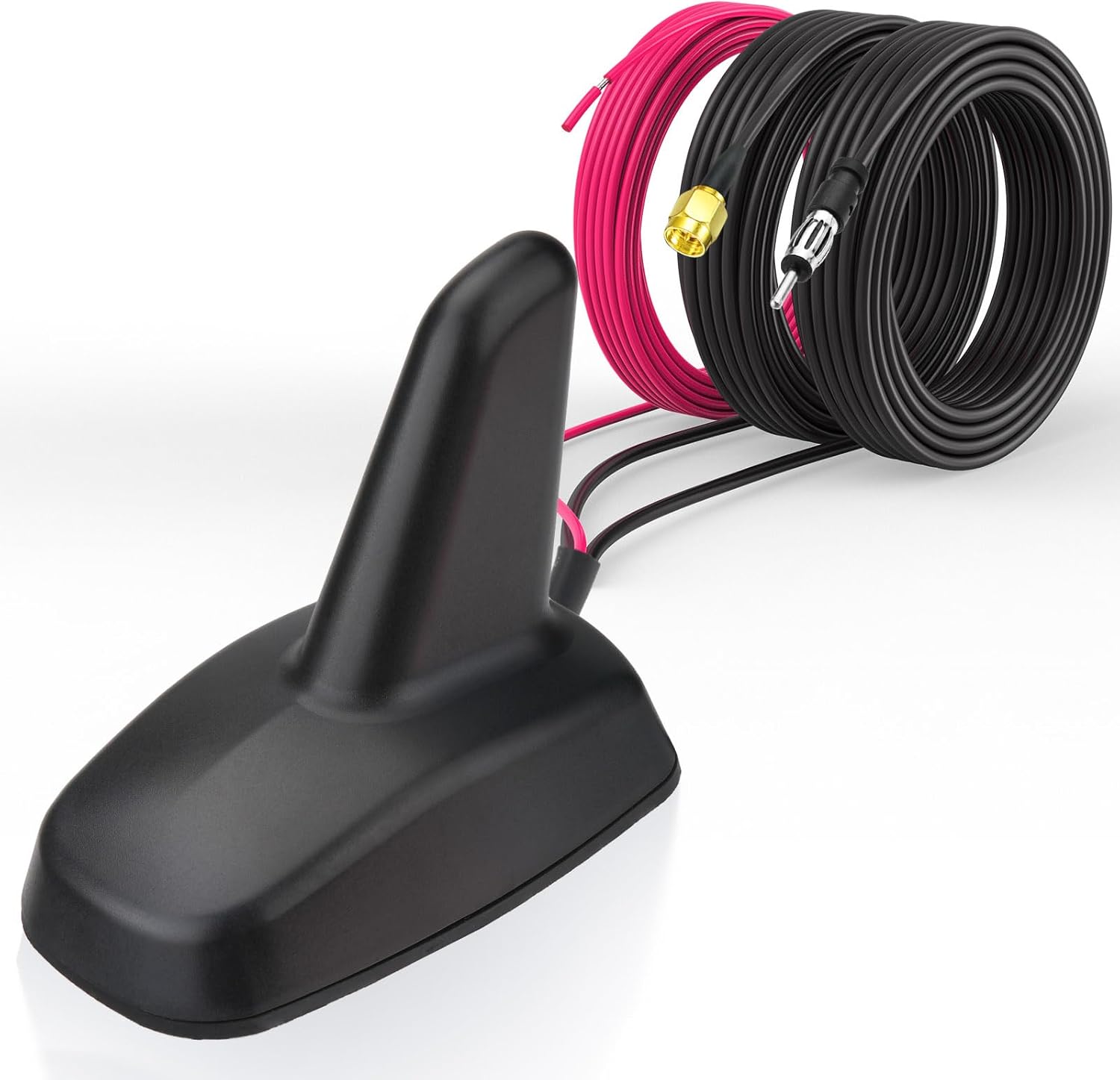

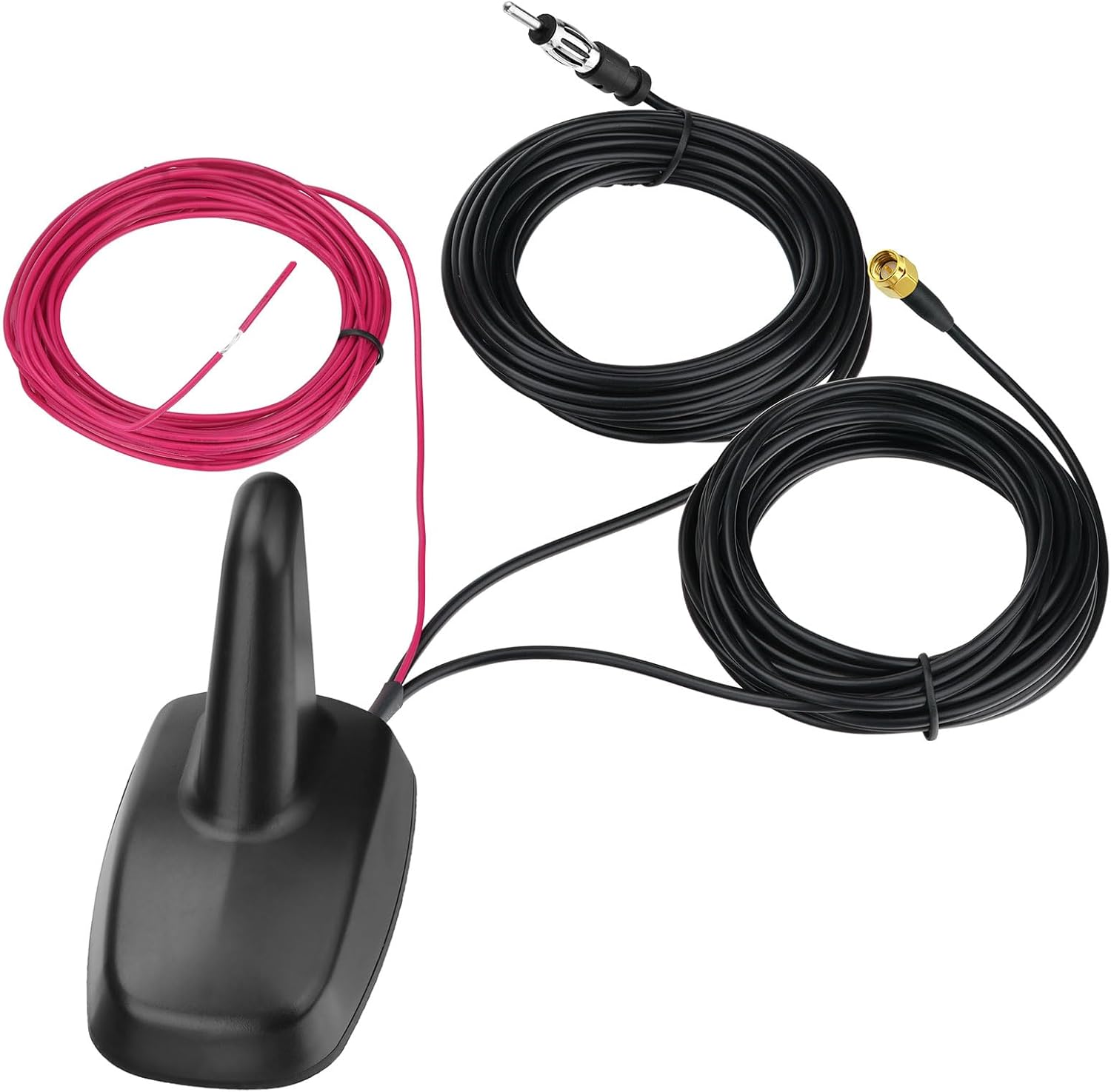

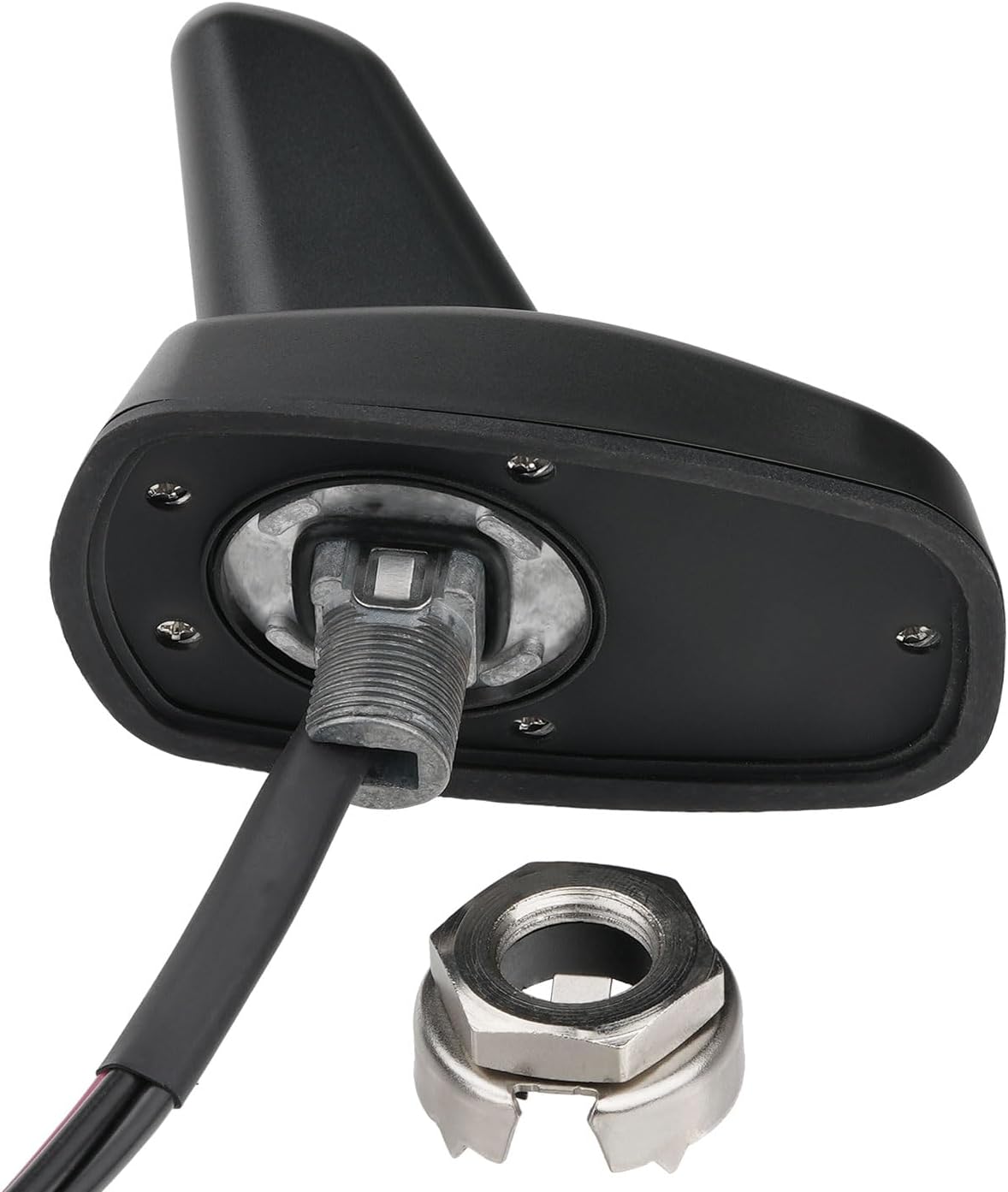

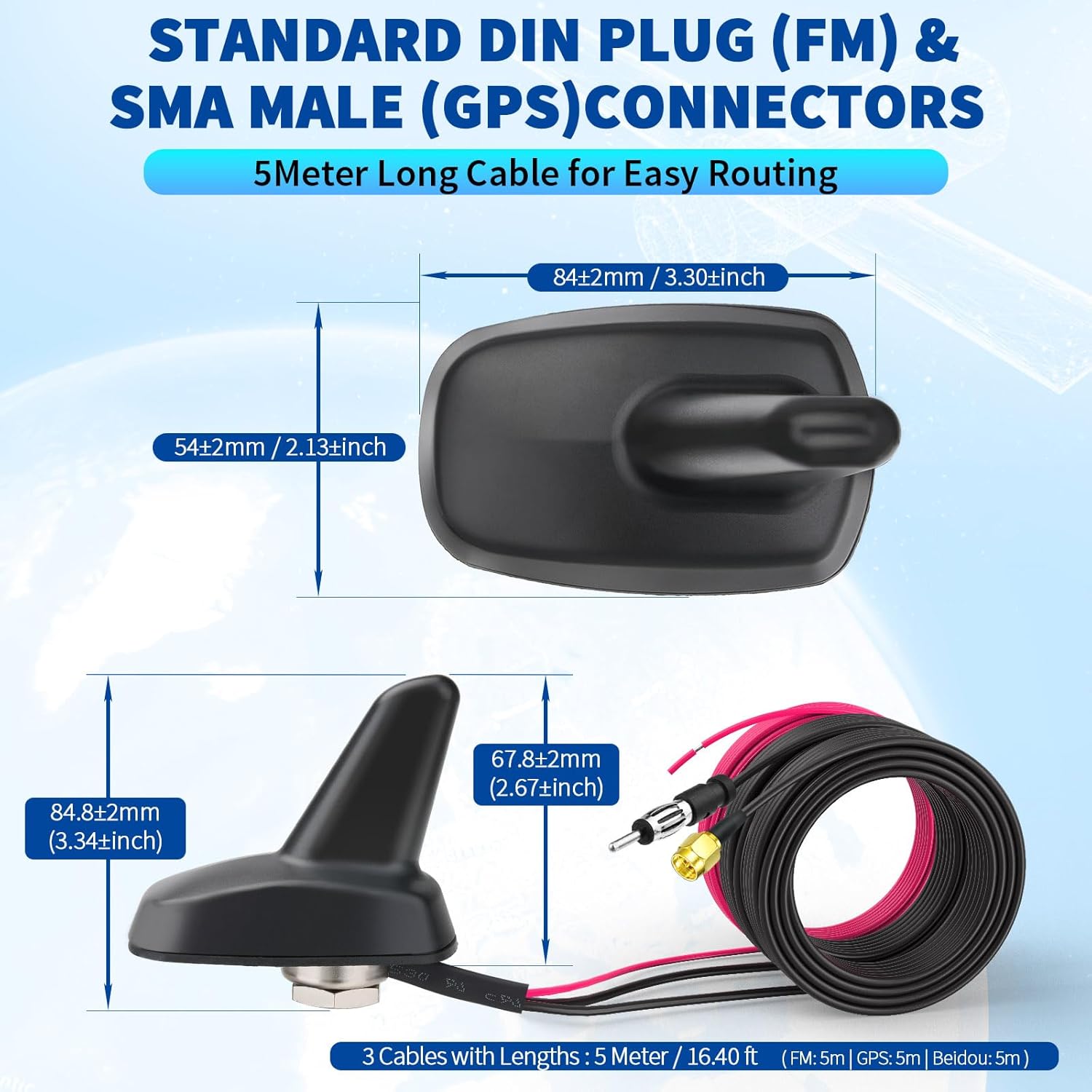

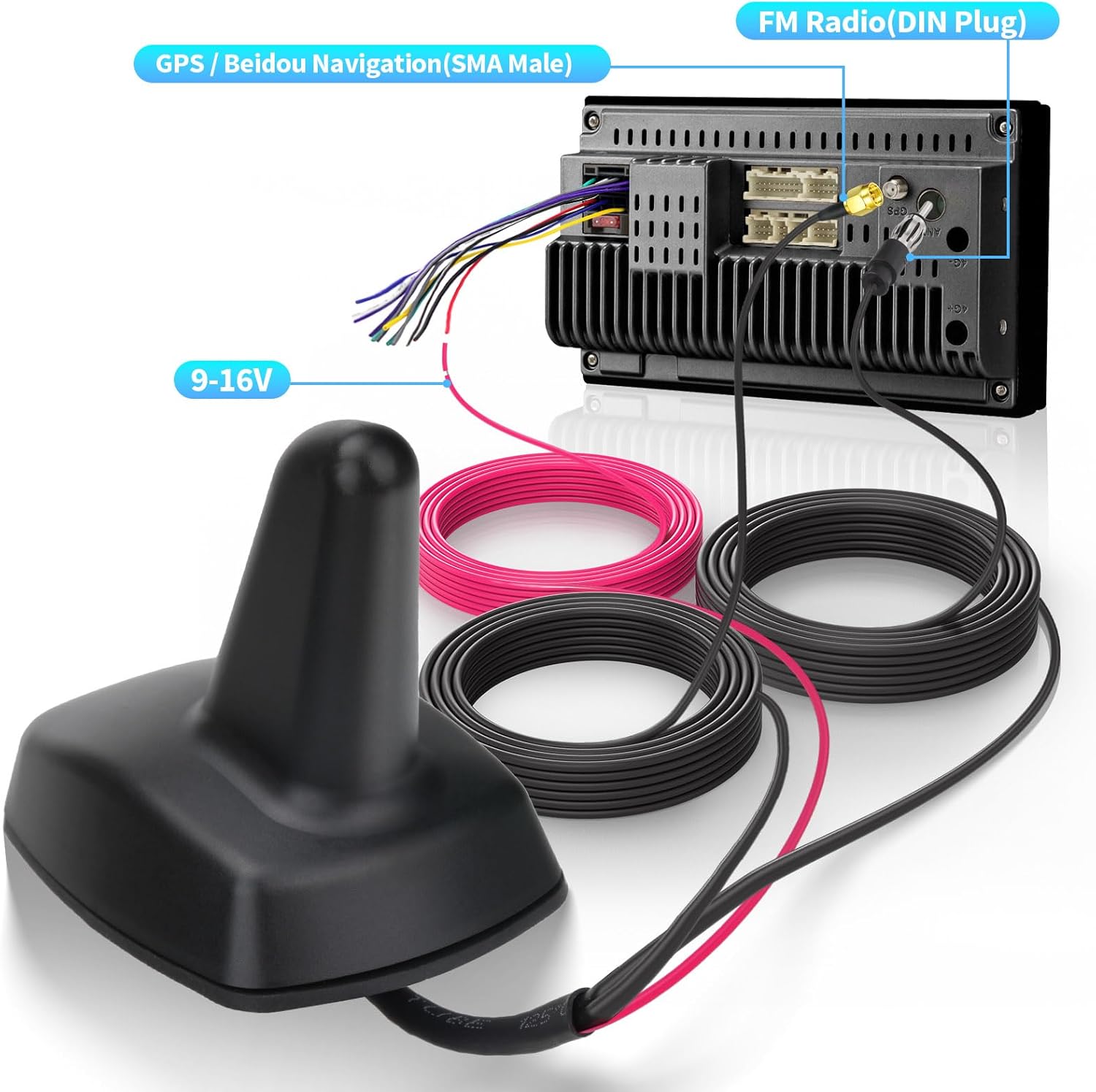

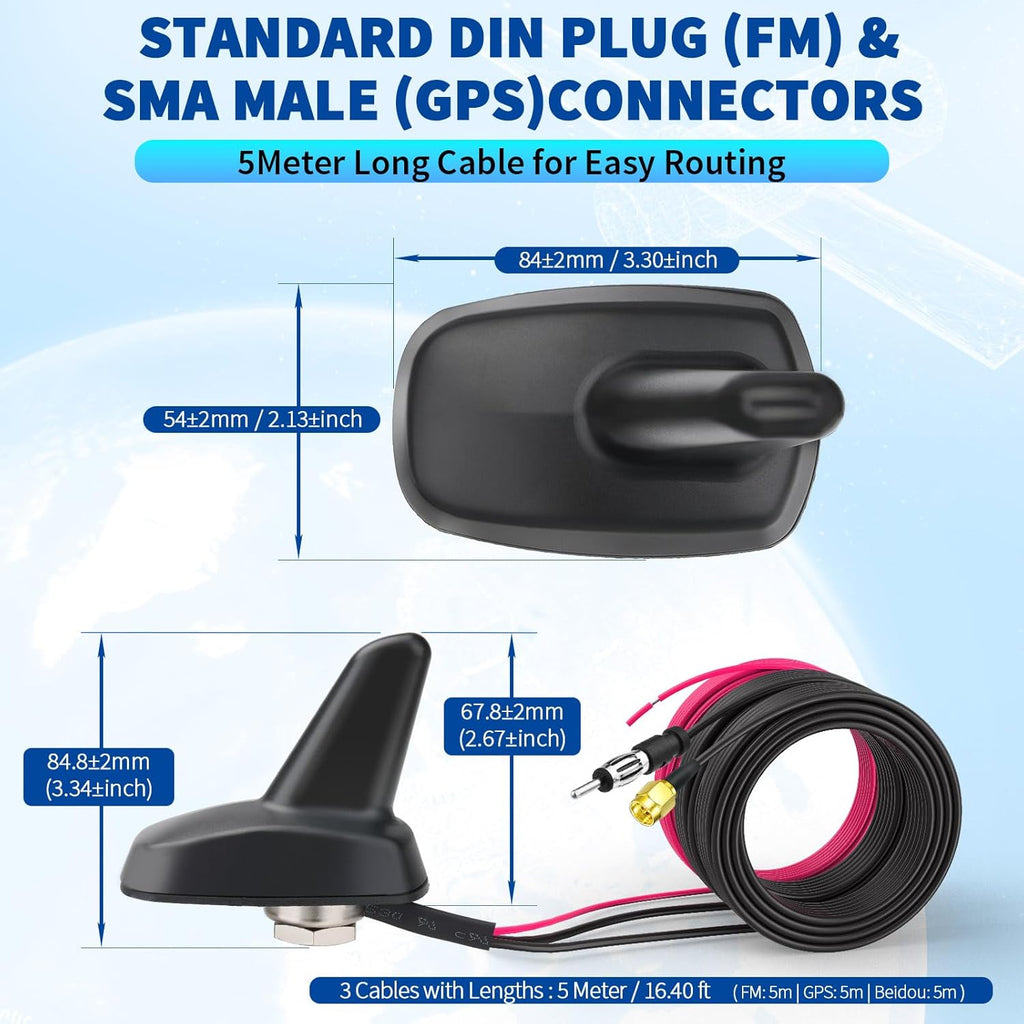

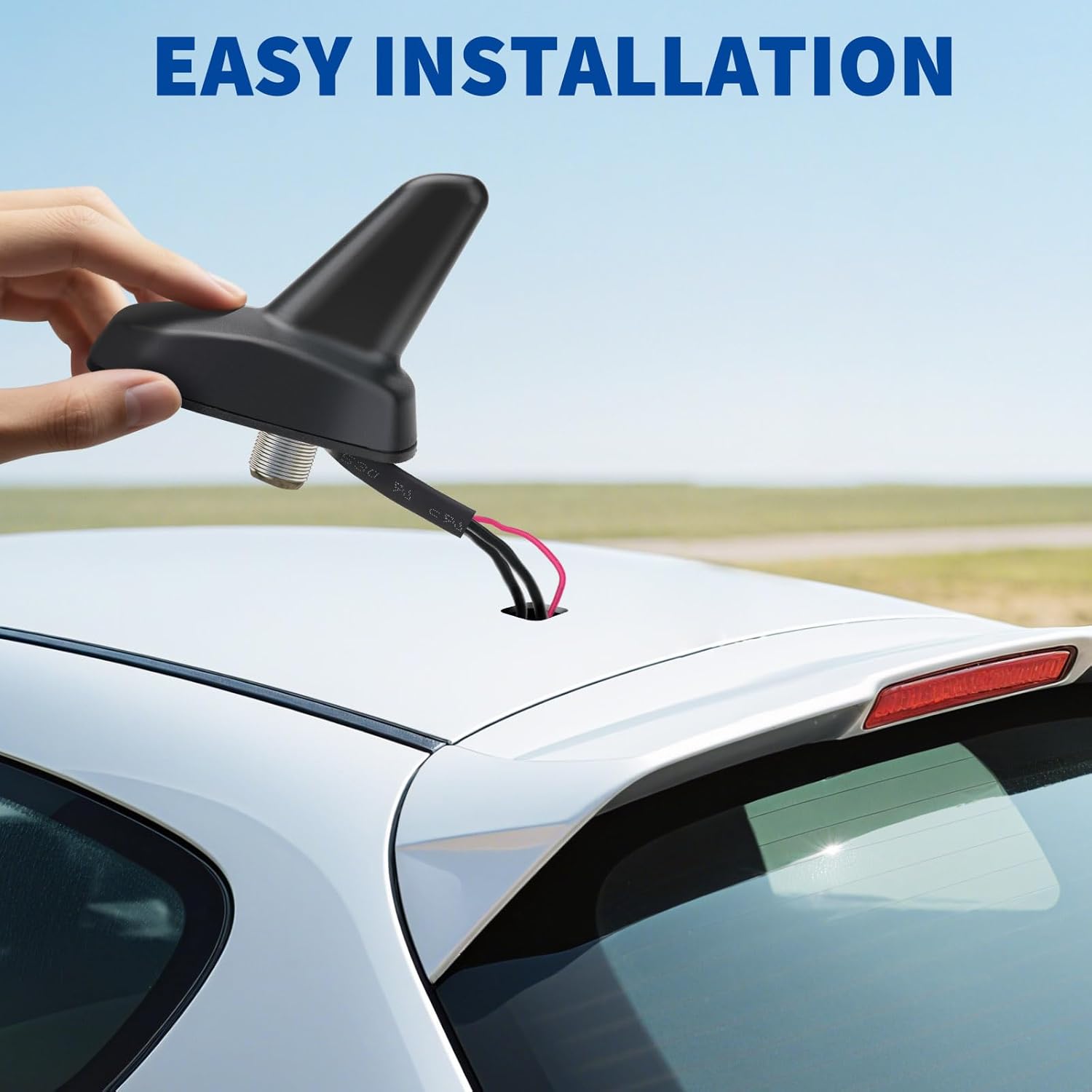

• Shark Fin Design & Easy Installation: Sleek shark fin shape reduces wind noise; includes SMA connector and robust mounting hardware for simple setup on cars trucks or RVs

• Specifications

  Feature	Multi-Functional Shark Fin Antenna for Automotive Entertainment & Navigation. The FM/AM+GNSS antenna integrates FM/AM radio reception with high-precision GPS/BeiDou navigation, designed for seamless installation on vehicles, RVs, and commercial fleets.
  Environmental Resilience	RoHS/REACH compliant
  Operating Temperature	-40°C to +85°C
  Storage Temperature	-40°C to +90°C
  Humidity	0% to 95% (non-condensing)
  Applications	Automotive FM/AM radio systems, Fleet vehicle GPS tracking, RV and truck navigation, Marine and off-road communication
