In the world of automotive telematics and industrial IoT, Fakra connectors are the gold standard for high-speed RF data transmission. Their robust plastic housing and secure "click" locking mechanism make them ideal for high-vibration environments. However, for many engineers and DIY enthusiasts, the complex array of colors and polarities can be a major hurdle.

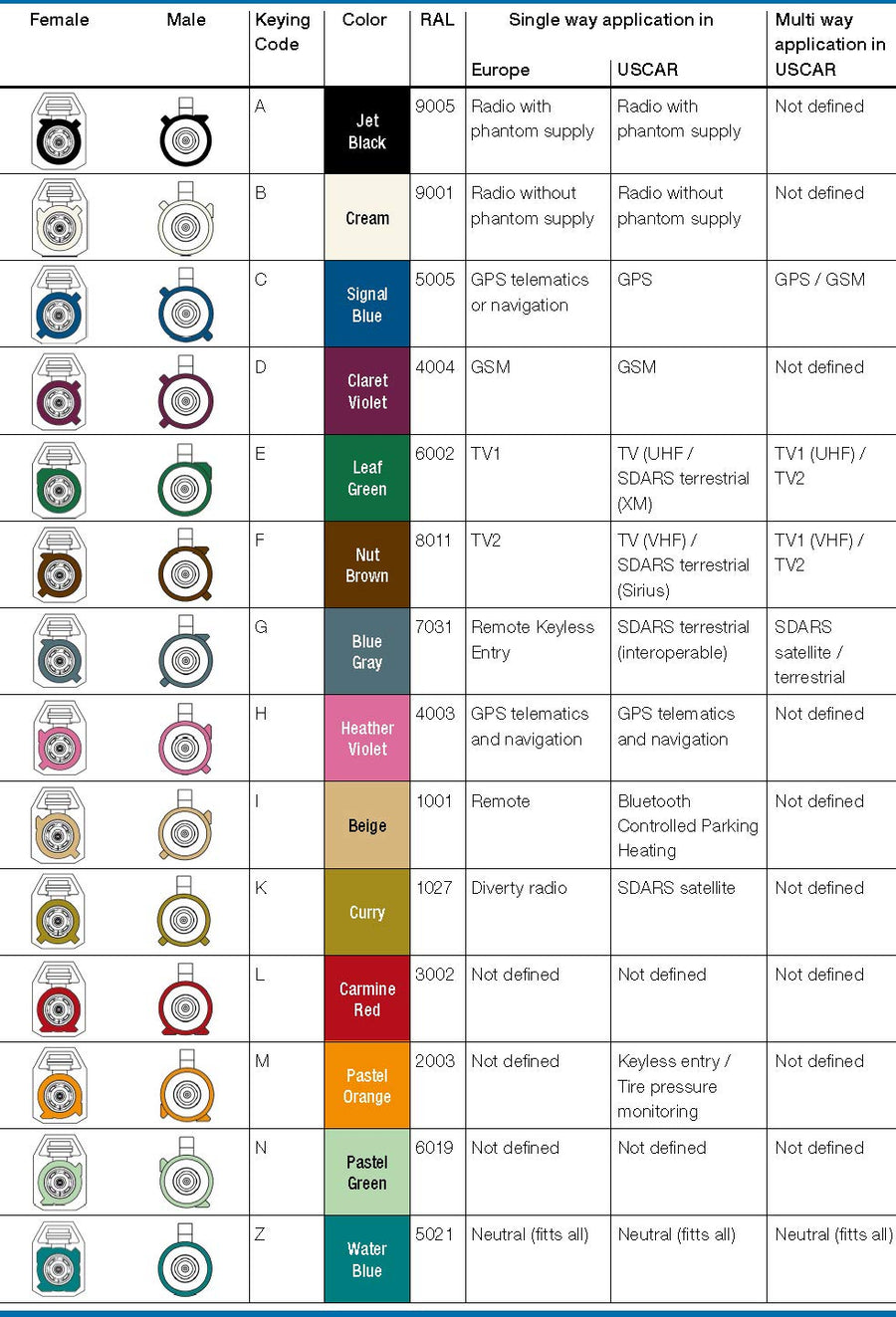

1. The Language of Colors: Understanding Keying Codes

Fakra connectors use mechanical "keying"—different slot positions on the plastic shell—to prevent incorrect connections. For example, you cannot accidentally plug a GPS antenna into a Radio port.

2. The "Universal Blue" Secret (Z-Code)

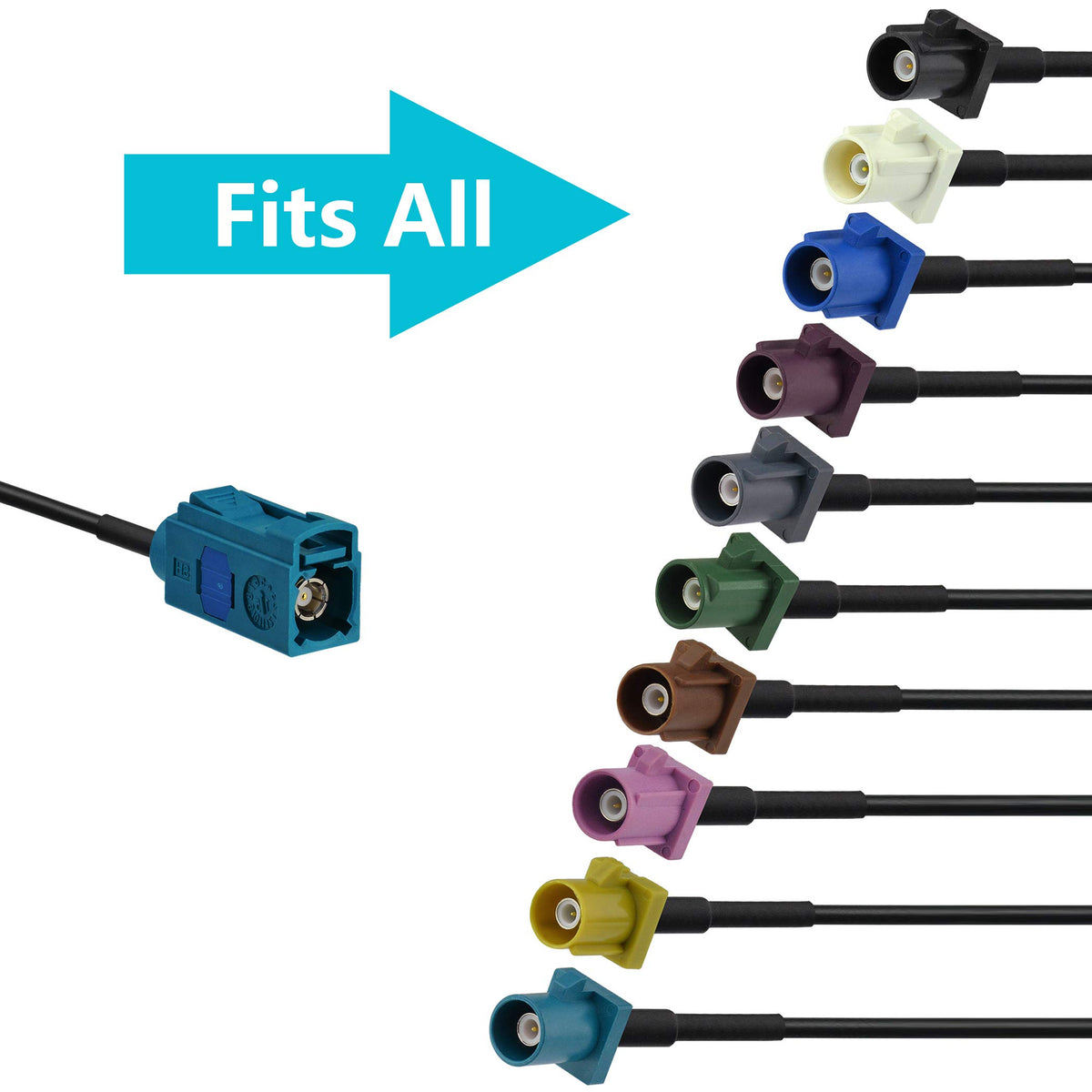

In many retrofit scenarios, you might encounter ports with unknown or damaged color codes. This is where Fakra Z (Water Blue / RAL 5021) becomes your best friend. As shown in the images below, the Z-Code is designed as a "neutral" keying, meaning it can bypass all mechanical restrictions.

Fakra Z Female (Jack): Connects to all color-coded Male plugs.

Fakra Z Male (Plug): Inserts into all color-coded Female jacks.

Pro-Installer's Checklist:

• ✅ Verify Polarity: Remember, Male has a pin, Female has a socket. Don't let the plastic housing confuse you!
• ✅ Cable Matters: For long runs (over 3m), choose low-loss RG174 or RG58 to maintain signal integrity for GPS and LTE.
• ✅ One Stock Fix: Keeping Fakra Z extension cables in your inventory reduces the need to stock 13 different colored versions.
