Description
20MHz - 1300MHz Wideband Scanning Power

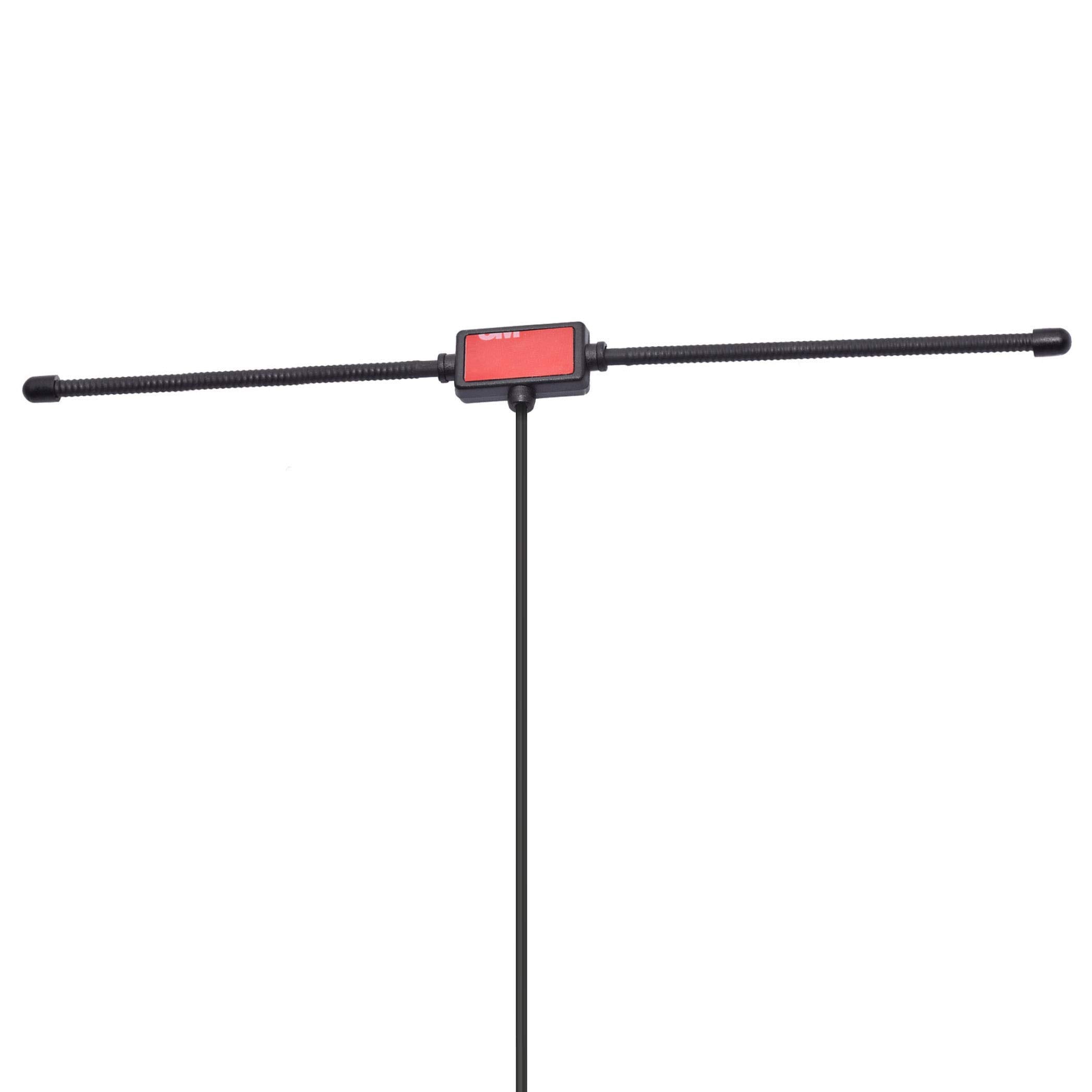

Unlock the full spectrum. The Bingfu BFN00535 delivers exceptional wideband reception for police scanners, ham radios, and amateur rigs, all in a discreet, adhesive-mount design.
Full-Spectrum Sensitivity
From 20MHz VHF to 1300MHz UHF, this 3dBi gain dipole captures weak signals across diverse bands, eliminating the need for multiple antennas.
Stealth Adhesive Mount
The sleek, low-profile patch allows for non-invasive "peel-and-stick" installation on glass, keeping your setup clean, hidden, and secure.
Technical Specifications
| Frequency | 20MHz - 1300MHz |
| Gain | 3dBi |
| VSWR / Imp. | < 2.0 / 50 Ohm |

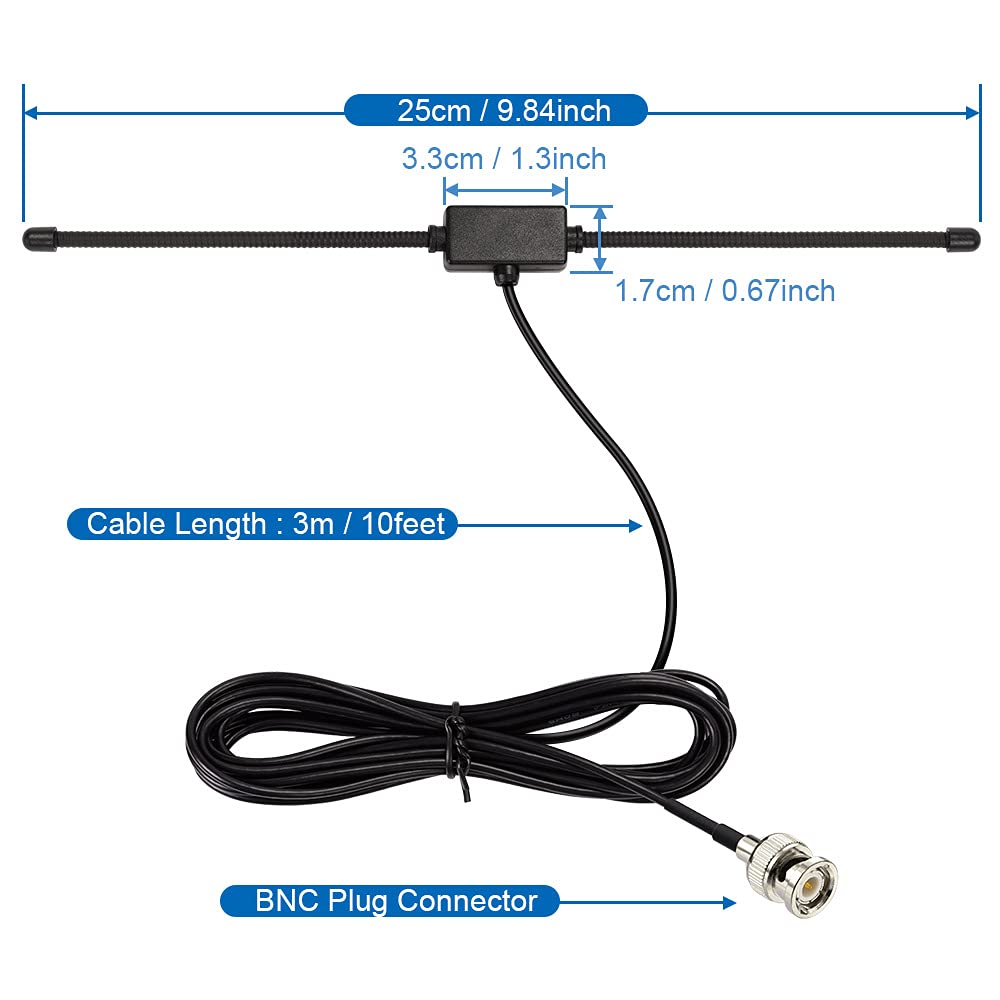

| Cable | 3m (10ft) RG174 Coaxial |
| Connector | BNC Male |
| Temp. Range | -20°C to +80°C (Op.) |
🔍Broad Compatibility
Precision-engineered for seamless use with BNC-equipped scanners and radios:
- Uniden Bearcat: BC125AT, BCD436HP, BC75XLT, BCD325P2, BC355N, BCD996P2, BC365CRS, BCT15X, BCD536HP...
- Whistler: TRX1, TRX2, WS1040, WS1088, WS1010, WS1080...
- Radio Shack: PRO-197, PRO-650, PRO-163, PRO-405, PRO-528...
*And virtually any radio using a standard BNC port.

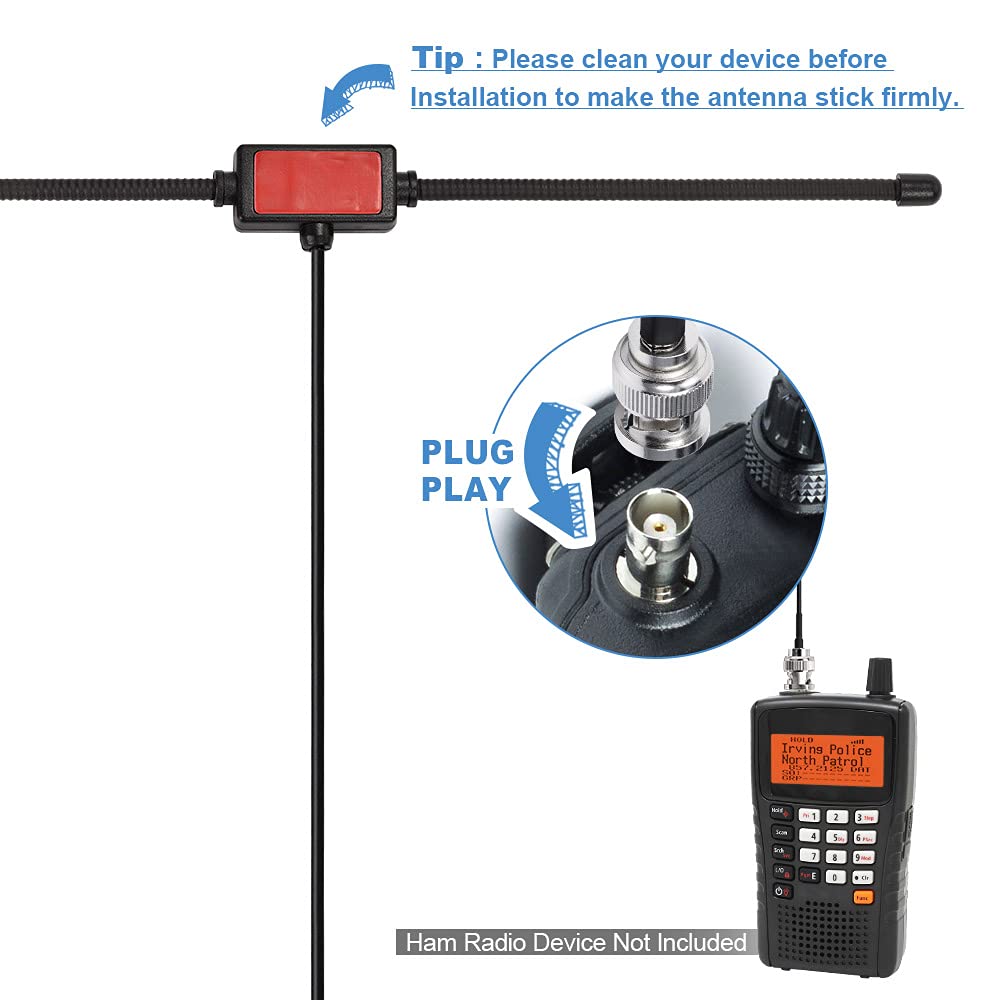

💡 Installation Pro-Tip: For maximum adhesive durability and signal clarity, clean the glass surface thoroughly with alcohol before mounting. Avoid placement near thick metal pillars.
