Description
Specifications:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
Peak Gain: 3.dBi
Impedance: 50Ω
VSWR: ≤4.0
Polarization: Linear
Connector: RP-SMA Male
Radome Material: Fiberglass (Black)
Base Sleeve: Anodized Aluminum
Operating Temperature: -40°C to +80°C
Application:
Compatible with 4G LTE Wireless Mobile Router Hub;
Wireless Home Phone Hotspot Router Modem;
Wireless Cellular Wildlife Camera Trail Camera Game Camera Hunting Camera;
4G LTE Industrial Gateway Router Modem Terminal;
Vehicle Car Truck RV Bus Van;
Compatible with Industrial LTE Cellular Router Gateway; Internet Of Things IOT; Machine-to-Machine M2M; PLC RTU DTU Remote Controller Unit; Relay Gate Opener Switch; SMS Alarm SCADA DAQ Module; Vending Machine, Kiosks, Digital Signage ; Vehicle Video Surveillance Camera DVR NVR);
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Color: Black
- Impedance: 50 Ohm

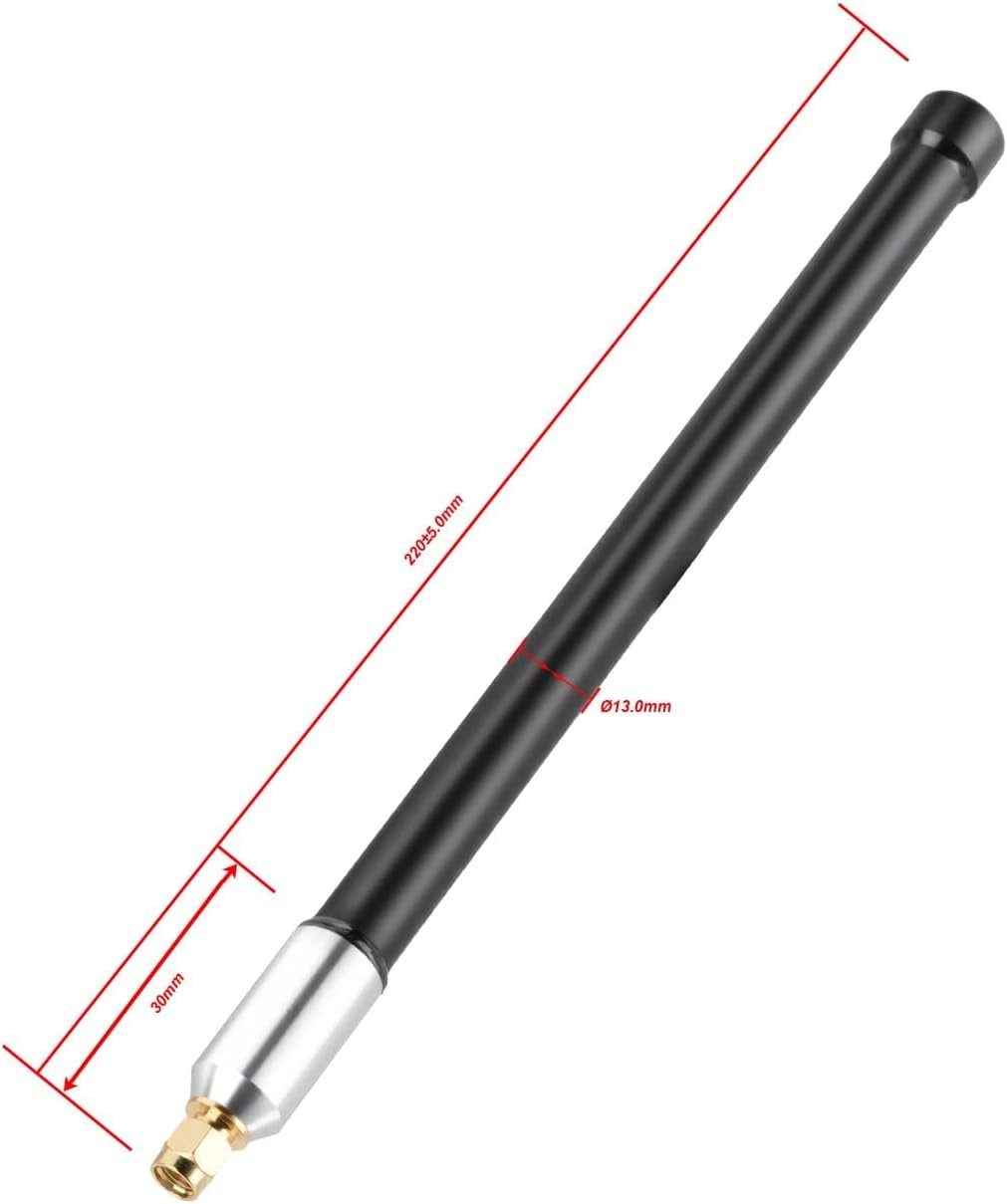

- Product Dimensions: 11.8"L x 4.7"W x 1.2"H
- Manufacturer: BINGFU
- Number of Items: 1
Product Features
- Compatibility: Wide frequency coverage from 700 MHz to 2700 MHz for 4G LTE networks; Compatible with major US carriers like Verizon, AT&T, and T-Mobile; Works with routers, modems, gateways, and trail cameras featuring SMA Female ports
- 3dBi - Sometimes Lower-gain is Better: An antenna with a high dBi rating focuses signal more directionally, which can be detrimental in environments requiring wide coverage, such as indoors or urban areas. In these use cases, a lower-dBi antenna often provides more reliable and consistent performance
- Durable Construction: Built with fiberglass radome and anodized aluminum sleeve; Withstands extreme temperatures from -40 degrees Fahrenheit to 176 degrees Fahrenheit; IP67 waterproof rating ensures protection against rain and dust
- Easy Installation: SMA male connector enables flexible mounting. IP-rated waterproof per IEC 60529
- Wide Application: Compatible with 4G LTE Mobile Router and 4g lte trail cameras with RP-SMA Female antenna interface(A Pin in Connector Center of the device), compatible with routers, modems, and gateways from brands such as Cisco, MoFi, Novatel, Pepwave, Sierra, ZTE, and more

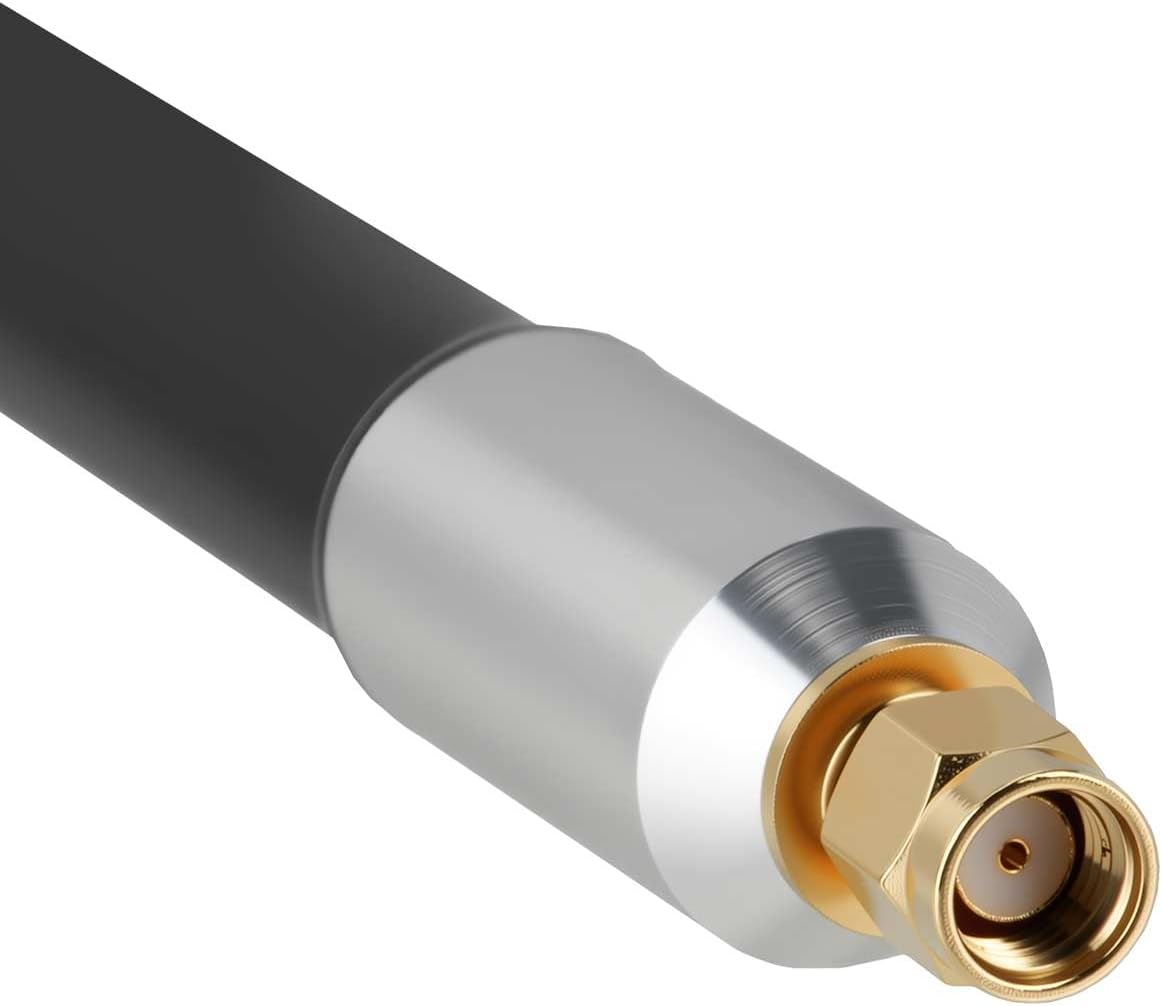

- 【Please Note】- The antenna connector is (RP-SMA) (Male) [a hole in connector center（without pin）], please check it before purchase.
-
Specifications:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
Peak Gain: 3.dBi
Impedance: 50Ω
VSWR: ≤4.0
Polarization: Linear
Connector: RP-SMA Male
Radome Material: Fiberglass (Black)
Base Sleeve: Anodized Aluminum
Operating Temperature: -40°C to +80°C
