Description
Specifications:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
Peak Gain: 3.dBi
Impedance: 50Ω
VSWR: ≤4.0
Polarization: Linear
Connector: SMA Male
Radome Material: Fiberglass (Black)
Base Sleeve: Anodized Aluminum
Operating Temperature: -40°C to +80°C
Application:
Compatible with 4G LTE Wireless Mobile Router Hub;
Wireless Home Phone Hotspot Router Modem;
Wireless Cellular Wildlife Camera Trail Camera Game Camera Hunting Camera;
4G LTE Industrial Gateway Router Modem Terminal;
Vehicle Car Truck RV Bus Van;
Compatible with Industrial LTE Cellular Router Gateway; Internet Of Things IOT; Machine-to-Machine M2M; PLC RTU DTU Remote Controller Unit; Relay Gate Opener Switch; SMS Alarm SCADA DAQ Module; Vending Machine, Kiosks, Digital Signage ; Vehicle Video Surveillance Camera DVR NVR);
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Color: Black
- Impedance: 50 Ohm

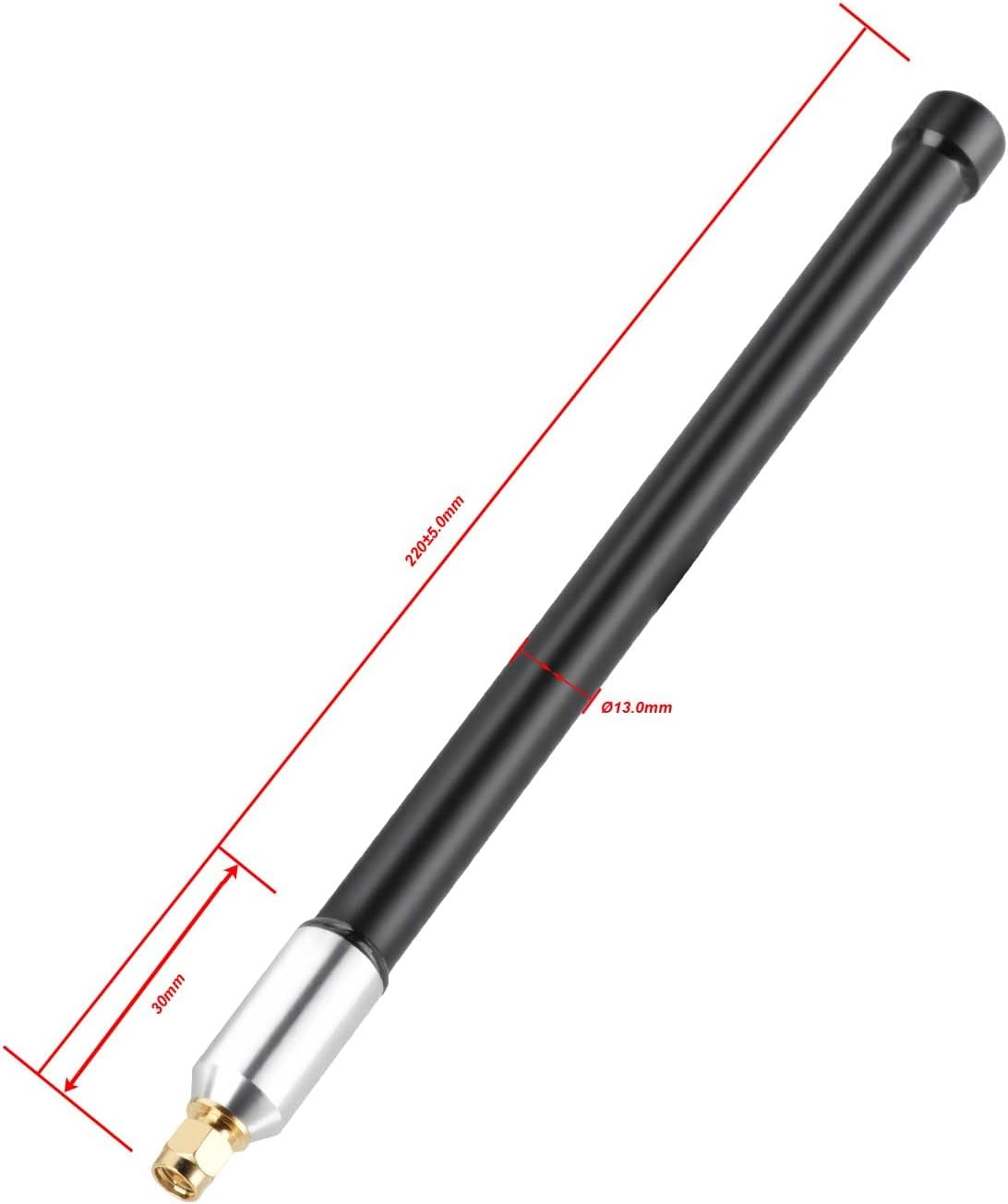

- Product Dimensions: 11.8"L x 4.7"W x 1.2"H
- Manufacturer: BINGFU
- Number of Items: 1
Product Features
- Compatibility: Wide frequency coverage from 700 MHz to 2700 MHz for 4G LTE networks; Compatible with major US carriers like Verizon, AT&T, and T-Mobile; Works with routers, modems, gateways, and trail cameras featuring SMA Female ports
- 3dBi - Sometimes Lower-gain is Better: An antenna with a high dBi rating focuses signal more directionally, which can be detrimental in environments requiring wide coverage, such as indoors or urban areas. In these use cases, a lower-dBi antenna often provides more reliable and consistent performance
- Durable Construction: Built with fiberglass radome and anodized aluminum sleeve; Withstands extreme temperatures from -40 degrees Fahrenheit to 176 degrees Fahrenheit; IP67 waterproof rating ensures protection against rain and dust
- Easy Installation: SMA male connector enables flexible mounting. IP-rated waterproof per IEC 60529
- Wide Application: Compatible with 4G LTE Mobile Router and 4g lte trail cameras with SMA Female antenna interface, compatible with routers, modems, and gateways from brands such as Cisco, MoFi, Novatel, Pepwave, Sierra, ZTE, and more
-
Specifications:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
Peak Gain: 3.dBi
Impedance: 50Ω
VSWR: ≤4.0
Polarization: Linear
Connector: SMA Male
Radome Material: Fiberglass (Black)
Base Sleeve: Anodized Aluminum
Operating Temperature: -40°C to +80°C
