Description
Reliable 2-in-1 Cellular & GPS Connectivity for Industrial & Mobile Assets
The Bingfu Dual-Band Wall-Mount Antenna is a rugged, weatherproof solution combining High-Gain 4G LTE and Active GPS/GLONASS in one compact housing. Whether you are tracking a fleet of trucks, setting up a remote industrial IoT gateway, or boosting internet in your RV, this pre-assembled fixed bracket kit delivers uninterrupted data and location precision.
Why Choose This Antenna Kit?
- Dual-Stream Efficiency: One housing contains 1x 4G LTE lead and 1x Active GPS lead, reducing cable clutter and drilling.

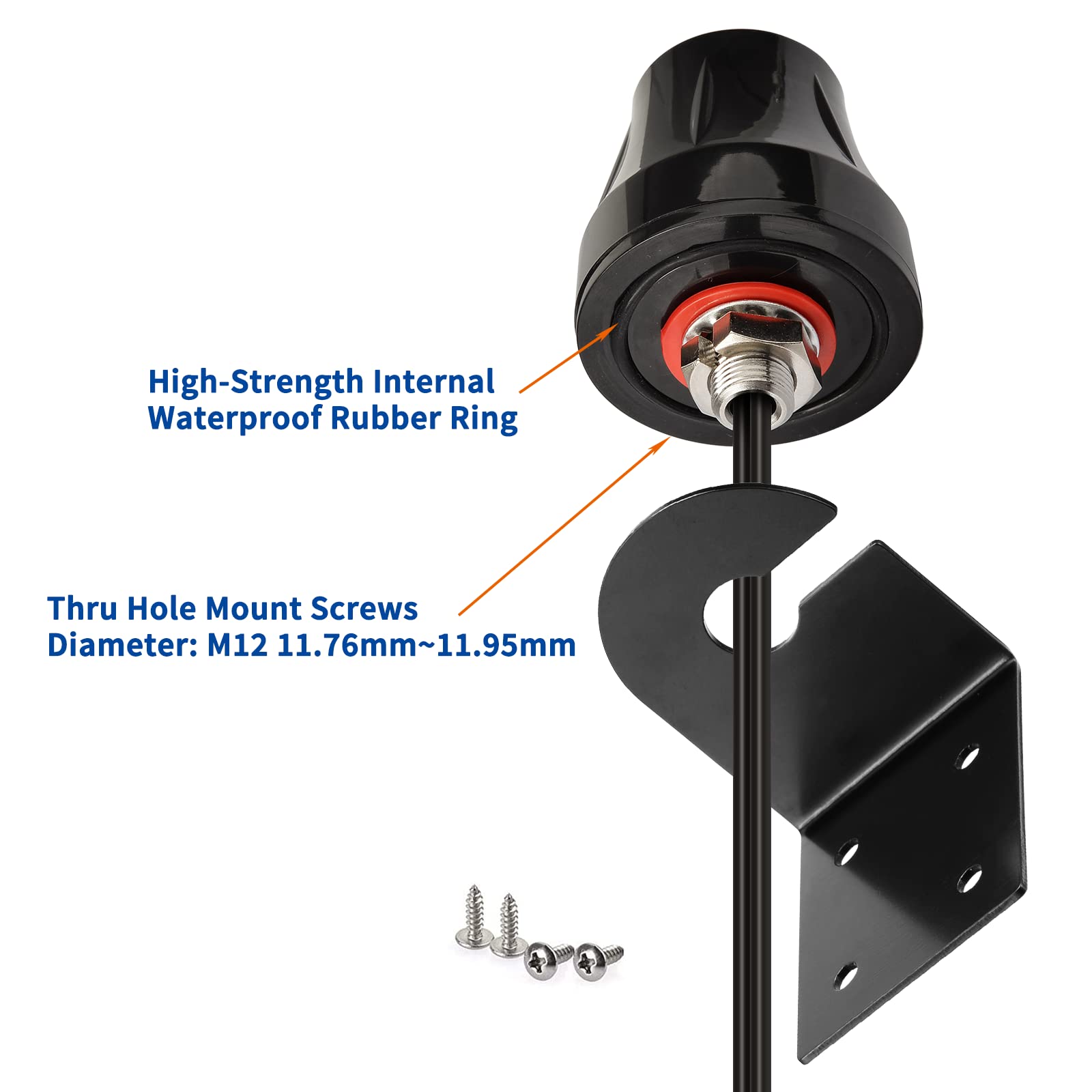

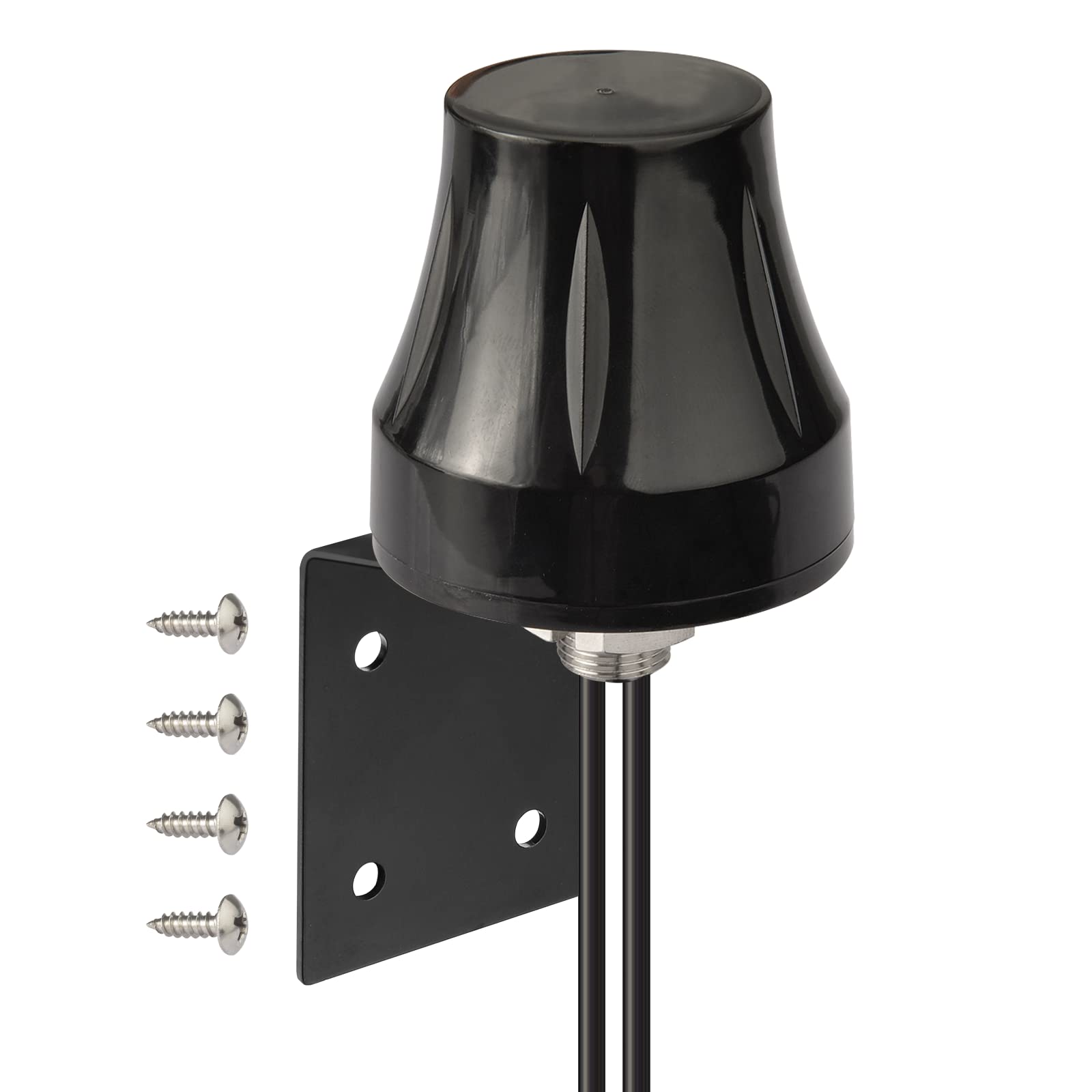

- Fixed L-Bracket Installation: Anti-vibration, corrosion-resistant bracket perfect for permanent wall, pole, or vehicle roof mounts.
- All-Weather Heavy Duty: UV-stable, waterproof ABS design built to endure highway vibrations and outdoor environments.
- Low Loss Extensions: Pre-fitted with twin 3-meter (10ft) RG174 low-loss cables and standard SMA Male plugs.
Technical Specifications
| Frequency Range | LTE: 698-960 MHz, 1710-2700 MHz | GPS: 1575.42 MHz |
|---|---|
| Antenna Gain | LTE: 3dBi | GPS: 28dB (Active LNA) |
| VSWR & Impedance | < 2.0 | 50 Ω (Optimized for RF Match) |
| Cables & Connectors | 2 x RG174 Low-Loss (3m / 10ft) with SMA Male Plugs |
| Mounting Profile | Heavy Duty Fixed L-Bracket (Wall/Pole/Roof Mount) |
