Description
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Color: 4G LTE Fiberglass Antenna 32.8ft cable
- Impedance: 50 Ohm
- Product Dimensions: 14.57"L x 2.76"W x 1.97"H
- Manufacturer: Bingfu
- Number of Items: 1
Product Features
- Antenna cover is made of high quality fiber glass, it is waterproof and durable for outdoor Long-term use;
- Indoor or Outdoor installation: 10 meters/32.8ft cable length can choose the appropriate installation location
- Compatible Carrier: Verizon, AT&T, T-Mobile, Sprint and etc; Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz; Gain: 6dBi; Direction: Omni-directional;
- Compatible with 4G LTE Mobile Router, Mobile Broadband Modem Hotspot, CPE Router, Cellular Gateway, Vehicle Car Truck RV Bus Van Mobile Cellular;
- Compatible with Most 4G LTE Cellular Trail Camera, Game Camera, Hunting Camera, Outdoor Security Camera, Celluar Surveillance Camera; Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder;
- Compatible with Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert;
-
Description:
- Frequency Range:698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;
- Gain：6dBi
- Polarization：Linear Vertical

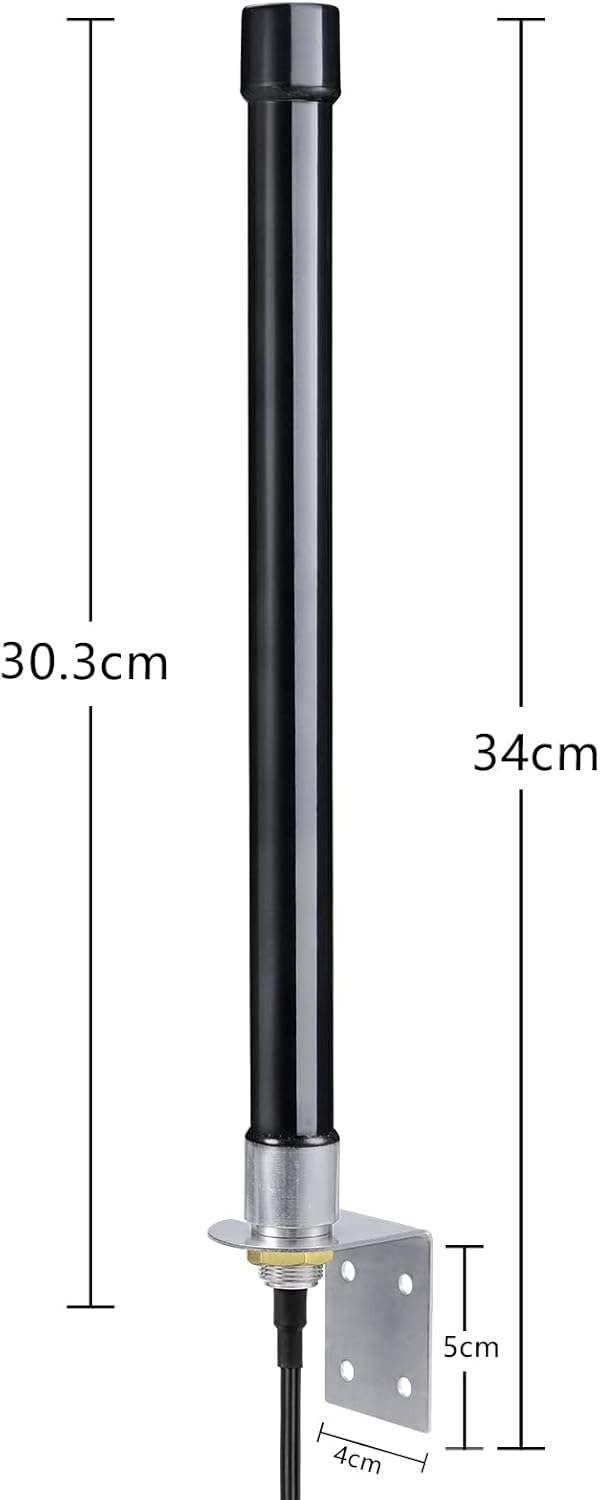

- Antenna Length：303 mm
- Cable Length：10 m (32.8 ft)
- Cable Type：Low Loss KSR195 Coaxial Cable

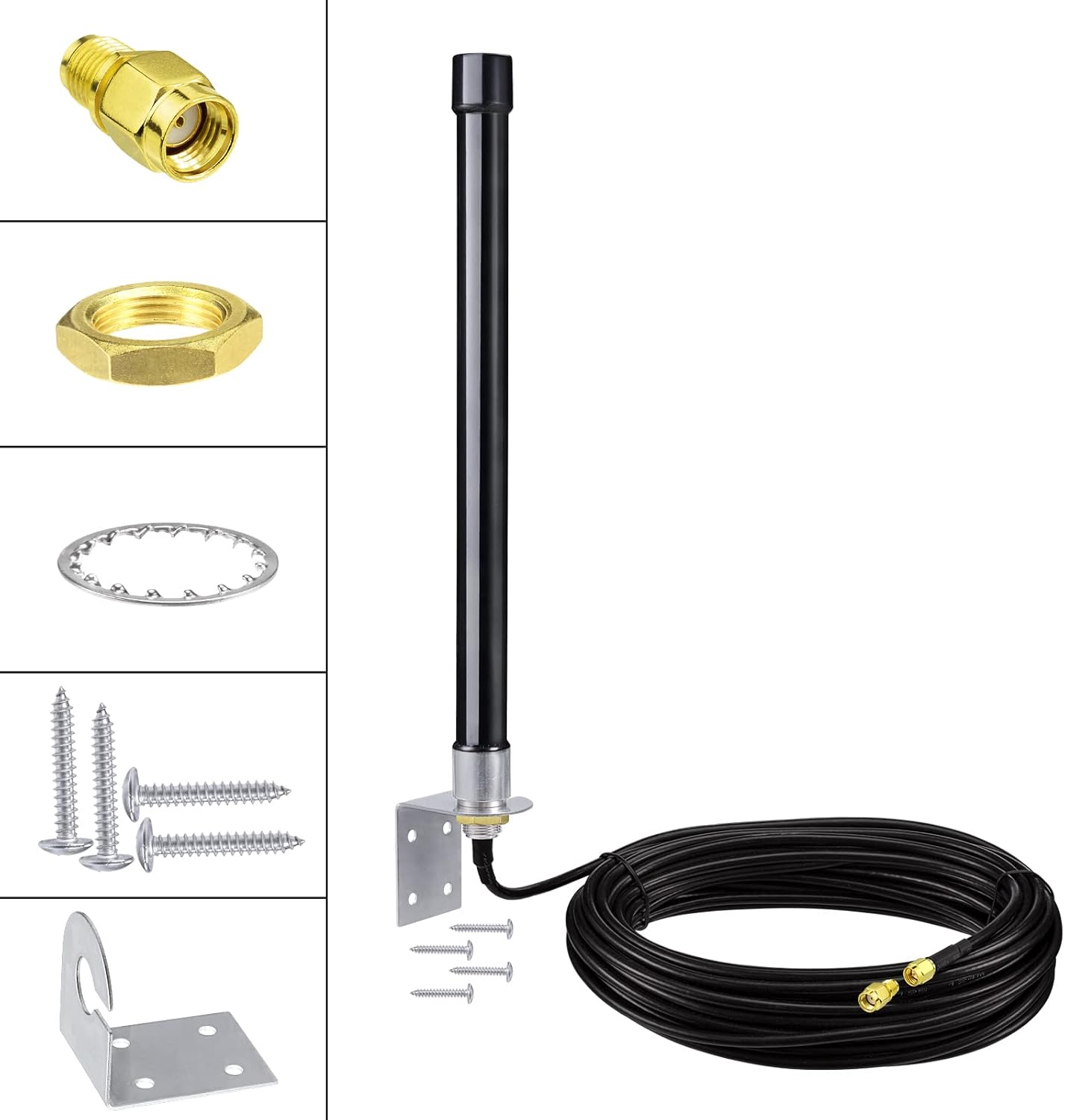

- Connector: SMA Male Connector; with RP-SMA Male Connector Adapter;
- Bracket size: 16mm mounting hole diameter, 5mm nut hole diameter
- Mounting Screws Diameter:M18(17.17mm-17.95mm)

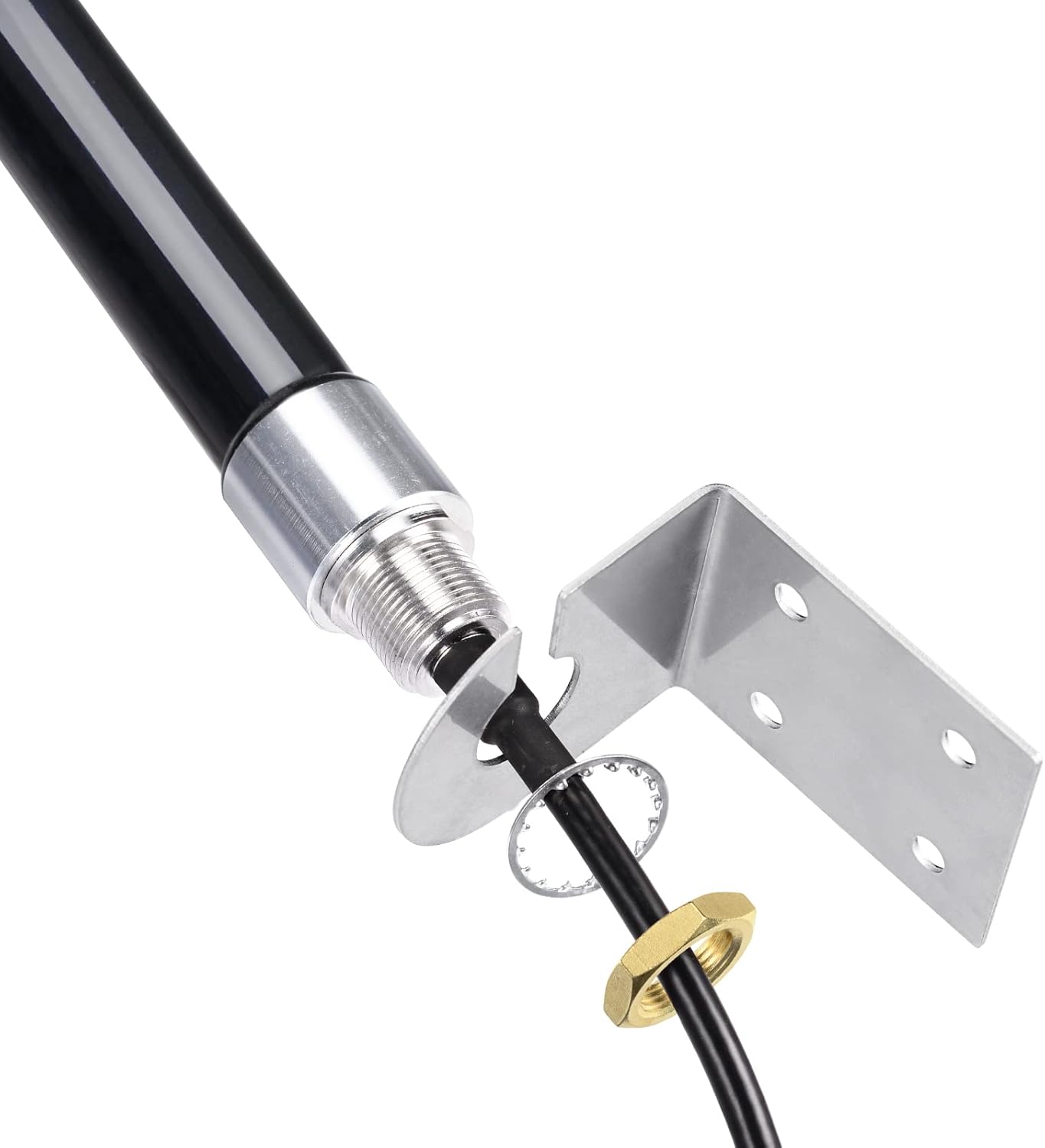

- Fixed Wall Mount; Thru Hole Mount;
- Waterproof: Rainning Proof
