Bingfu 4G LTE SMA Antenna Wall Mount Copper Rod Antenna - Compatible with Spypoint Link Micro Covert Spartan Stealth Cam Tactacam Muddy Cellular Trail Camera Hunting Wildlife Cam Router Gateway

SKU: BFN00667
  • $14.99
    Unit price per
Shipping calculated at checkout.




Product Description

4g antenna
4g antenna
4g antenna
Specifications:
Frequency Range: 700-2700 MHz
Gain: 3dBi

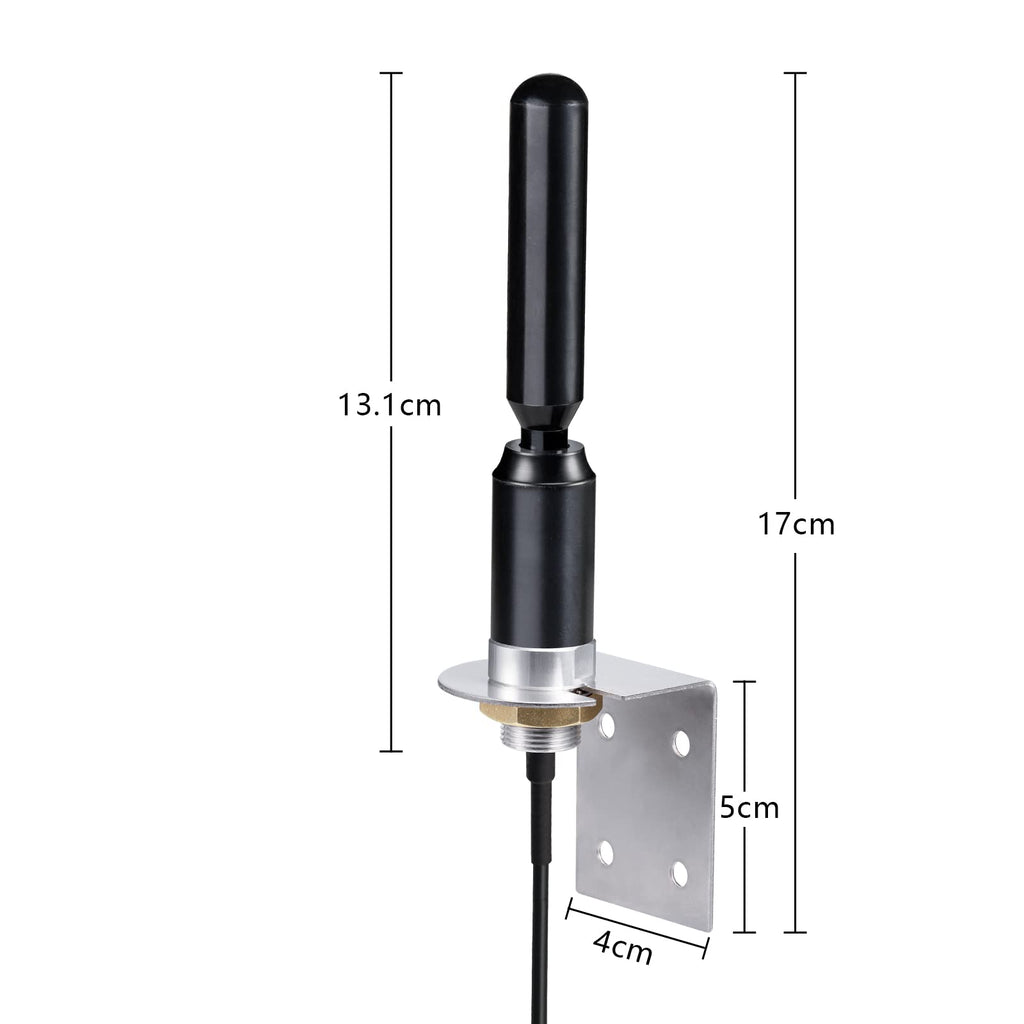

Antenna length: 13.1cm
VSWR: <1.5
Polarization: Linear Vertical
Impedance: 50 Ohm
Mounting : Through-hole mounting

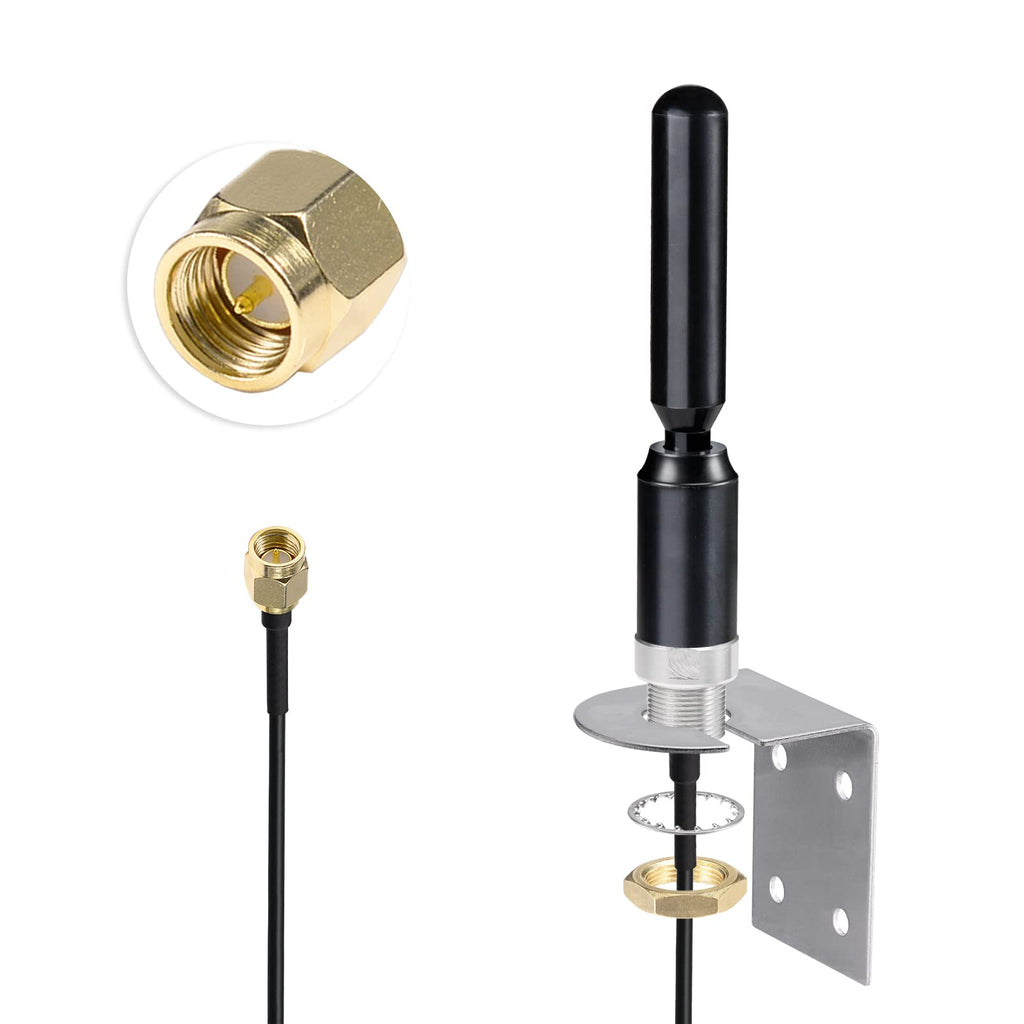

Connector: SMA Male Connector
Wire type : RG174
Wire length : 3m/10ft
Bracket size: 16mm mounting hole diameter, 5mm nut hole diameter
Mounting Screws Diameter:M18(17.17mm-17.95mm)
About this item:
High-quality Material: Antenna oscillator is a copper rod, with stable and high transmission efficiency;Unique Appearance,One-piece Molding;
Compatible with Worldwide GSM,2G,3G,4G, LTE Cellular Networks; Works with any Wireless Carrier Verizon, AT&T, T-Mobile, Sprint,Bell,Rogers,Telus and etc; Frequency Range:700-2700MHz;
Almost fits All Cellular Trail Cameras, Compatible with Compatible with SPYPOINT Link S/LINK S DARK/LINK MICRO LTE TWIN/LINK MICRO S LTE/Link EVO/LINK-MICRO-LTE-V/Link Micro VZN Version/Link Micro Solar/micro wm-v/LINK-W/CELL LINK Trail Cam, 4G LTE Router, Mobile Broadband Modem Hotspot, CPE Router, Cellular Gateway,Video Surveillance (Cameras, DVRs, NVRs),Vehicle Car Truck RV Bus Van Mobile Cellular;
Compatible with Industrial 4G LTE Routers,LTE Repeaters and Cellular IoT Gateways from Sierra, AirLink, DiGi, Cisco, Microhard and etc.; Use on Remote Relay Door Switches, Vending Machines, Digital Signage, Courier Cabinets, Kiosks, M2M;

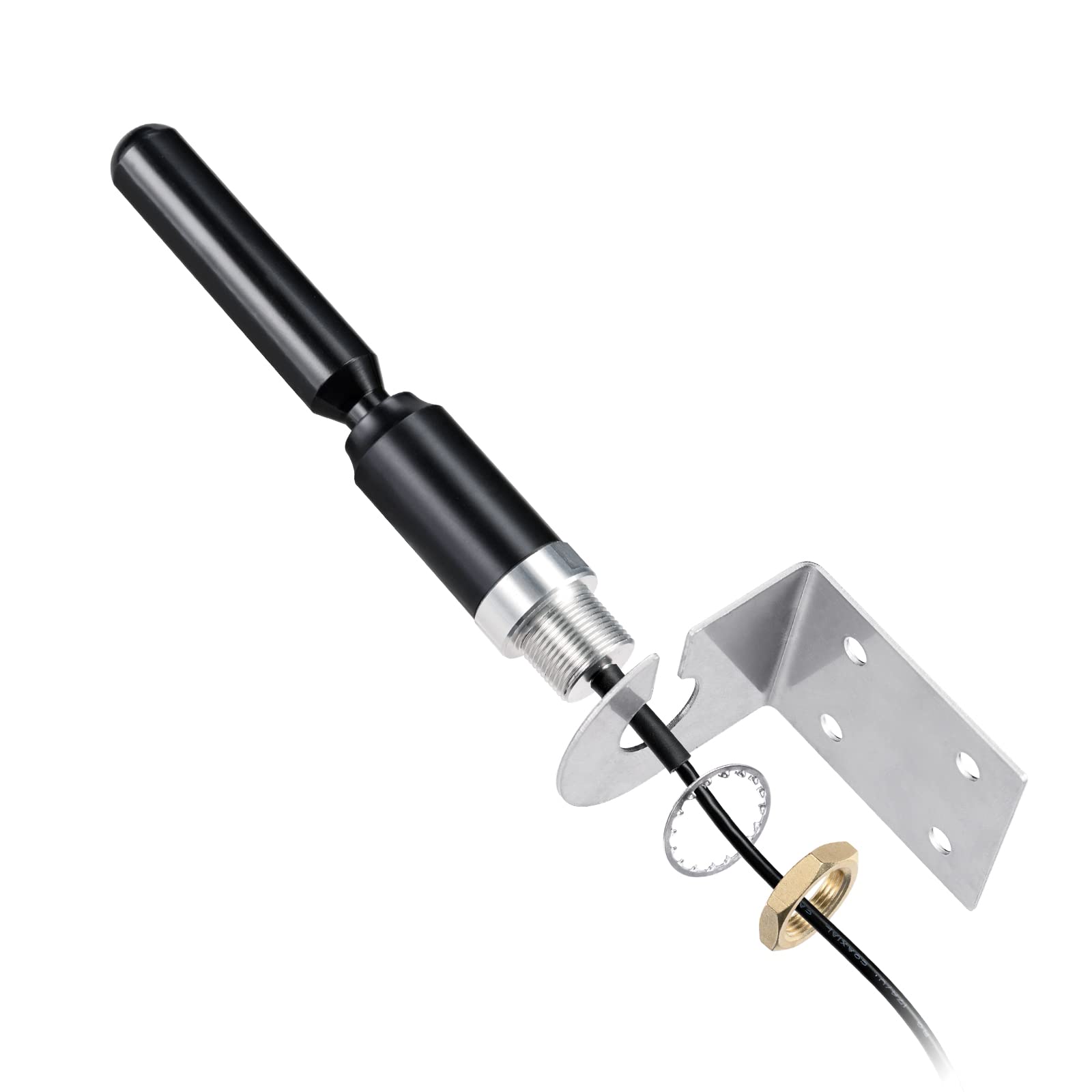

Fixed Wall Mount; Thru Hole Mount; Antenna Mounting Screws Diameter: M18 17.17mm-17.95mm; Cable Length: 3m/10 feet; Connector: SMA Male;

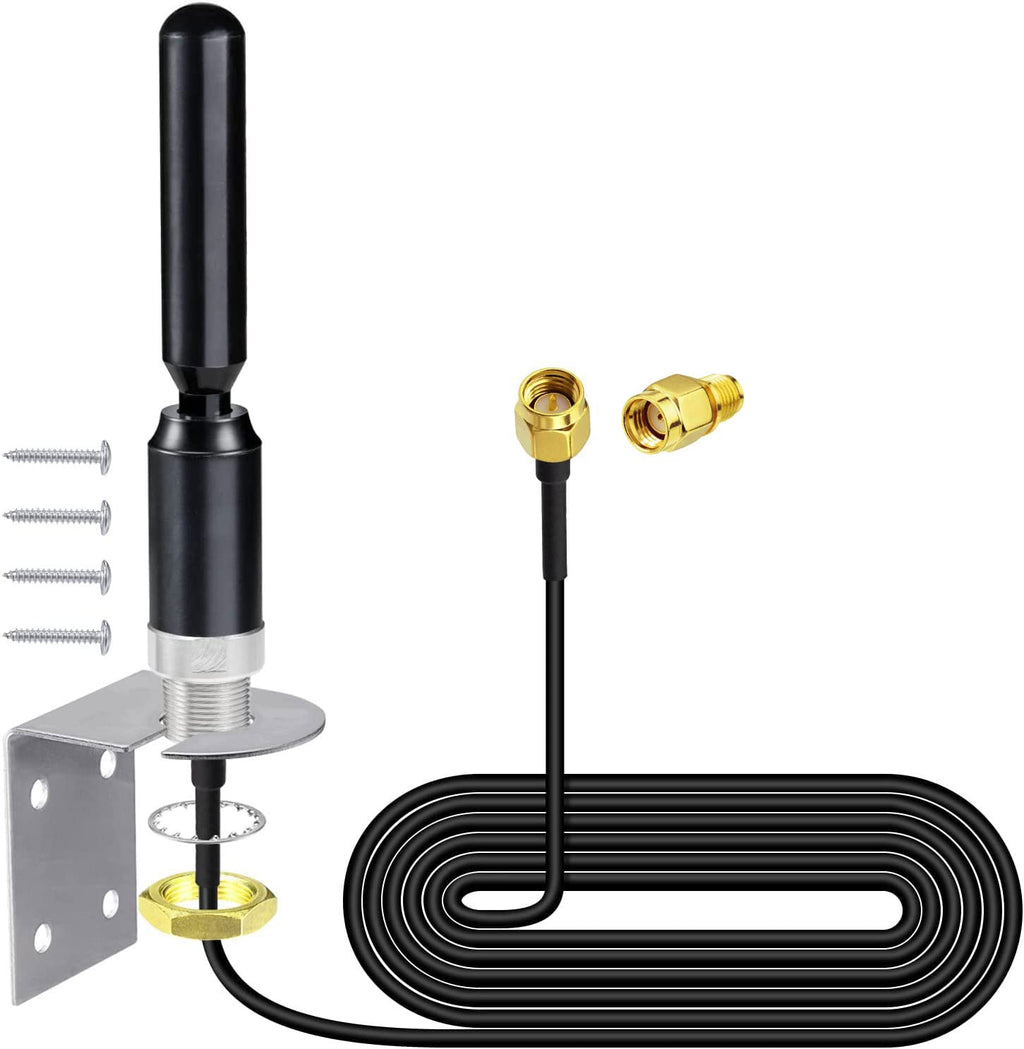

Package List: 1 x Antenna, 1 x Adapter, 1 x Wall Mount Bracket, 4 x Screws (As the Picture Shown).
Package List:
1 x Antenna
1 x Wall Mount Bracket
4 x Screws (As the Picture Shown)
