Description
Specifications:
Gain: 5dBi
VSWR: <2.0;
Polarization: Linear Vertical;
Impedance: 50 ohm;
Direction: Omni-directional;
Feature: Fixed Wall Mount; Thru Hole Mount;

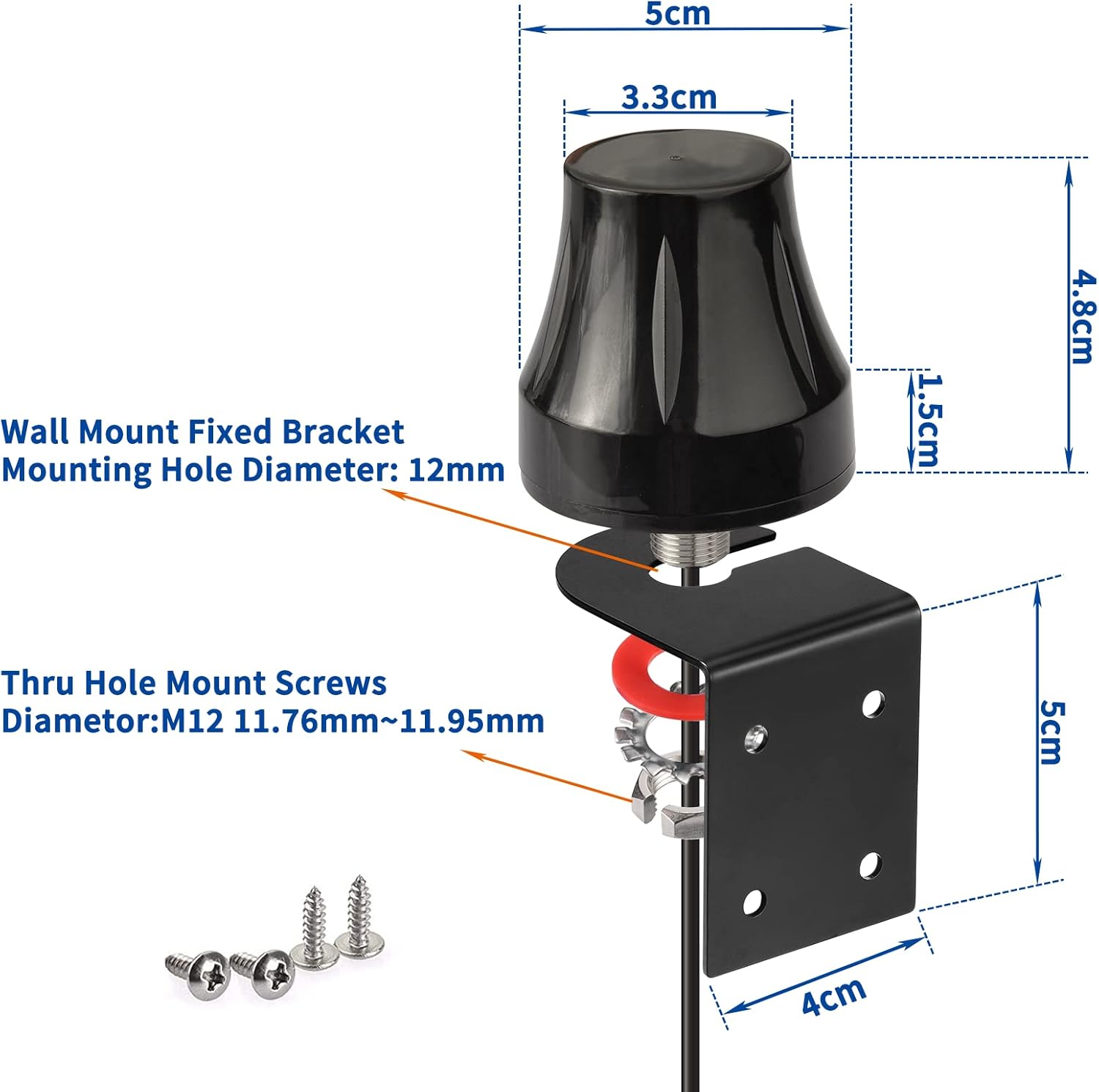

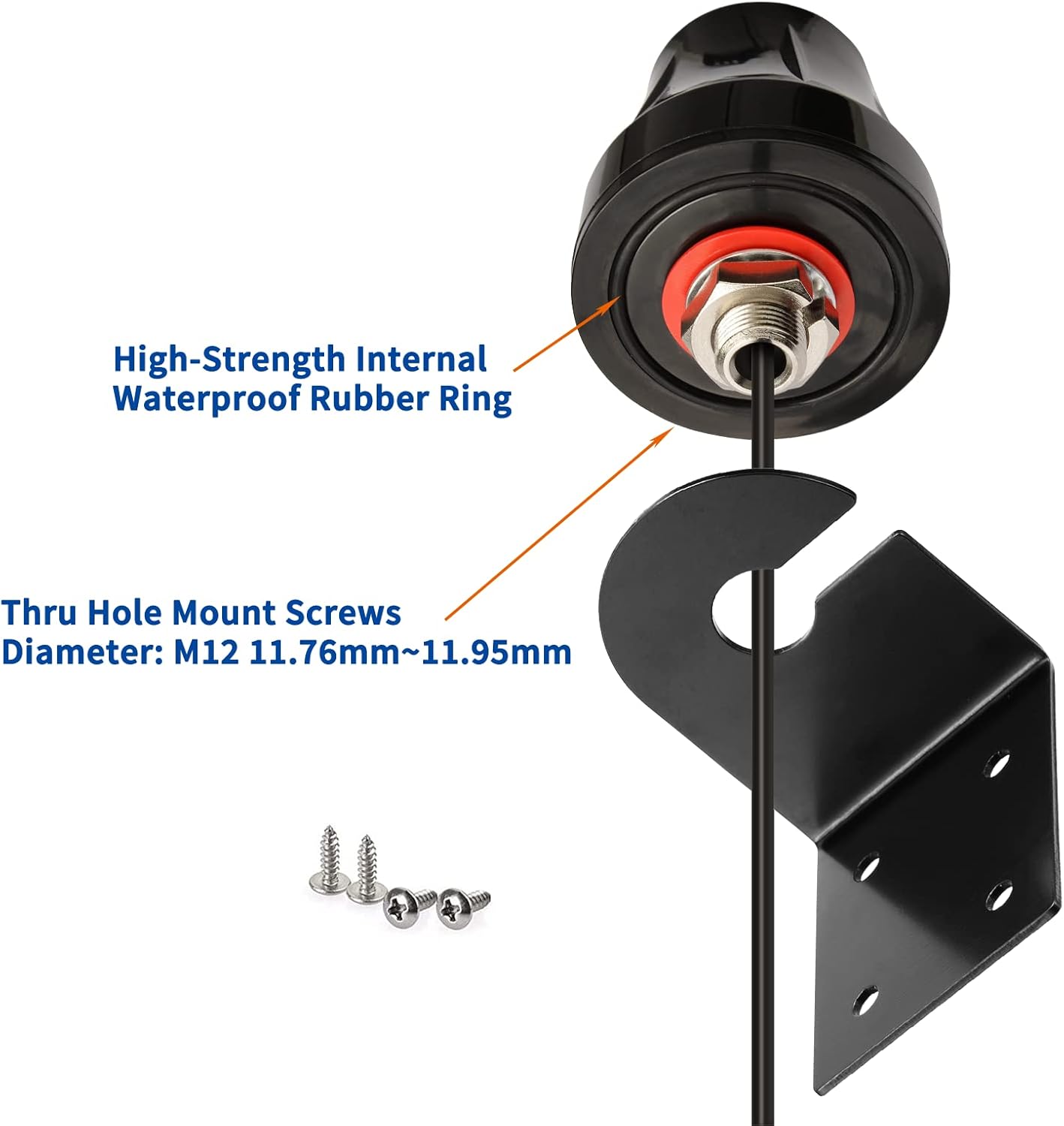

Antenna Mounting Screws Diameter: M12 (Hole Diameter: 11.76mm-11.95mm);
Connector: SMA Male Connector;
Cable Length: 3m/10 feet;
Net Weight: 265g;
Waterproof: Rainning Proof;
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С

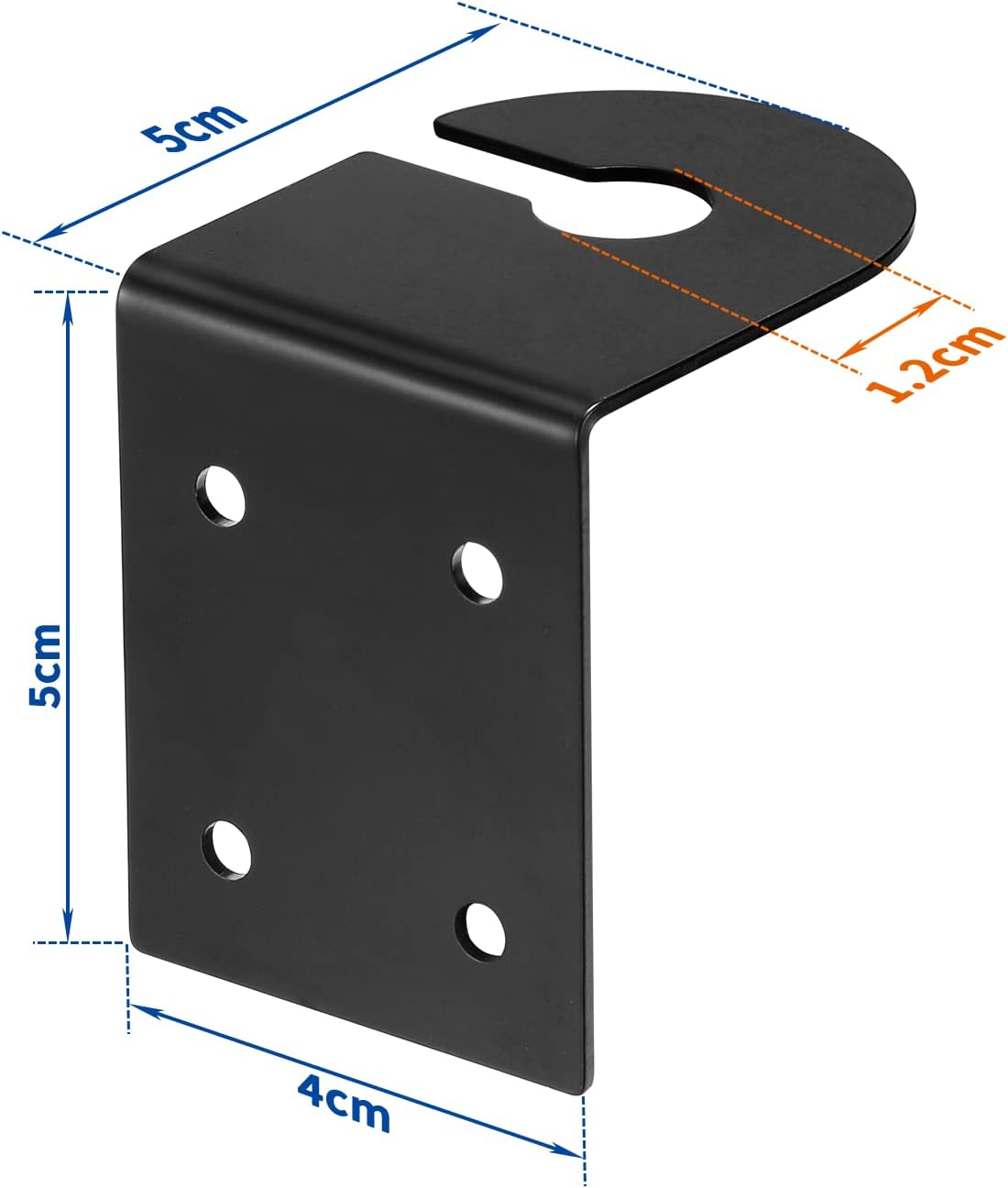

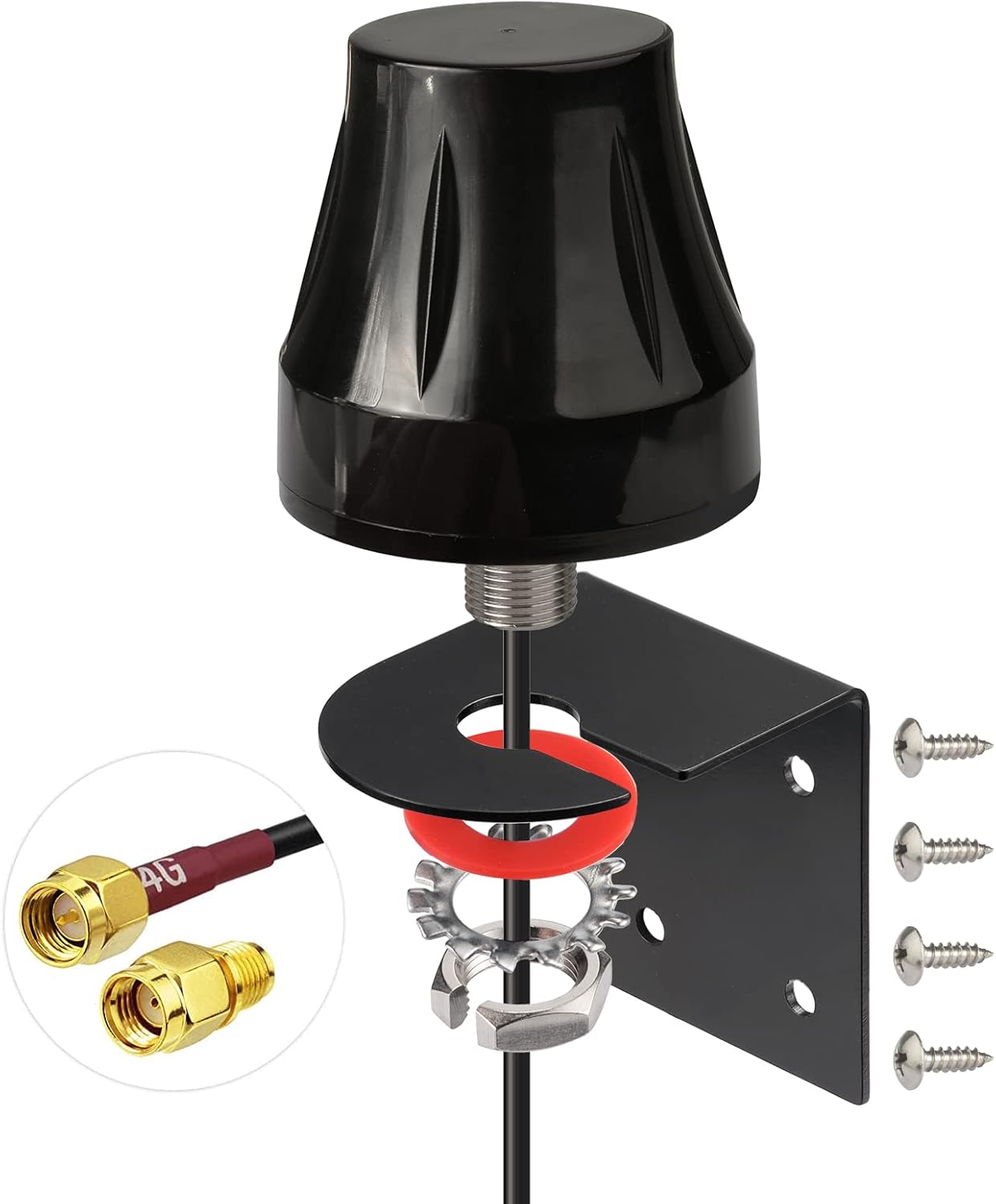

Package List: 1 x Antenna, 1 x RP-SMA Connector Adapter, 1 x Wall Mount Fixed Bracket, 4 x Self-tapping Screws (As the Picture Shown)
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Color: gate opener antenna B
- Number of Channels: 1
- Impedance: 50 Ohm
- Product Dimensions: 5.12"L x 7.09"W x 1.97"H
- UPC: 790404679796
- Manufacturer: Bingfu
- Number of Items: 1
Product Features
- Gain: 5dBi; Direction: Omni-directional; Waterproof: Rainning Proof; Feature: Fixed Wall Mount; Thru Hole Mount; Antenna Mounting Screws Diameter: M12 11.76mm-11.95mm; Cable Length: 3m/10 feet; Connector: SMA Male Connector; with RP-SMA Male Connector Adapter;
- Package List: 1 x Antenna, 1 x RP-SMA Connector Adapter, 1 x Wall Mount Bracket, 4 x Self-tapping Screws (As the Picture Shown);
- Extend Signal Coverage: It provides significant gain and greatly extends the usable distance between the gate opener and the remote control, do not need to get out of car to walk closer to the gate opener for it to work.
- Compatible with: GTO Mighty Mule Gate Opener Mule MM371W MM571W MM572W MMS100; [Connection: SMA Connector Plug and Play]
- Other Wide Application: Compatible with garage door openers, baby monitors and remote controls, electronic gates, barrier gates, sliding doors, automatic doors, rolling doors, shutters, electrical appliances, home automation i.e. lights, Alarm system, access control system
