Description
Product Description:
Constructed with an impact-resistant ABS shell, the compact 4.53" x 1.85" body handles extreme weather shifts from freezing winter environments to scorching coastal heat waves. The unit features an M12 diameter thread for secure, permanent thru-hole mounting on top of electrical cabinets or utility enclosures. Inside, the heavy shielding of the 10ft RG58 pure copper coaxial cable protects data integrity, mitigating signal drop and insertion loss. Whether you are scaling an industrial facility network or stabilizing a remote security camera link, this high-efficiency solution provides reliable, continuous uptime.
Specifications:
Gain: 7dBi
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz,3300-4200 MHz, 4400-5000 MHz,5100-5925MHz
VSWR: <2.0
Polarization: Linear Vertical
Impedance: 50 ohm
Direction: Omni-directional

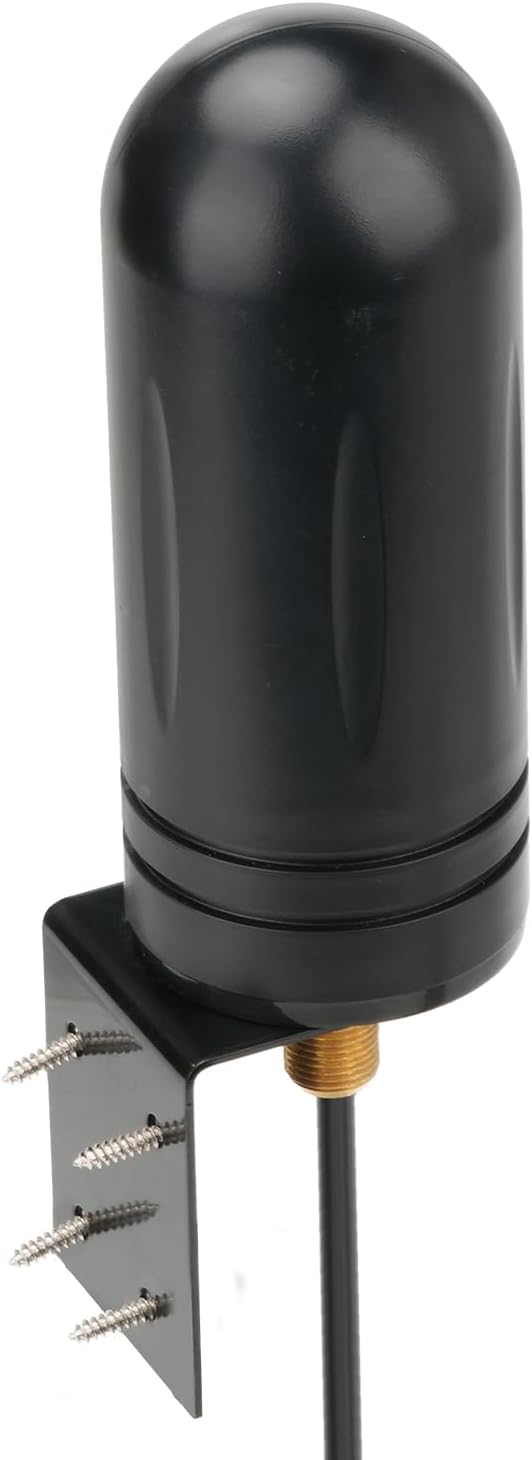

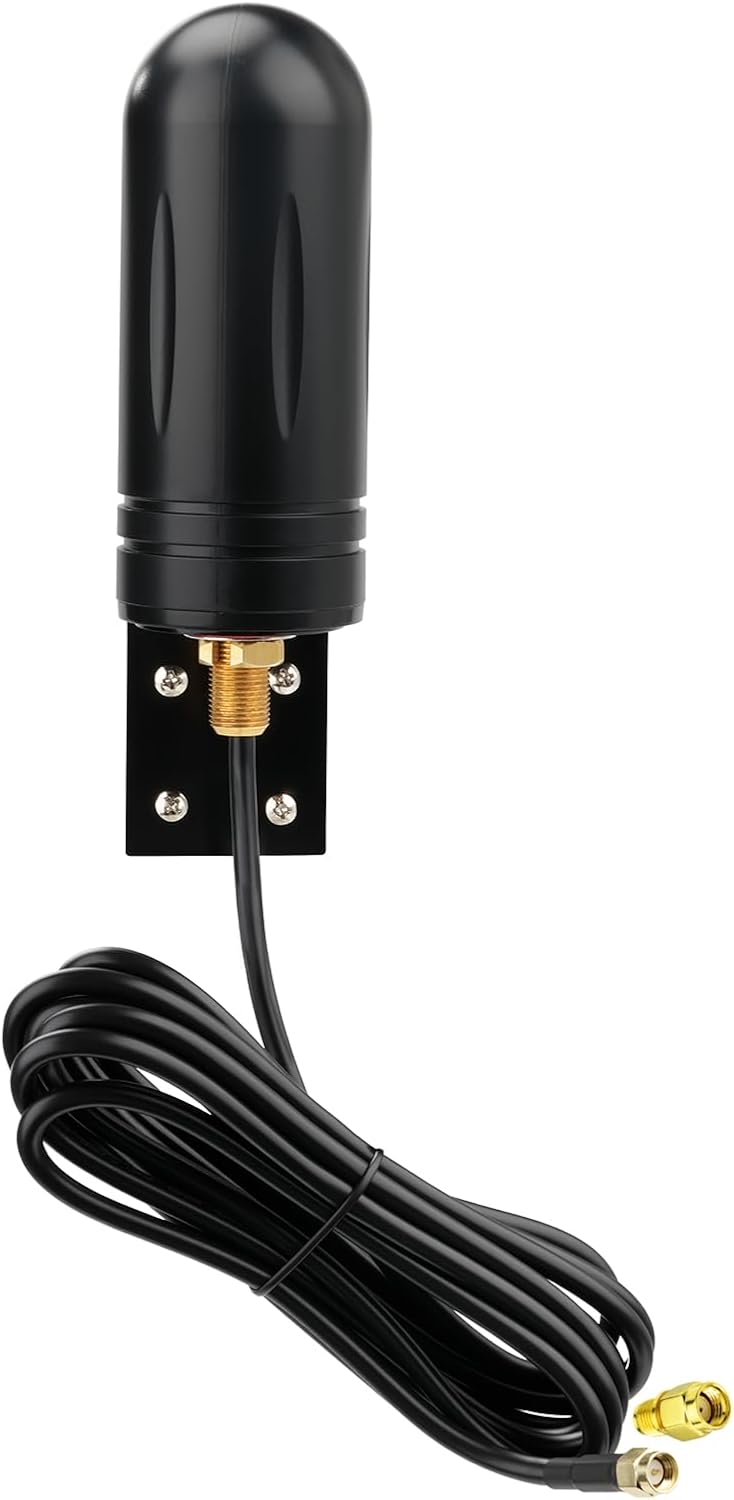

Feature: Fixed Wall Mount Thru Hole Mount

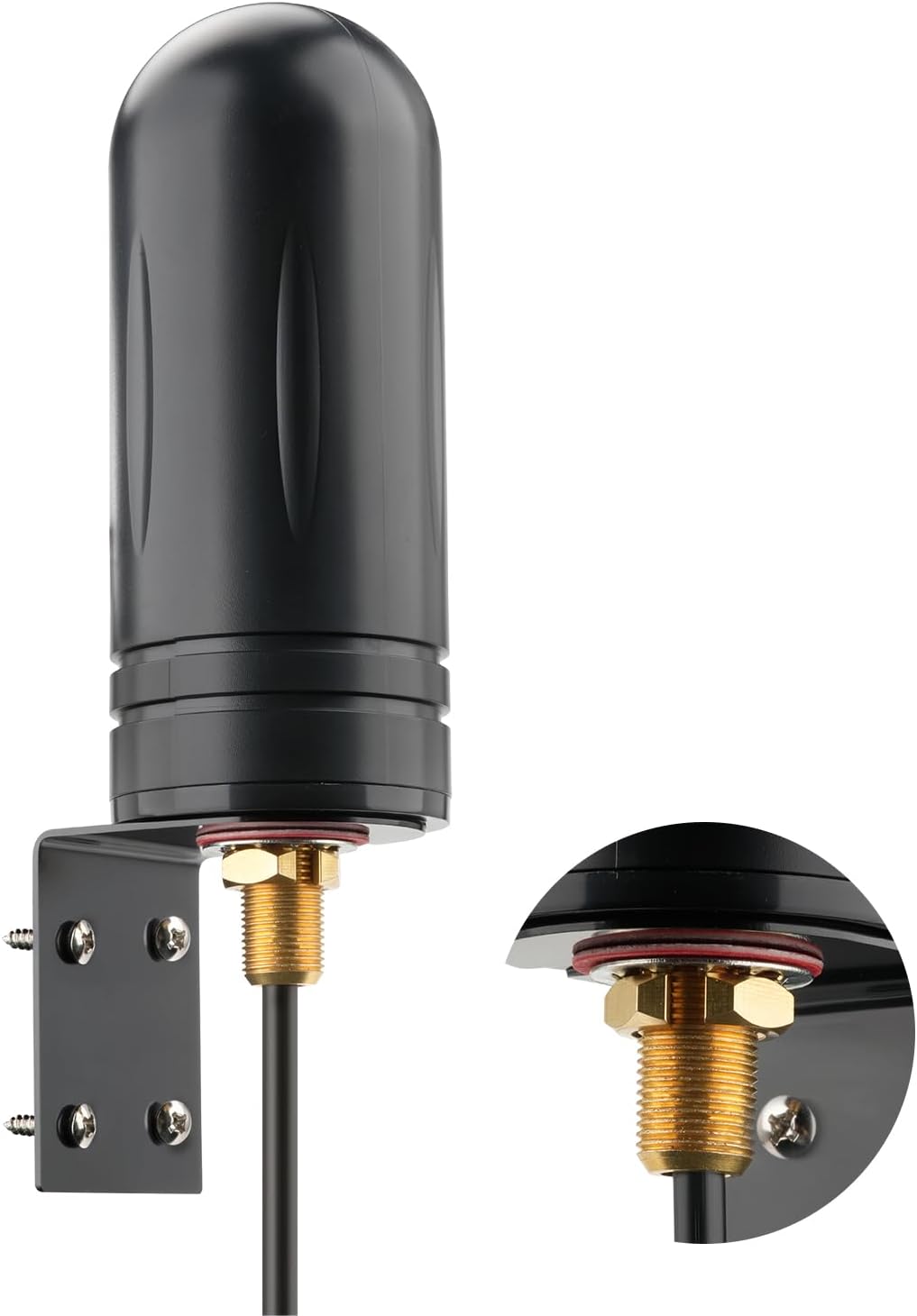

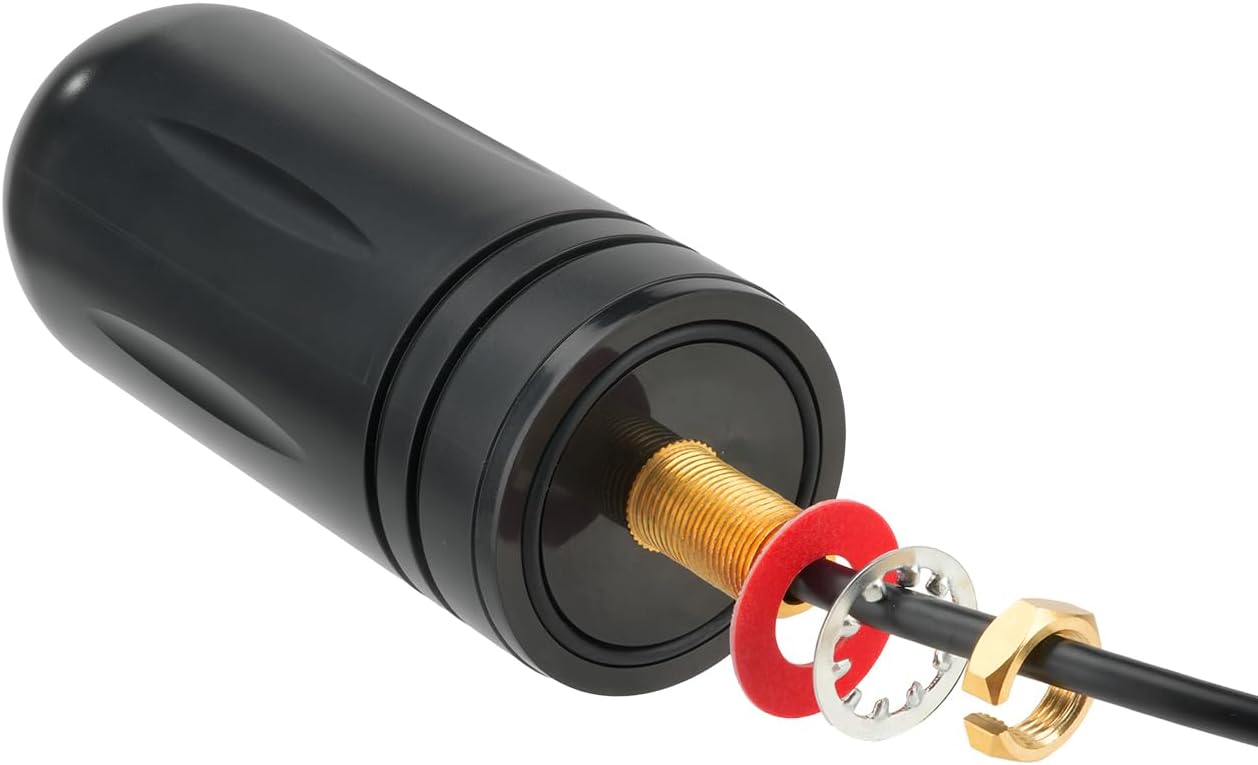

Mounting Screws Diameter: M12
Shell material: ABS

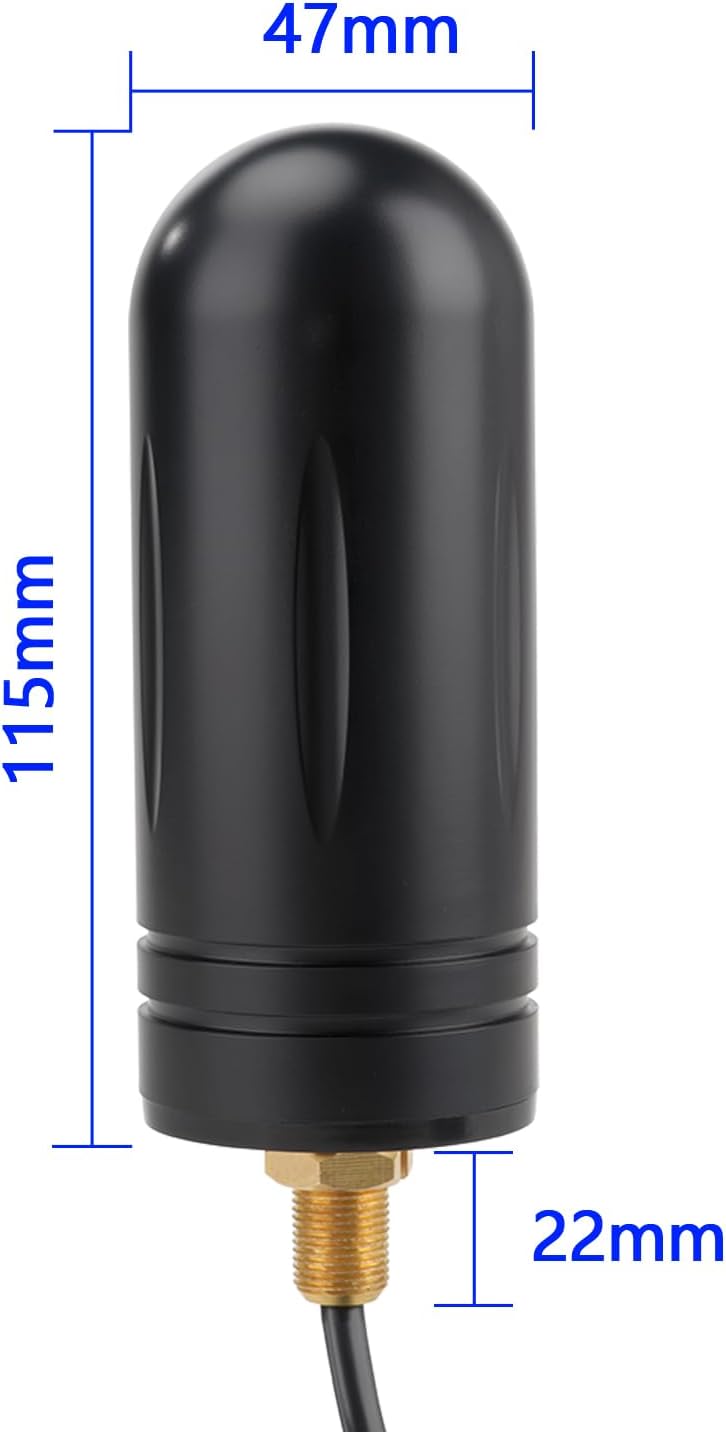

Shell size: 4.53" x 1.85"
Antenna Connector: SMA Male Connector

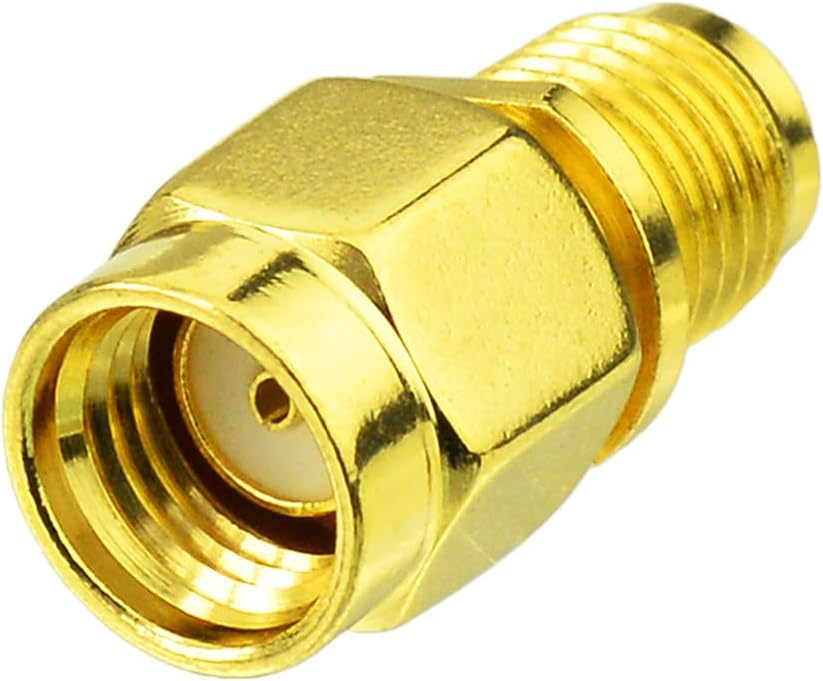

Adapter Connector: RP-SMA Connector
Cable Length: RG58 10ft / 3m
Net Weight: 203g
Waterproof: Rainning Proof

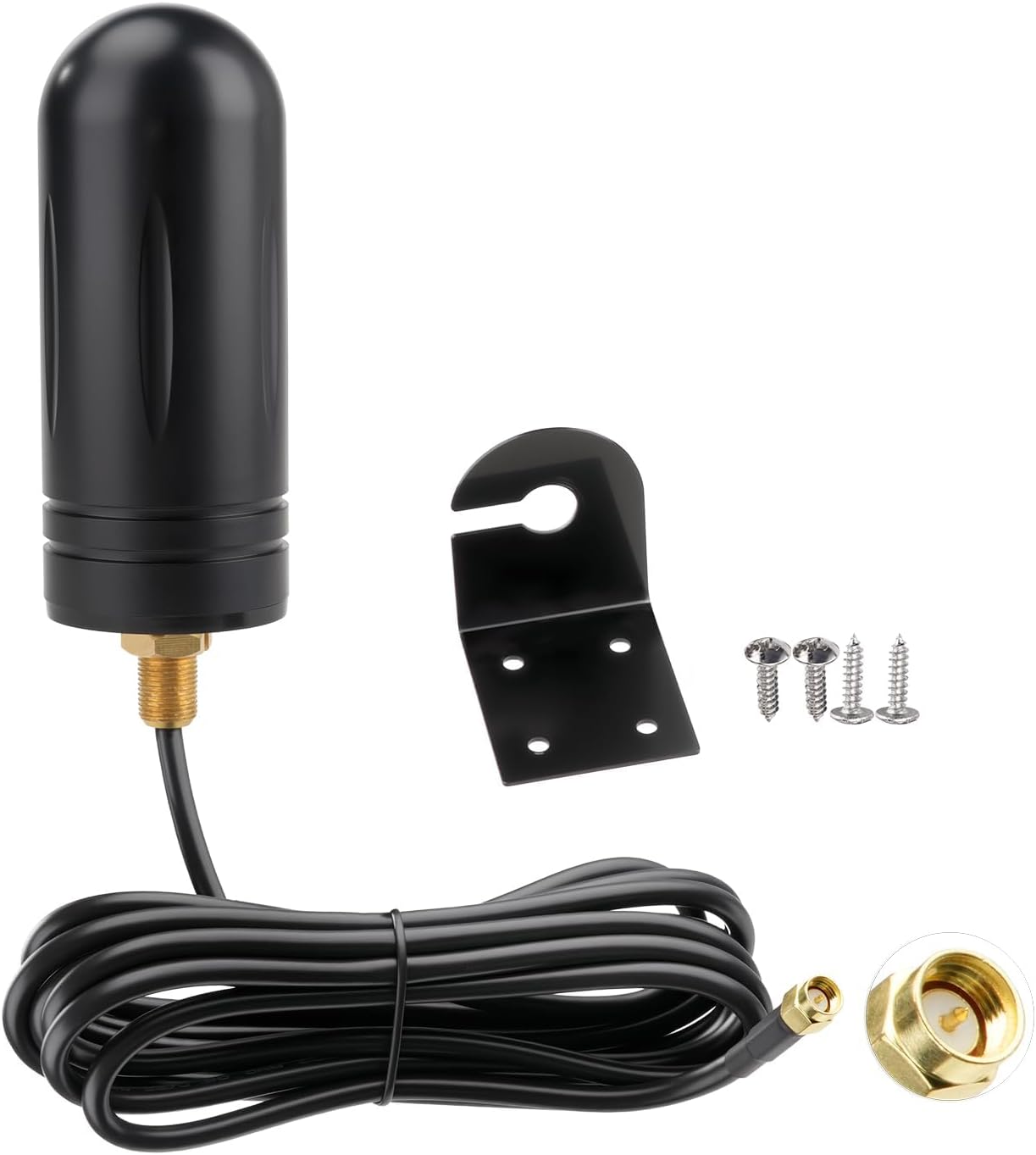

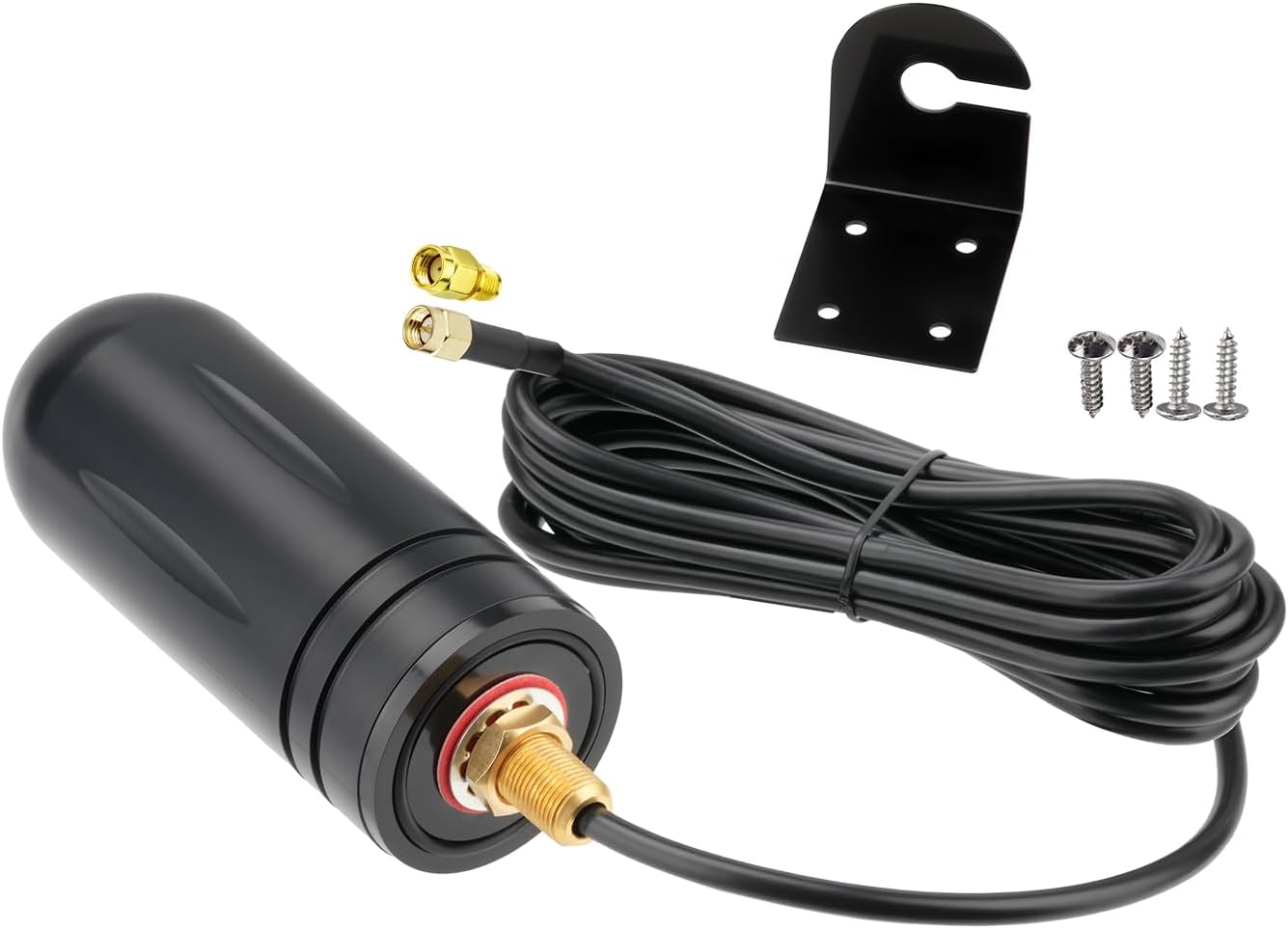

Package List: 1 x Antenna, 1 x RP-SMA Connector Adapter, 1 x Wall Mount Fixed Bracket, 4 x Screws
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Impedance: 50 ohm
- Product Dimensions: 4.53"L x 4.53"W x 4.53"H
- Manufacturer: Bingfu
- Unit Count: 1 Count
- Number of Items: 1
Product Features
- Enhanced Cellular Signal: Upgrade your network connectivity with this omnidirectional outdoor cylinder antenna. Supporting broadband frequencies from 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz, 3300-4200 MHz, 4400-5000 MHz, to 5100-5925 MHz, it ensures cellular devices receive a stronger, more stable connection for 5G, 4G LTE, 3G, and IoT networks. Improve signal strength for major US networks (Copmpatible with Verizon, AT&T, T-Mobile, Sprint and etc)
- Wide Application: The compact cylindrical design (4.53" x 1.85") facilitates easy installation on appliances and is suitable for IoT gateways, smart meters, security cameras, vending machines, cellular wildlife cameras, industrial gateway routers, and etc
- Long Low Loss Cable: Includes 10 foot RG58 pure copper coaxial cable to reduce signal attenuation; Compatible with most routers modems and gateways; Minimizes interference for stable long distance connections
- Duarble Design: IP67-rated ABS enclosure provides excellent UV and impact protection, ensuring reliable performance in outdoor environments
- Package List: 1 x Antenna, 1 x RP-SMA Connector Adapter, 1 x Wall Mount Fixed Bracket, 4 x Screws
Product Information
| AntennaDescription | Antenna Accessory |
| Brand | BINGFU |
| Manufacturer | Bingfu |
| Unit Count | 1 Count |
| Number of Items | 1 |
| Model Number | BFUSAN0704 |
| Mfr Part Number | BFUSAN0704 |
| Warranty Description | 1 Year Manufacturer |
| Best Sellers Rank | |
| ASIN | B0H417MWH3 |
| Impedance | 50 ohm |
| Item Dimensions L x W x H | 4.53"L x 4.53"W x 4.53"H |
