Description
Product Features
- Stable Navigation: Supports BeiDou navigation at approximately 1561 MHz and GPS at 1575.42 MHz for accurate positioning; dual independent 4G antennas ensure cellular redundancy; delivers reliable navigation for automotive and critical IoT applications
- Enhanced 4G LTE Coverage: Dual antennas provide peak gain up to 2.87 dBi; low VSWR under 3.0 with efficiency from 45% to 48% across key bands; optimized for wide frequency coverage from 824 to 960 MHz and 1710 to 2690 MHz; improves signal strength in IoT and vehicle settings
- Industrial Durability: IP65 rated ABS housing protects against dust and water; operates in extreme temperatures from -40 °C to 85 °C; vibration resistant tested from 10 Hz to 50 Hz; RoHS compliant for safe use in harsh automotive environments
- Easy Plug and Play: Low power consumption under 30 mA at 3.3 V; horizontal mounting optimization for simple installation; integrates quickly into car GPS navigation and IoT systems; reduces setup time for immediate deployment

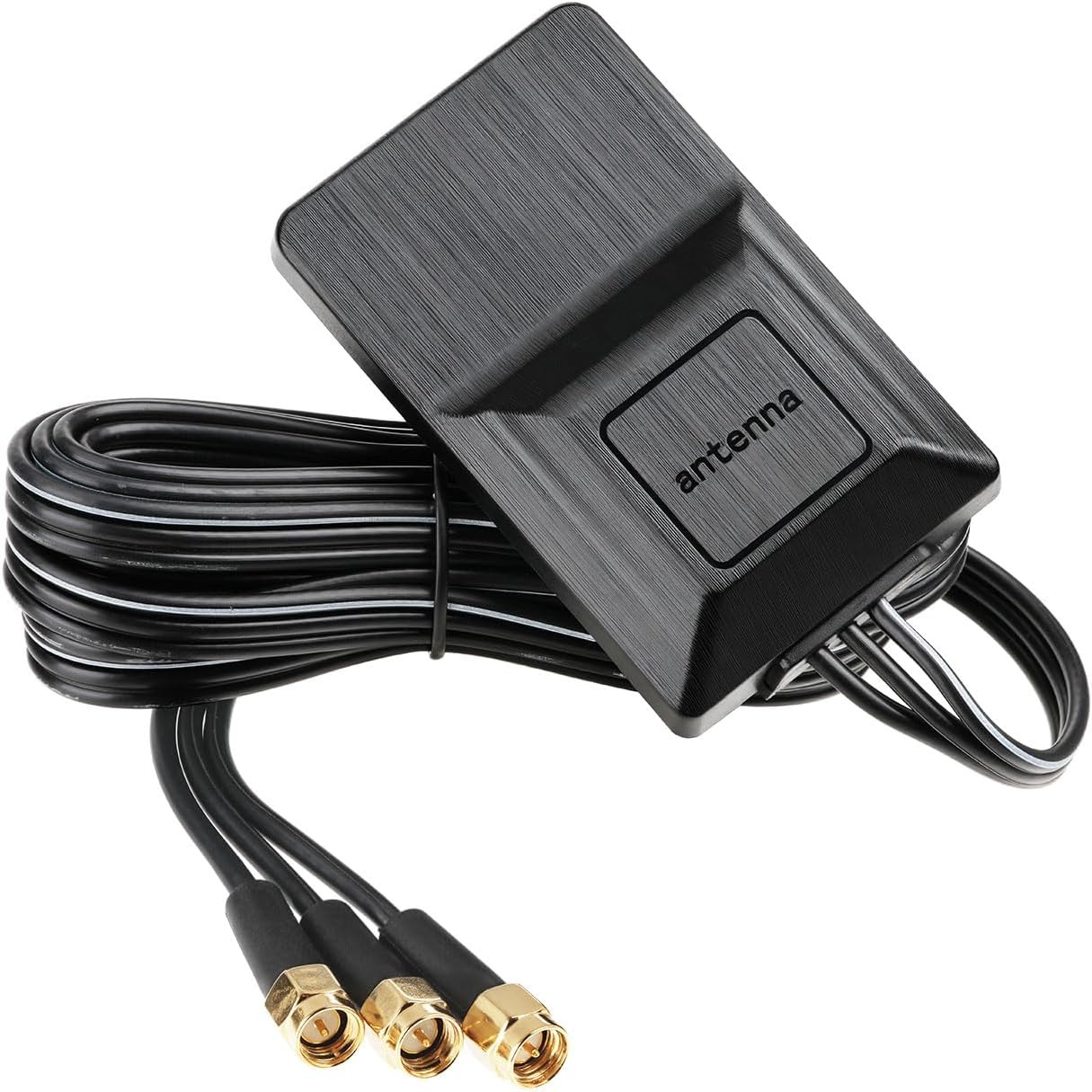

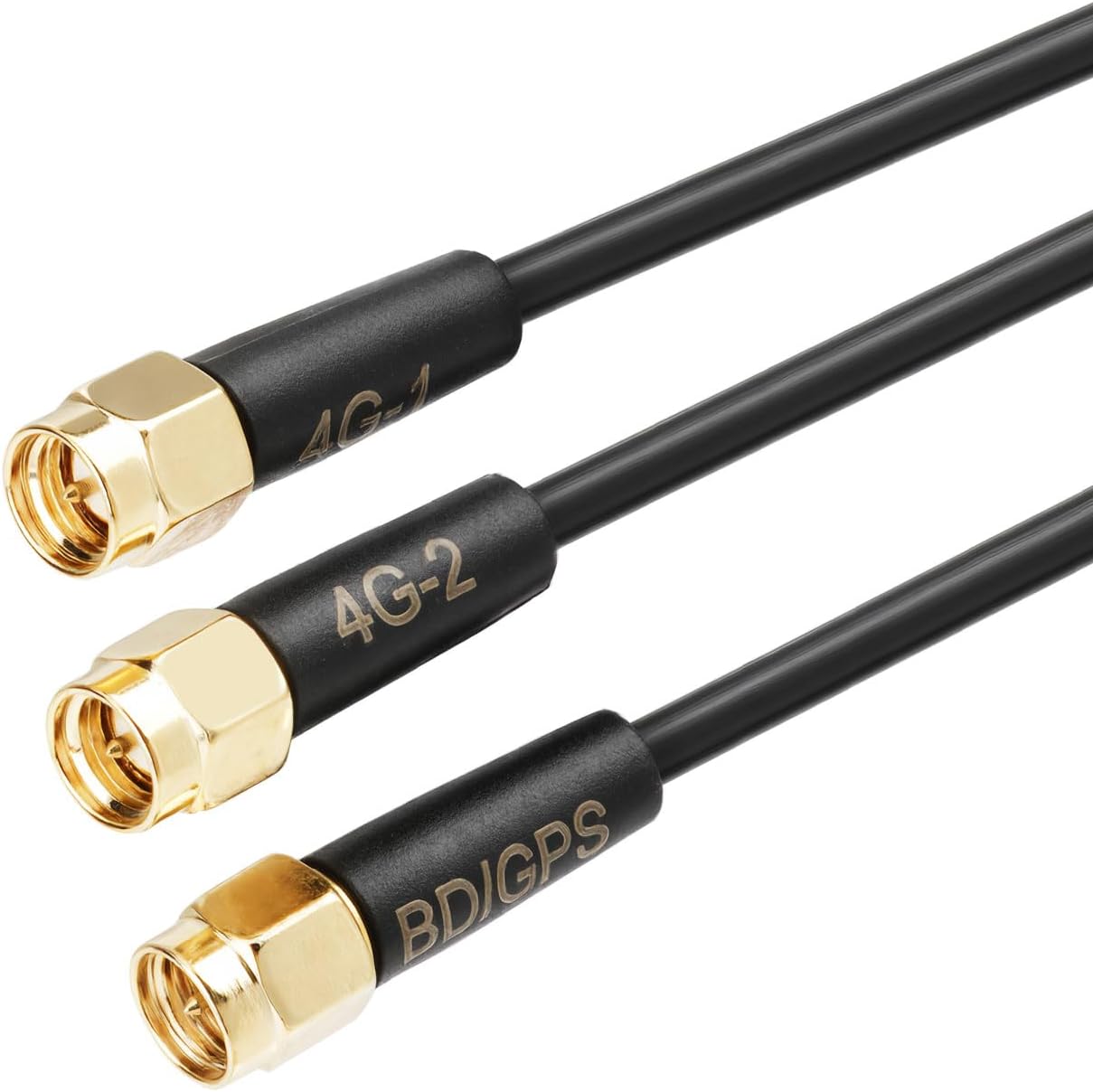

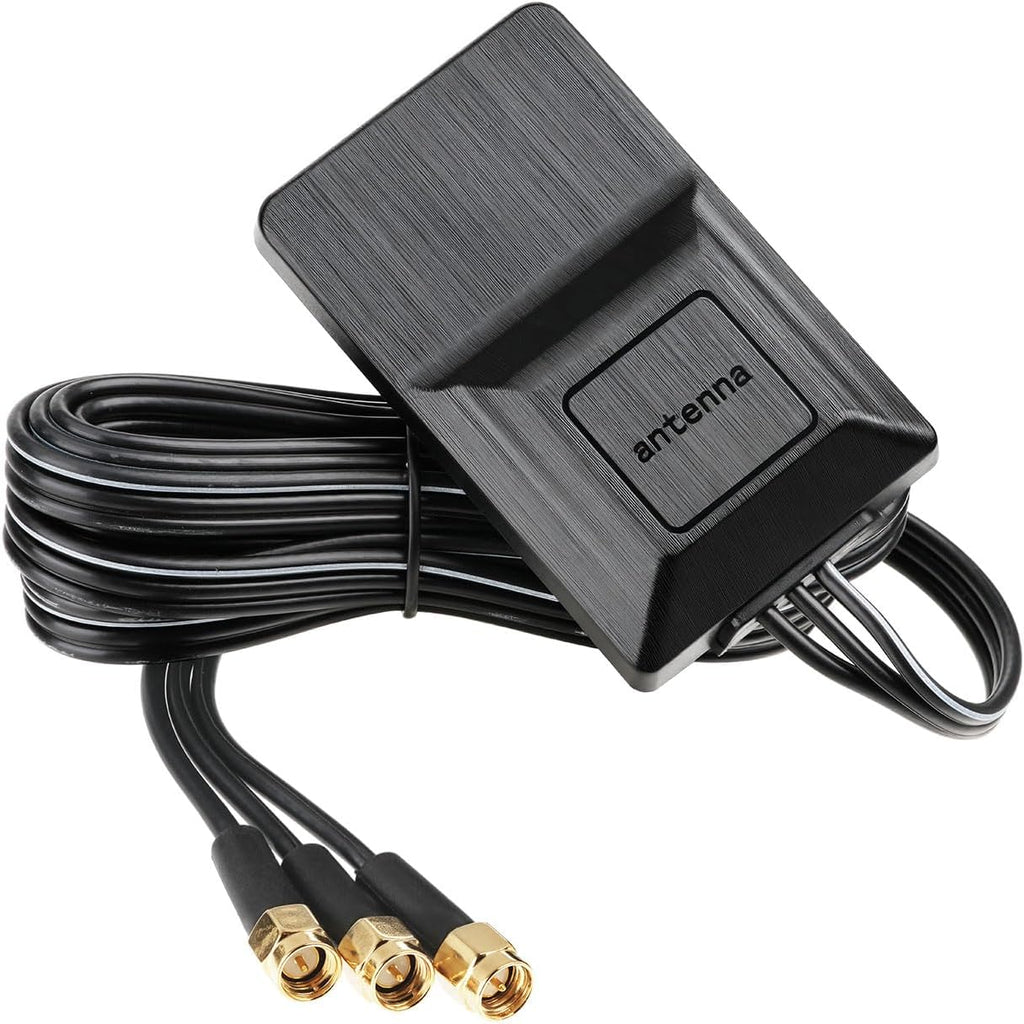

- Complete Antenna Solution: Includes 3 M RG174 cable with SMA male connector; supports BeiDou and GPS with dual 4G for all in one communication; ideal for automotive GPS navigation antenna needs and industrial IoT redundancy
-
Specification:
GNSS Module:
BeiDou: 1561.098±2.046MHz
GPS: 1575.42±1.023MHz
Bandwidth: >5MHz
Gain: 4.5dBic (70x70mm ground plane)
VSWR: ≤2.0
Polarization: Right-Hand Circular (RHCP)
LNA Specifications:
Gain: 28dB
Noise Figure: <1.5dB
Operating Voltage: 3.0-3.6V DC
Current Consumption: ≤30mA @3.3V
