Description
Specification:
Frequency Range:698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;
Gain：6dBi
Polarization：Linear Vertical

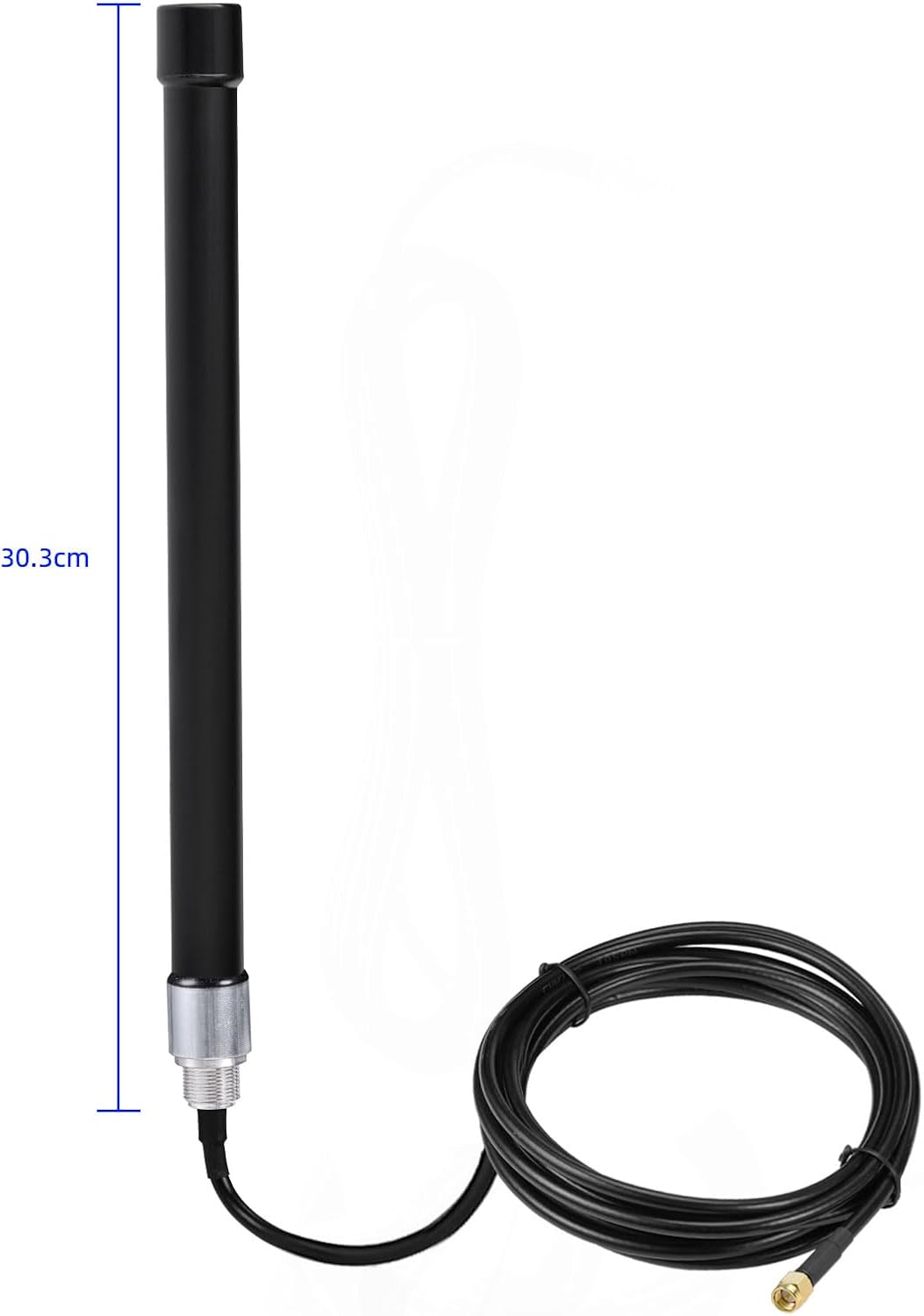

Antenna Length：303 mm
Cable Length：3M (10ft)
Cable Type：Low Loss KSR195 Coaxial Cable
Connector: SMA Male Connector; with RP-SMA Male Connector Adapter;

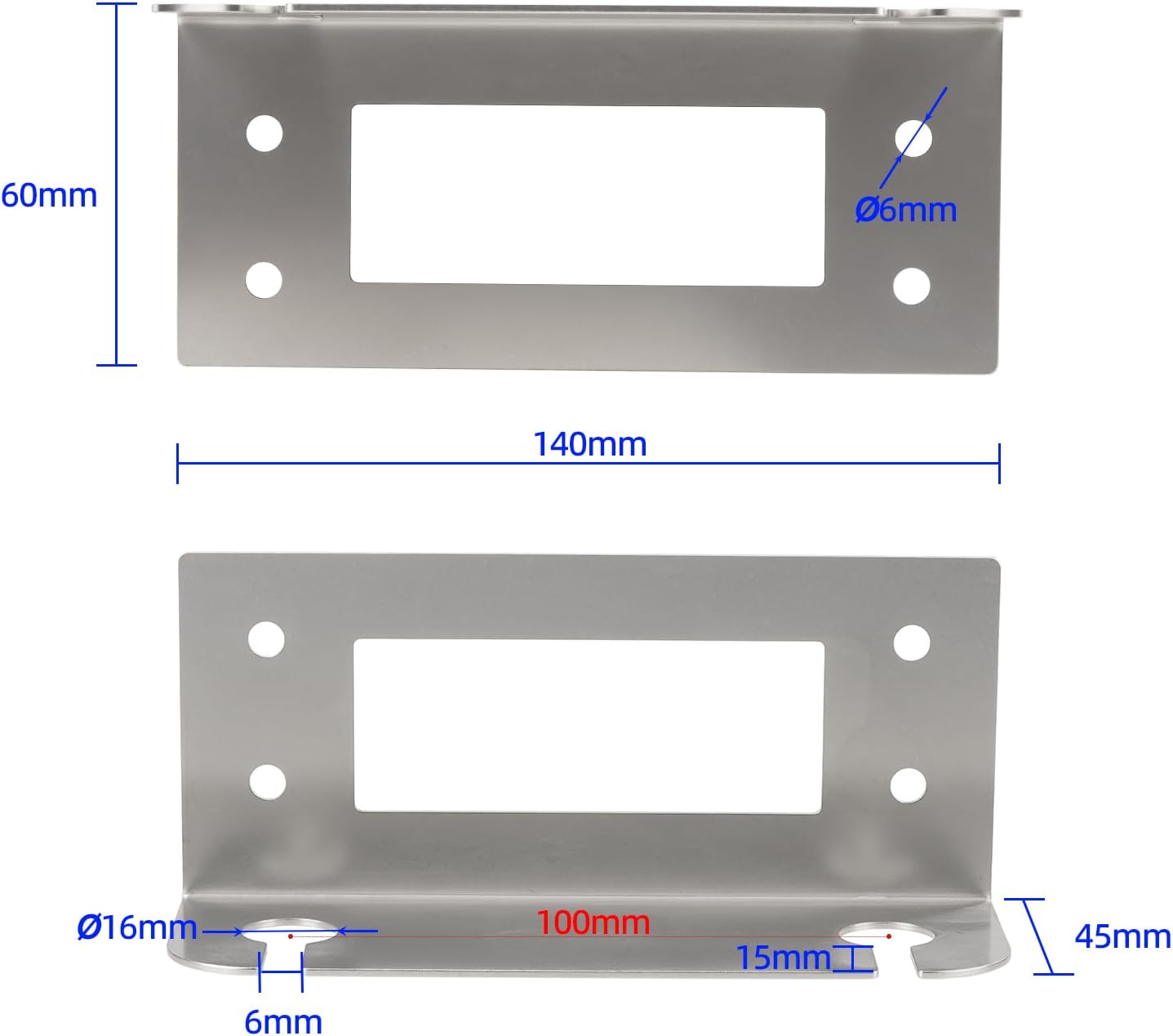

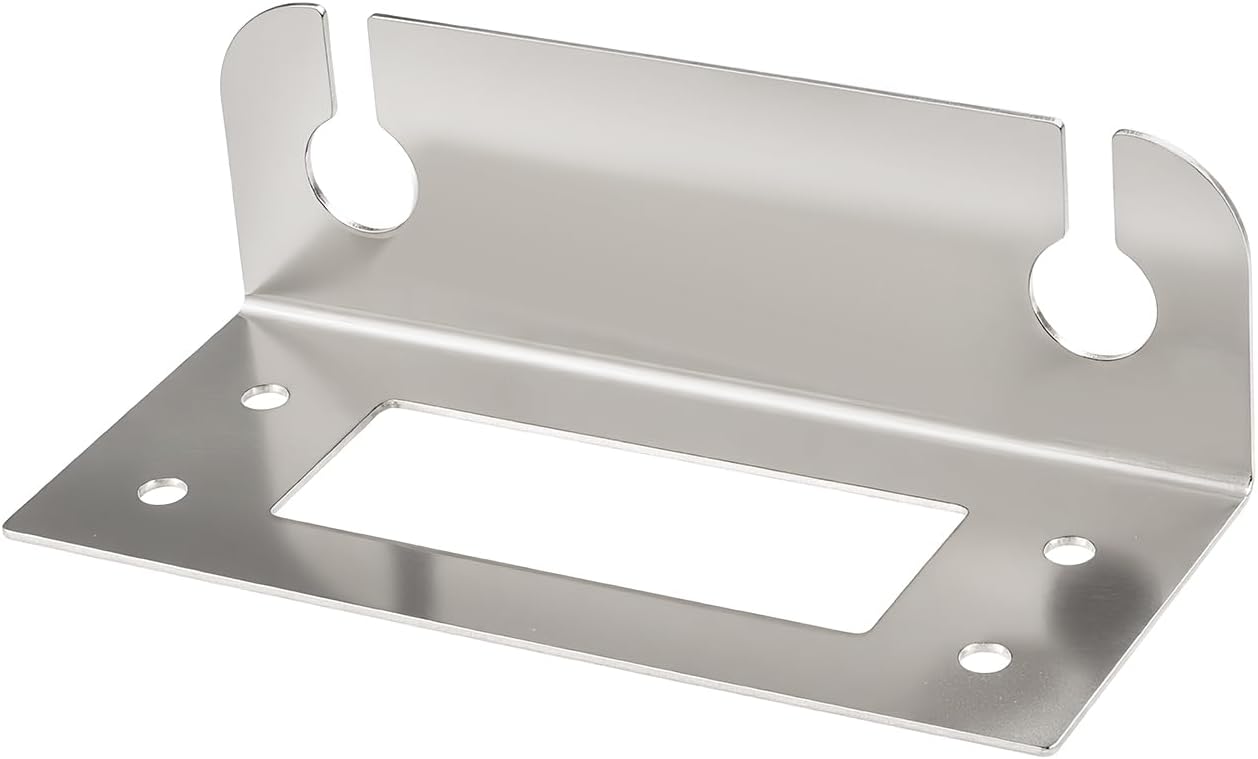

Bracket size: 16mm mounting hole diameter, 5mm nut hole diameter
Mounting Screws Diameter:M18(17.17mm-17.95mm)

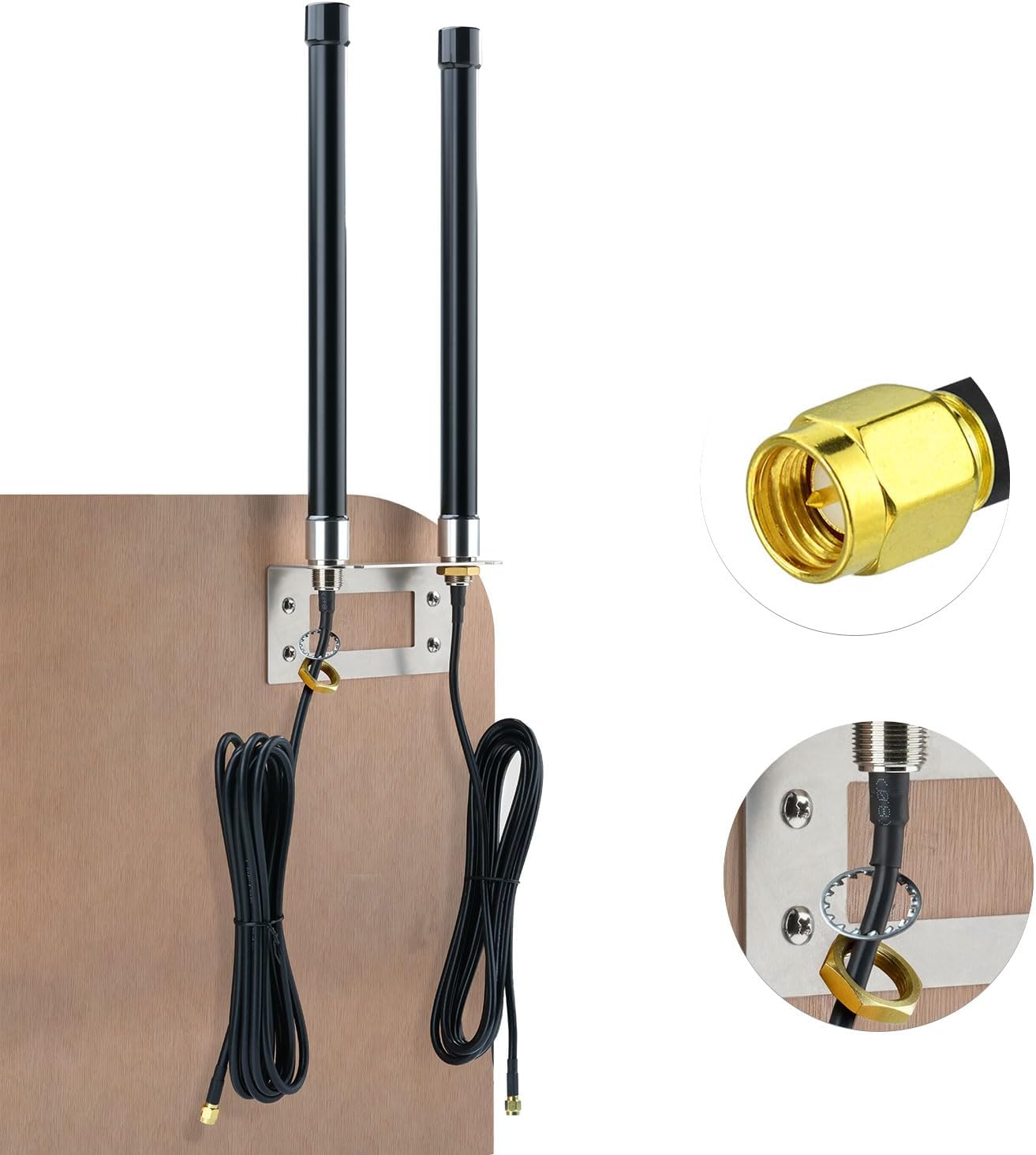

Fixed Wall Mount; Thru Hole Mount;
Waterproof: Rainning Proof
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Impedance: 50 ohm
- Manufacturer: Bingfu
- Unit Count: 2 Count
- Number of Items: 1
Product Features
- Features: Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz; Gain: 5dBi; Direction: Omni-directional; Waterproof: Rainning Proof; Feature: Fixed Wall Mount; Thru Hole Mount; Antenna Mounting Screws Diameter: M12 11.76mm-11.95mm; Cable Length: 3m/10 feet; Connector: SMA Male Connector
- Fiberglass Material: Fiberglass antennas are suitable for outdoor equipment such as trail cameras, routers/modems/gateways, etc.
- Application: Compatible with Verizon, AT&T, T-Mobile, Telus, 4G LTE mobile routers, mobile broadband modem hotspots, CPE routers, cellular gateways, vehicle-mounted mobile communication devices; 4G LTE cellular security surveillance cameras, cellular IoT gateways and all 4G/5G cellular broadband services
- Extends Installation Range: 3M low-loss extension cable extends installation range, ideal for elevated installations

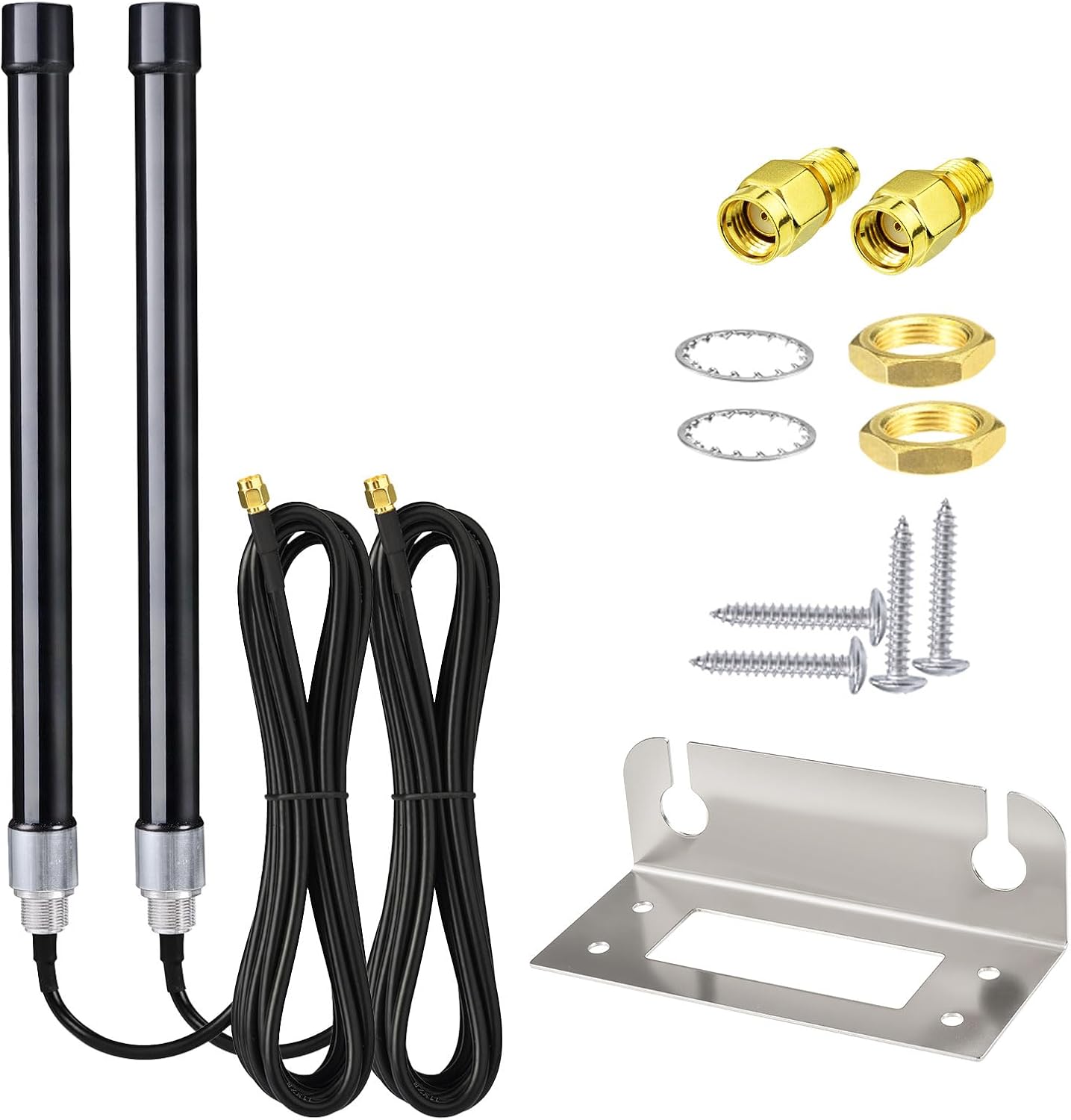

- Package List: 2 x Fibreglass 4G Antennas(SMA Male), 2 x Adapters (SMA Female to RP-SMA Male), 1 x Wall Mount Fixed Brackets, 4 x Self-tapping Screws (As the Picture Shown)
Product Information
| AntennaDescription | Antenna Accessory |
| Brand | BINGFU |
| Manufacturer | Bingfu |
| Unit Count | 2 Count |
| Number of Items | 1 |
| Model Number | BFUSAN0642 |
| Mfr Part Number | BFUSAN0642 |
| Warranty Description | 1 Year Manufacturer |
| Best Sellers Rank | |
| ASIN | B0GSQY7R14 |
| Impedance | 50 ohm |
