Description
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Color: 4G LTE Antenna with Splitter Cable
- Impedance: 50 Ohm
- Product Dimensions: 5.12"L x 3.15"W x 1.97"H
- Manufacturer: Bingfu
- Number of Items: 1
Product Features
- Compatible Carrier: Verizon, AT&T, T-Mobile, Sprint and etc; Frequency Range: 698-960MHz, 1710-2170MHz, 2300-2700MHz; Gain: 5dBi; Omni-directional; Waterproof: Rainning Proof; Feature: Fixed Wall Mount; Thru Hole Mount; Antenna Thru Hole Mounting Screws Diameter: M12 11.76mm-11.95mm; 3m/10 feet Low Loss KSR 195 Extension Coaxial Cable; SMA Male Connector; with RP-SMA Male Adapter;

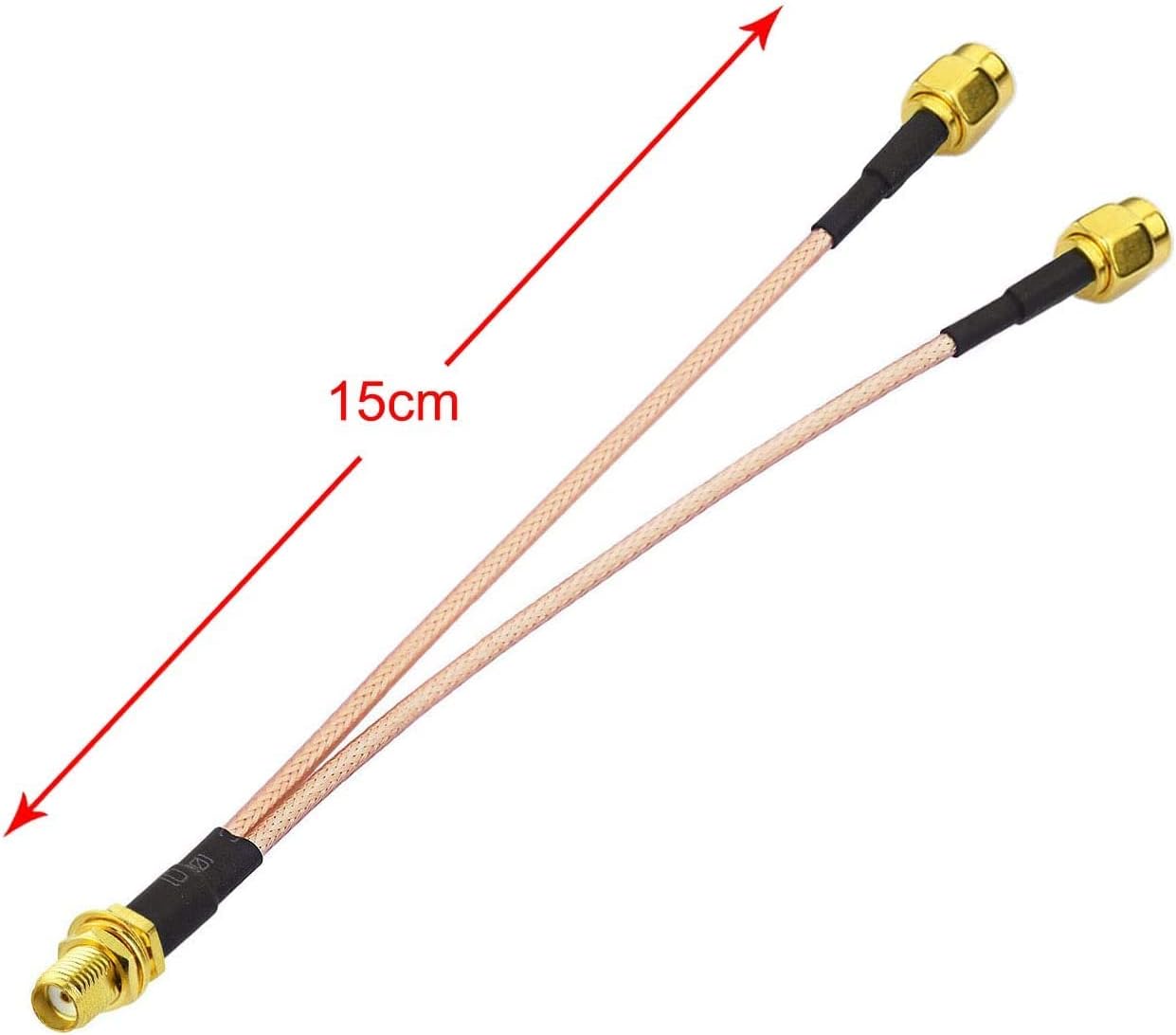

- Package List: 1 x Antenna, 1 x RP-SMA Connector Adapter, 1 x Wall Mount Bracket, 4 x Self-tapping Screws, 1 x Splitter Cable (As the Picture Shown);
- Compatible with 4G LTE Mobile Router, Mobile Broadband Modem Hotspot, CPE Router, Cellular Gateway, Vehicle Car Truck RV Bus Van Mobile Cellular;
- Compatible with 4G LTE Cellular Trail Camera, Game Camera, Hunting Camera, Outdoor Security Camera, Celluar Surveillance Camera; Vehicle 4G LTE Tracker, Real Time Monitor, Mobile Vehicle Car DVR MDVR Video Recorder;
- Compatible with Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert;
Specifications:
- Gain: 5dBi
- Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
- VSWR: <2.0;
- Polarization: Linear Vertical;
- Impedance: 50 ohm;
- Direction: Omni-directional;

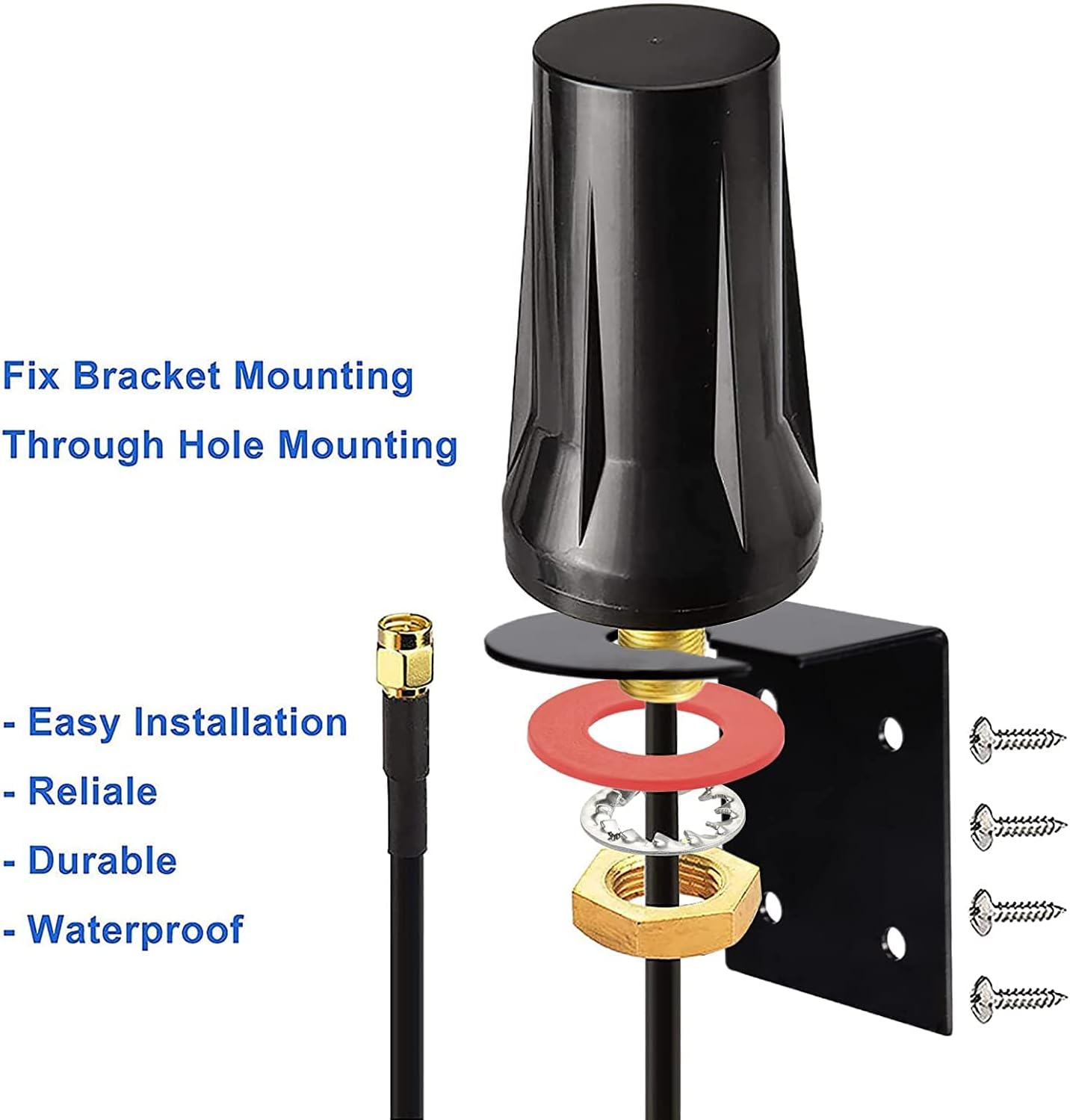

- Feature: Fixed Wall Mount; Thru Hole Mount;

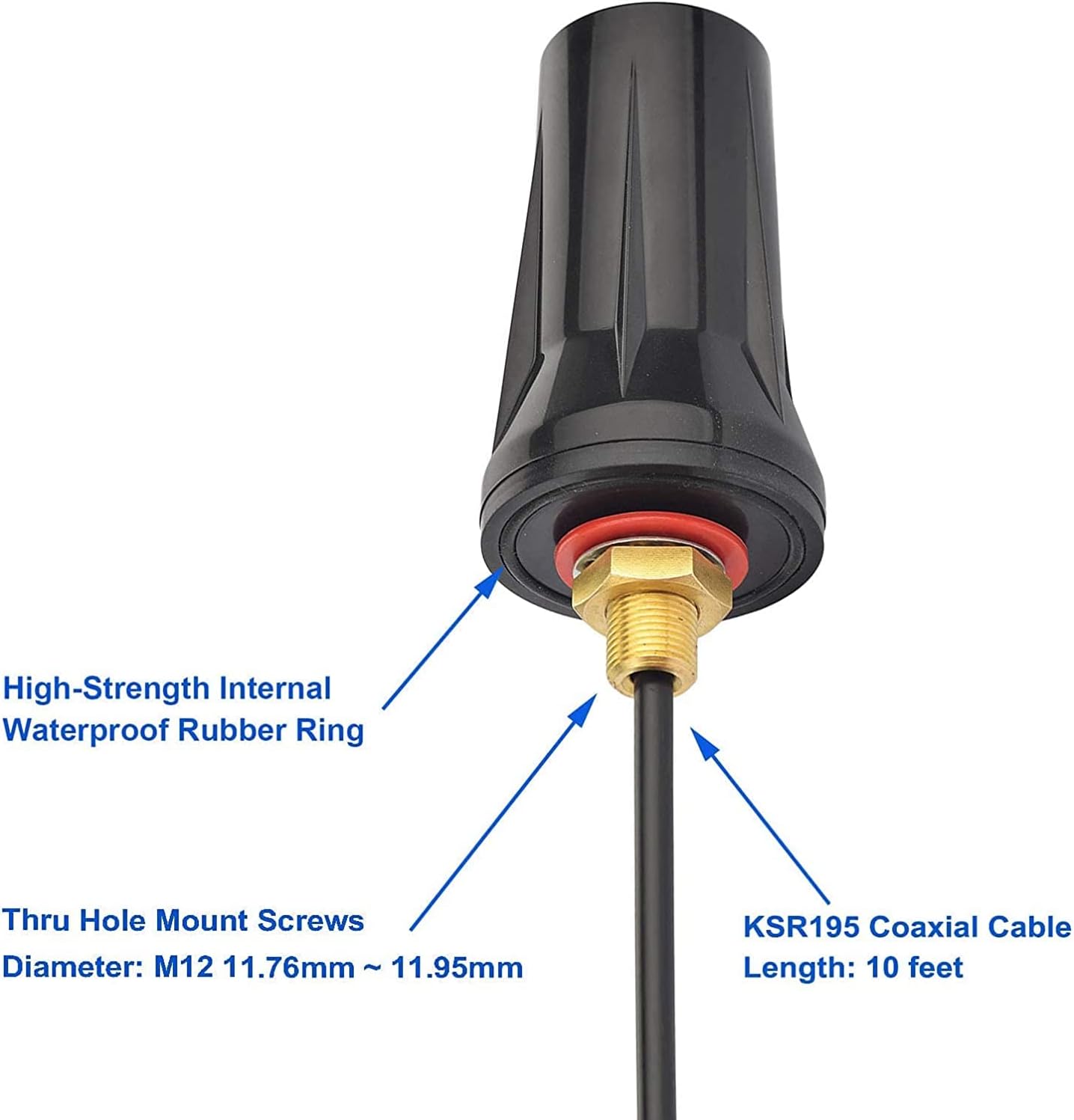

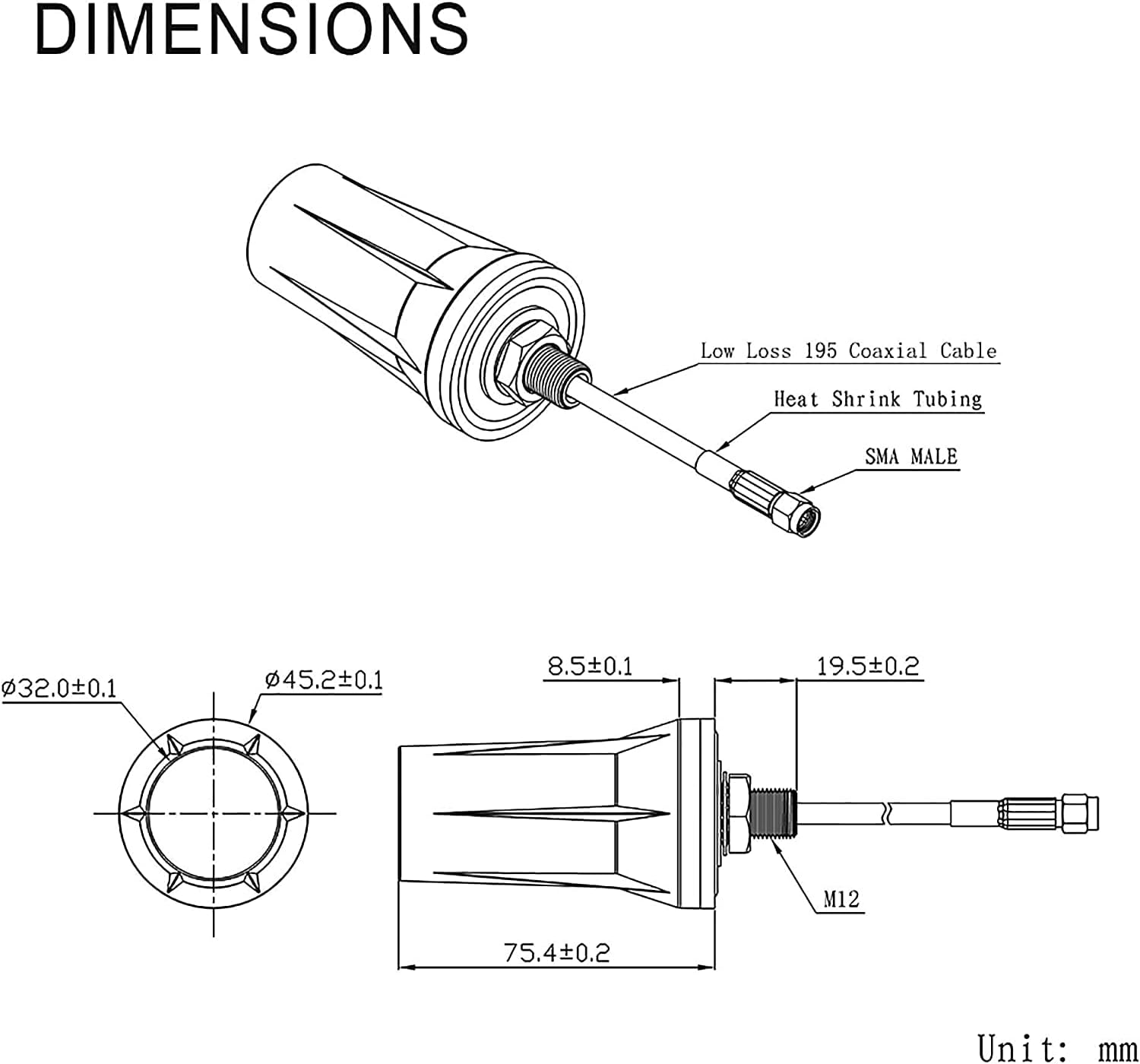

- Antenna Mounting Screws Diameter: M12 (Hole Diameter: 11.76mm-11.95mm);
- Connector: SMA Male Connector; with RP-SMA Male Connector Adapter;

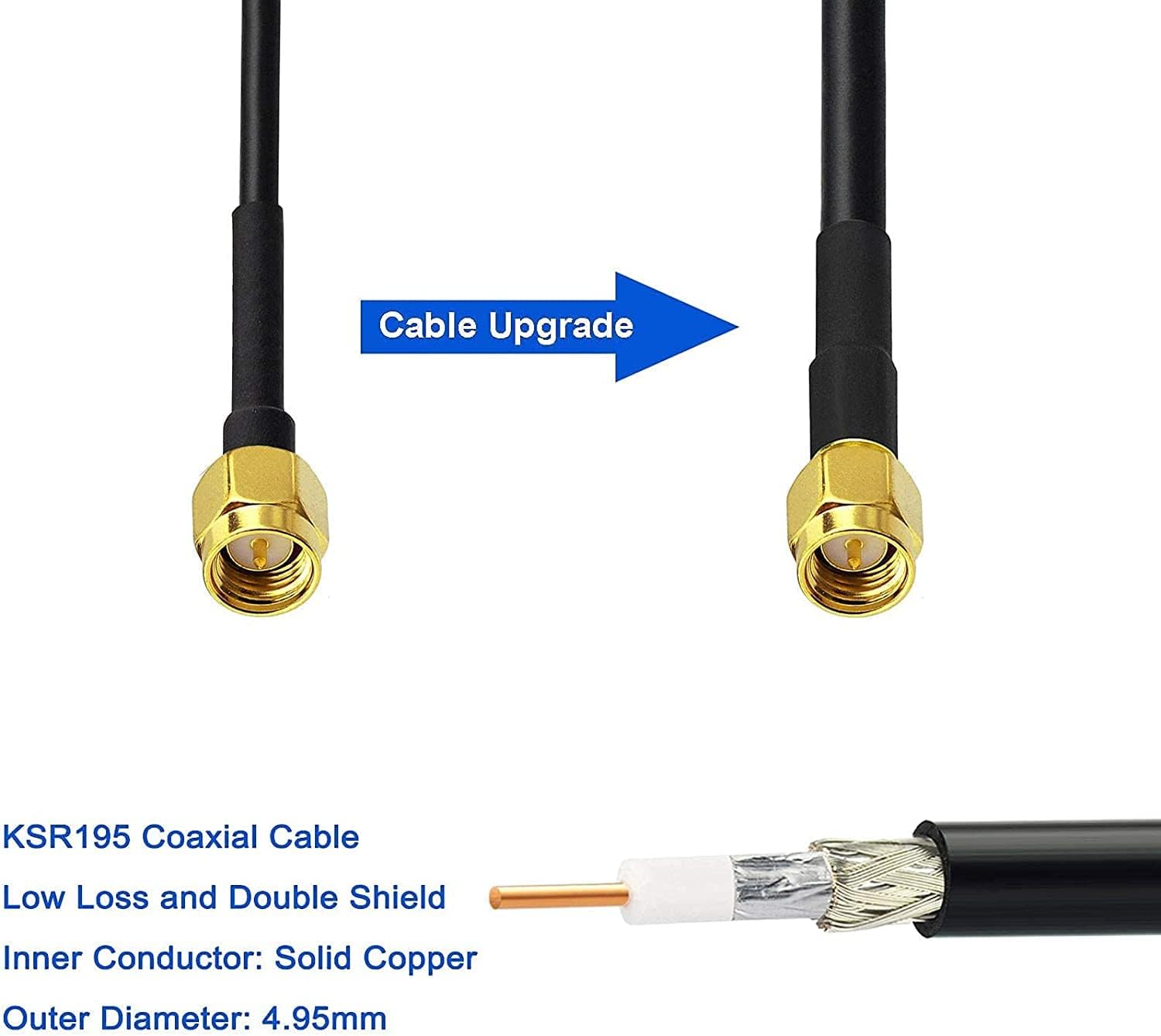

- Cable Type: Low Loss KSR 195 Coaxial Cable;
- Cable Length: 3m/10 feet;
- Net Weight: 365g;

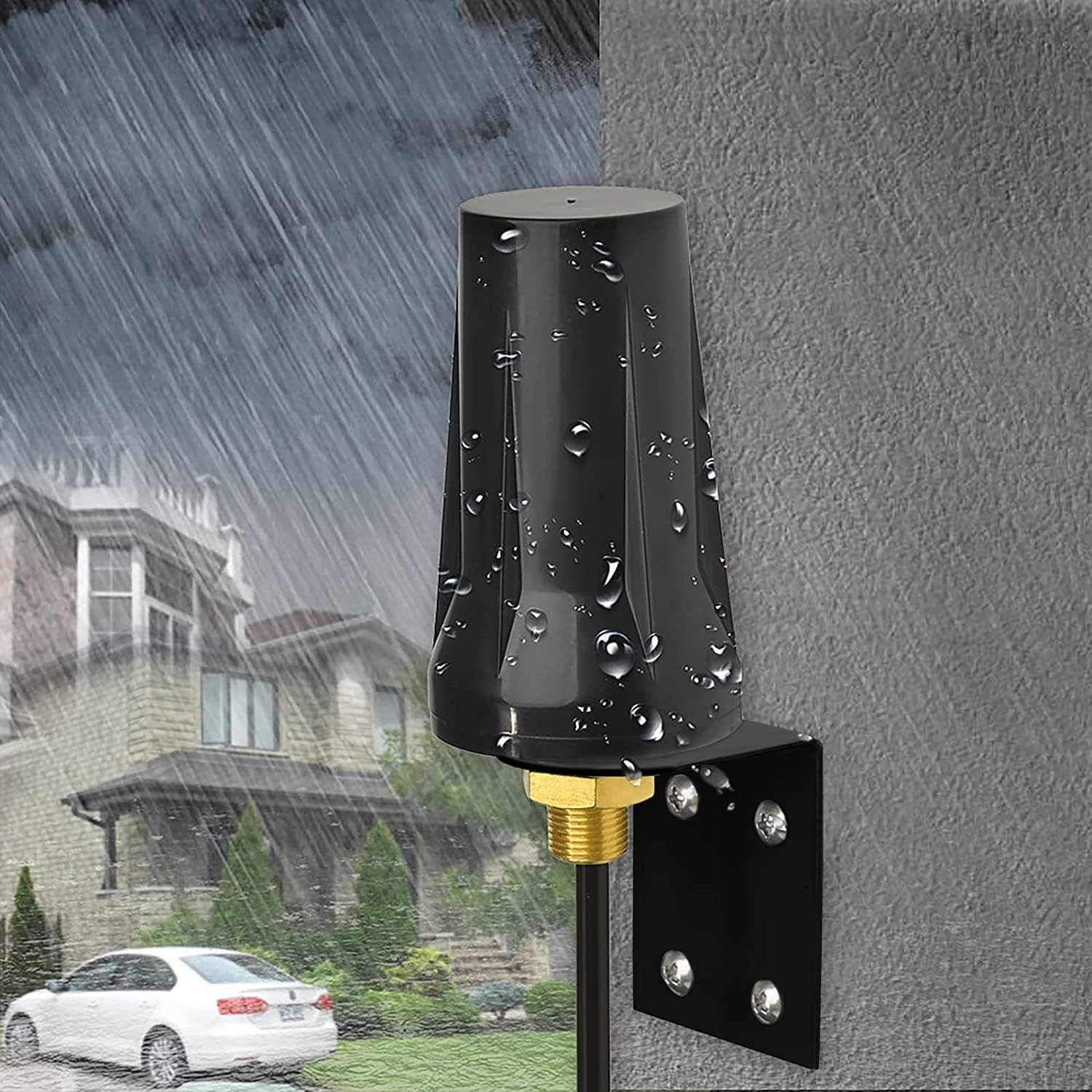

- Waterproof: Rainning Proof;
- Operating Temperature: -20°С ~ +80°С
- Storage Temperature: -30°С ~ +85°С

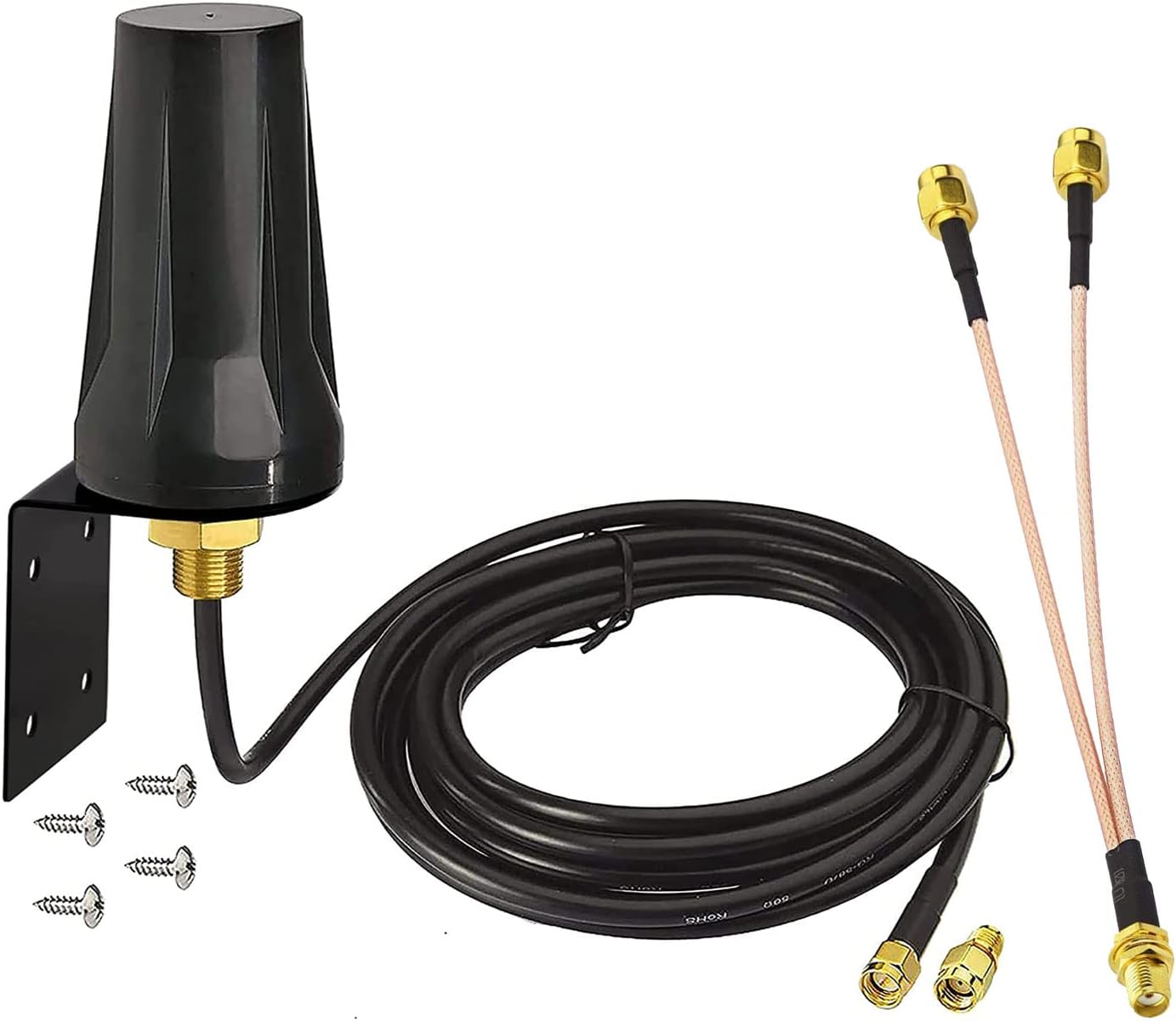

- Package List: 1 x Antenna, 1 x RP-SMA Connector Adapter, 1 x Wall Mount Fixed Bracket, 4 x Self-tapping Screws, 1 x Splitter Cable (As the Picture Shown)
