Description
Product Overview
- Antenna: Antenna Accessory
- Brand: BINGFU
- Color: F Male to F Female
- Impedance: 50 Ohm
- Manufacturer: Bingfu
- Number of Items: 1
Product Features

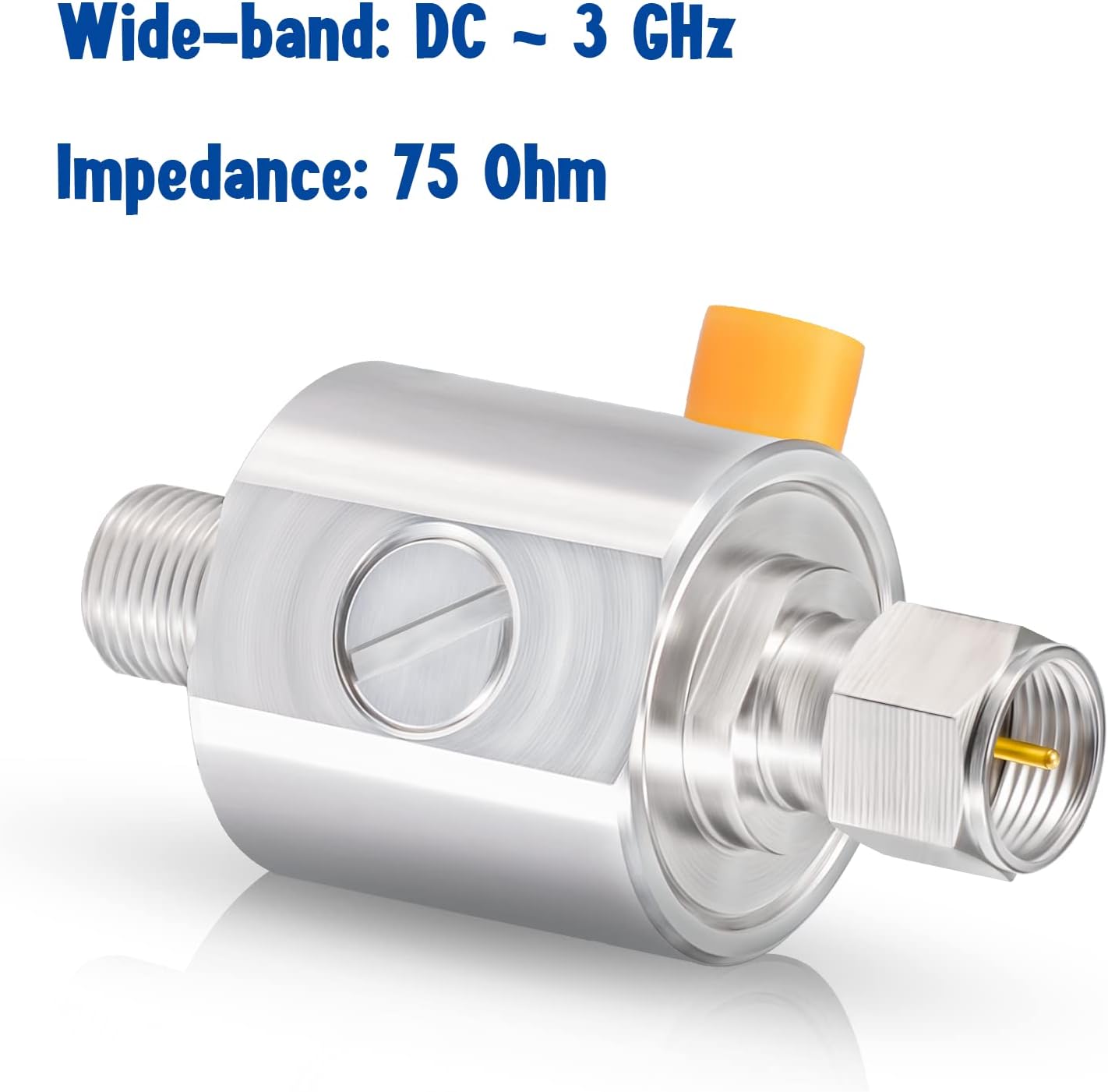

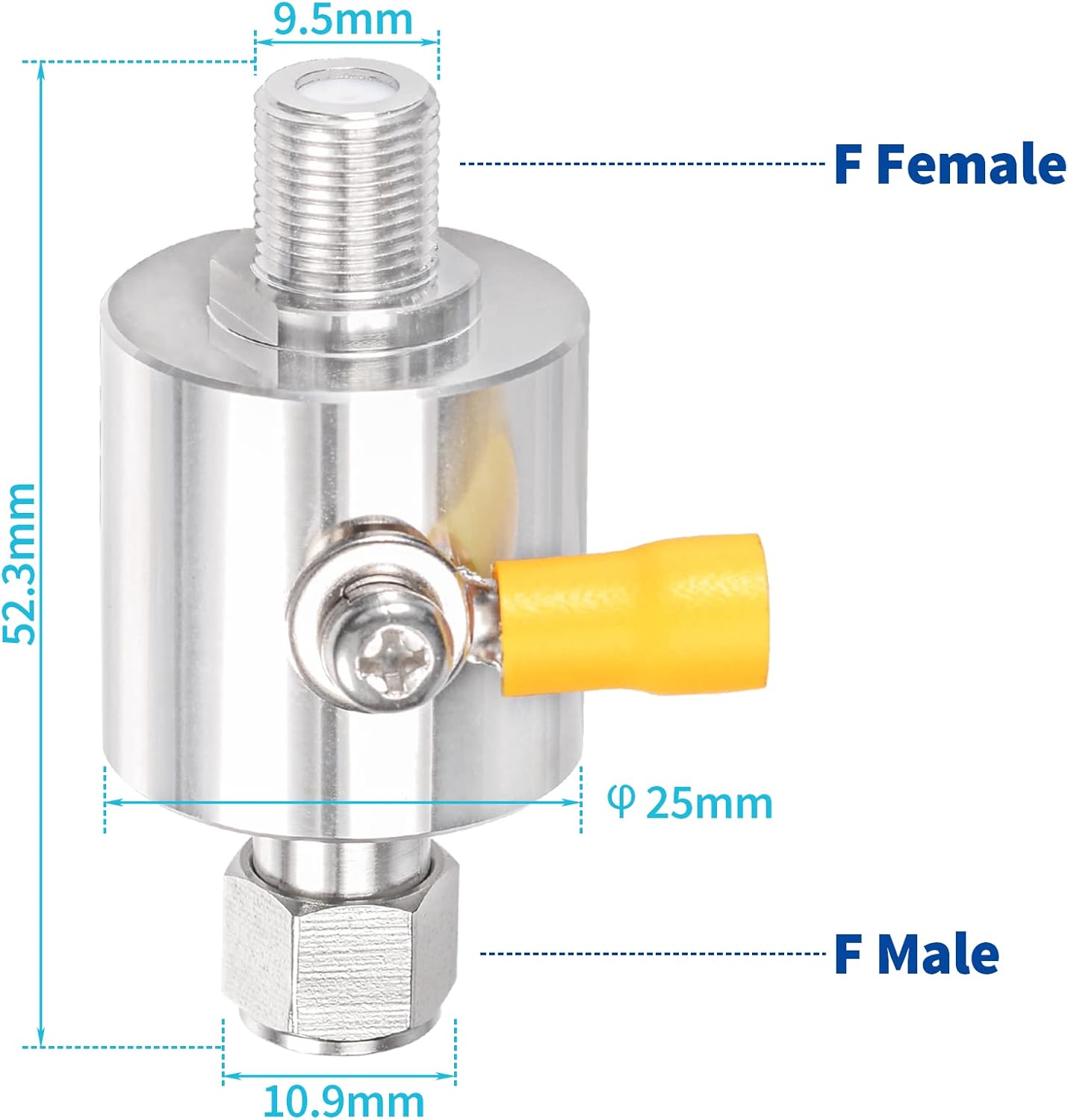

- 【Wide-band & Connector & Impedance】- DC-3GHz / F type male to female / 70 ohm
- 【Application】 - Covers 2G 3G 4G LTE cellular and SATV with attenuation less than 0.2 dB / VSWR less than 1.2, Compatible with 75 Ohm Cellular Booster, Cable TV, Satellite TV

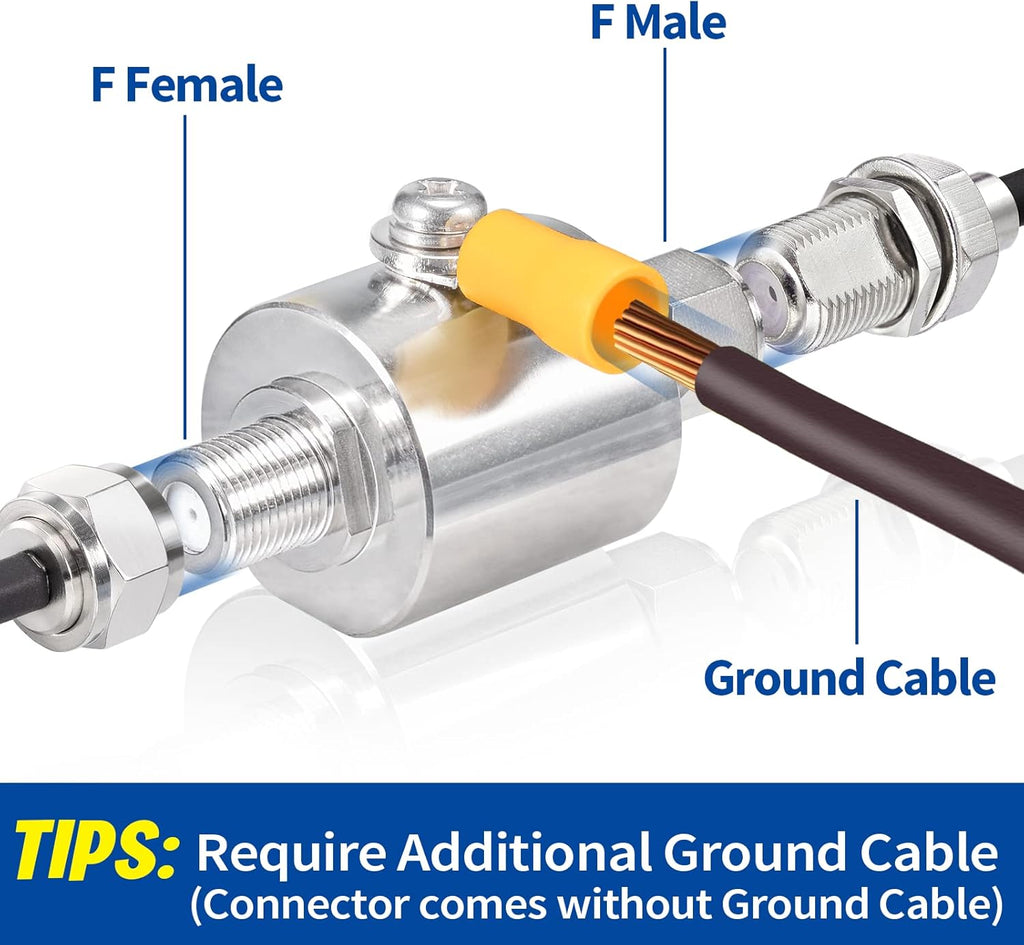

- 【Protection】 - Requires additional ground cable. Protect your equipment from dangerous lightning strikes or electrical surges by installing the lightning arrestor between the amplifier and the outdoor antenna. It is ideal for protecting 75 Ohm 2G 3G 4G LTE cellular boosters and repeaters.
- 【Feature】 - Standard 90 V DC breakdown voltage gas discharge tube (GDT) element which can be easily replaced to provide multistrike capacity
- 【Tips】 - Lightning protector should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection.
- 【Package】 - 1 x Lightning Arrestor (Grounding power wire is NOT included)
-
Specification:
- Temperature Range: -55~+155°C (PE Cable -40~+85°C)
- Impedance: 70Ω
- VSWR: <1.2 Frequency Range: DC-3GHz
- Insertion Loss: ≤ 0.2dB/3GHz
- Withstanding Voltage: 2500V r.m.s at sea level
- Working Voltage : 1000Vr.m.s at sea level
- Insulation Resistance: ≥ 5000 MΩ
- Coupling nut retention force: 450N
- Durability: ≥ 500(cycles)
- Contact resistance:
- Center Contact: ≤1.5mΩ
- Outer Contact: ≤1mΩ
- Maximum power: 50W
- Discharge current capacity (kA@8/ 20μS): 10
- Materials and Plating: Body Brass, Nickel Plated, Teflon (PTFE) Insulators for sending Reliable Signal Every Time
- Connector: F-Female to F-Female 75 Ohm
Packing List:
1 x Lightning Arrestor (Grounding power wire is NOT included)
