Description
Product Features
- Dual Band Connectivity: Features two independent GPS/BeiDou modules plus dual 4G antennas with MIMO support; Provides fail safe coverage and uninterrupted cellular signals across frequencies from 824 MHz to 2690 MHz for critical IoT and automotive tracking
- Enhanced Location Precision: High gain Low Noise Amplifier (28 dB) with signal filtering achieves meter level positioning accuracy; Reliable navigation in urban areas

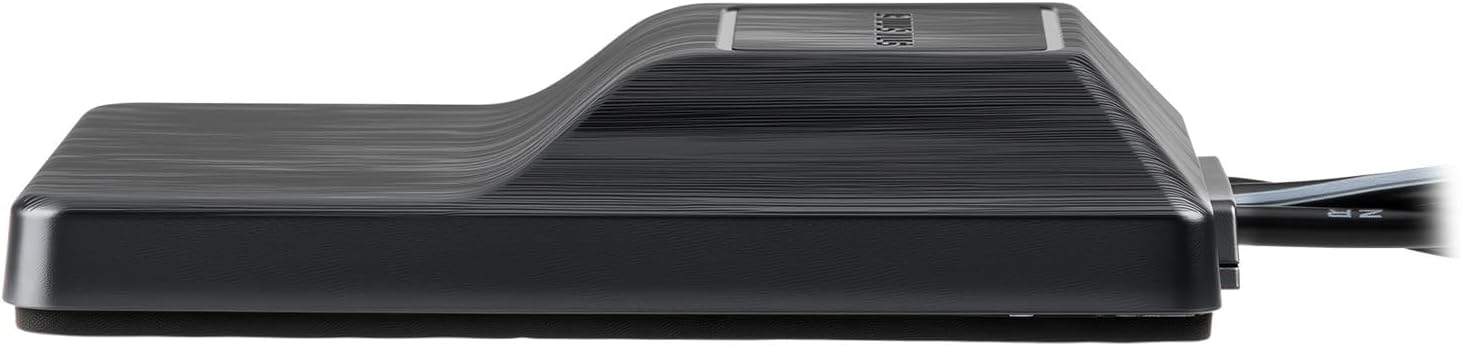

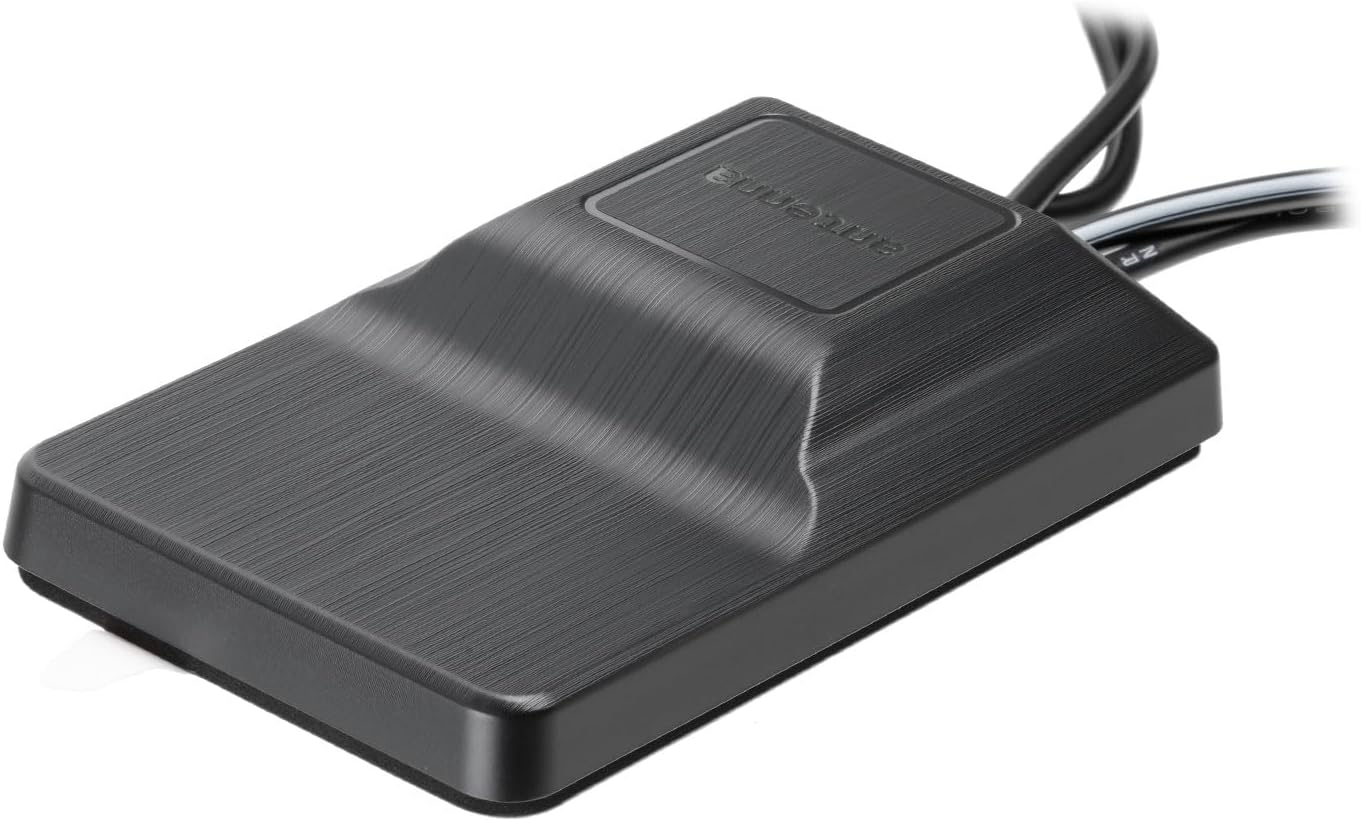

- Strength Housing: IP65 waterproof ABS casing withstands temperatures from -40 C to 85 C; Vibration resistant design built for demanding outdoor and automotive applications

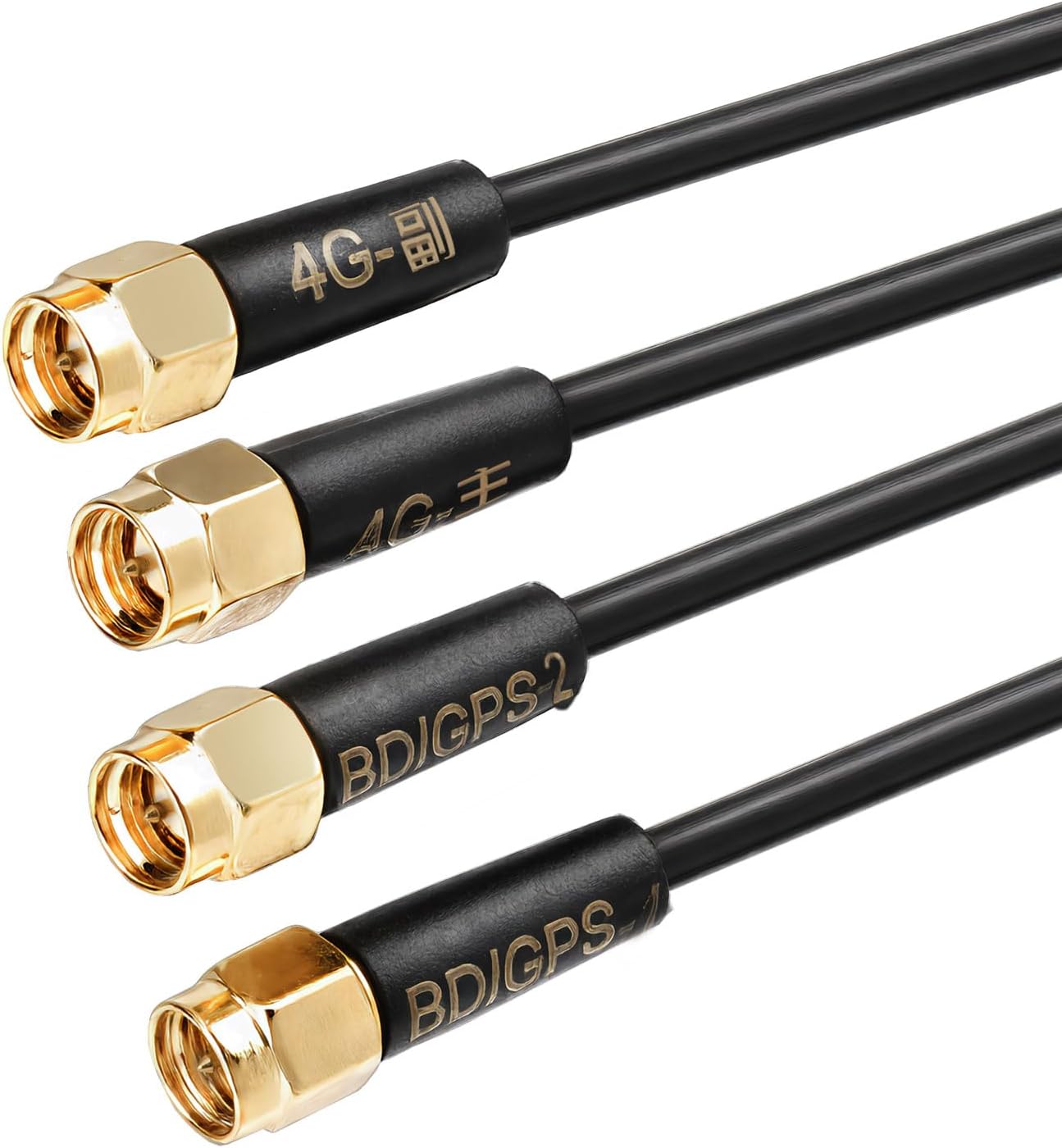

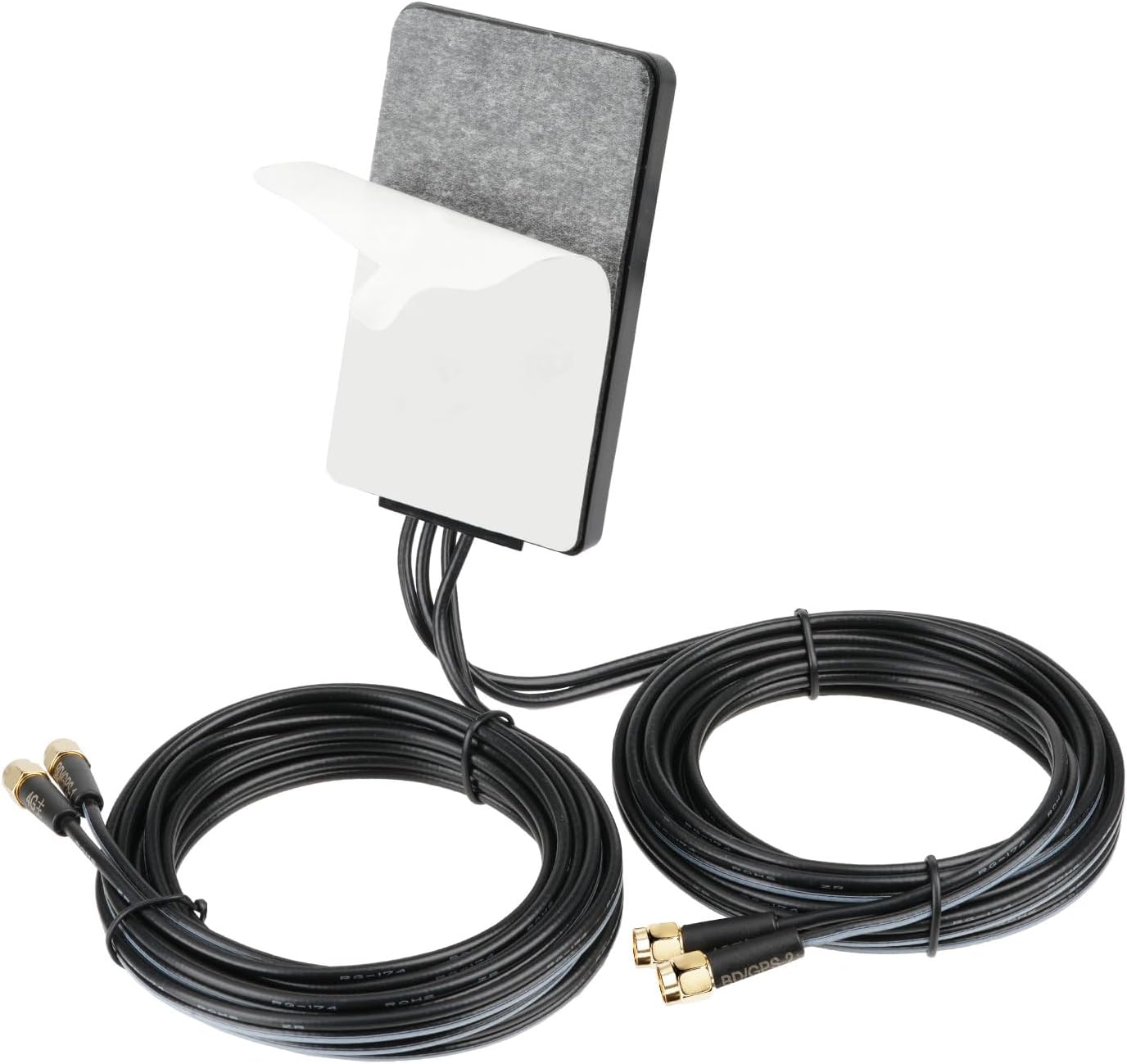

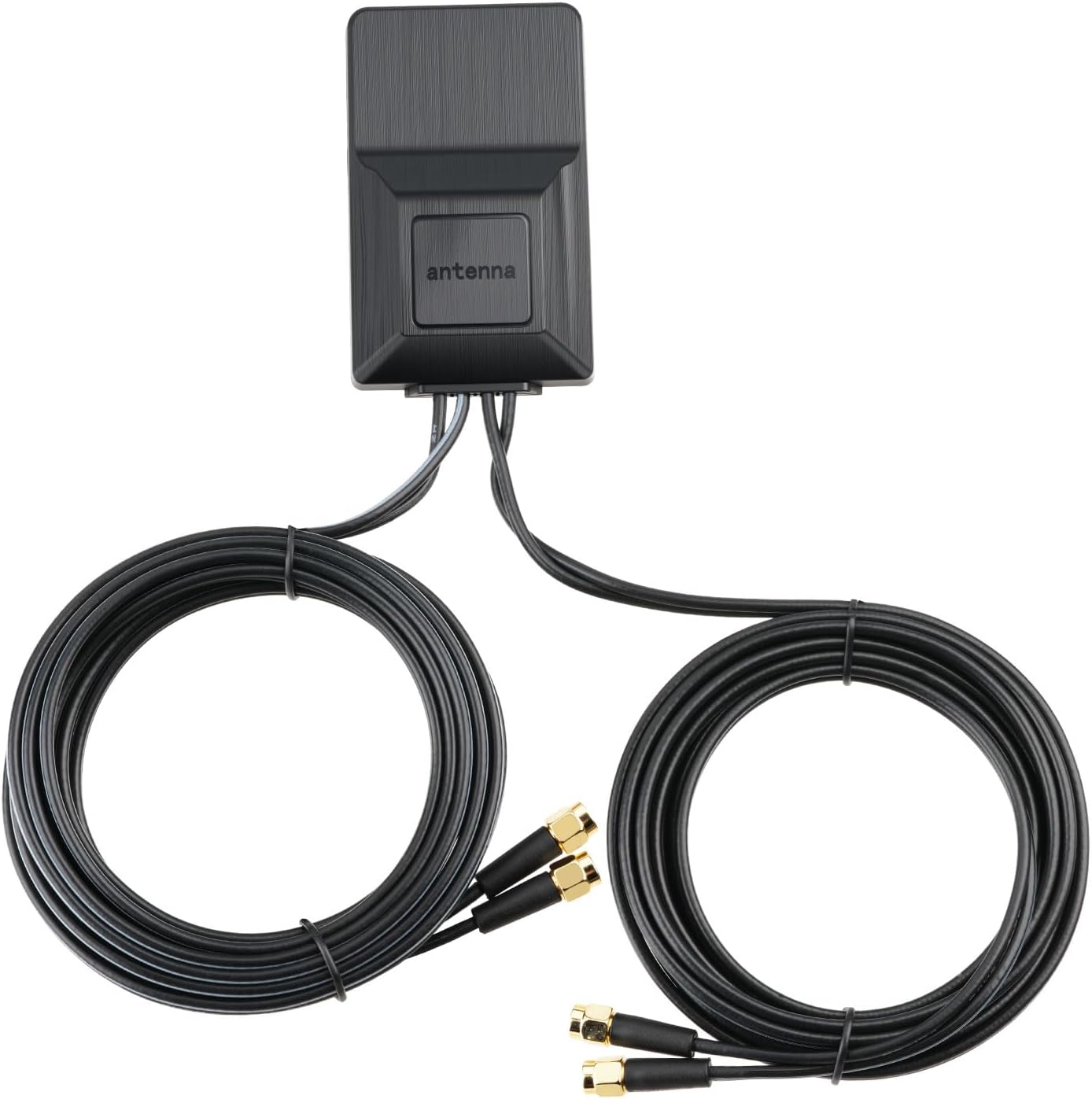

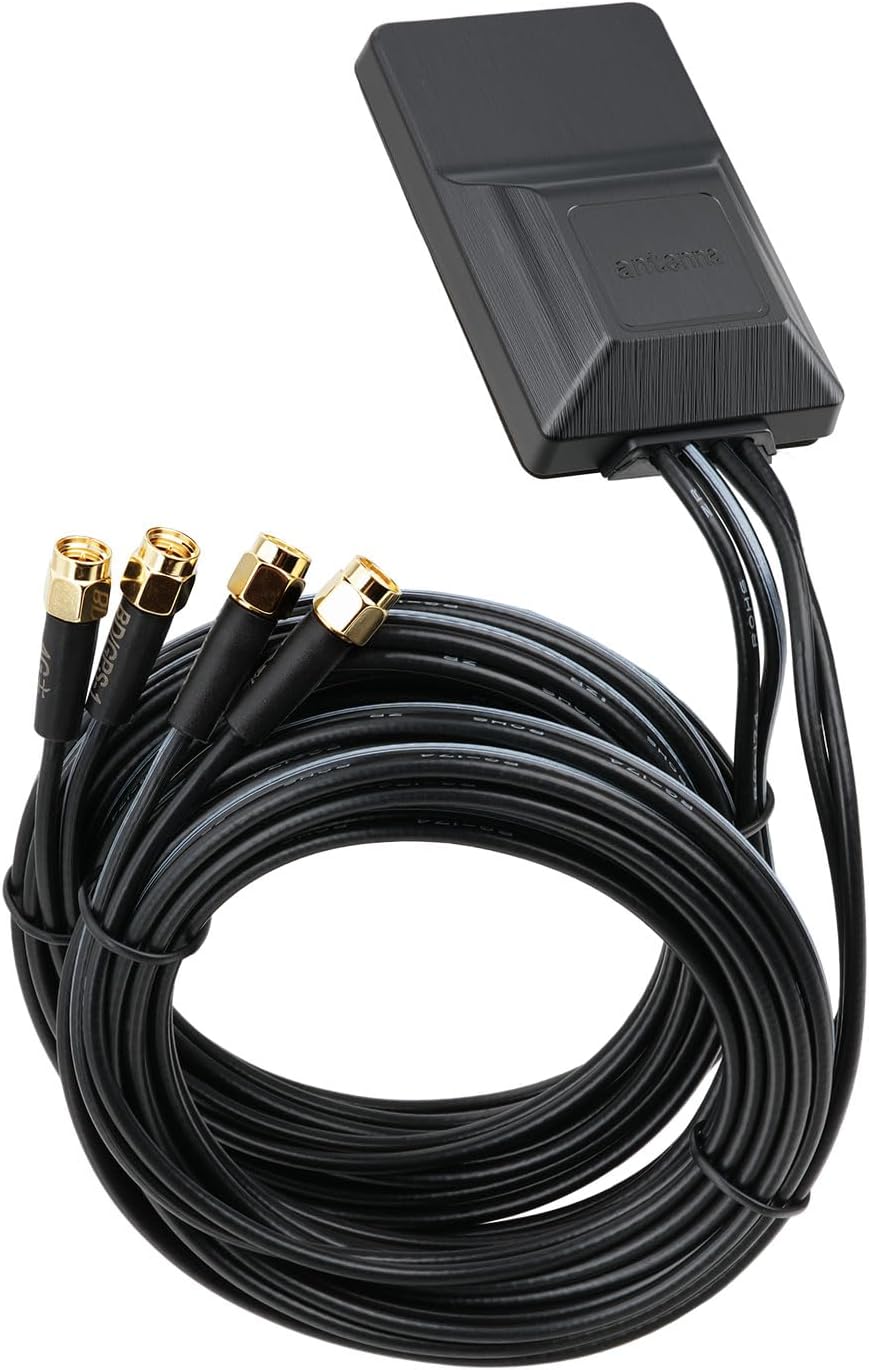

- Plug and Play Setup: Ready to use with included RG174 cable featuring four labeled SMA male connectors; Optimized horizontal mounting ensures strong GPS/BeiDou satellite signal reception
- Versatile Tracking Solution: Combines GNSS positioning and cellular communication in one durable unit; Ideal solution for industrial IoT remote monitoring fleet management and vehicle navigation systems
-
Specification:
Dual GNSS Modules:
BeiDou: 1561.098±2.046MHz
GPS: 1575.42±1.023MHz (per module)
Bandwidth: >5MHz
Gain: 4.5dBic (70x70mm ground plane)
VSWR: ≤2.0
Polarization: RHCP
LNA Specifications:
Gain: 28±3dB
Noise Figure: <1.5dB
Operating Voltage: 3.0-3.6V DC
Current Consumption: ≤30mA @3.3V
