Description
Specifications:
Frequency Range: VHF 136-174MHz, UHF 400-470MHz
Gain: 3.5dBi (VHF), 6dBi (UHF)
Impedance: 50 ohms
Max Power: 50W
VSWR: Less than 2.0

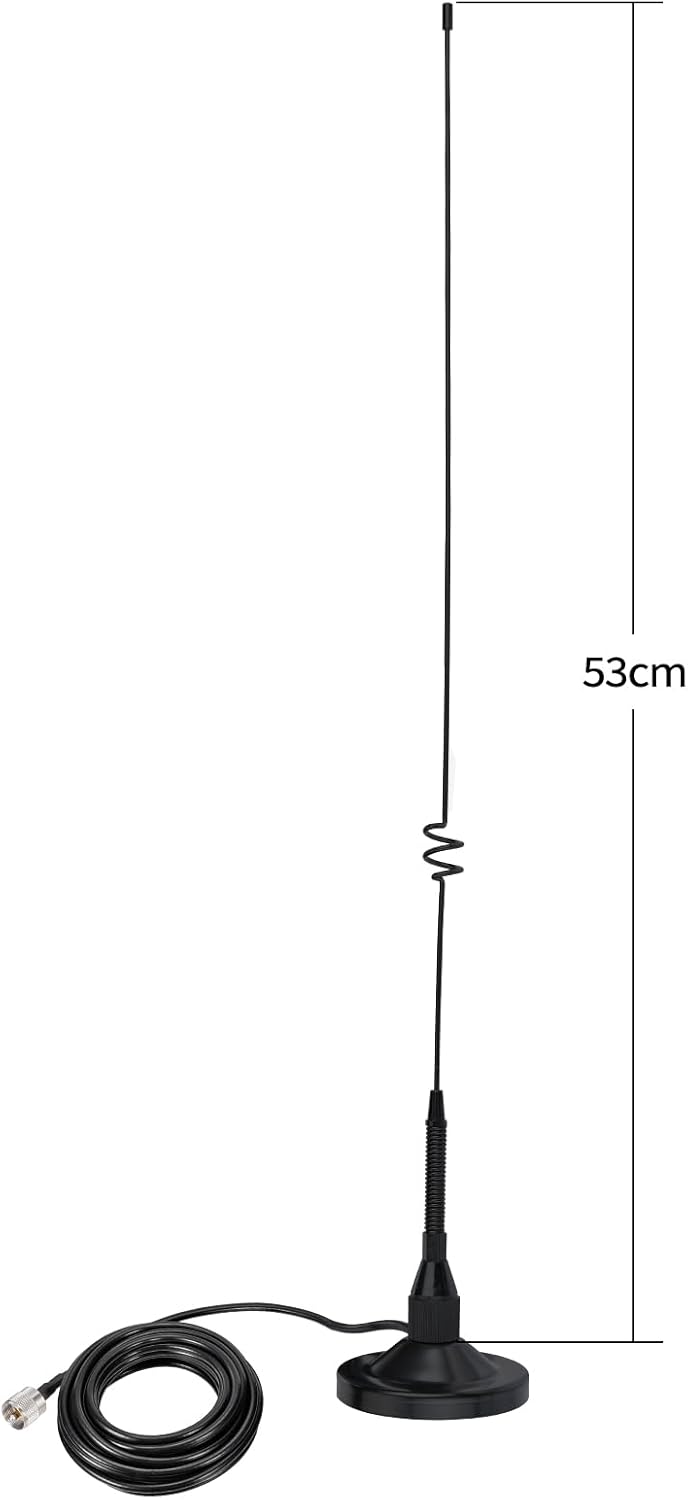

Antenna Length: 20.8 inches / 53 cm
Cable: 16.4 ft / 5 m RG58 coaxial cable
Connector: UHF PL259 Male
Magnetic Base Diameter: 9 cm / 3.54 inches
Waterproof: Raining Proof
Material: Stainless steel
Polarisation: Vertical polarisation
Direction: Omni-directional
Operating Temperature: -20°С to +80°С
Wide Application:
Supports Vehicle Mobile GMRS Radio, GMRS Repeater, Dual-band VHF UHF Mobile Car Radio Transceiver, Amateur Ham Radios, DMR Digital Mobile Radio, Marine VHF Transceiver, VHF Digital Transceiver, UHF Digital Transceiver, Mobile Radio Base Station, Two Way Radio etc.
Compatible with:
Midland MXT275 / MXT575 / MXT400 / MXR10 / MXT500 / MXT115;
Retevis RT95;
Radioddity DB50 / DB50-B / DB25-D / DB20-G / DB25-G;
AnyTone AT-778UVII / AT-778UV / AT-5888UV / AT-779UV;
Icom IC-M330 / IC-2730A / IC-M330G / M424G / IC-M605 etc;
BTECH UV-50X2 / UV-25X2;
Yaesu FTM-500DR / FTM-300DR / FTM-200DR etc;
TYT MD-9600 / MD-9600 Plus;
Uniden UM725 / UM725BK / UM725GBT / UM435 / UM435WH;
Cobra Marine MR F45-D / Marine MR F75-D etc;
Standard Horizon GX6000 / GX2400 / GX1850 / GX1850GPS / GX1800 etc;
TM-V71A / TM-D710A / TM-D710GA etc;
Alinco DR-735T / DR-638T / DR-635T / DR-620T etc;
Rugged Radios RDM-DB / RM-45 / G1 / GMR45 / GMR25;

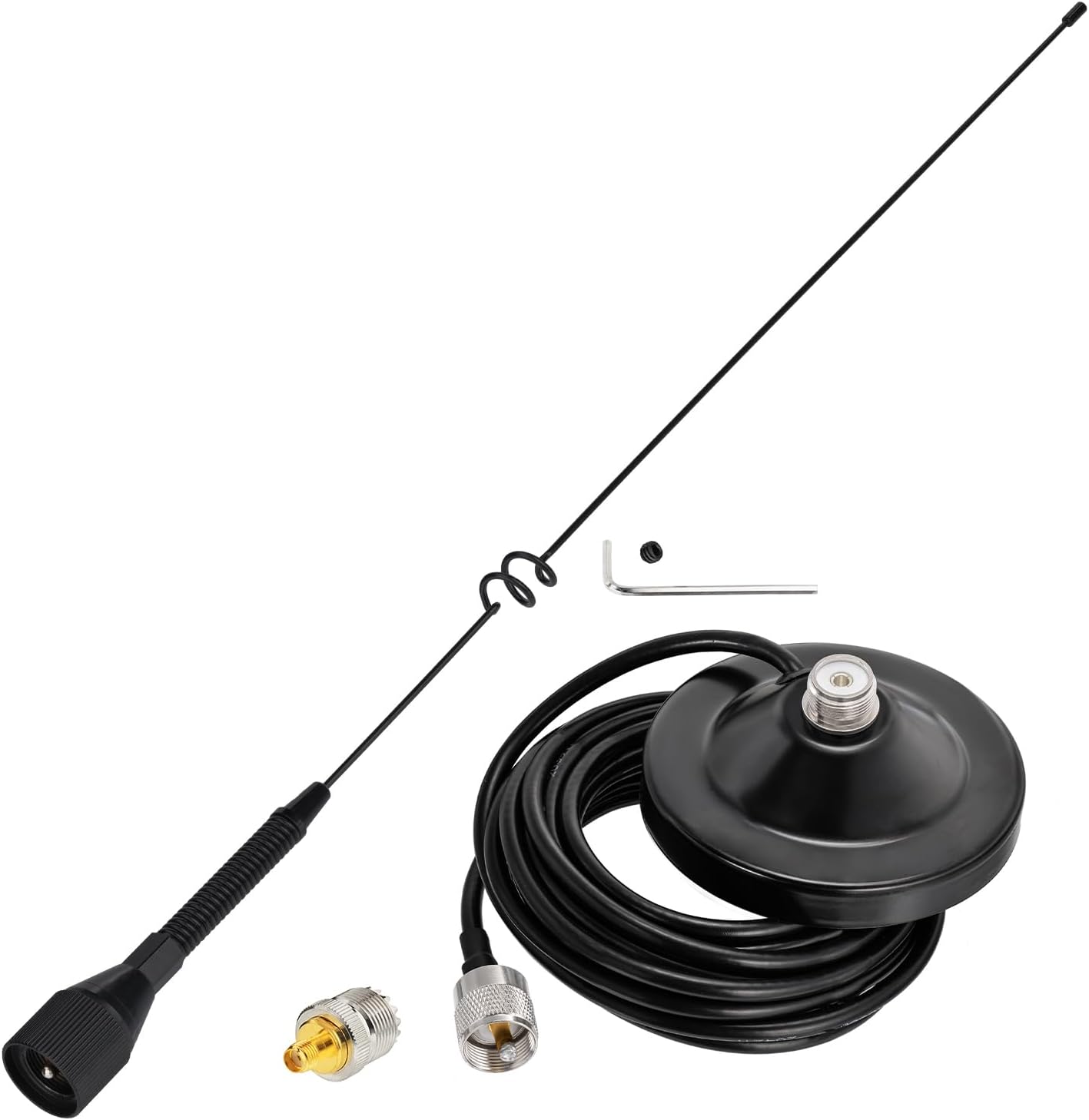

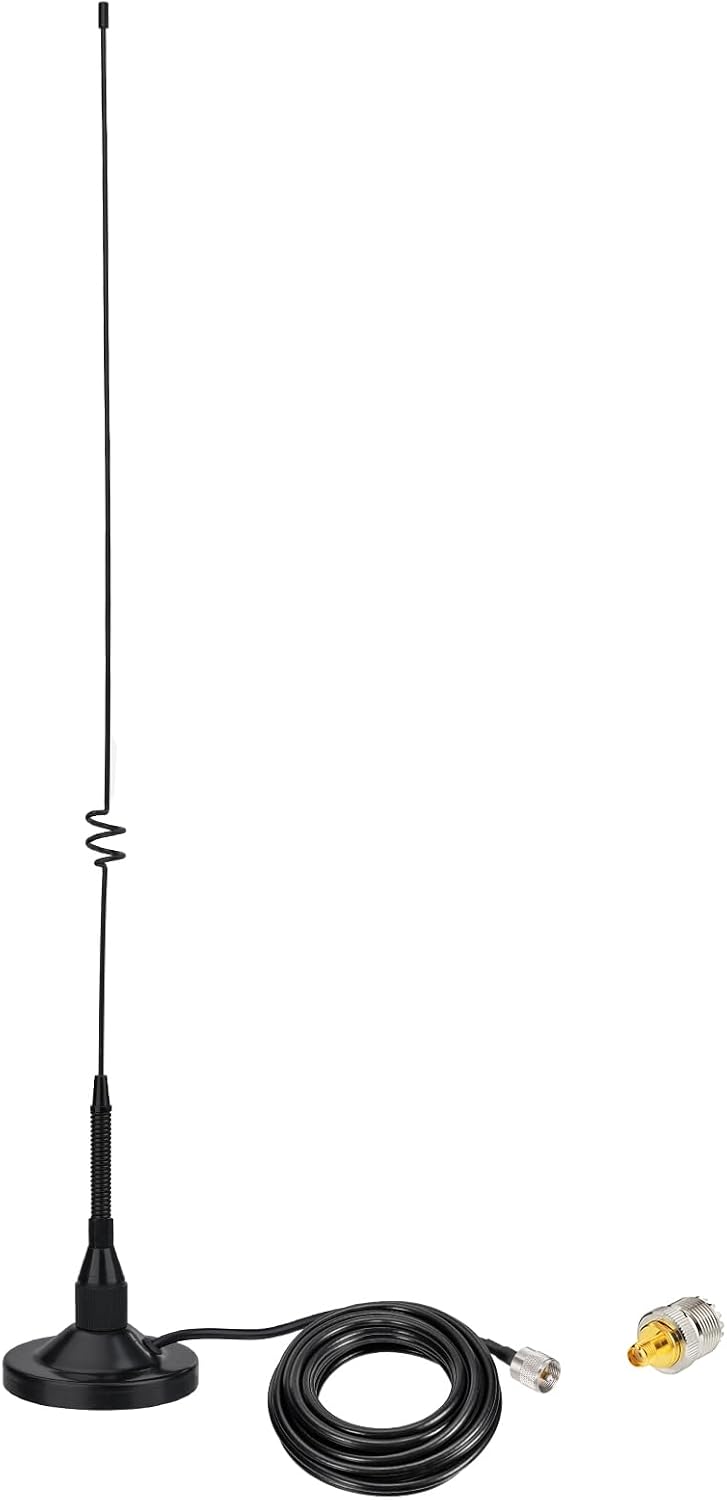

Package List:

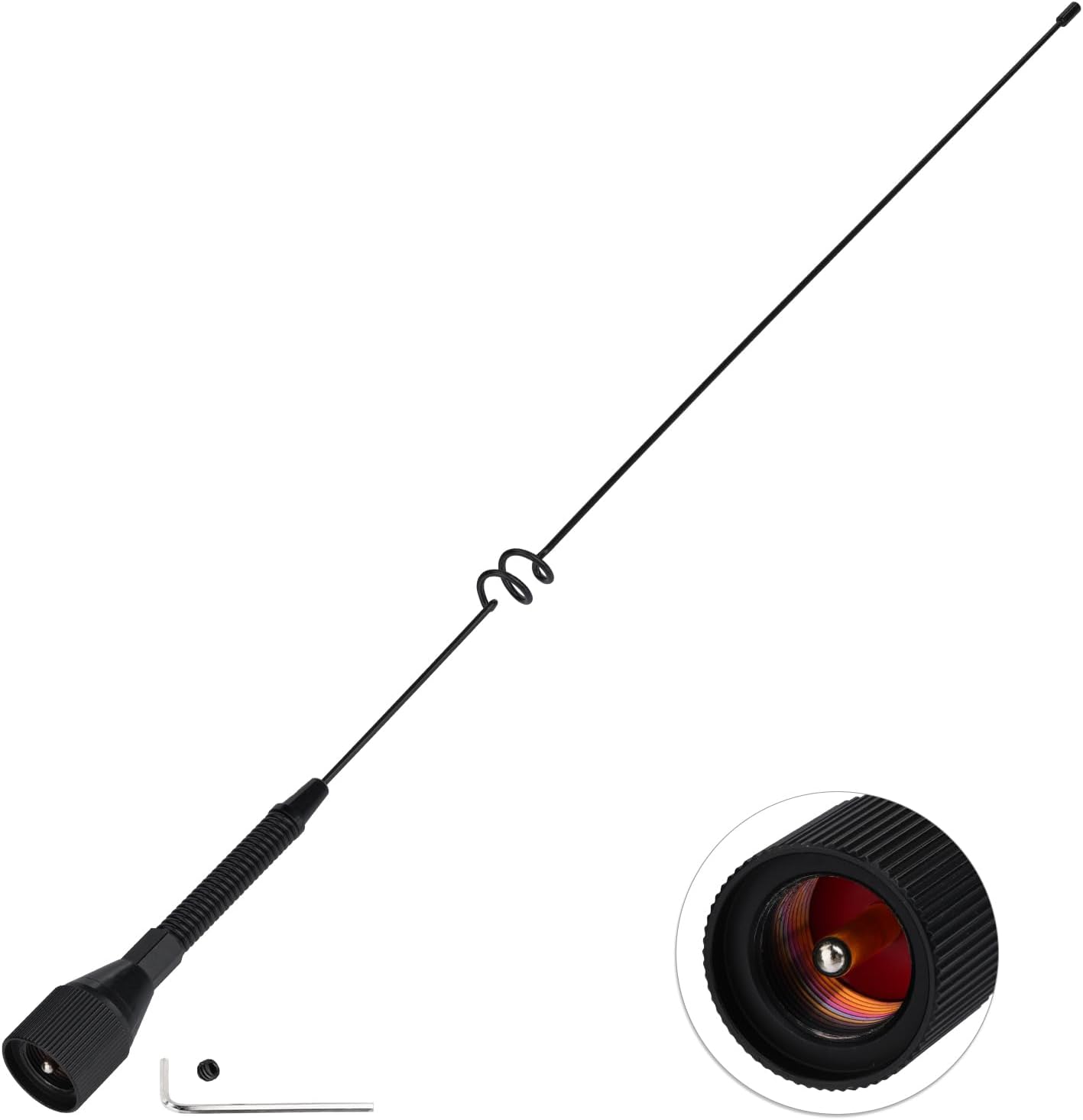

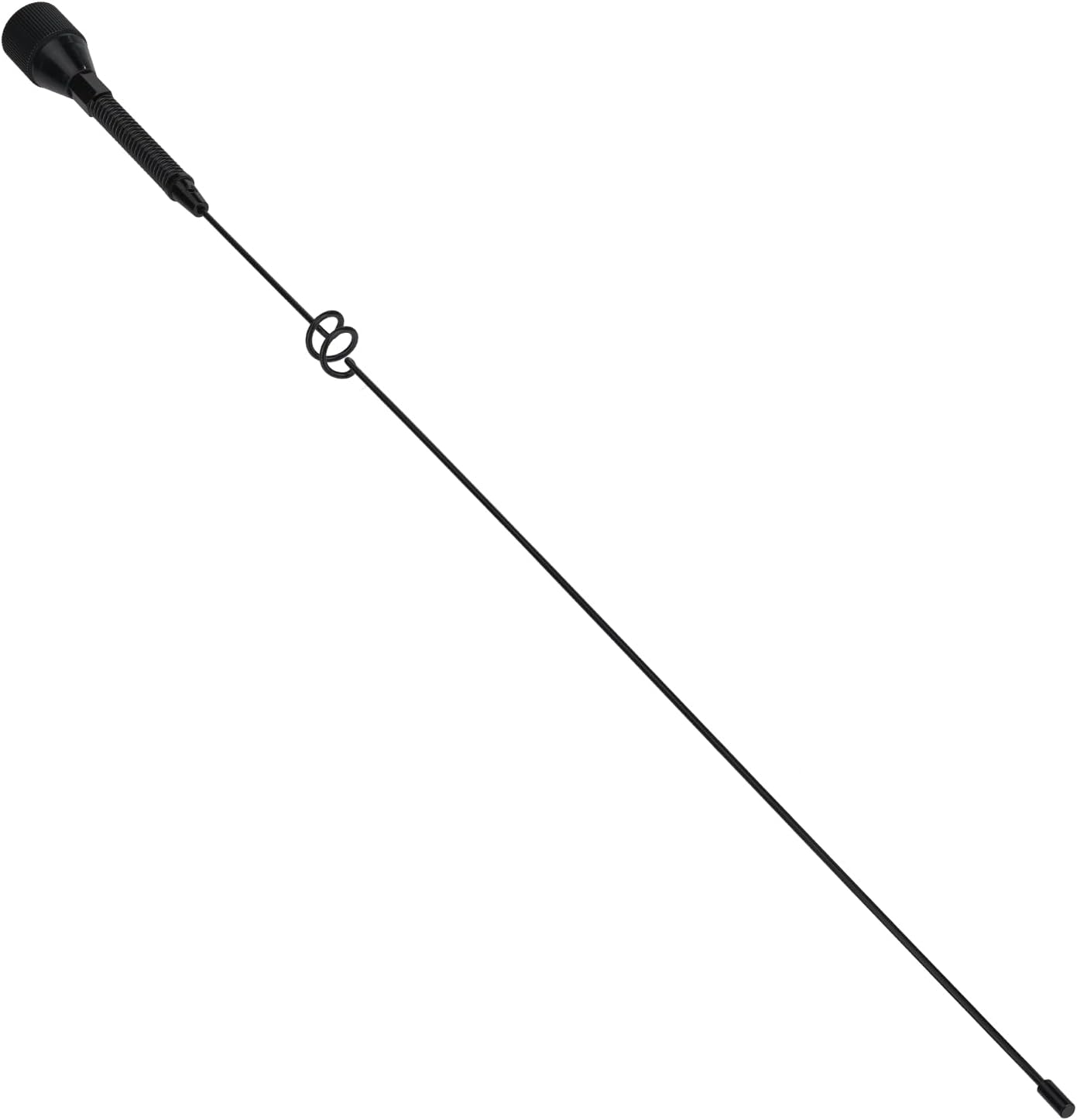

1 x Antenna

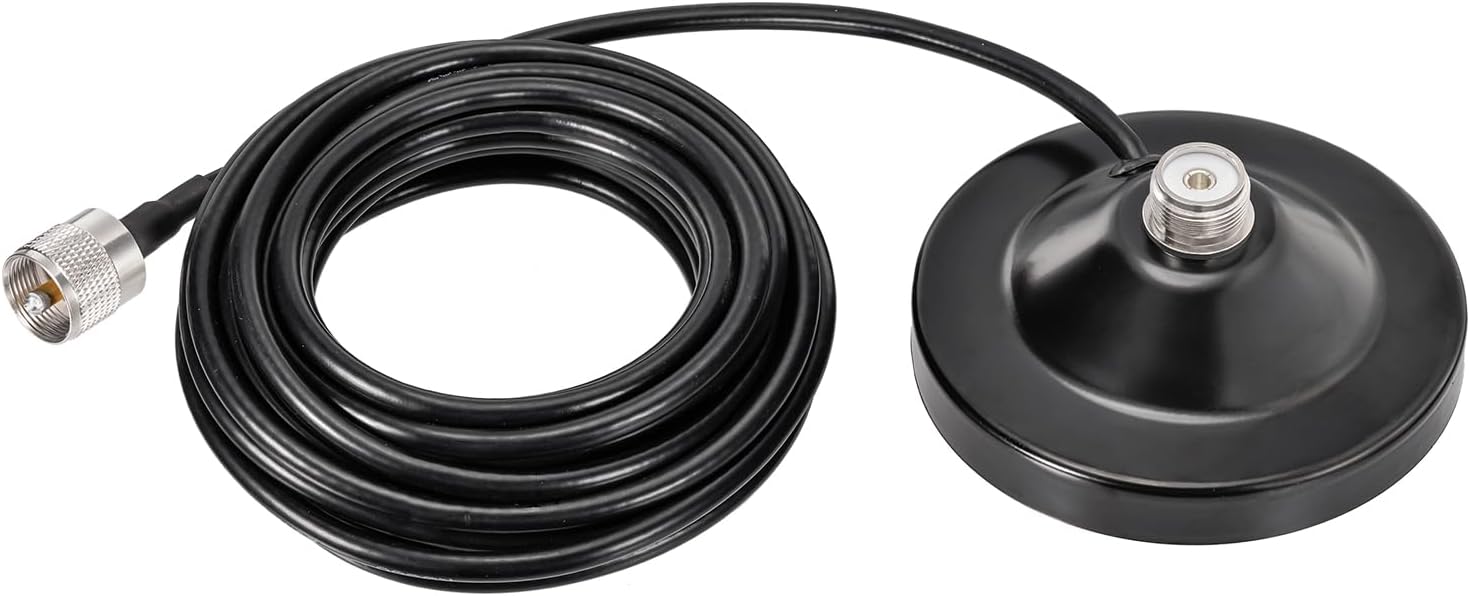

1 x Magnetic Base
1 x SMA Female Adapter
Product Overview
- Antenna: Mobile Radio Antenna
- Brand: BINGFU
- Impedance: 50 ohm
- Manufacturer: Bingfu
- Item Highlight:
- Number of Items: 1
Product Features
- Signal Enhancement for Mobile Radio: This dual band ham radio antenna reduces VSWR to lower than 2.0, improving carriage performance, and improving reception sensitivity for clear communication
- Reliable On-the-Road Communication: Perfect for off-road driving, trucking, or marine boating, the strong 3.54-inch magnetic base mounts securely to vehicle surfaces, keeping you connected via amateur radio
- Parameters: Operates on VHF 136-174MHz (3.5dBi gain) and UHF 400-470MHz (6dBi gain); features a 50W max power input, 50-ohm impedance, omni-directional vertical polarisation, raining proof stainless steel structure, and a 16.4ft RG58 coaxial cable
- Wide Compatibility: Equipped with a UHF PL259 male connector and an SMA female adapter; Supports Vehicle Mobile GMRS Radio, GMRS Repeater, Dual-band VHF UHF Mobile Car Radio Transceiver, Amateur Ham Radios, DMR Digital Mobile Radio, Marine VHF Transceiver, VHF Digital Transceiver, UHF Digital Transceiver, Mobile Radio Base Station, Two Way Radio etc.
- Pack List: 1 x antenna, 1 x magnetic base, 1 x SMA female adapter
Product Information
| AntennaDescription | Mobile Radio Antenna |
| Brand | BINGFU |
| Manufacturer | Bingfu |
| Item Highlight | with 3.54 inch Magnetic Base 16.4ft RG58 Coaxial Cable Compatible with ICOM Kenwood Yaesu Midland Amateur Gmrs Two Way Radio |
| Number of Items | 1 |
| Model Number | BFUSAN0665 |
| Mfr Part Number | BFUSAN0665 |
| Warranty Description | 1 Year Manufacturer |
| ASIN | B0H3TGD7BG |
| Impedance | 50 ohm |
