Description
Upgrade your mobile communication performance with this heavy-duty, omnidirectional dual band antenna system, engineered for amateur radio enthusiasts, truck drivers, and off-road adventurers alike.
High-Performance Signal OptimizationOperating on both VHF 136-174 MHz and UHF 400-470 MHz frequencies, this antenna delivers a gain of 2.5dBi for VHF and 3.5dBi for UHF. With a low VSWR design (less than 2.0), it minimizes power reflection, enhances carriage performance, and improves overall reception sensitivity for your two-way radio setups.
Specifications:Frequency: 136-174 MHz / 400-470 MHz
Gain: 2.5dBi (VHF), 3.5dBi(UHF);
Impedance: 50 ohms
Max Power: 50W
VSWR: less than 2.0

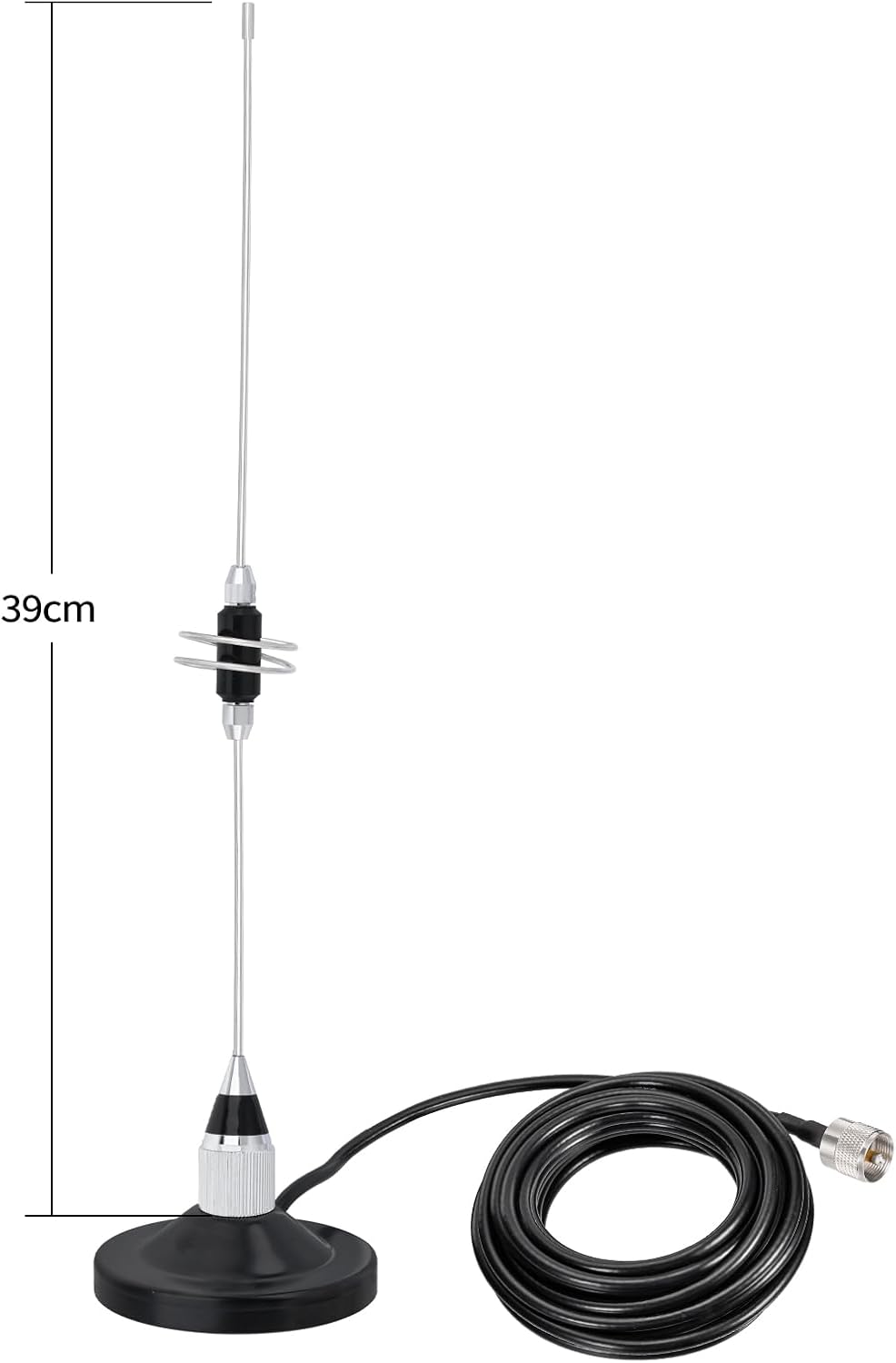

Antenna Length: 15.3 inch
Cable: 16.4ft RG58 coaxial cable

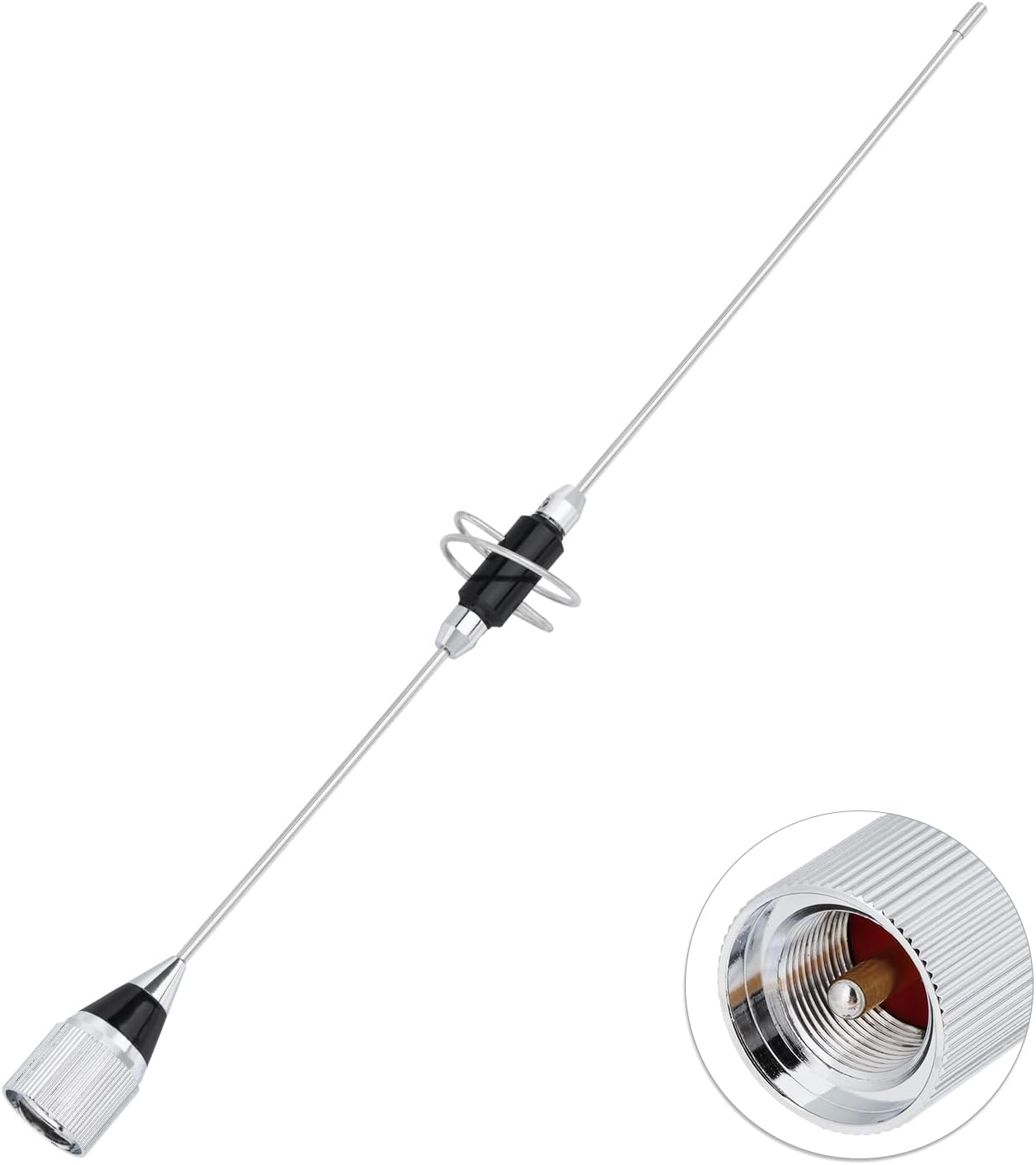

Connector: UHF PL259 Male
Magnetic base diameter: 3.54 inches
Waterproof: Raining Proof
Material: Stainless steel
Polarisation: Vertical polarisation
Direction: Omni-directional
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С
Package List: 1 x Antenna, 1 x magnetic base, 1 x SMA female adapter
Wide Application:
Supports Vehicle Mobile GMRS Radio, GMRS Repeater, Dual-band VHF UHF Mobile Car Radio Transceiver, Amateur Ham Radios, DMR Digital Mobile Radio, Marine VHF Transceiver, VHF Digital Transceiver, UHF Digital Transceiver, Mobile Radio Base Station, Two Way Radio etc.
Compatible with:
Midland MXT275 / MXT575 / MXT400 / MXR10 / MXT500 / MXT115;
Retevis RT95;
Radioddity DB50 / DB50-B / DB25-D / DB20-G / DB25-G;
AnyTone AT-778UVII / AT-778UV / AT-5888UV / AT-779UV;
Icom IC-M330 / IC-2730A / IC-M330G / M424G / IC-M605 etc;
BTECH UV-50X2 / UV-25X2;
Yaesu FTM-500DR / FTM-300DR / FTM-200DR etc;
TYT MD-9600 / MD-9600 Plus;
Uniden UM725 / UM725BK / UM725GBT / UM435 / UM435WH;
Cobra Marine MR F45-D / Marine MR F75-D etc;
Product Overview
- Antenna: Mobile Radio Antenna
- Brand: BINGFU
- Impedance: 50 ohm
- Manufacturer: Bingfu
- Item Highlight:
- Number of Items: 1
Product Features
- Signal Improvement: Dual band frequency range VHF 136-174MHz and UHF 400-470MHz with reduced VSWR less than 2.0 to improve the performance of the carriage. This omnidirectional antenna increases gain to 2.5dBi for VHF and 3.5dBi for UHF, effectively improving reception sensitivity and transmission distance for clear mobile communication
- Off-Road Communications: Perfect for road trips, overland adventures, or convoy communication in remote areas where signals are weak. Whether you are driving a truck, traveling by vehicle, or navigating on a marine boat, this raining proof stainless steel antenna mounts quickly to keep you connected with your team via amateur radio or walkie talkies

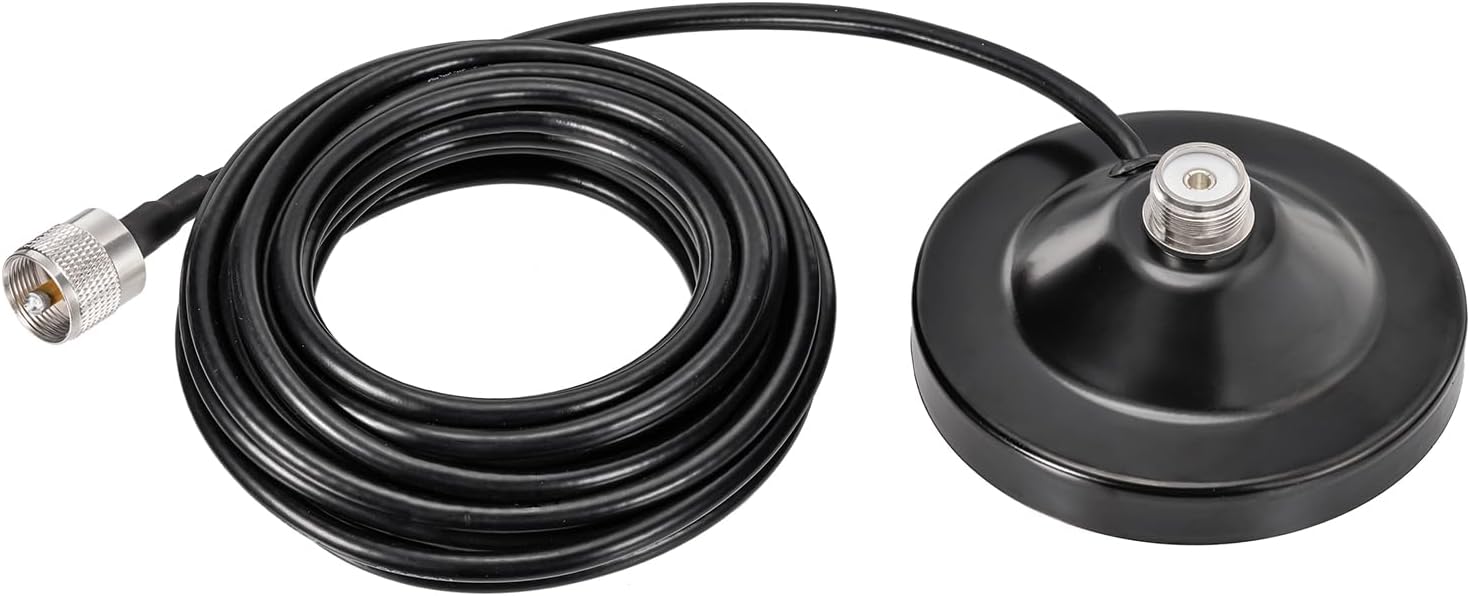

- Parameters: Engineered for reliable technical performance with 50 ohms impedance and 50W maximum power input. Equipped with a stable 3.54 inches (9 cm) diameter magnetic base and a 16.4ft (5m) RG58 coaxial cable terminated with a standard UHF PL259 Male connector
- Wide Compatibility: Supports Vehicle Mobile GMRS Radio, GMRS Repeater, Dual-band VHF UHF Mobile Car Radio Transceiver, Amateur Ham Radios, DMR Digital Mobile Radio, Fixed-Mount Marine VHF Transceiver, VHF Digital Transceiver, UHF Digital Transceiver, Mobile Radio Base Station, Two Way Radio etc.

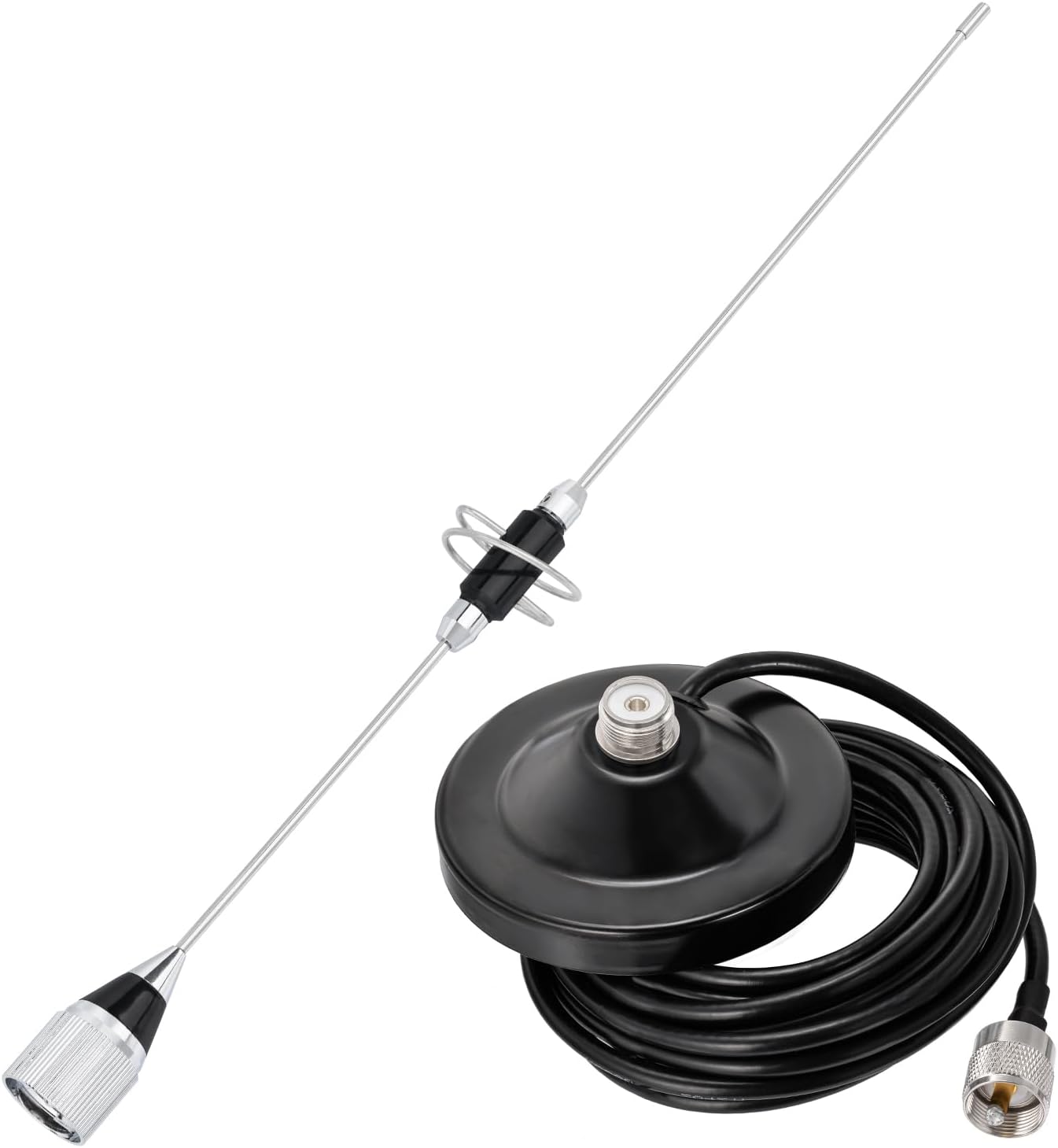

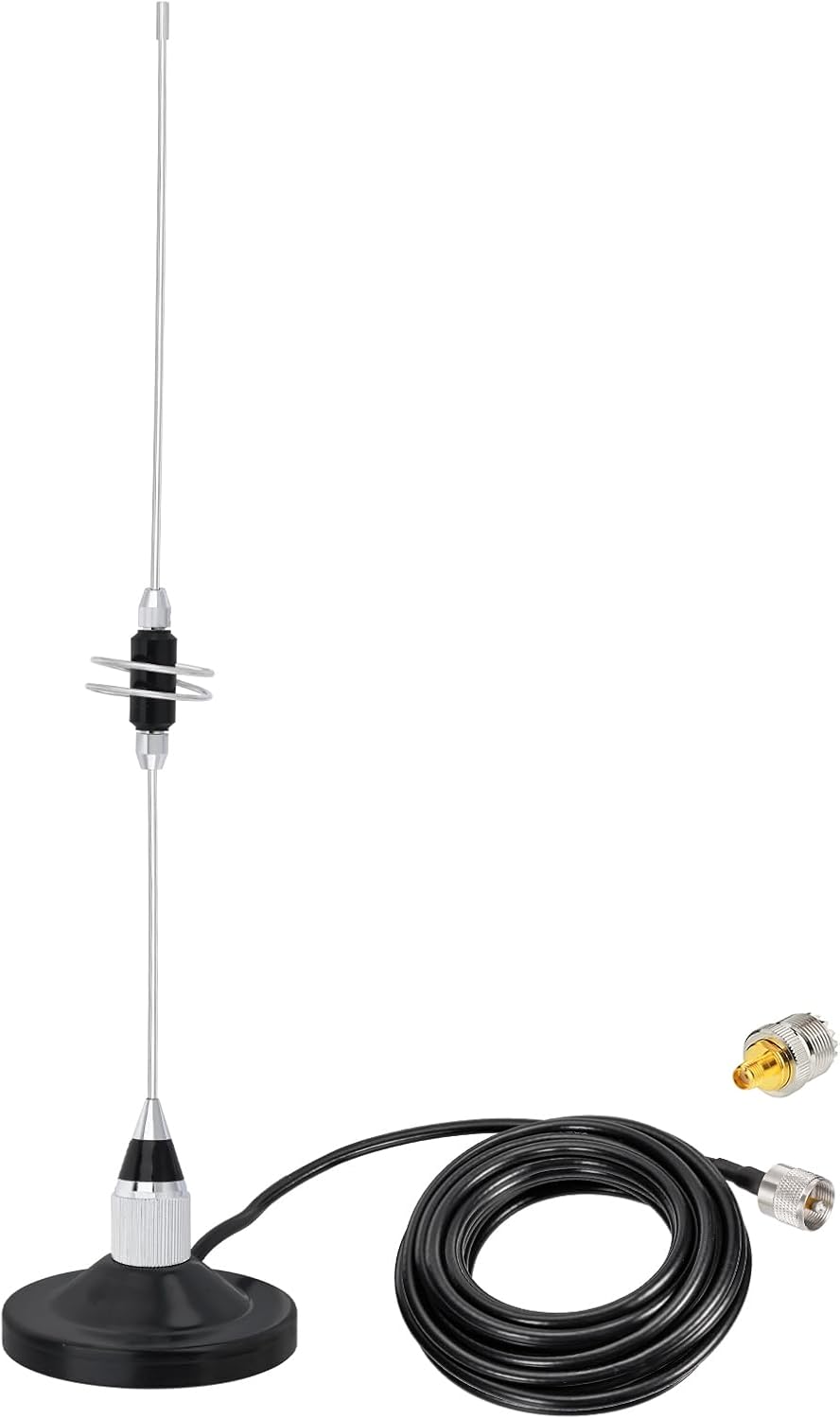

- Package Includes: 1 x Dual Band Antenna, 1 x Strong Magnetic Base with 16.4ft cable, and 1 x SMA Female Adapter
Product Information
| AntennaDescription | Mobile Radio Antenna |
| Brand | BINGFU |
| Manufacturer | Bingfu |
| Item Highlight | Compatible with Part of Midland Icom BTECH Yaesu Cobra Uniden Standard Horizon Radioddity Alinco Mobile Transceiver Repeater |
| Number of Items | 1 |
| Model Number | BFUSAN0662 |
| Mfr Part Number | BFUSAN0662 |
| Warranty Description | 1 Year Manufacturer |
| Best Sellers Rank | |
| ASIN | B0H3SYJP3R |
| Impedance | 50 ohm |
