Description

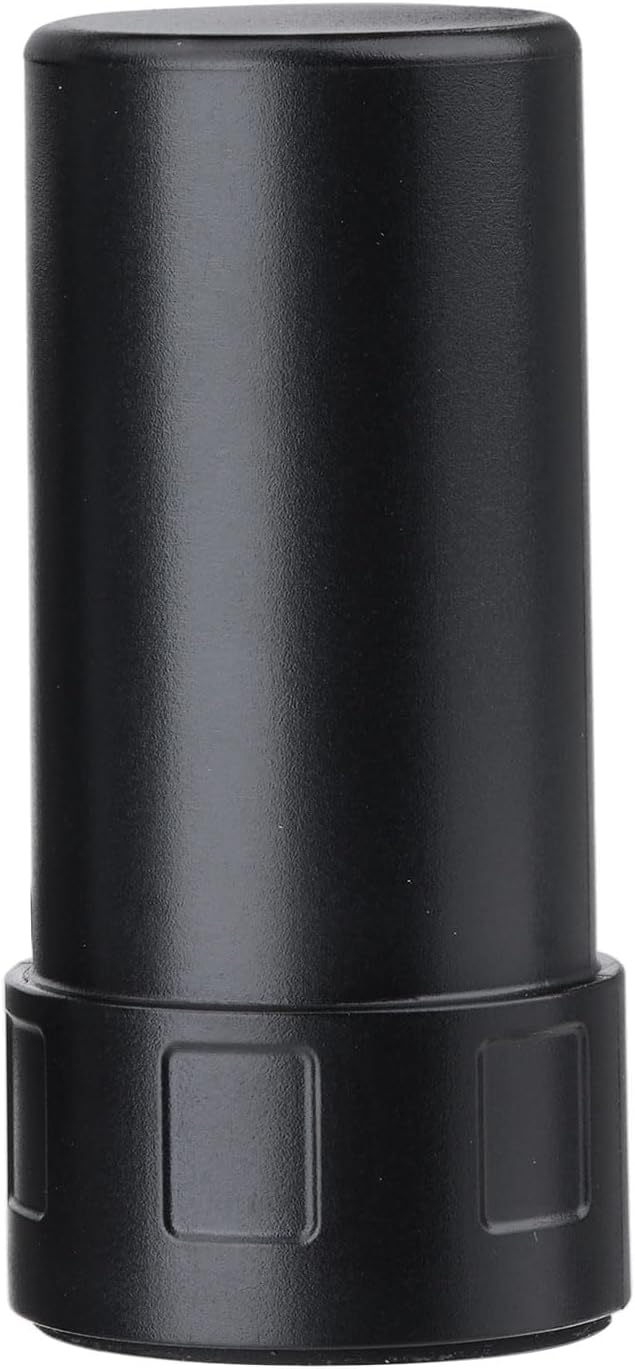

High-Performance Quad-System GNSS Helix Antenna (L1/L2/E1/E5)
Engineered for drones, precision agriculture, and autonomous driving applications. The helix antenna structure delivers superior circular polarization performance and multipath suppression capability, enabling high-precision positioning even in complex terrains.
🌀 Helix Structure – Interference Rejection Expert
Unlike conventional patch antennas, the helix structure provides superior RHCP (Right-Hand Circular Polarization) purity, effectively suppressing ground reflections and multipath interference, making it ideal for high-dynamic drone flight applications.
⚙️ Rugged & Reliable Industrial Quality
Features an aluminum alloy housing with an IP65 protection rating. Certified to TS16949 standards and tested under 24-hour extreme temperature conditions to ensure precise data performance in harsh outdoor environments.
Technical Specifications

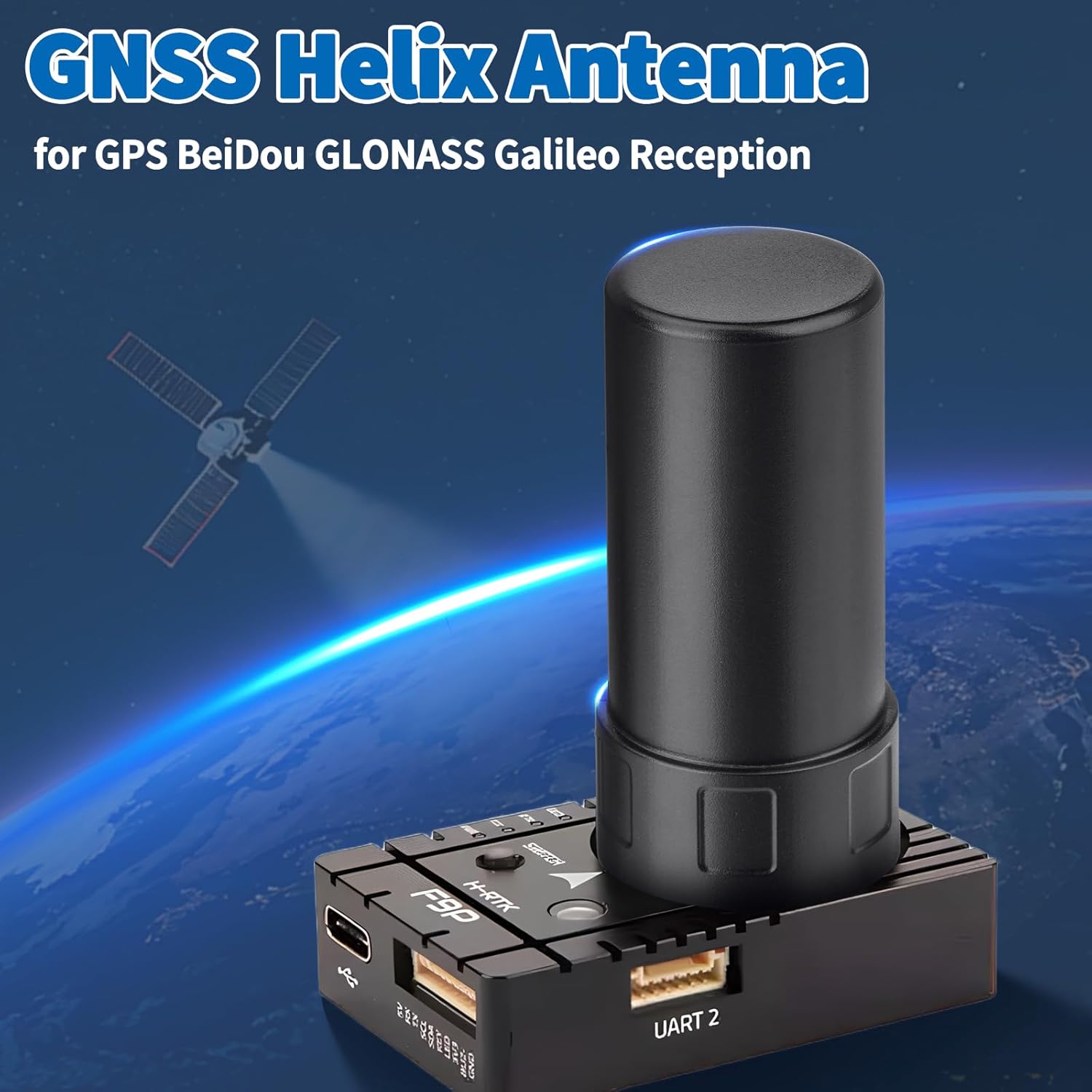

| Supported Satellite Systems | GPS, BeiDou, GLONASS, Galileo (Full Frequency Coverage) |

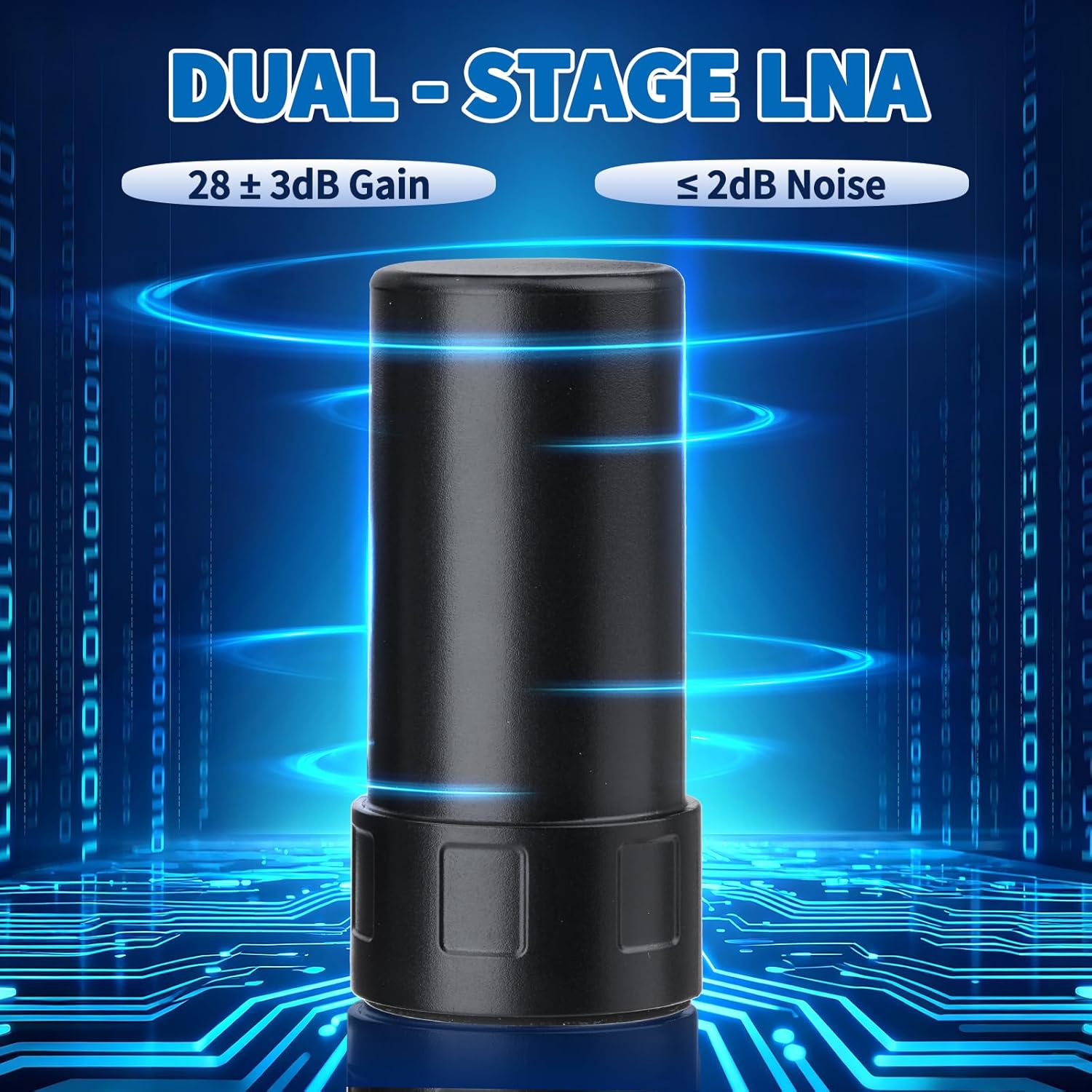

| LNA Gain / Noise Figure | 28dB / ≤ 2.0dB |

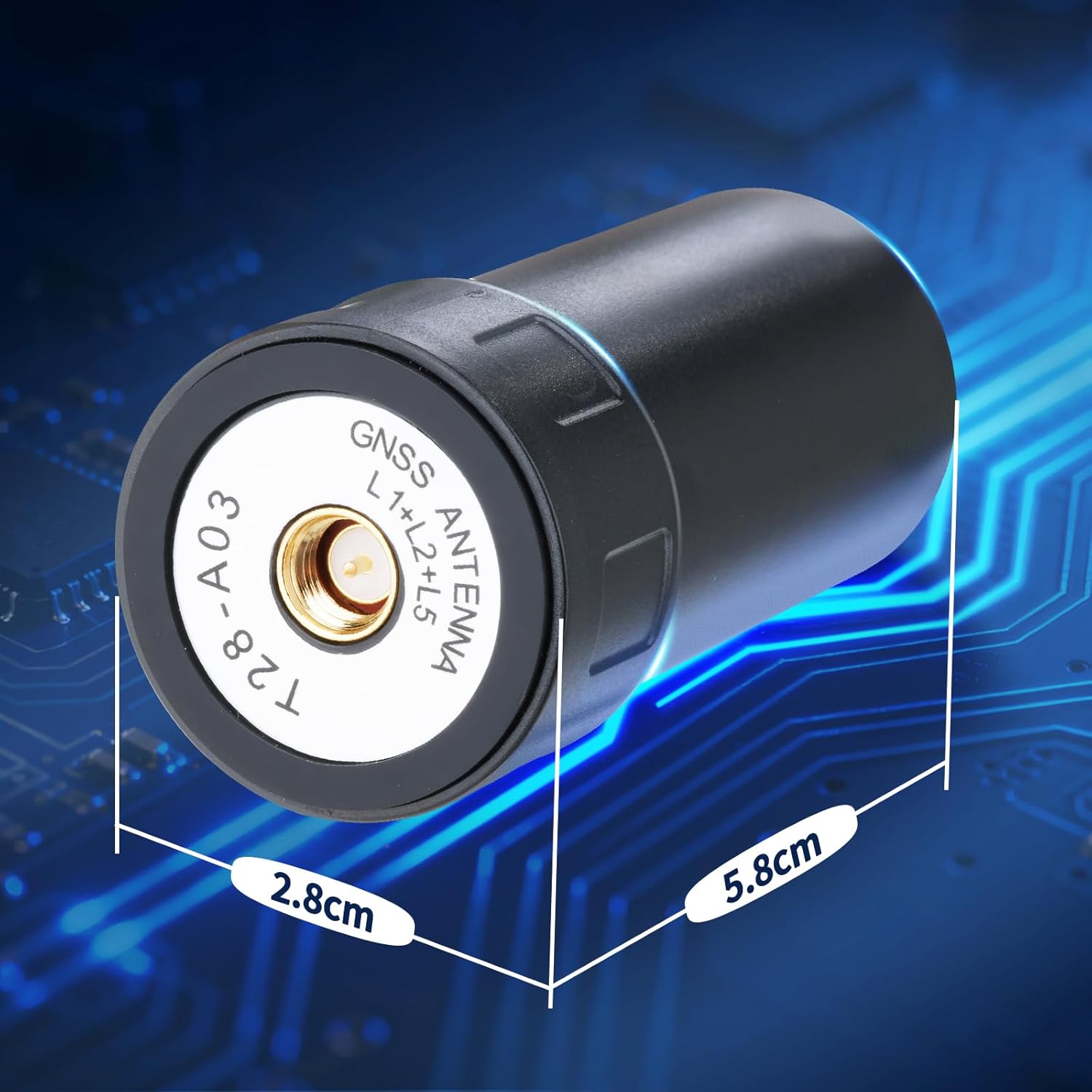

| Structure Type | High-Strength Aluminum Alloy Housing (59.3 x 28.2mm) |

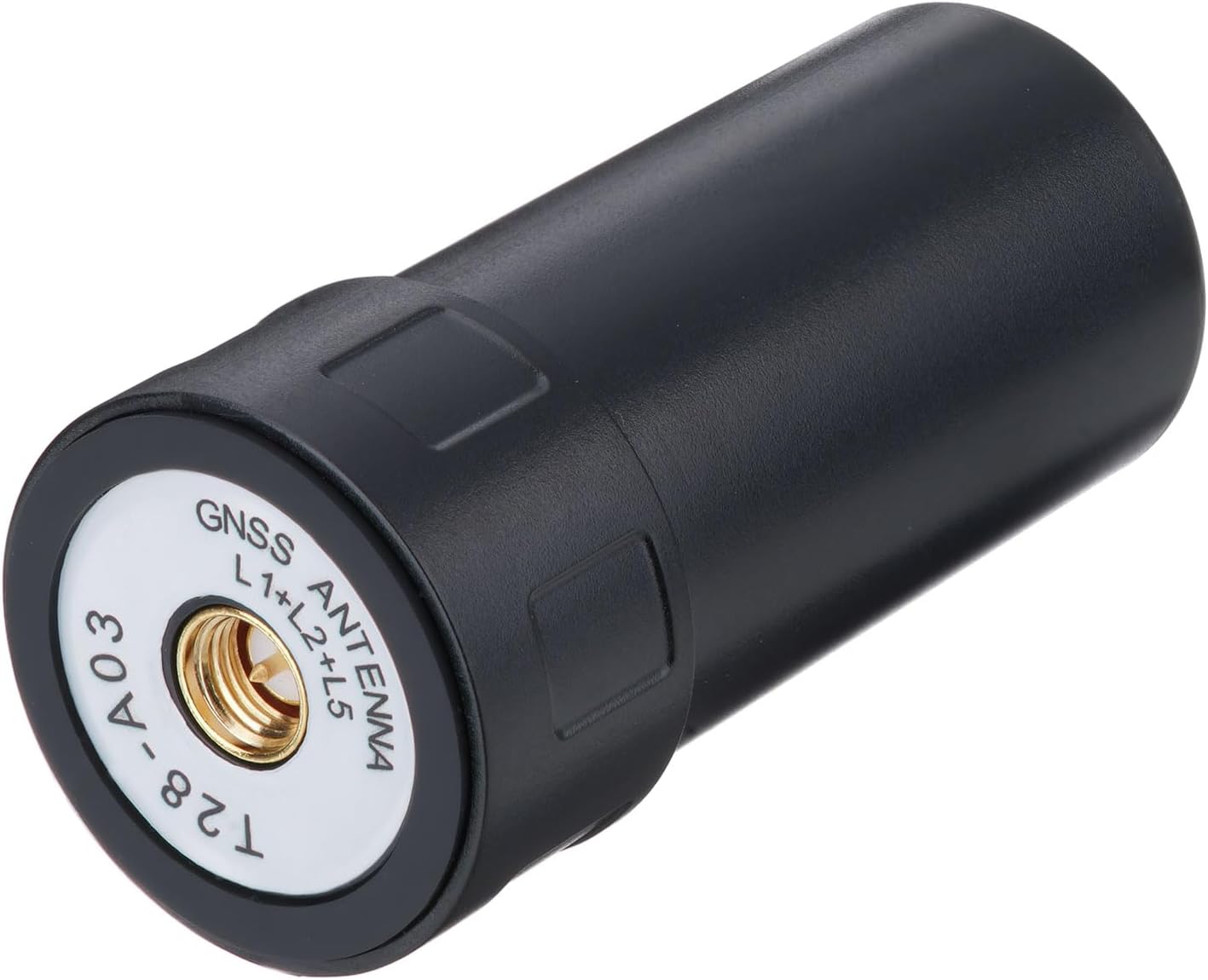

| Connector / Voltage | SMA Male / 2.8V - 3.3V DC |
Professional Applications: Widely used in UAV drone positioning and navigation, autonomous driving, marine precision navigation, RTK high-precision real-time tracking, and industrial IoT asset systems.
