Description
The Universal Internal-to-External WiFi Bridge
Upgrading to a high-speed Intel M.2 card but need external antenna support? The Bingfu TON00631 Kit provides everything you need. With 30cm (12 inches) of extra-length pigtail cable, you have the flexibility to route your signal through even the most complex DIY enclosures or large laptop frames.
๐ 30cm Extended Reach
Unlike standard 15cm cables, our 30cm pigtails allow for easy cable management in larger chassis or custom projects.

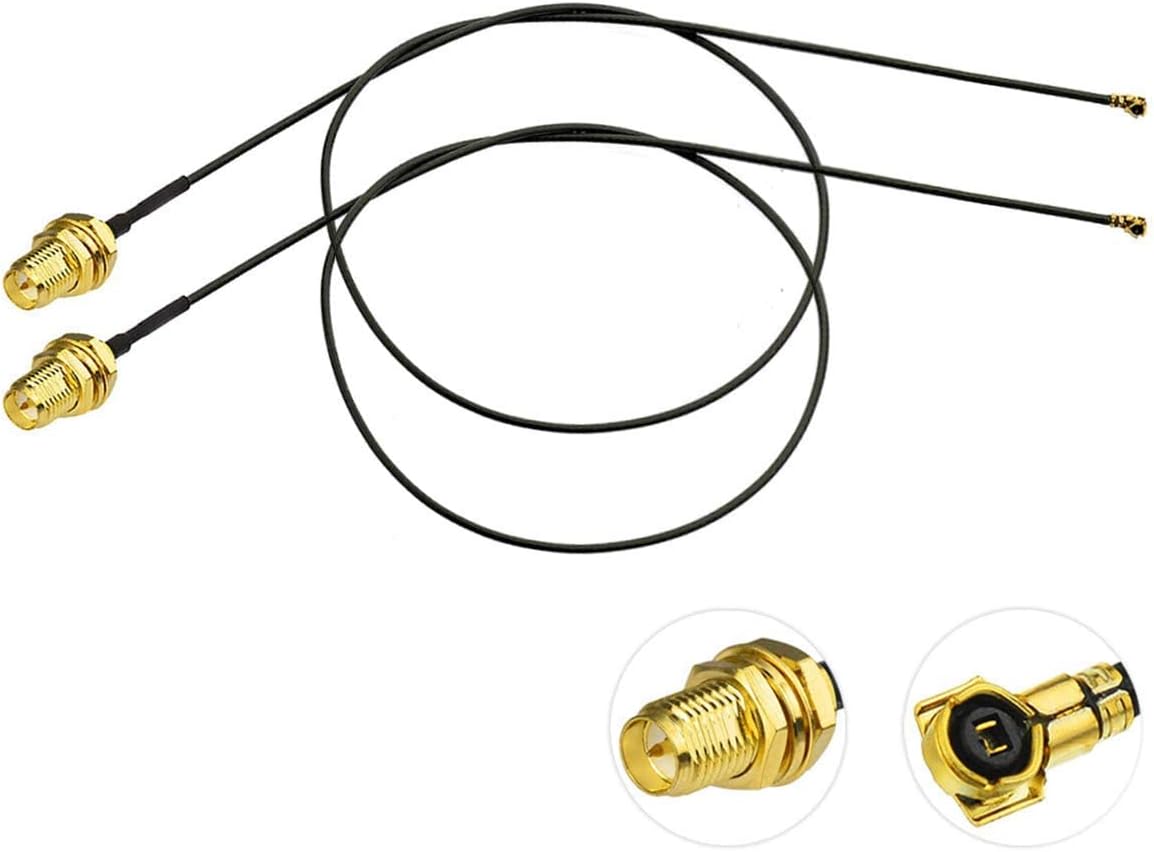

โก MHF4/IPEX4 Precision
Specifically engineered for M.2 NGFF cards. These micro-connectors ensure a secure, low-loss snap-on connection to your wireless module.
๐ Compatible M.2 Wireless Modules
Fits modern M.2 (NGFF) cards with MHF4 antenna ports, including:
- Intel: AX211, AX210, AX201, AX200, 9560, 9260, 8265, 8260, 7265, 7260
- Killer: 1675x, 1650x, 1550, 1535, 1435
- Broadcom/Realtek: Various M.2 NGFF Bluetooth/WiFi combos

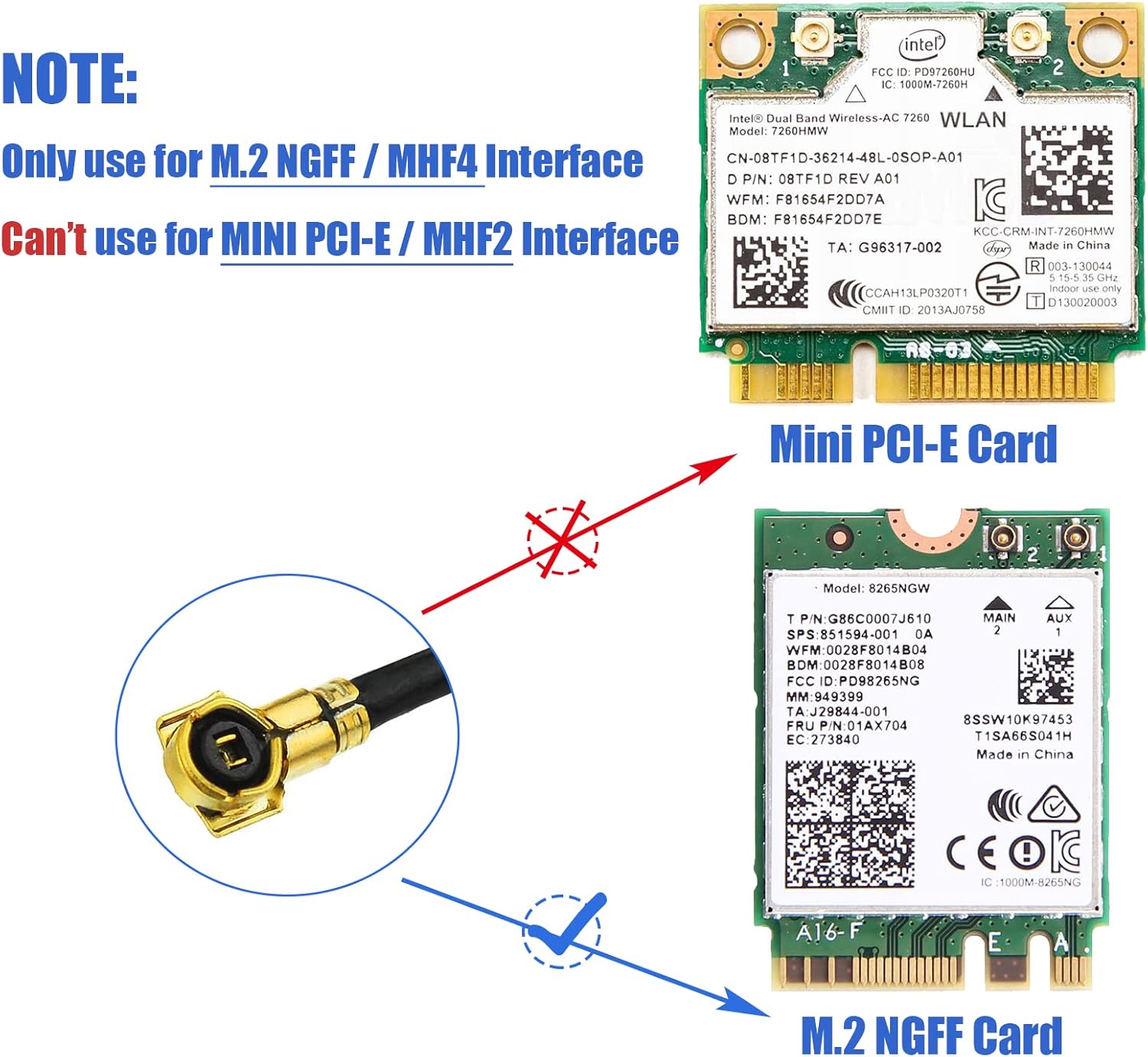

*Note: Not compatible with older Mini PCIE cards (which require U.FL/IPEX1 connectors).
Technical Specifications
| Frequency Range | Dual Band 2.4GHz / 5.8GHz |
| Pigtail Connector | MHF4 / IPEX4 (Miniature) |
| Pigtail Length | 30 cm / 11.8 inches |

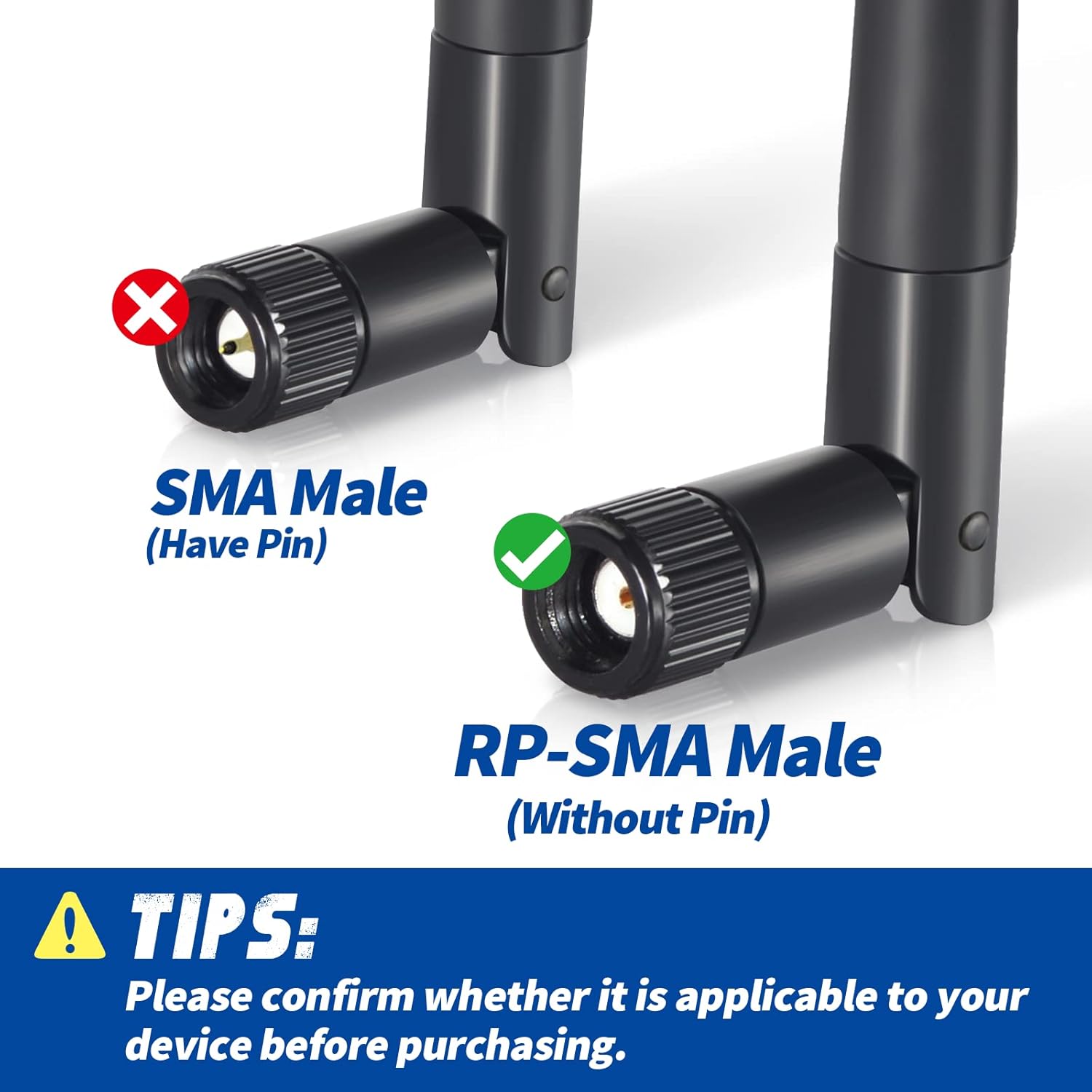

| External Interface | RP-SMA Female (Bulkhead Mount) |
๐ก Installation Pro-Tip: When mounting the RP-SMA bulkhead to a case, use a 1/4 inch (6.5mm) drill bit for a perfect fit. Use the included washers and nuts to ensure a grounded, secure attachment.
