Description
The Ultimate WiFi Upgrade for Your Desktop PC
Building a PC with an M.2 WiFi card but no antenna holes in your case? The Bingfu BFN00944 Kit provides everything you need to externalize your signal. Featuring a professional PCI slot bracket and ultra-low-loss MHF4 pigtails, it transforms your internal network card into a high-performance wireless system.

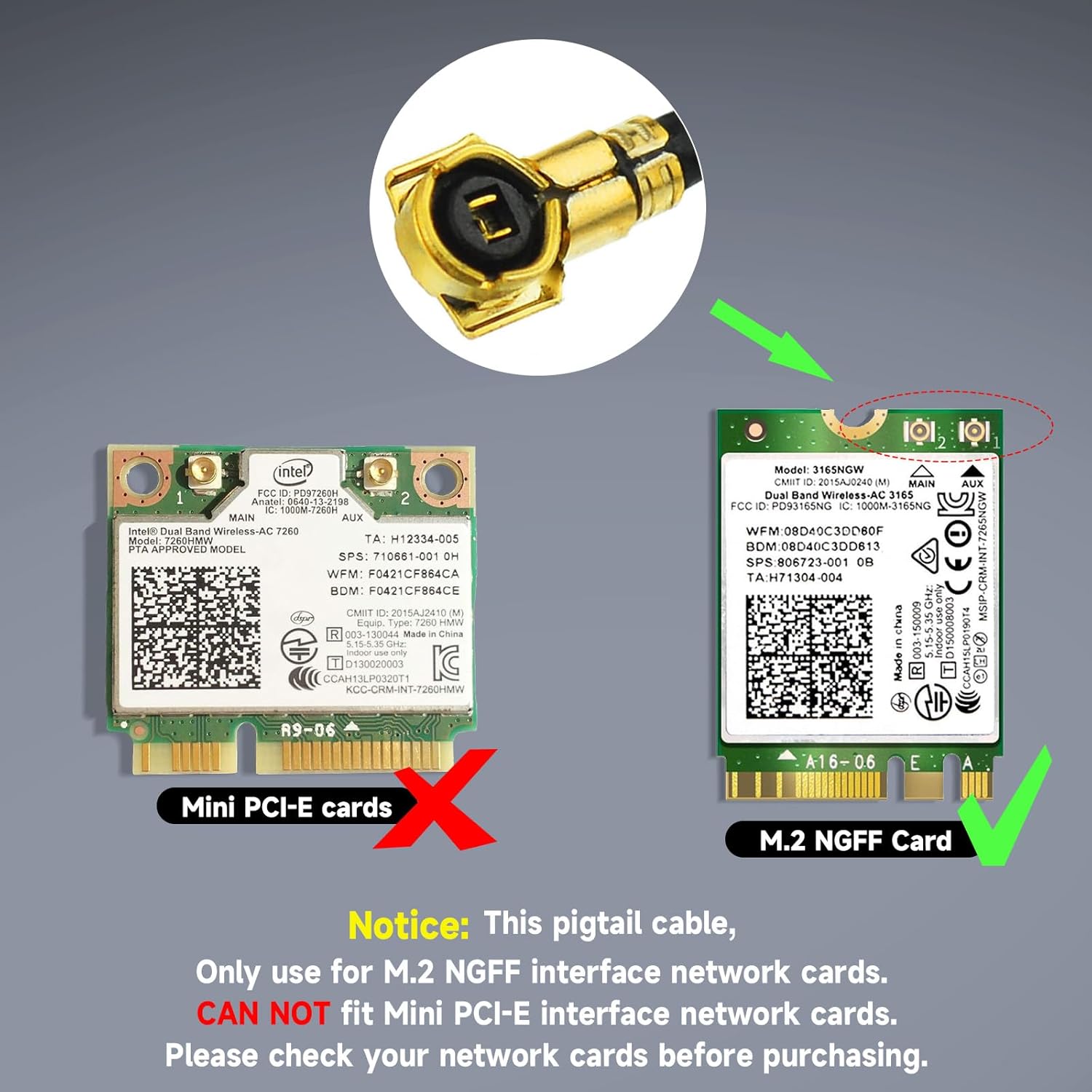

⚠️ Compatibility Note: MHF4 (IPEX4)
The pigtail cables in this kit use MHF4 (IPEX4) connectors. These are the tiny connectors found on modern M.2 NGFF wireless cards like the Intel AX210, AX200, 9260, and 8265.
*Not compatible with older Mini PCIe cards which use the larger IPEX/U.FL connectors.*
Kit Highlights

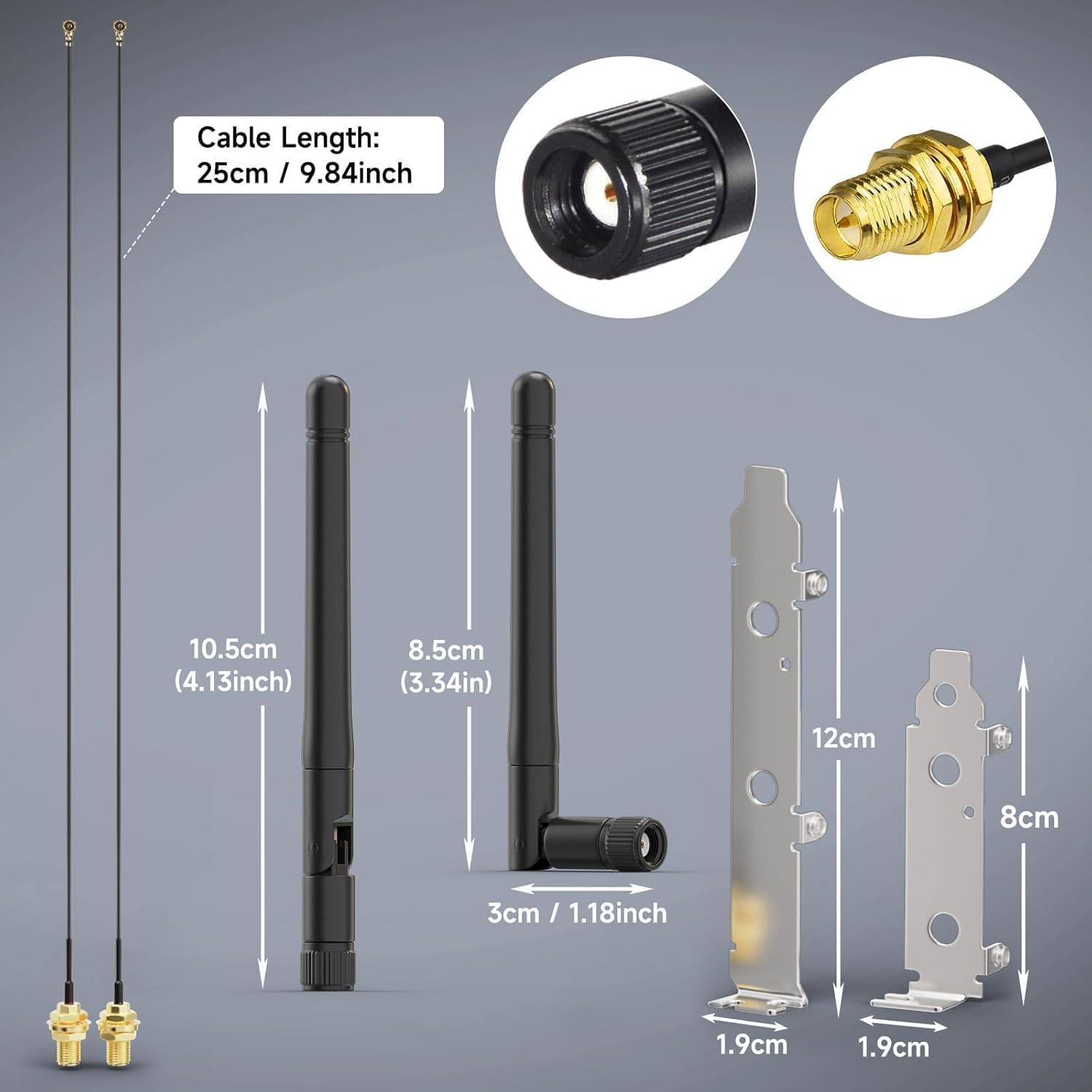

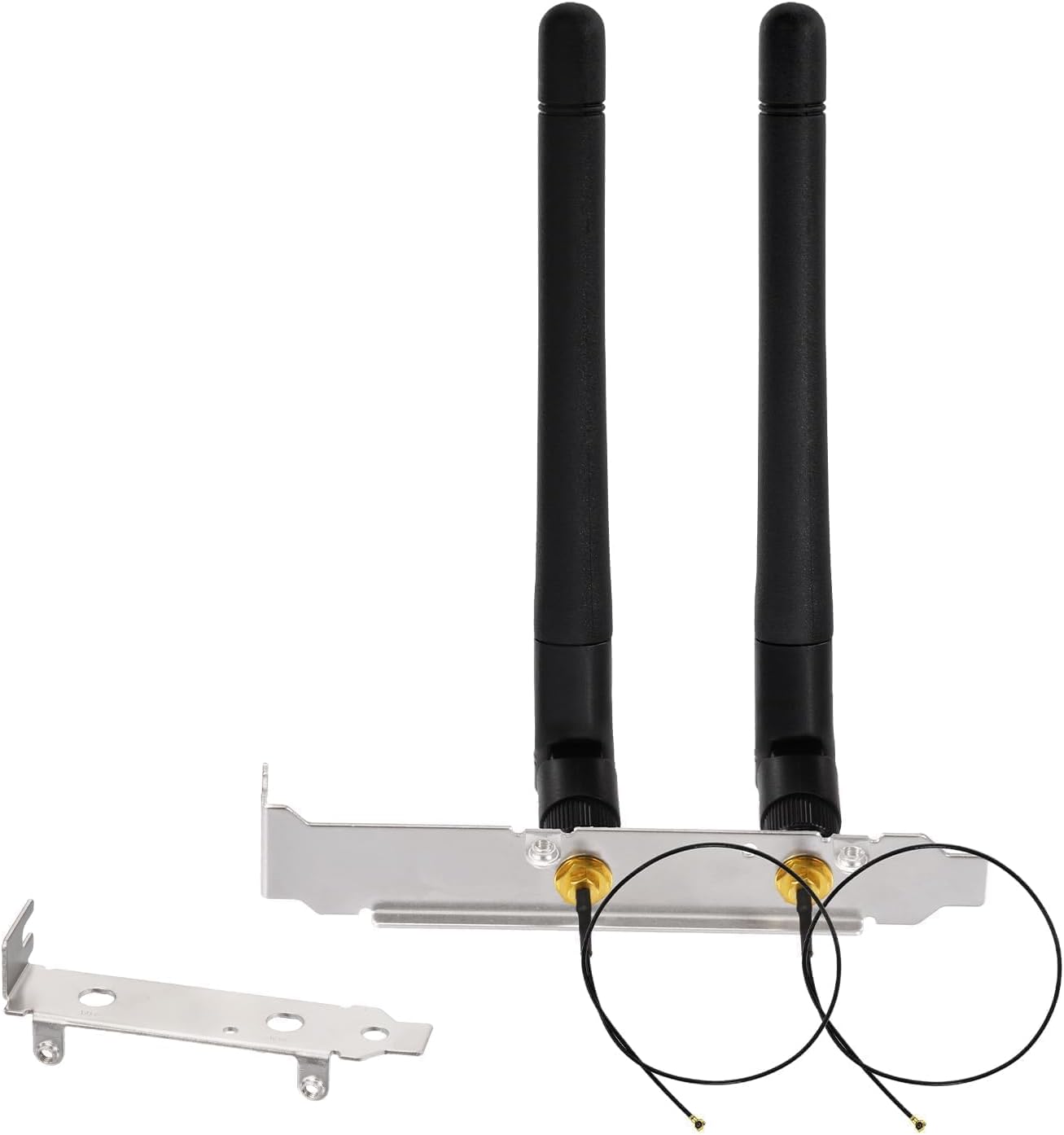

- Full DIY Kit: Includes 2x Dual-Band Antennas, 2x 25cm MHF4 Pigtails, and 1x Standard PCI Slot Bracket.

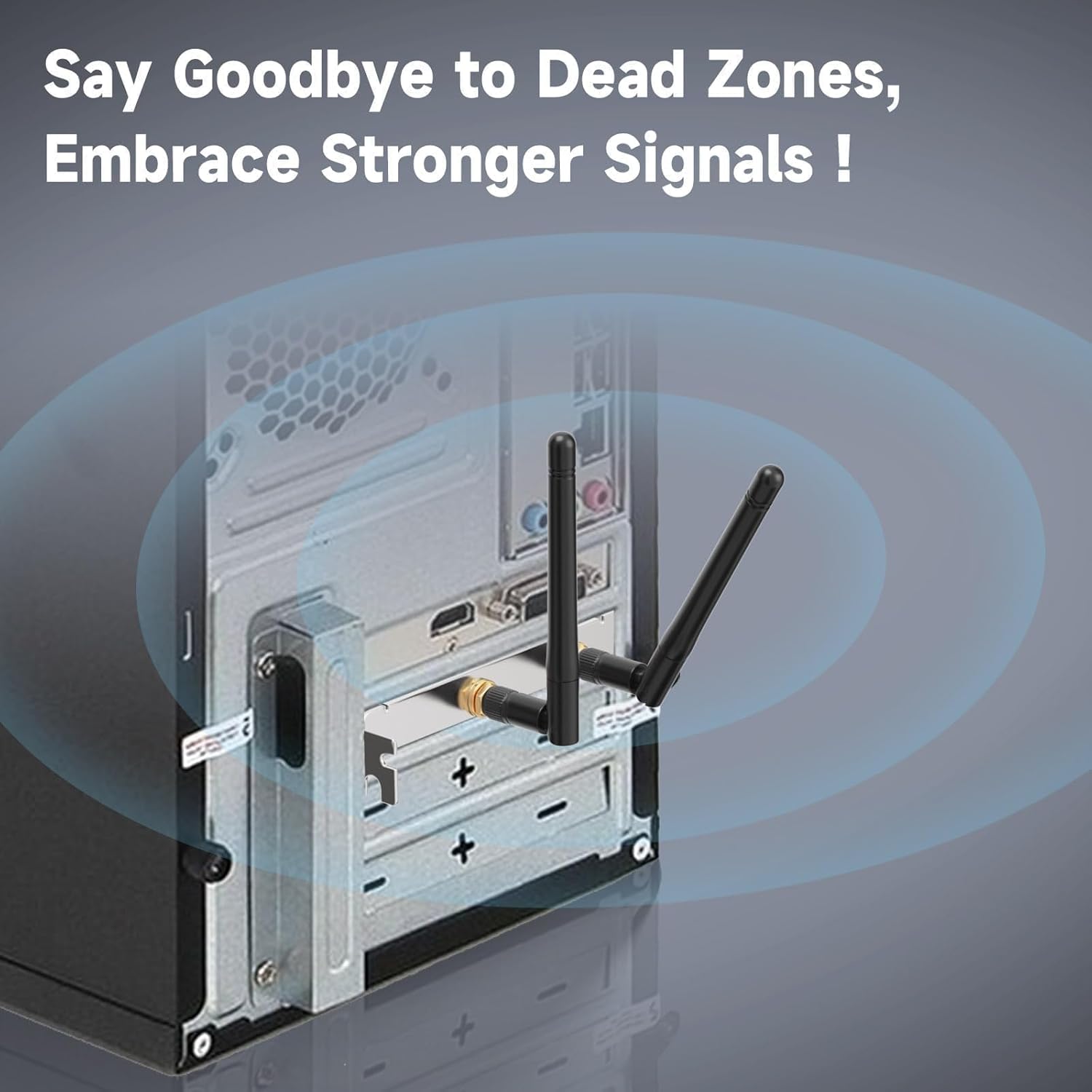

- No Case Modification: Uses an empty PCI slot on the back of your chassis to mount antennas—no drilling or permanent changes to your case required.
- Dual-Band High Performance: Optimized for 2.4GHz, 5GHz, and 5.8GHz bands to support WiFi 6, WiFi 6E, and older standards.
- High-Flexibility RG178 Cable: Silver-plated 25cm (9.84 inch) cables ensure easy routing around GPU and CPU coolers.
Supported Wireless Cards
Perfectly compatible with M.2 (NGFF) interface network cards:
Intel: AX211, AX210, AX201, AX200, 9560, 9260, 8265, 8260, 7265, 7260
Killer: 1675x, 1650x, 1550, 1535, 1435
Broadcom/Atheros: Most NGFF M.2 Bluetooth/WiFi modules
Technical Specifications

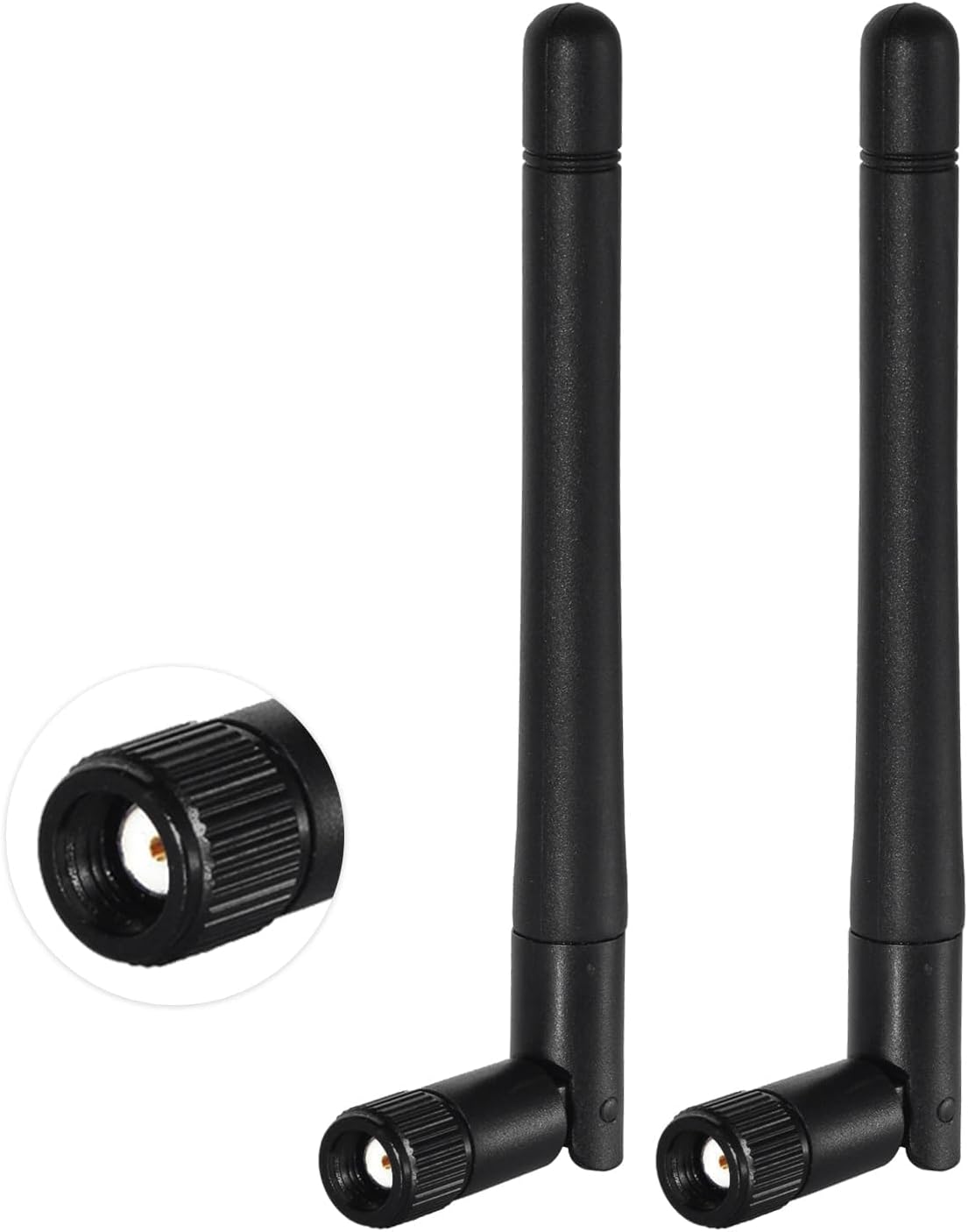

| Antenna Gain | 3dBi (Dual-Band) |

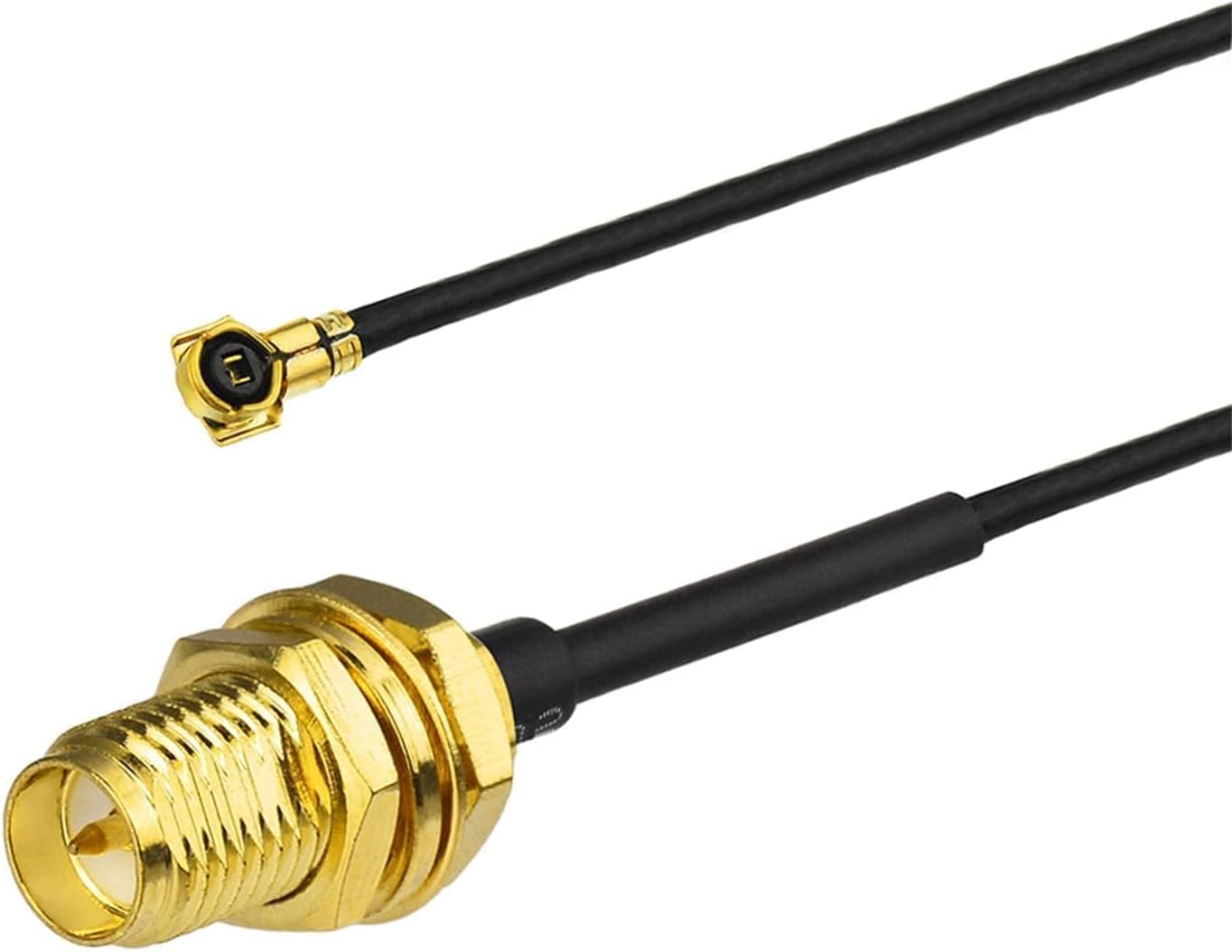

| Pigtail Connector | MHF4 (IPEX4) to RP-SMA Female |
| Cable Length | 25cm / 9.84 inches |
| Mounting Bracket | Full Height PCI Slot Bracket |
