Bingfu Multi-System Car Shark Fin Antenna - FM/AM/DAB + GPS/BeiDou GNSS, 28dB LNA, IP65 Waterproof, 9-16V Wide Voltage for Truck/RV/Car

Product Features

• Multi-System Integrated Entertainment & Navigation Solution: Combines FM/AM (87.5-108 MHz/522-1710 kHz) DAB (1452-1492 MHz/163-240 MHz) and GNSS (GPS L1/BeiDou B1) for seamless entertainment and navigation; RHCP polarization ensures stable GPS/BeiDou signal reception in various environments
• 28dB High-Gain Low-Noise Amplifier for Stable Reception: Features 28 dB gain with ≤2.0dB noise coefficient; ≤2.0 VSWR for GNSS and ≤3.0 VSWR for radio signals reduces interference in urban or remote areas
• Industrial-Grade IP65 Waterproof Durability: Withstands extreme temperatures (-40°C to +85°C) and 95% humidity; Resists vibration dust and corrosion for reliable automotive use

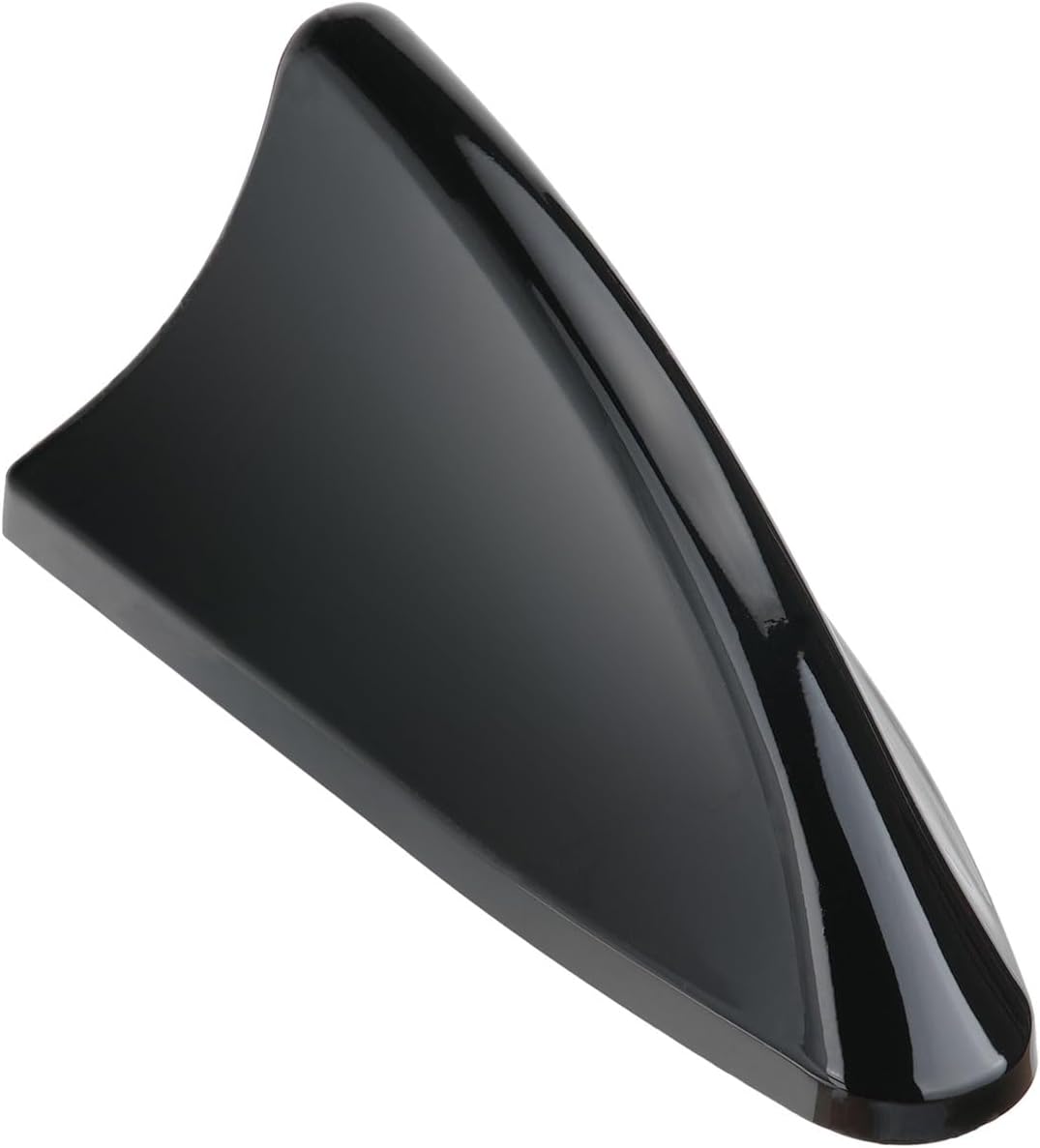

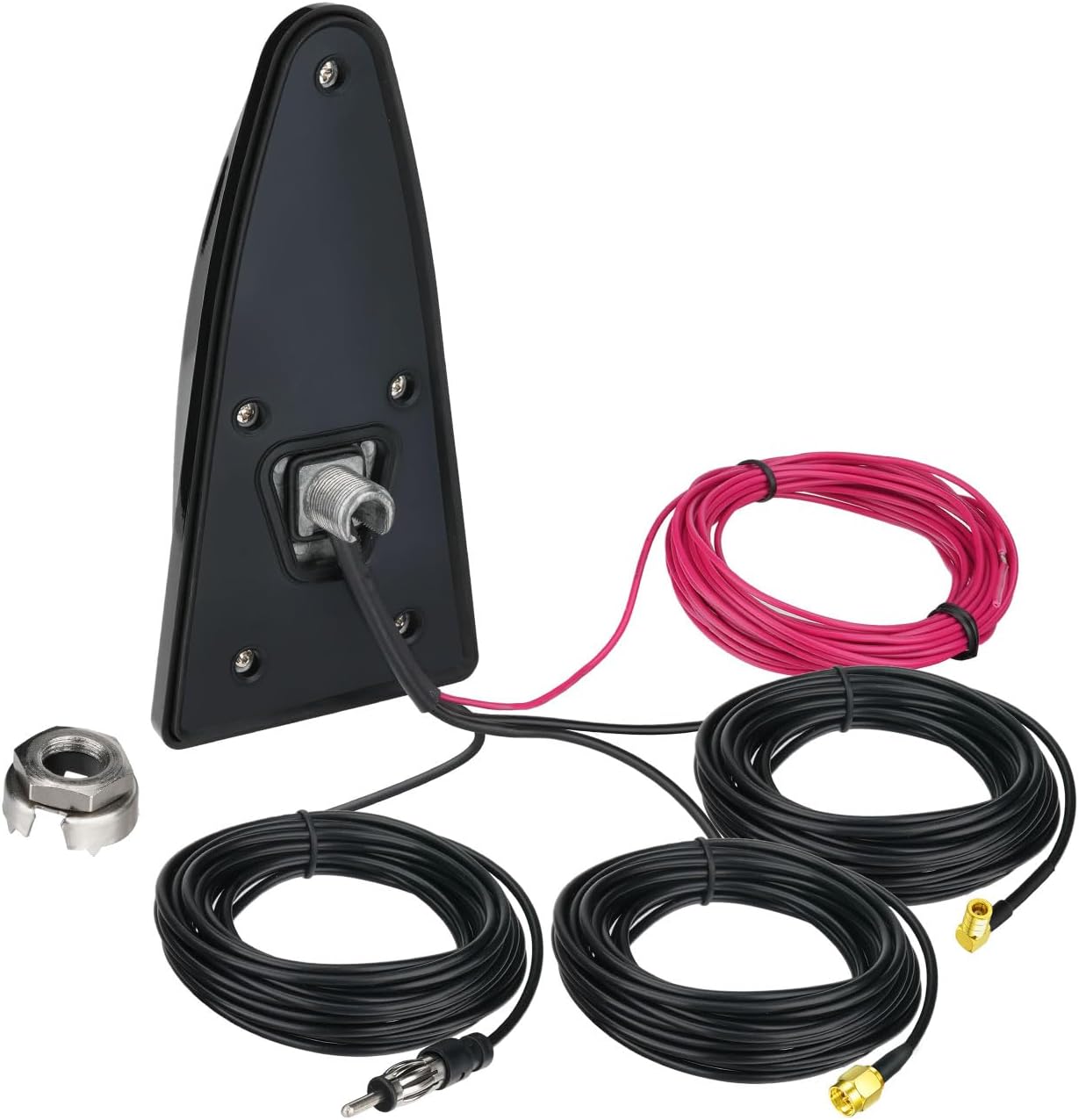

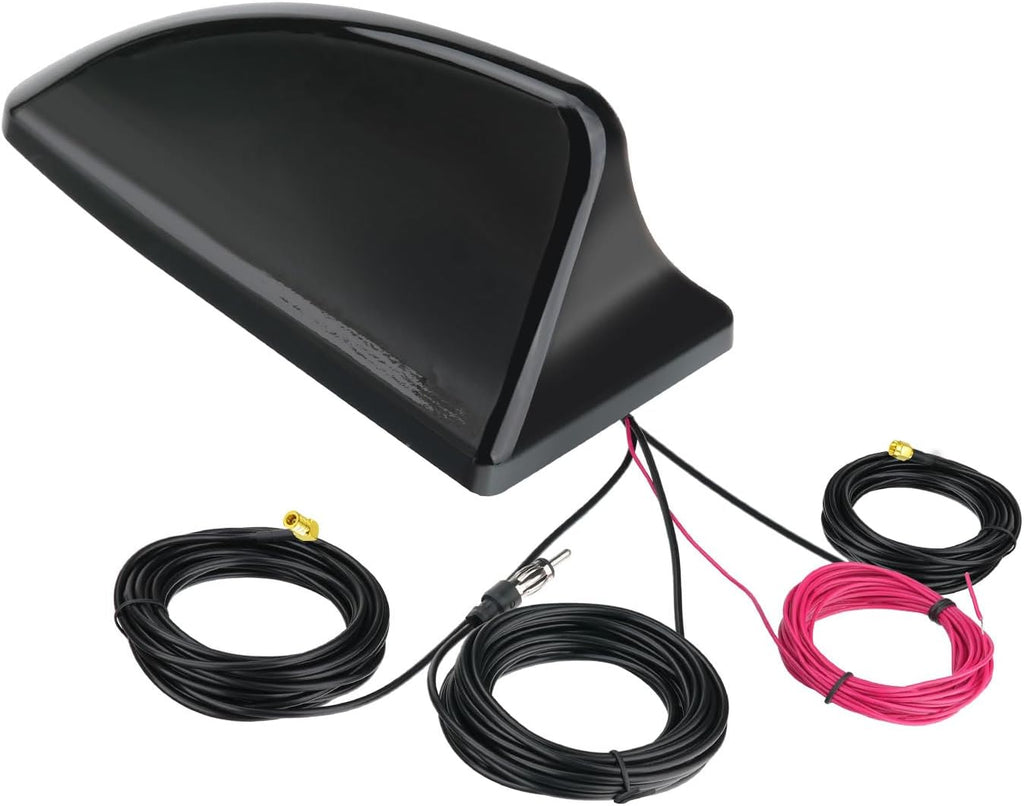

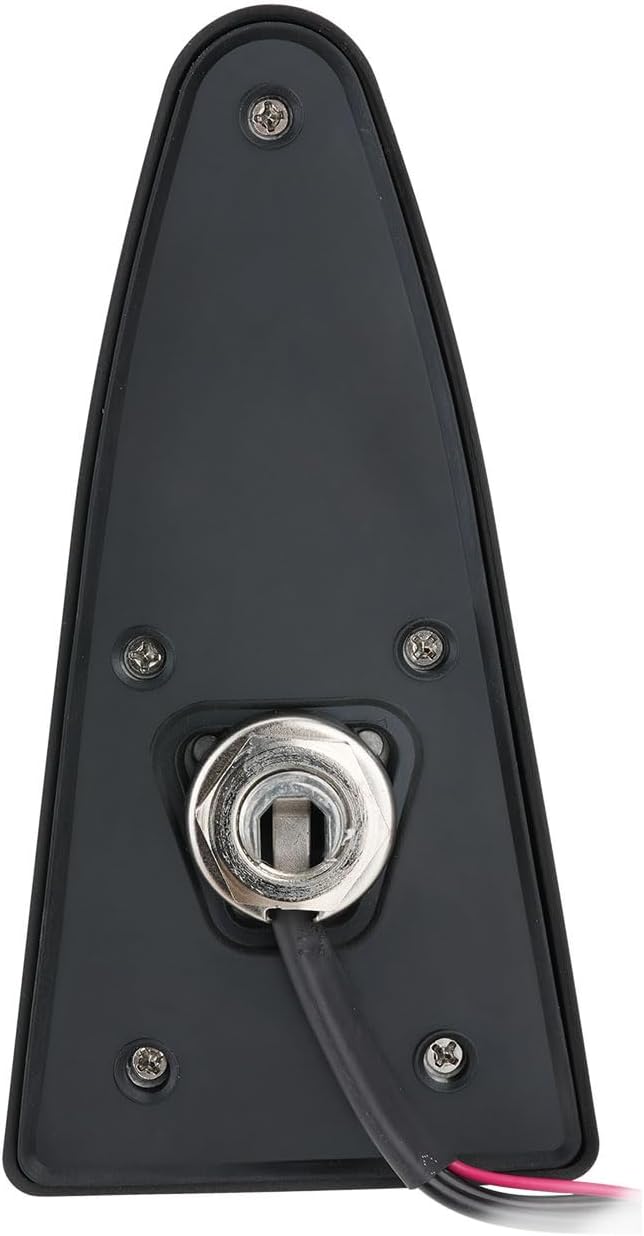

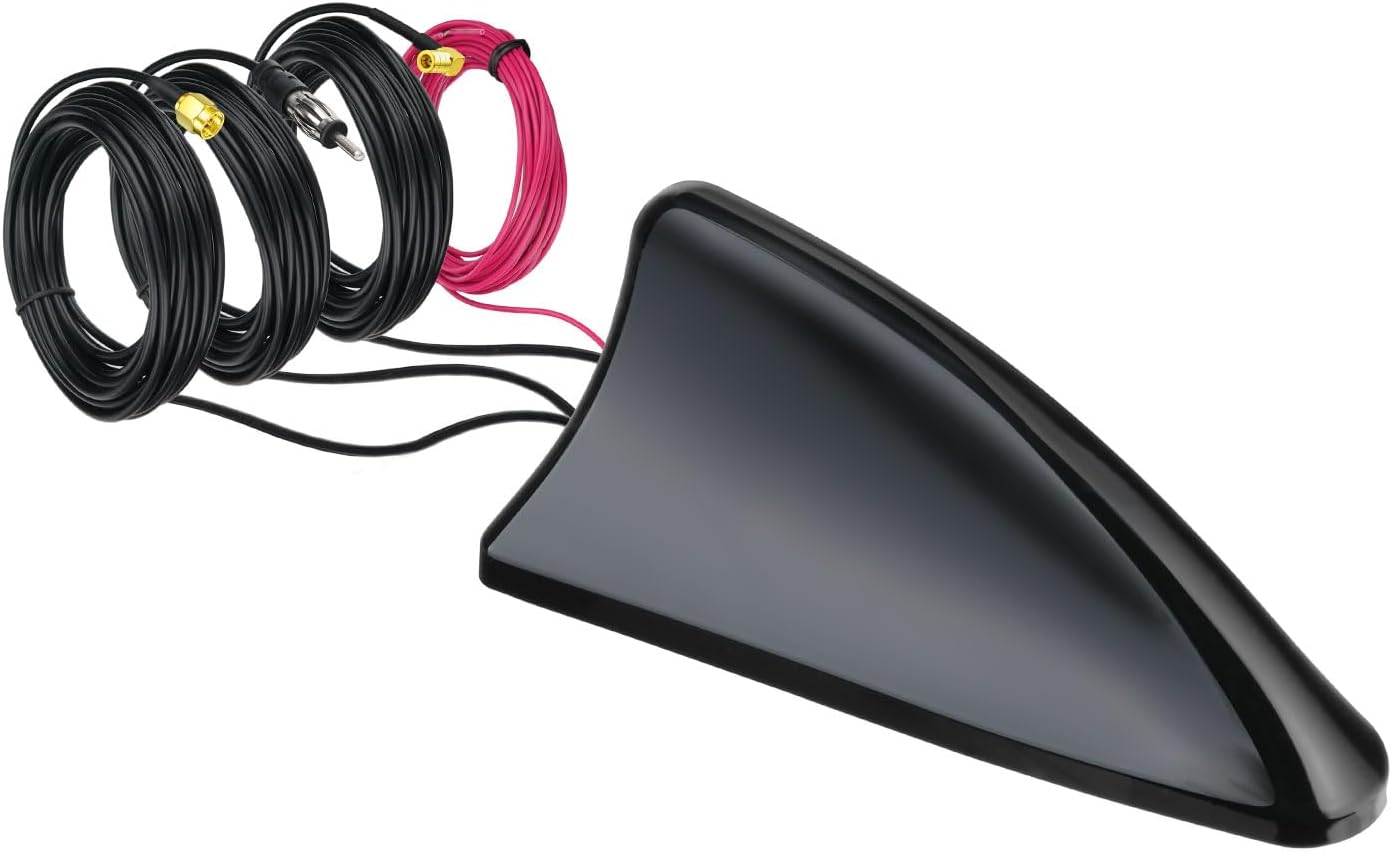

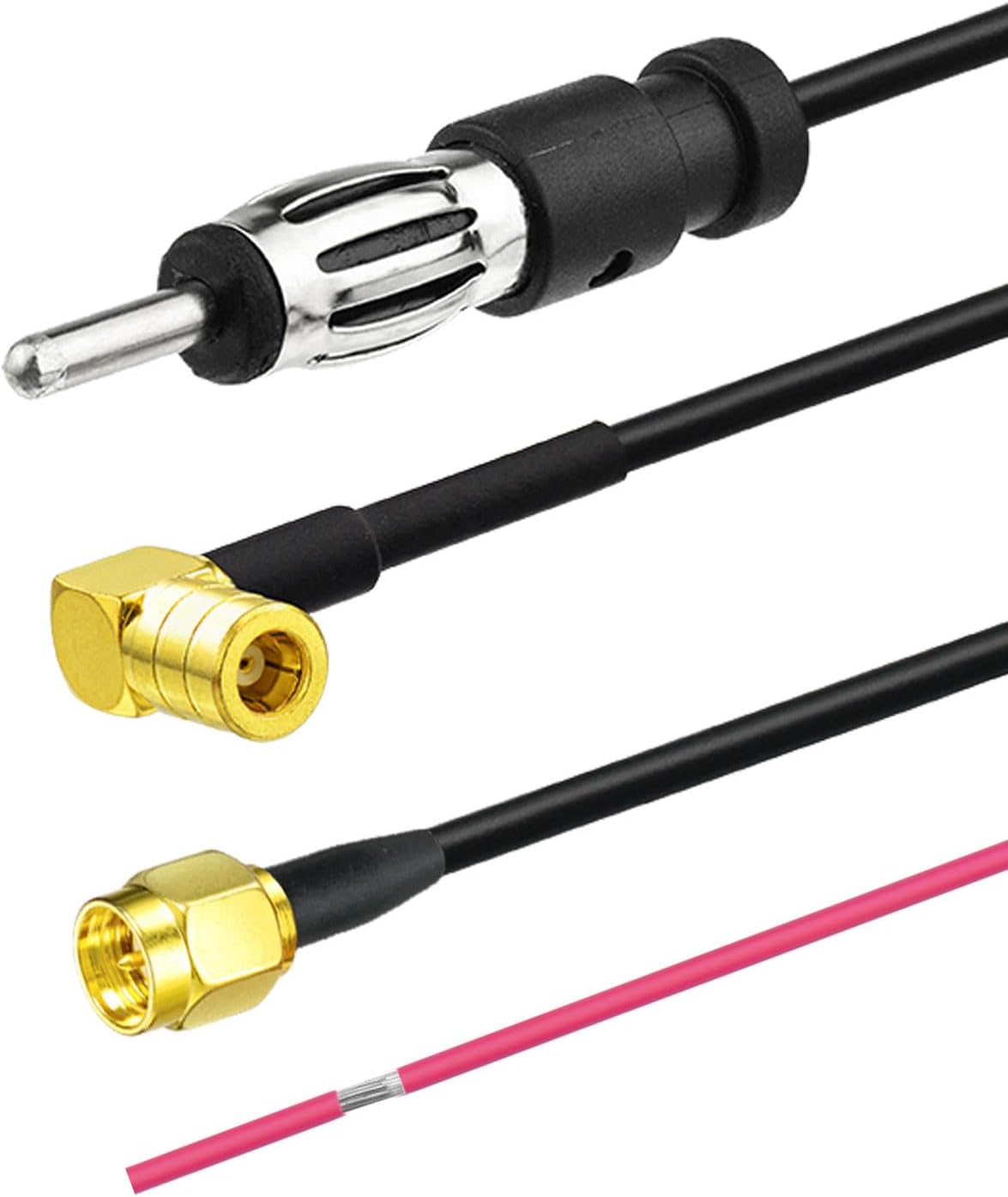

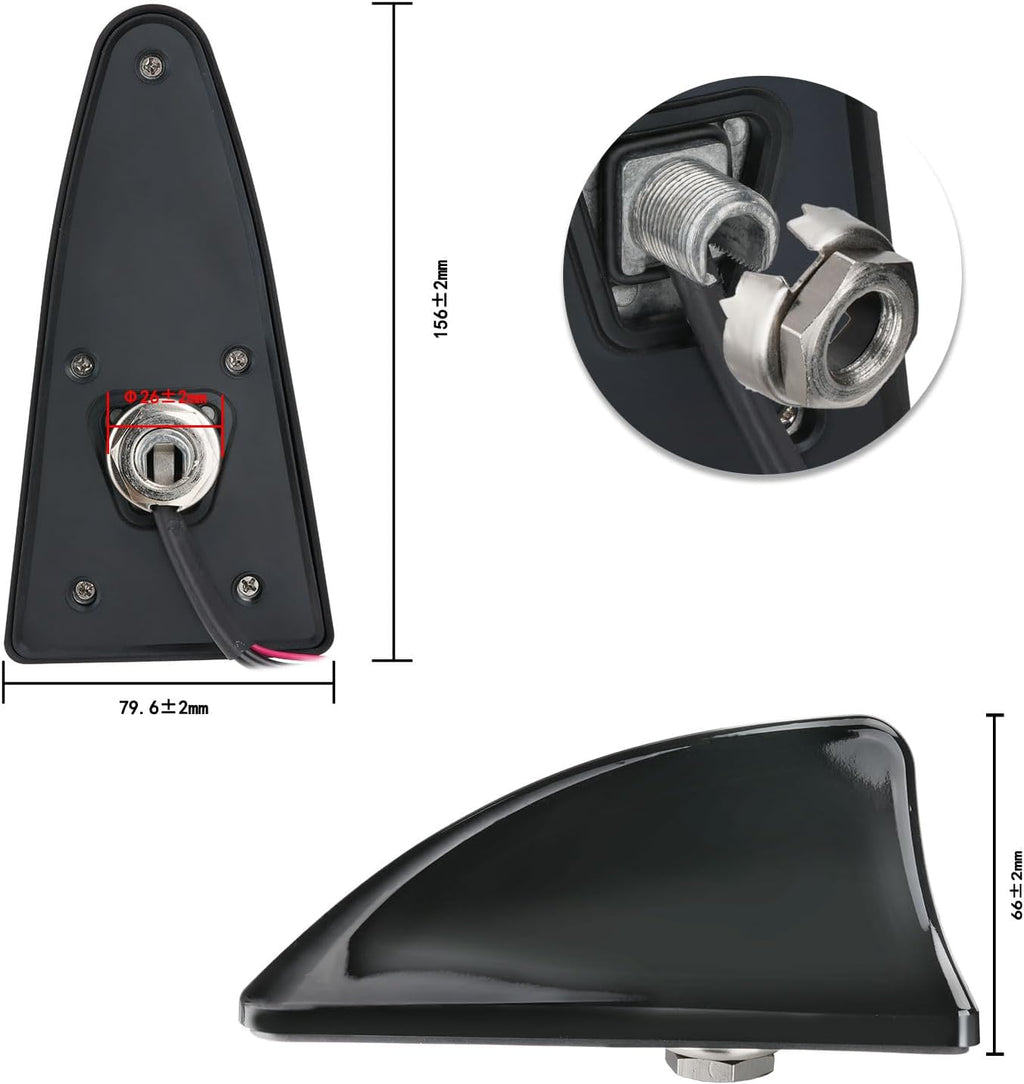

• 9-16V Wide Voltage & Aerodynamic Shark Fin Design: Operates on 9-16V DC (40 mA current); Aerodynamic shark fin shape with SMA/SMB connectors enables secure low-profile mounting on vehicles
• All-in-One Reliable Solution for Diverse Vehicles: Ideal for car truck RV use; Integrates entertainment and navigation functions with robust performance to meet daily driving needs

• Specifications

  Feature	Three-in-One Shark Fin Antenna for Automotive Entertainment & Navigation. The A-FM/AM+DAB+GNSS antenna integrates FM/AM/DAB radio reception with high-precision GPS/BeiDou navigation, designed for seamless installation on cars, trucks, RVs, and commercial fleets.
  Environmental Resilience	RoHS/REACH compliant
  Operating Temperature	-40°C to +85°C
  Storage Temperature	-40°C to +90°C
  Humidity	0% to 95% (non-condensing)
  Applications	Automotive FM/AM/DAB radio systems, Fleet vehicle GPS tracking, RV and truck navigation, Marine and off-road communication




  FM/AM Radio Module :
  Frequency Range	FM: 87.5-108MHz, AM: 522-1710KHz
  Gain	FM: 17-23±2dB, AM: 0-5±2dB
  VSWR	≤3.0
  Impedance	50±5Ω

  DAB Digital Radio Module:
  Frequency Range	DAB-III: 163-240MHz, DAB-L: 1452-1492MHz
  Gain	DAB-III: 163-240MHz, DAB-L: 1452-1492MHz
  VSWR	≤3.0

  GNSS Module:
  Supported Signals	DAB-III: 163-240MHz, DAB-L: 1452-1492MHz
  Bandwidth	>10MHz
  Gain	3.0Bi (70x70mm patch)
  VSWR	≤2.0

  LNA Specifications:
  Gain	28±2dB
  Noise Figure	≤2.0dB
  Operating Voltage	3.0-3.6V DC
  Current Consumption	8±3mA
