Description
Reliable Dual-Interface Connectivity

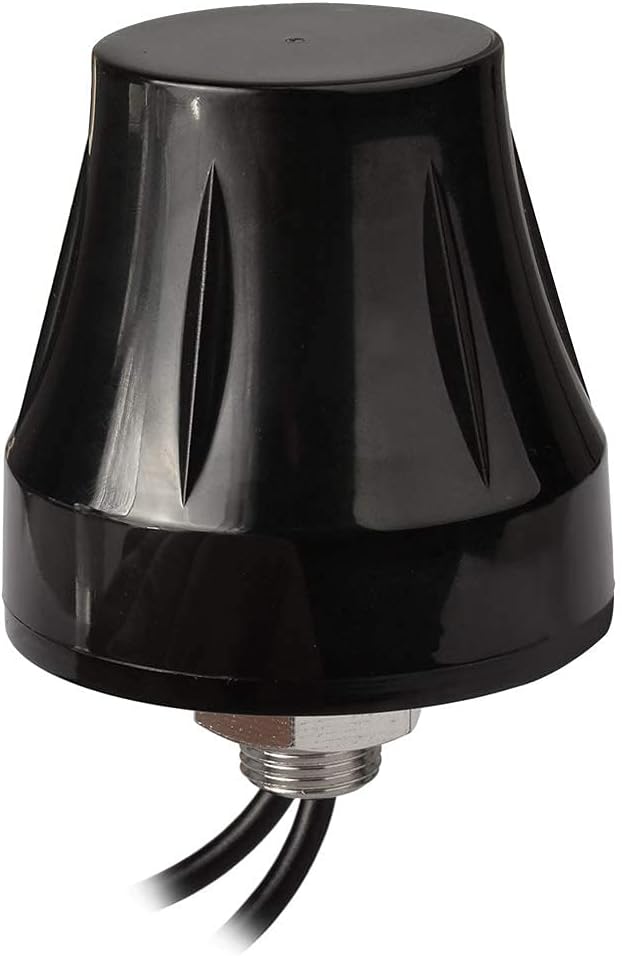

The Bingfu Dual SMA Male 4G LTE Antenna is a heavy-duty, weatherproof solution designed for mission-critical M2M and IoT applications. Featuring 10ft of high-grade cable and versatile mounting options, it ensures stable cellular reception for industrial gateways and mobile routers.
✔ Dual SMA Male
✔ IP66 Rain-Proof
✔ Wall & Thru-Hole Mount
✔ 3GHz Frequency Support
Versatile Compatibility Across Industries
Industrial IoT & M2M
- Cellular Gateways & RTU/DTU Terminals
- Remote SCADA & DAQ Modules
- Vending Machines & Digital Signage
- Smart Delivery Lockers
Security & Monitoring
- 4G LTE Cellular Security Cameras
- Real-time Remote SMS Alarms
- Temperature & Humidity Sensors
- GSM Wireless Motion Detectors
Mobile & Broadband
- Verizon, AT&T, T-Mobile, Sprint Routers
- Vehicle Trackers (Bus, RV, Van, Truck)
- Mobile Car DVR/MDVR Systems
- LTE Modem Hotspots & CPE Routers
Technical Specifications
| Frequency Range | 698-960 / 1710-2170 / 2300-2700 MHz |
| Gain / VSWR | 3dBi - 5dBi / < 2.0 |
| Connectors | Dual SMA Male (Pin inside) |
| Cable Type & Length | RG174 / 3 Meters (10 Feet) |

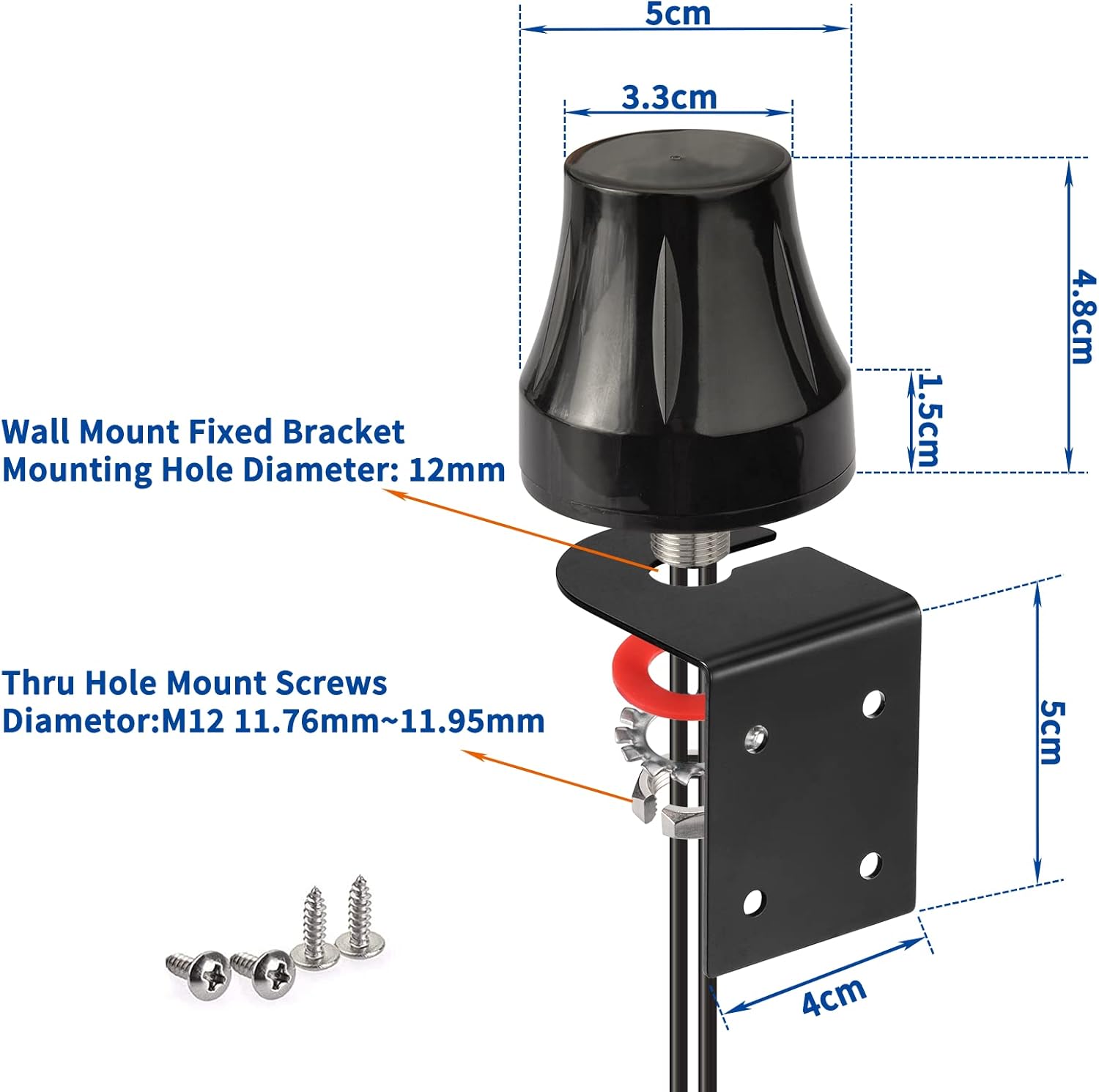

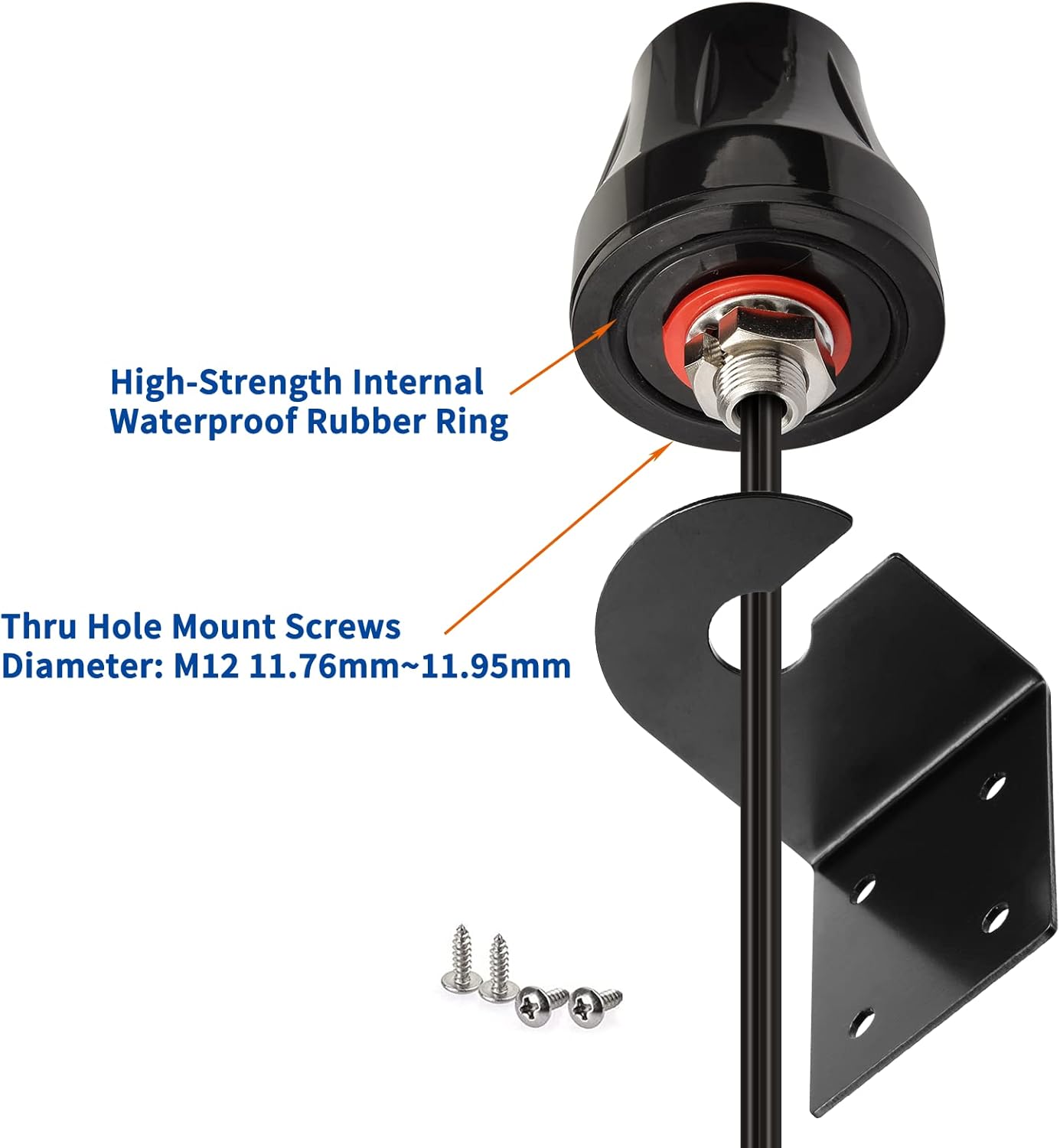

| Mounting Style | Fixed Wall Mount / Thru-Hole (M12 Screw) |
| Weatherproofing | Rain-Proof / IP66 Equivalent |

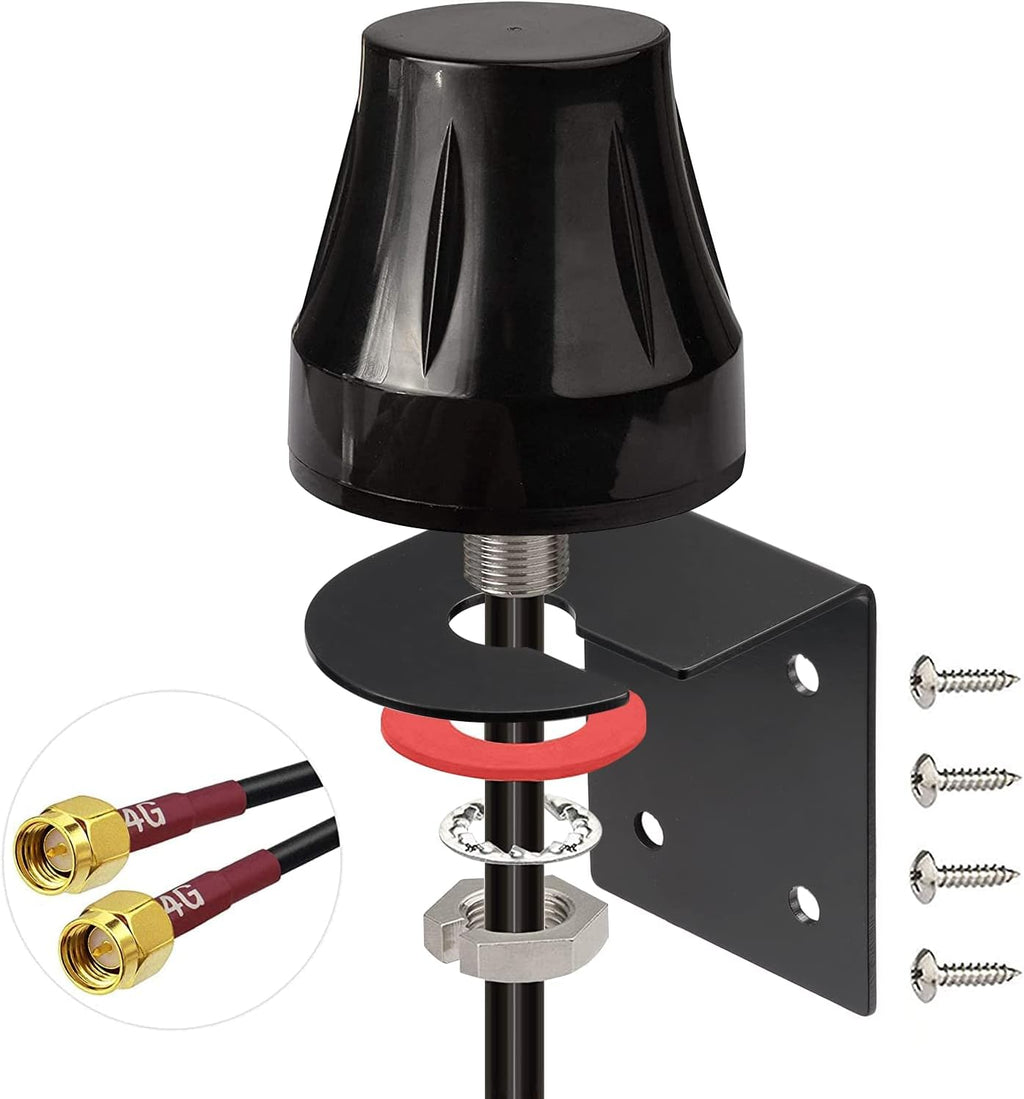

What's in the Box
- 1 x Dual SMA 4G Antenna

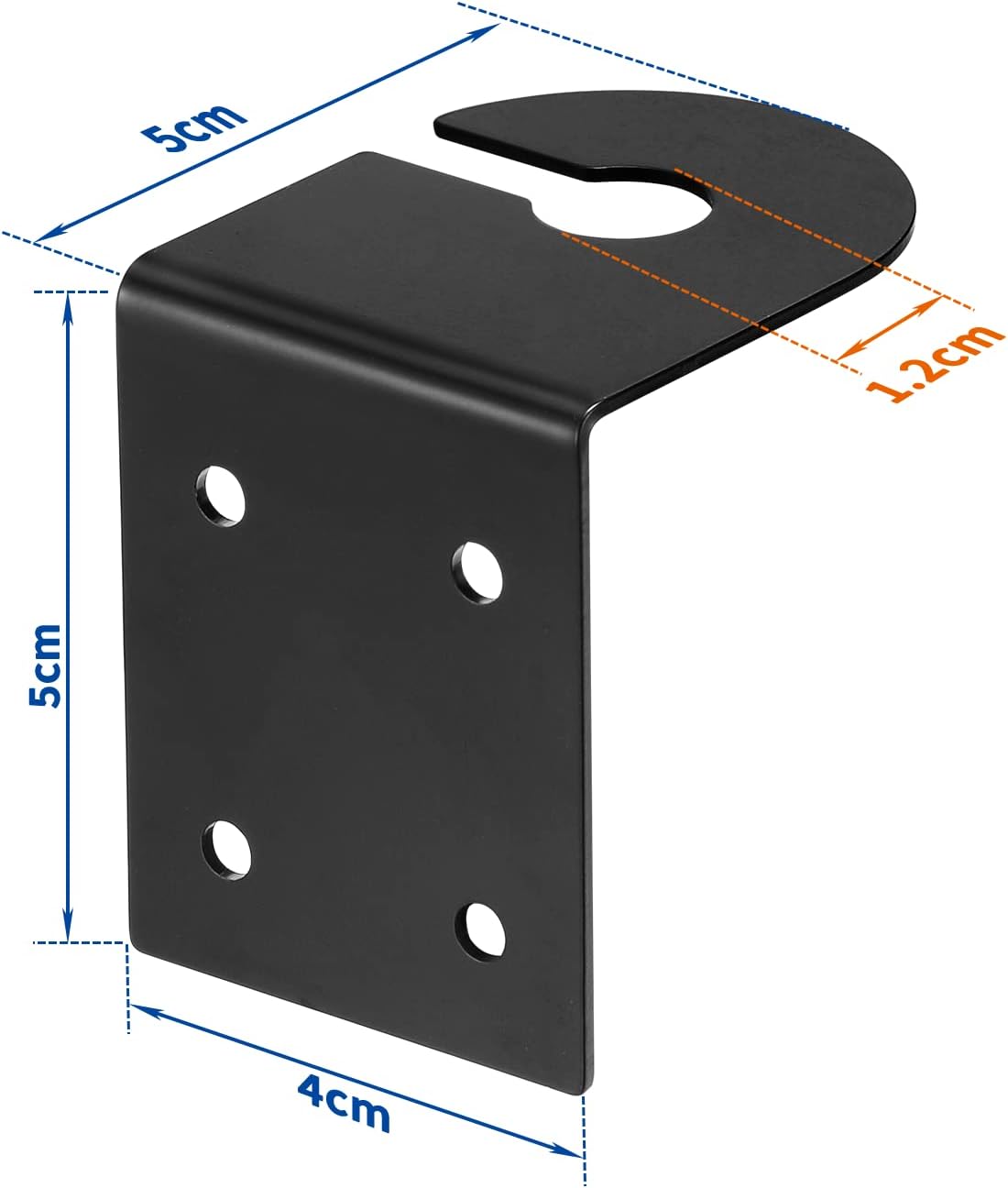

- 1 x Wall Mount Fixed Bracket
- 4 x Self-tapping Screws
Product Model: BFN00568
Dimensions: 4.72 x 6.69 x 1.57 inches
Dimensions: 4.72 x 6.69 x 1.57 inches
Operation Temperature: -20°С to +80°С | Storage: -30°С to +85°С
