Description
Product Features
- Broad Frequency Range & High Accuracy: Supports DC to 6 GHz with VSWR ≤ 1.2. Offers precise attenuation from 1dB to 30dB (±0.5dB accuracy for 1-10dB, ±1dB for 15-30dB).

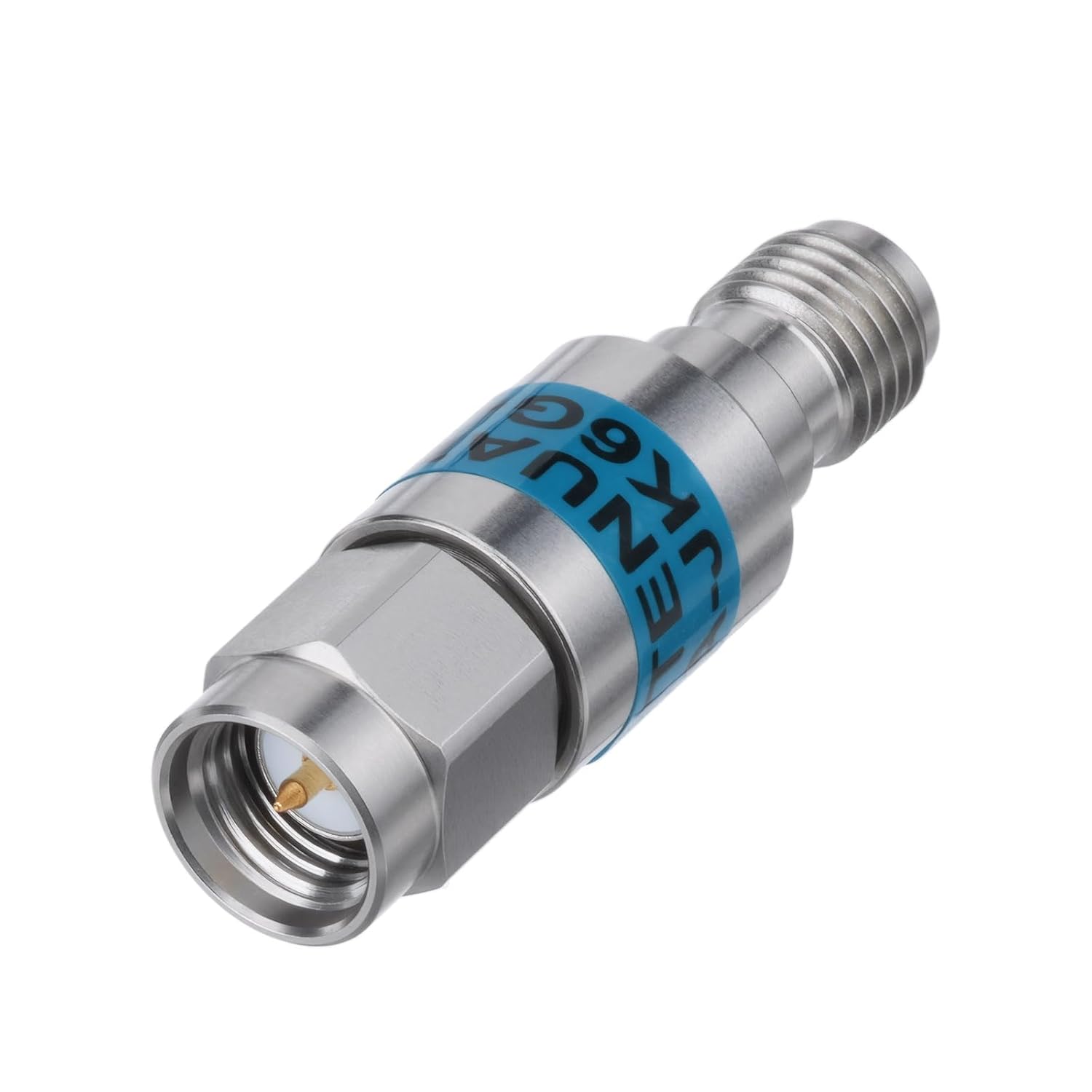

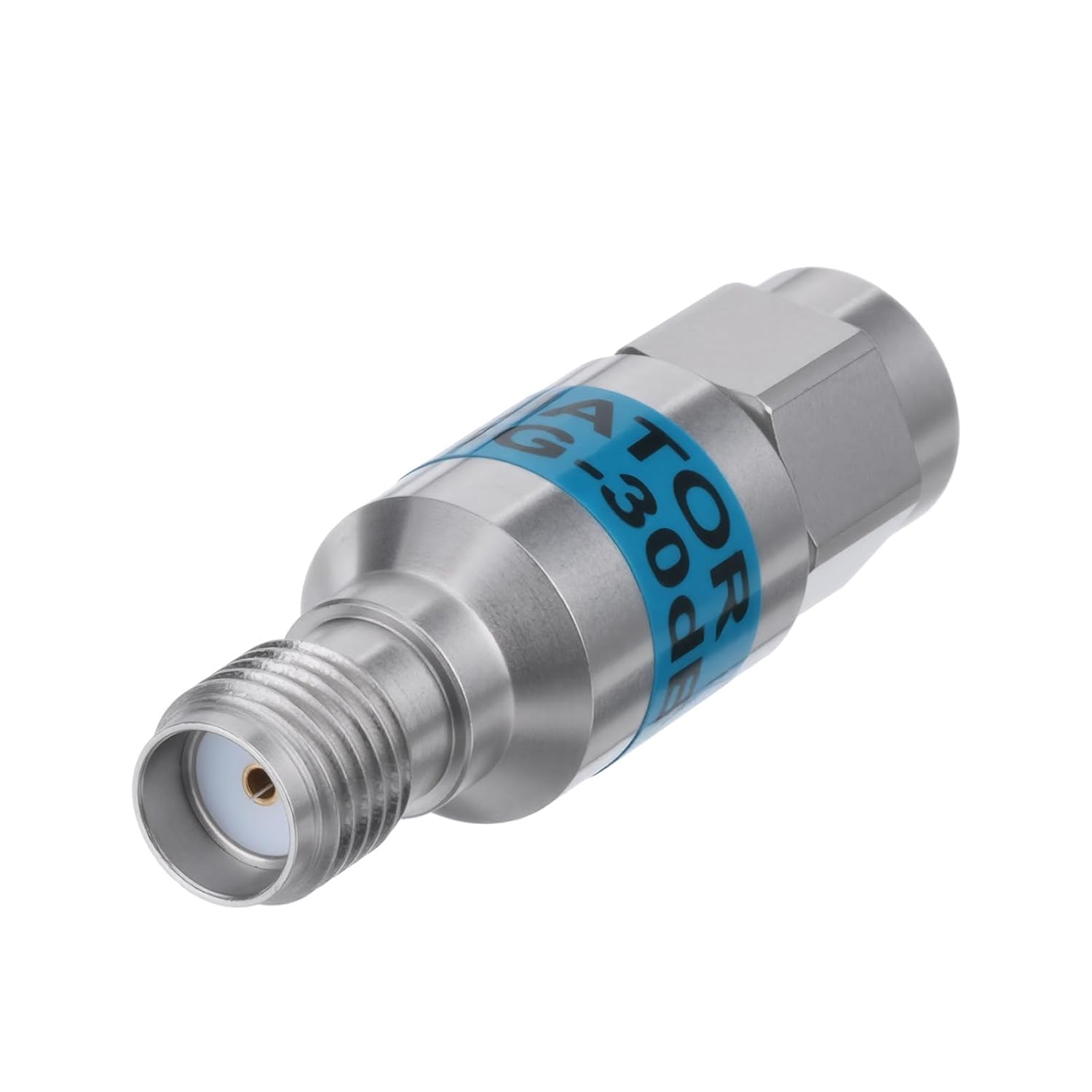

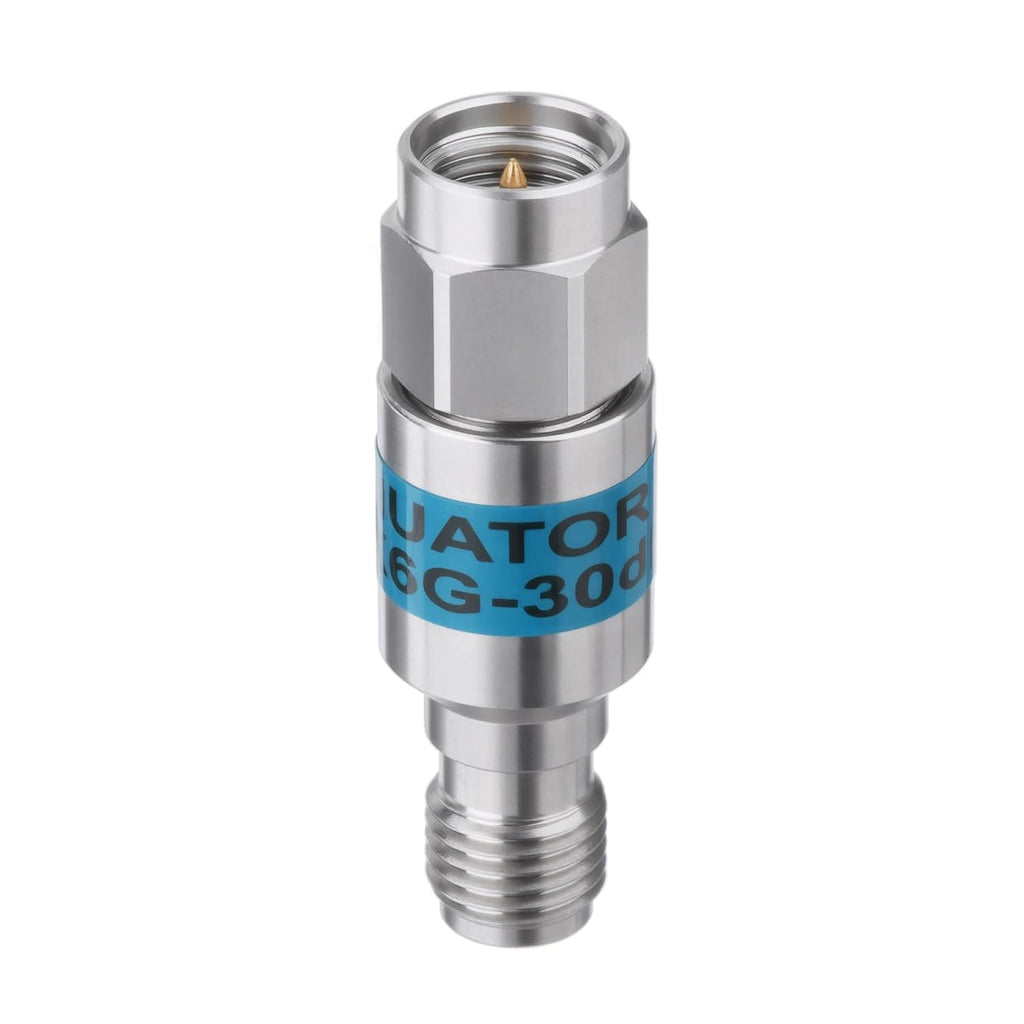

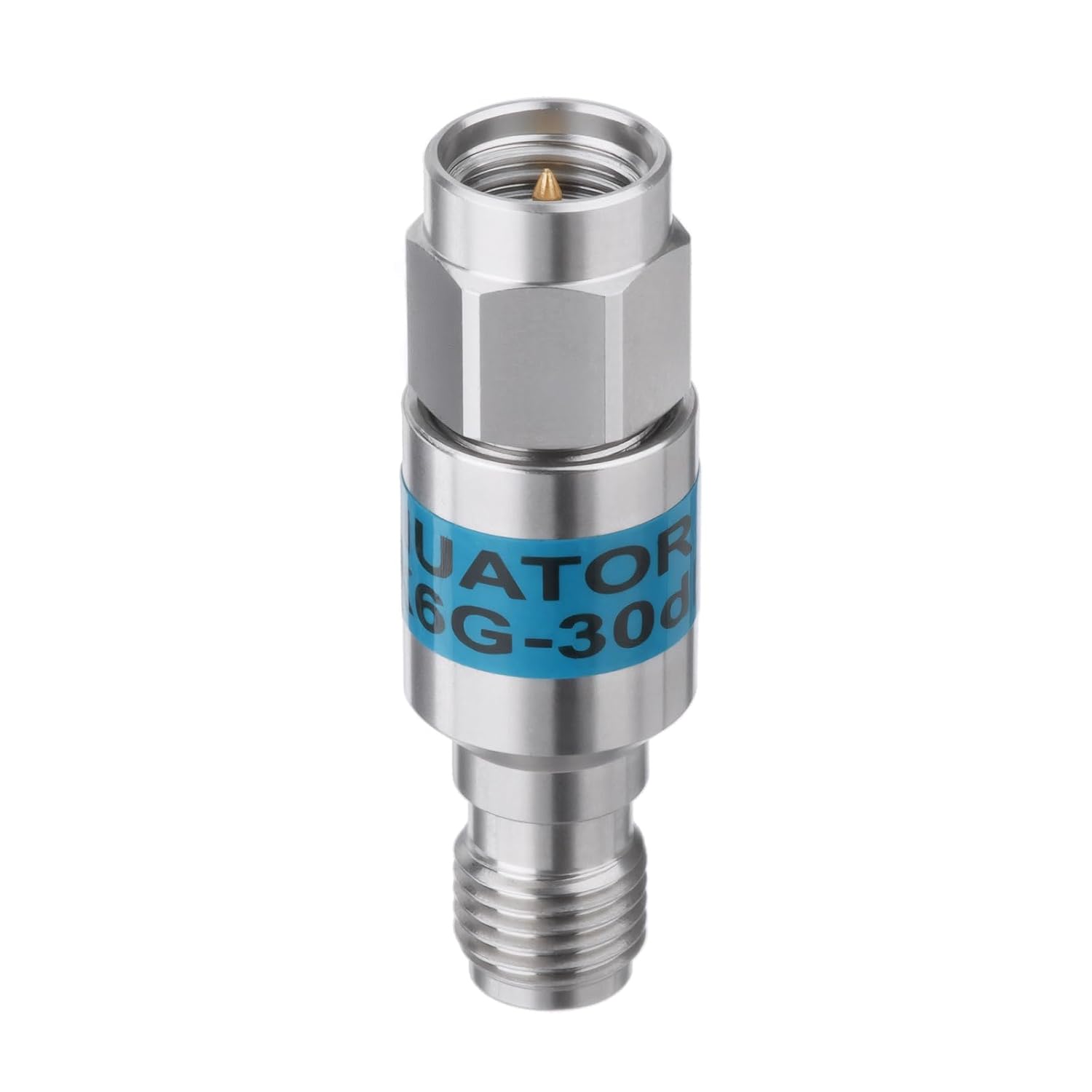

- Robust Industrial Design: Features a durable stainless steel housing and SMA male to female connectors. Withstands extreme temperatures from -55°C to +125°C, ideal for lab, military, or harsh field environments.
- Precision Signal Control: Maintains 50Ω impedance for minimal signal reflection. Handles up to 2W power to ensure stable and reliable performance in RF systems and amplifier testing.
- Plug-and-Play Compatibility: SMA-JK interface allows seamless integration with test equipment, antennas, and communication devices. Reliable ±2% tolerance ensures consistent signal performance.
- Certified Durability: RoHS compliant. The ideal solution for demanding applications like 5G testing, satellite communication, or IoT signal calibration.
-
Specifications:
Frequency Range: DC – 6GHz
Attenuation Range: 1dB – 30dB
Accuracy:
1-15dB: ±0.5dB
15-30dB±1dB
VSWR: ≤1.2
Impedance: 50Ω
Power Handling: 2W (Continuous)
Connector: SMA Male to Female
Operating Temperature: -55°C to +125°C
