Description
Specifications:
1. Dielectric Antenna

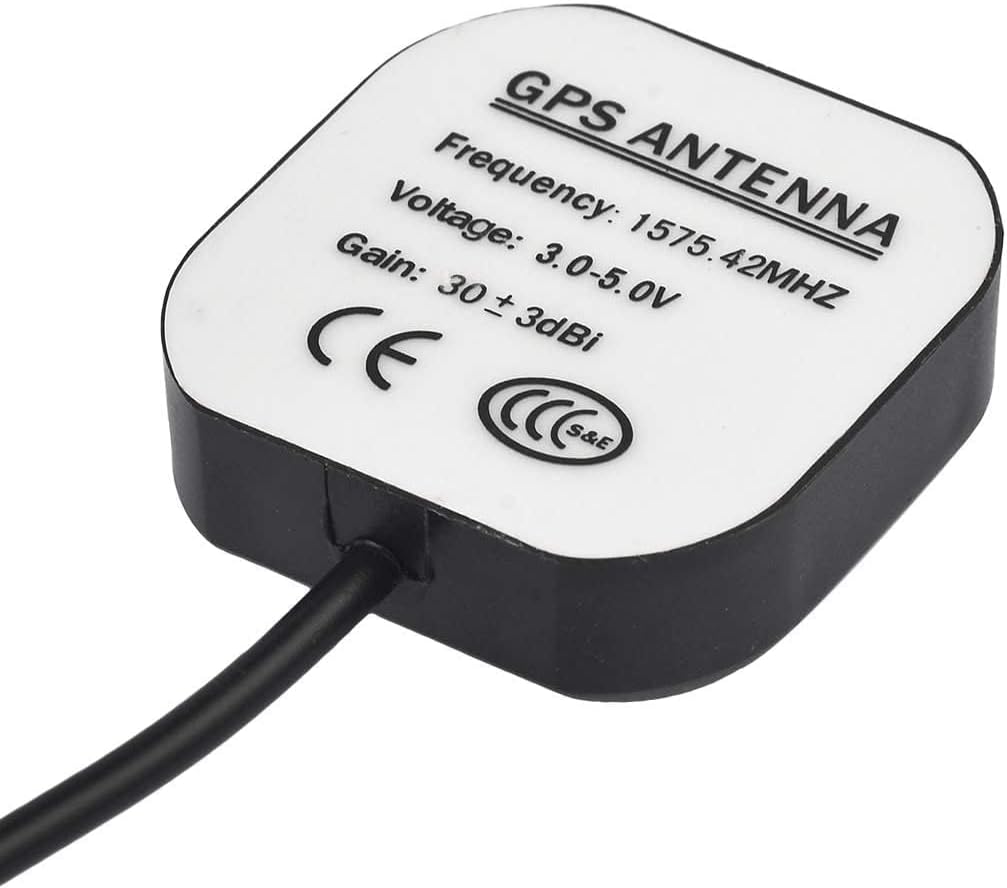

Center Frequency: 1575.42MHz ±3MHz
V.S.W.R: 2:01
Bandwidth: ±5 MHz
Impedance: 50
Peak Gain: > 3dBic based on 7x7cm ground plane
Gain Coverage: > -4dBic at -90 <0 <90 (over 75 volume)
Polarization: RHCP
2. LNA/Filter
LNA Gain Without cable: 28dB Typical
Noise Figure: 2.0dB
Filter Out Band Attenuation: (f0=1575.42MHz)
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V.S.W.R: <2.0
DC Voltage: 3V to 5V
DC current: 7-10MA
3. Overall
Frequency Range: 1575/1609MHz
V.S.W.R: 2.0
Gain: 30±3dBic
Impedance: 50 Ohm
3. Mechanical
Weight: 60 gram

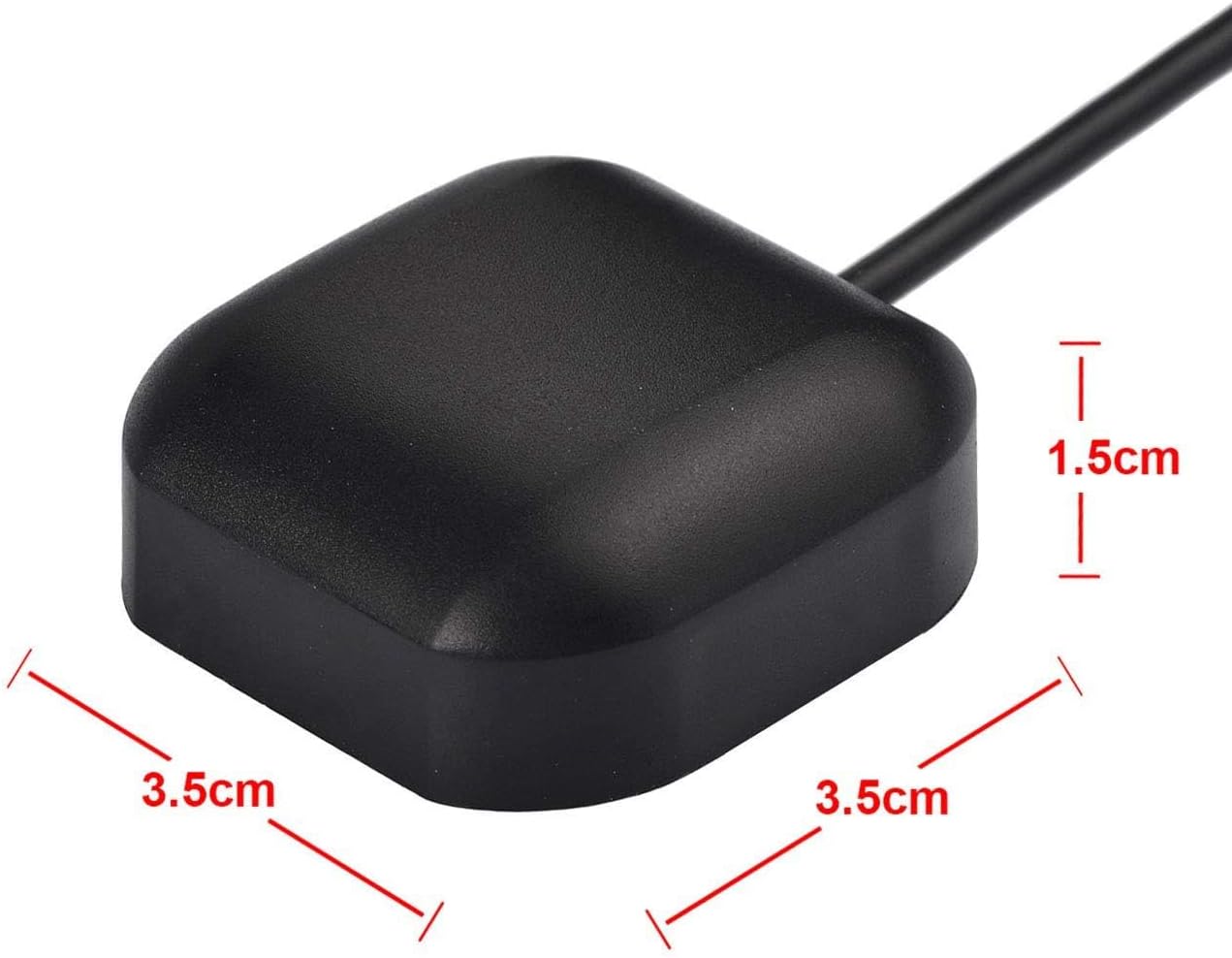

Size: 35x30x15mm
Cable: RG174
Length: 3m
Connector: SMA Male Plug Connector

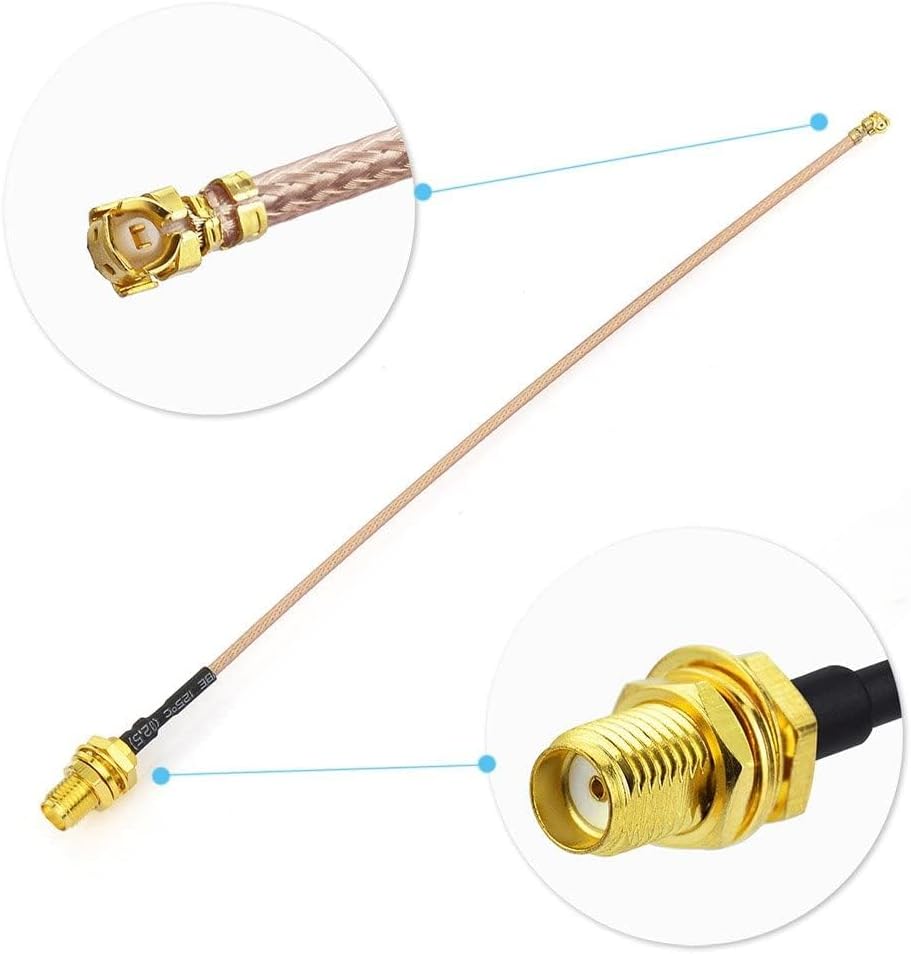

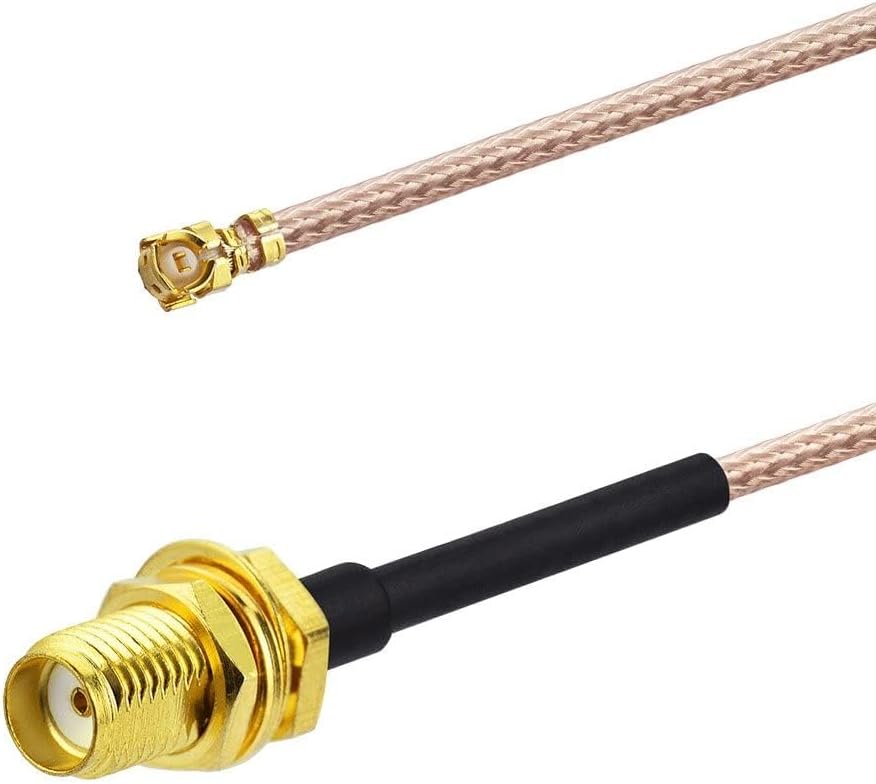

15cm 6 inch RG178 Coaxial Pigtail Cable
Mounting: Magnet base
Housing: Black
4. Environmental
Working Temp: -40 to 85℃
Waterproof test: 4 hours under the tap, let the water rush over the housing;
Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
Humidity: 95% ~ 100% R

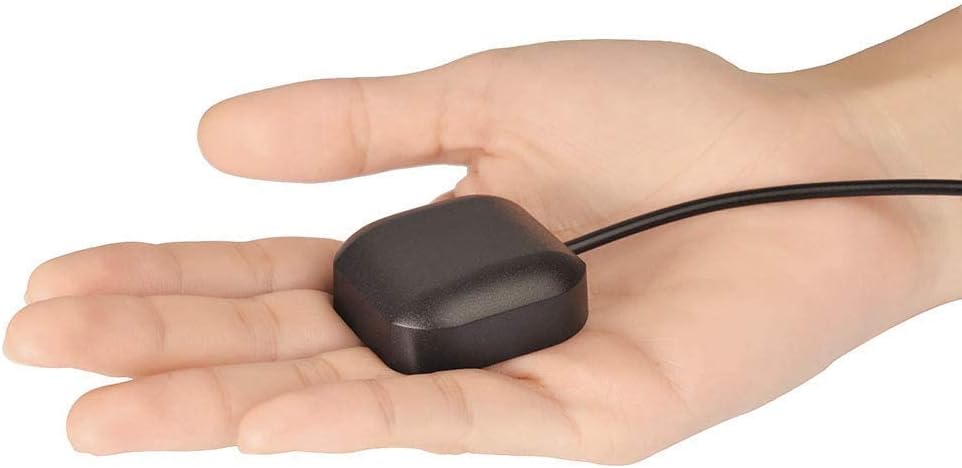

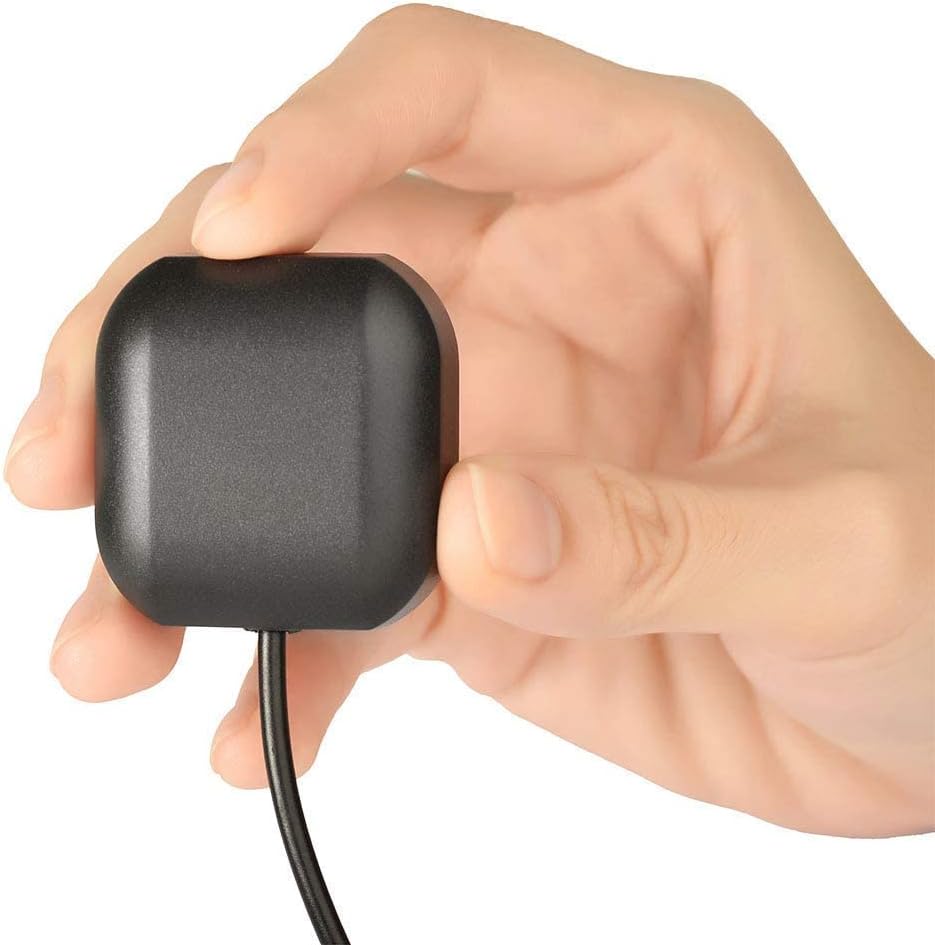

Package List: 1 x Antenna (As the Picture Shown)
Product Overview
- Antenna: GPS
- Brand: BINGFU
- Color: Cable
- Impedance: 50 ohm
- Product Dimensions: 5.1"L x 7.1"W x 0.6"H
- UPC: 790404675989
- Manufacturer: Bingfu
- Number of Packs: 1
- Unit Count: 1 Count
- Item Highlight: with 6 inch RG178 Coaxial Pigtail Cable for GPS Module Receiver Tracking
Product Features

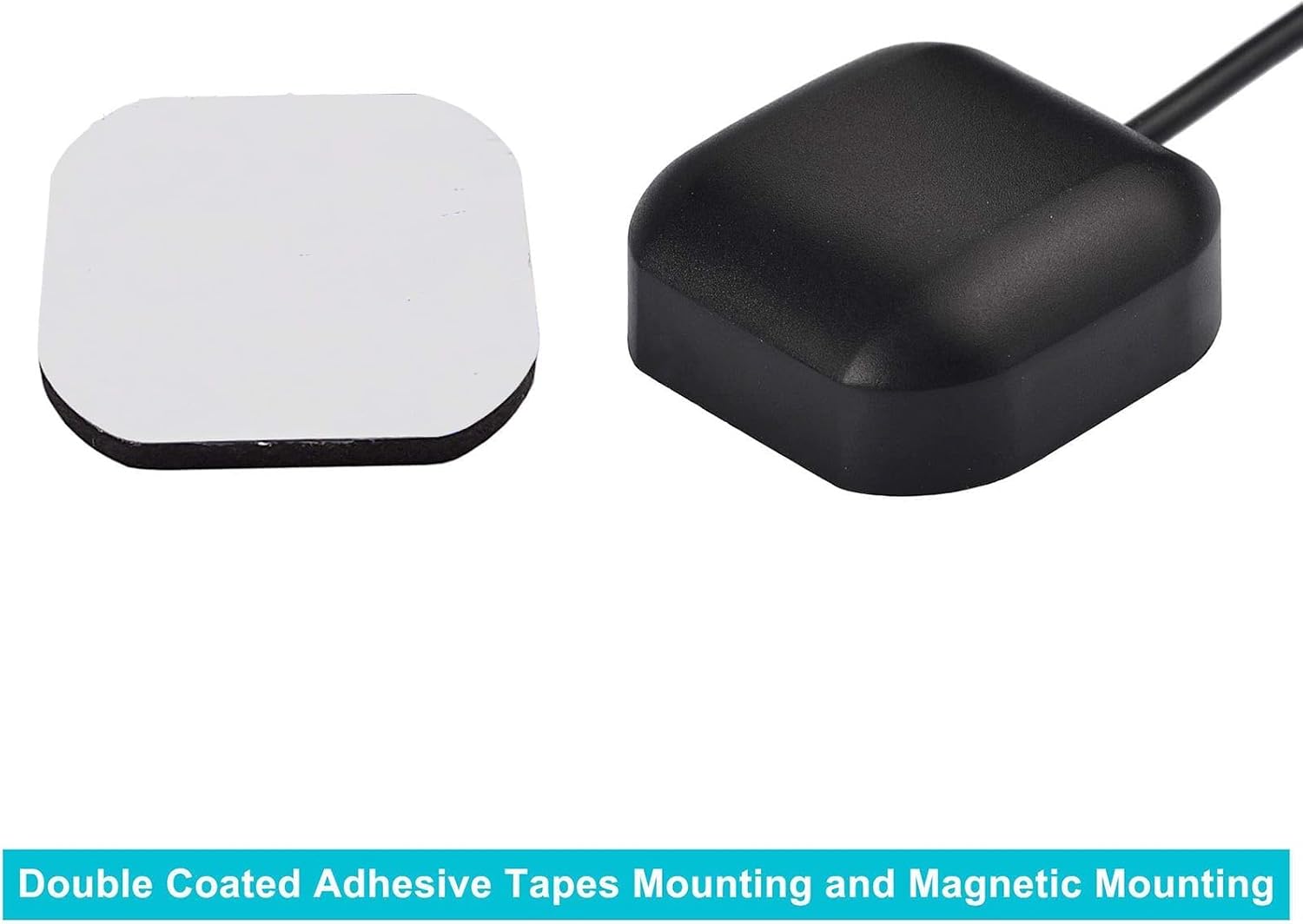

- Frequency: GPS 1575.42MHz; LNA Gain: 28dB; Power Supply DC Voltage: 3V to 5V; Power Supply DC Current: 10mA Max; Feature: Magnetic Mounting, Adhesive Mount;
- Cable Length: 3m; Connector: SMA Male Connector; 15cm 6 inch RG178 Coaxial Pigtail Cable;

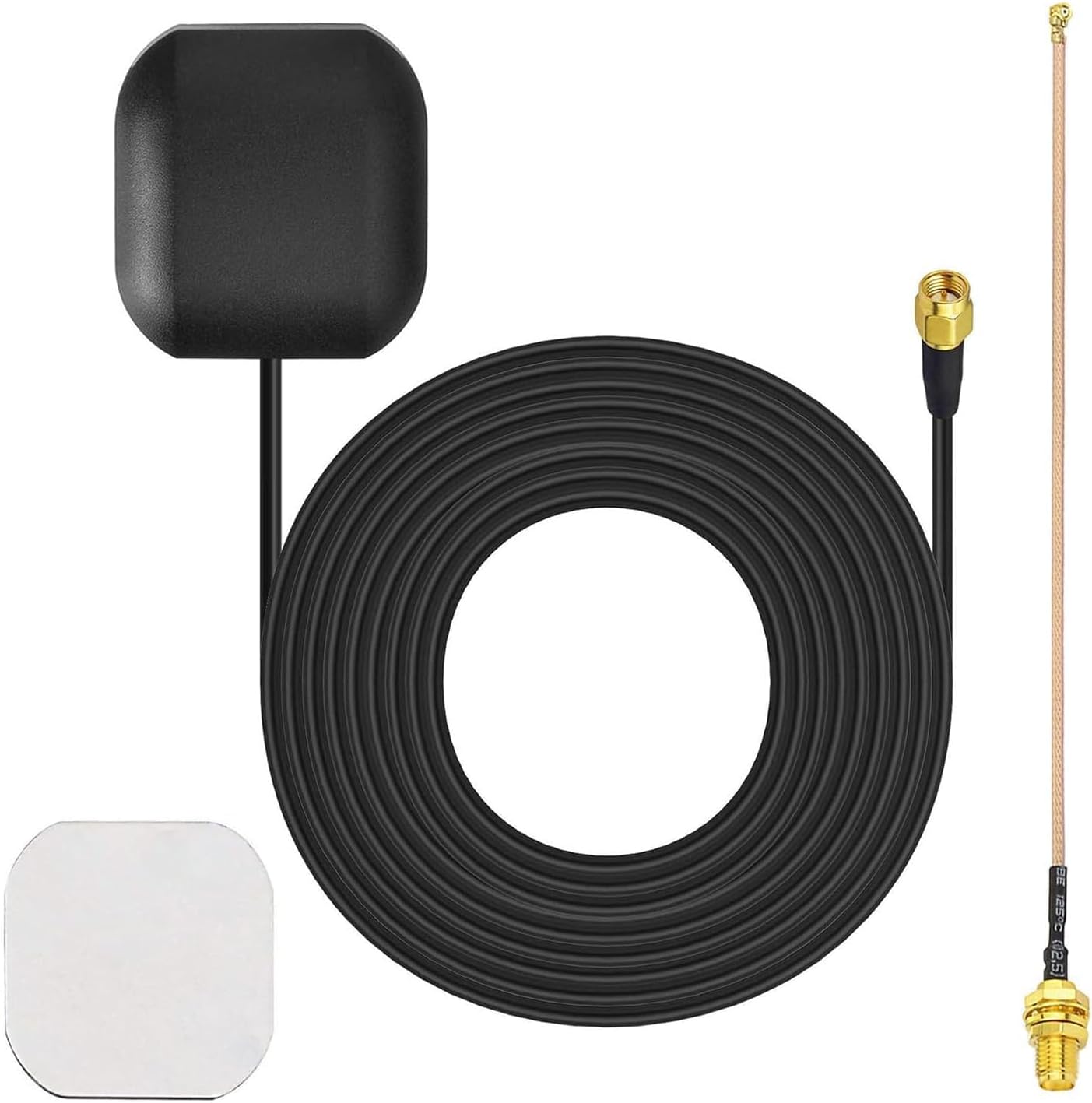

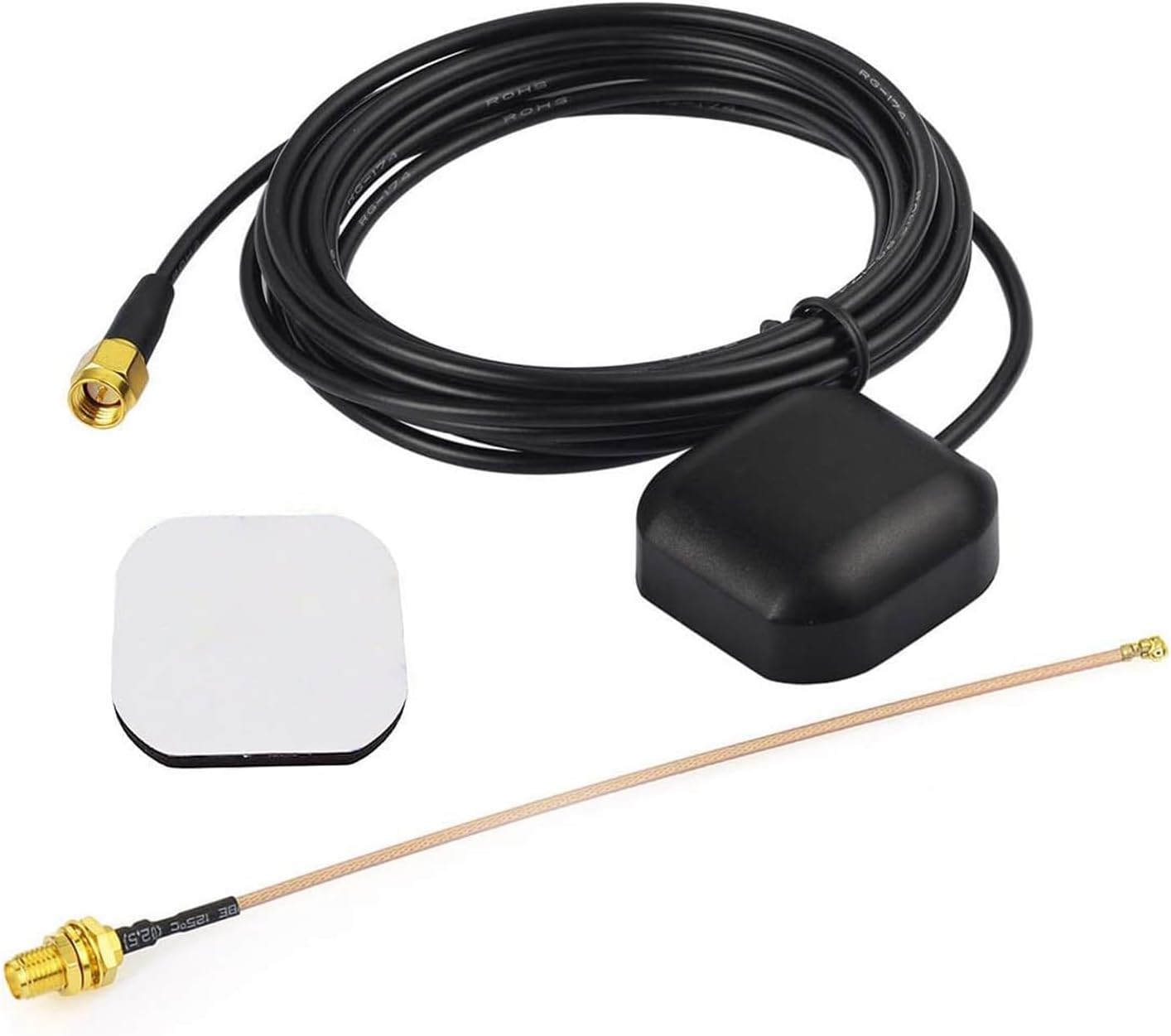

- Package List: 1 x Antenna, 1 x Coaxial Pigtail Cable, 1 x Double-sided Adhesive Piece (As the Picture Shown)
- Compatible with: Vehicle Telematics; 4G LTE GPS Tracker Locator; Vehicle Real Time Tracking Mobile DVR Video Recorder; Bus Truck RV Van Security Alarm System; Vehicle Amateur Radio Mobile Radio;
- Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; 4G LTE Industrial Gateway Modular Modem Mobile Router; 4G LTE Cellular RTU DTU Terminal; Trail Camera;
Product Information
| AntennaDescription | GPS |
| Brand | BINGFU |
| UPC | 790404675989 |
| Manufacturer | Bingfu |
| Number of Packs | 1 |
| Unit Count | 1 Count |
| Item Highlight | with 6 inch RG178 Coaxial Pigtail Cable for GPS Module Receiver Tracking |
| Number of Items | 1 |
| Model Number | BFN00457 |
| Mfr Part Number | BFN00457 |
| Warranty Description | Bingfu |
| Best Sellers Rank | |
| ASIN | B083D59N55 |
| Customer Reviews | |
| Impedance | 50 ohm |
| Color | Cable |
| Item Dimensions L x W x H | 5.1"L x 7.1"W x 0.6"H |
