Description

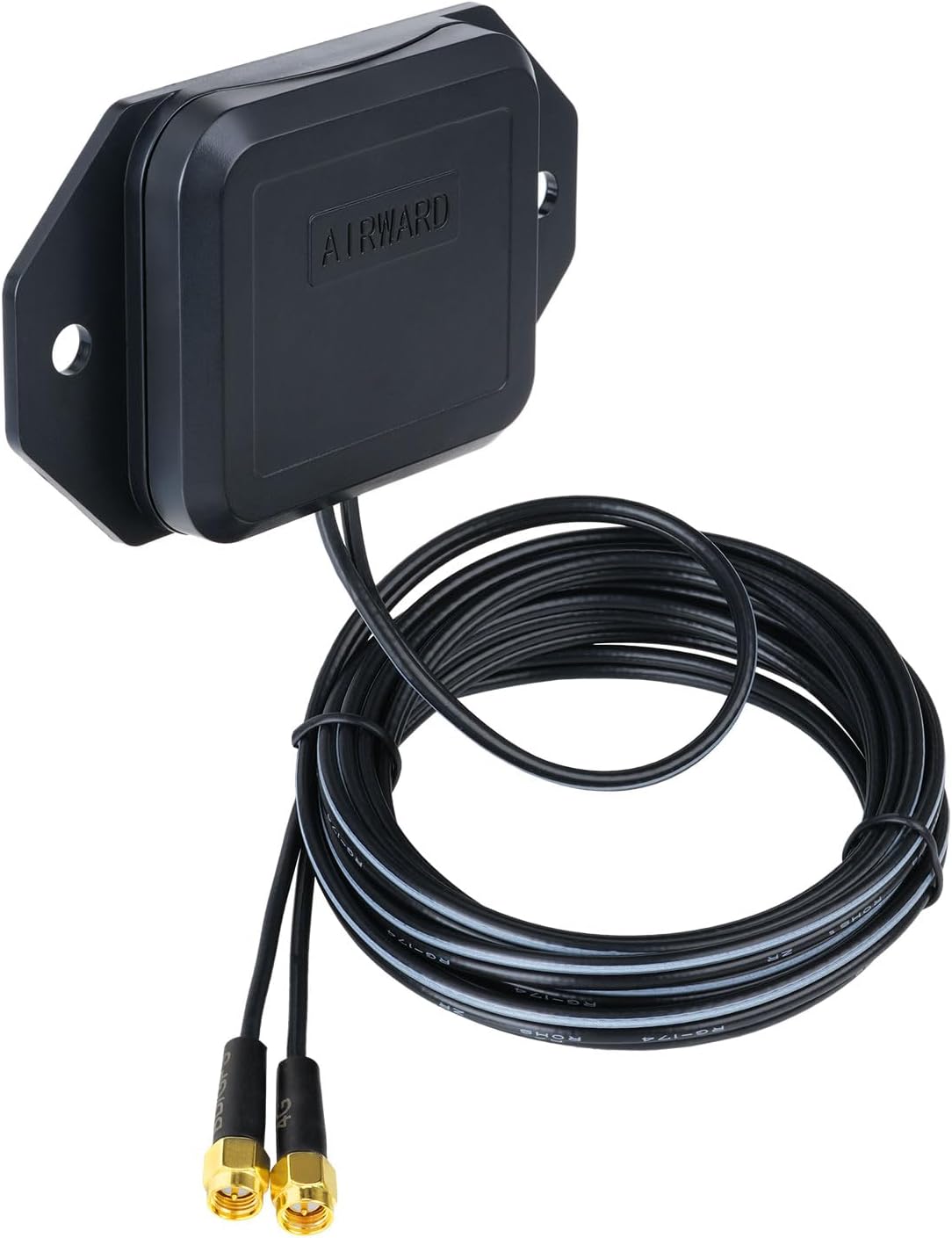

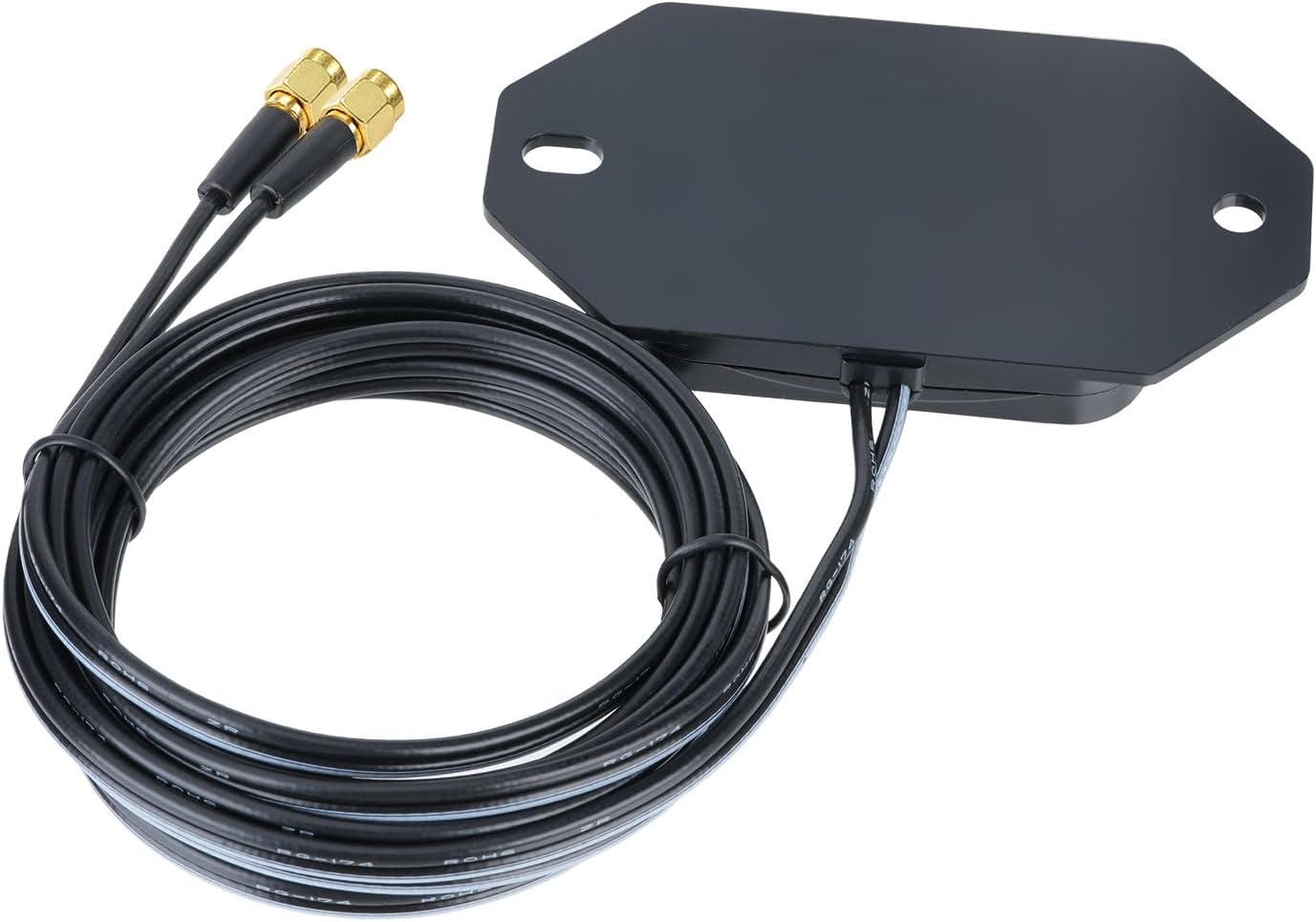

4G LTE & GNSS (GPS/BeiDou) All-in-One Combo Antenna
Integrated all-in-one design combining high-speed 4G network connectivity with high-precision dual-mode positioning (GPS + BeiDou). Engineered as the connectivity core for fleet management, industrial IoT (Internet of Things), and in-vehicle remote monitoring applications.
๐ Wide-Coverage 4G LTE
Covers mainstream 4G frequency bands (824-2690MHz). The high-gain design ensures smooth data transmission and real-time monitoring even in remote areas.
๐ฐ๏ธ Precise Dual-Mode Positioning
Simultaneously supports BeiDou and GPS systems. Combined with 28dB LNA high-gain amplification and SAW filtering technology, it maintains accurate coordinate locking even in complex urban environments.
Technical Specifications
| 4G LTE Frequency | 824-960MHz & 1710-2690MHz |
| GNSS Gain / Noise | 28dB (LNA) / < 1.5dB |
| Protection / Operating Temperature | IP65 / -40โ to +85โ |
Professional Application Scenarios: Widely used in smart fleet real-time tracking, vehicle IoT asset monitoring, logistics transportation automation, and mobile communication base station synchronization where highly reliable connectivity is required.
