Universal 5G 4G LTE High-Performance Antenna
Upgrade your wireless connectivity with the Bingfu 600-6000MHz wide-band antenna. Designed for reliability and flexibility, this magnetic-mount solution ensures a stable signal for your cellular routers, IoT devices, and trail cameras.
Why Choose This Antenna?
📡 Full-Spectrum Coverage
Supports all frequencies from 600MHz to 6GHz, fully compatible with 5G, 4G LTE, and 3G networks on major carriers like Verizon, AT&T, and T-Mobile.
🏙️ Optimized 3dBi Gain
Engineered for urban and indoor environments. The 3dBi omni-directional pattern provides wider coverage than high-gain antennas, reducing signal dead zones and dropouts.

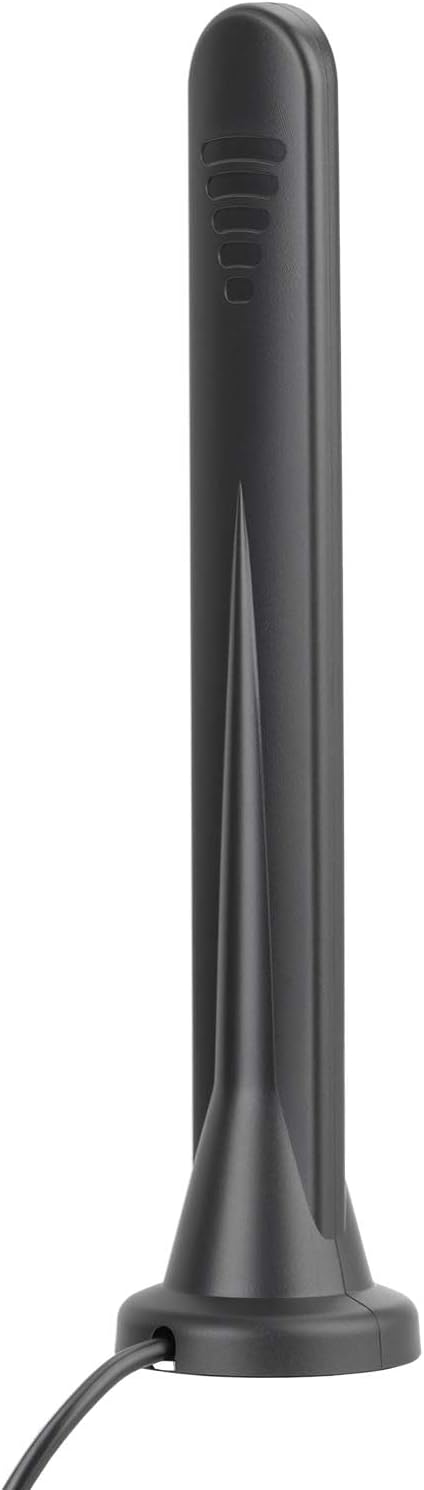

🧲 Flexible Magnetic Mount
The powerful 36mm magnetic base allows for instant attachment to any metal surface. Paired with a 10ft (3m) cable, you can place the antenna where the signal is strongest.
Specifications
| Frequency Range | 617-960 / 1710-5925 MHz (5G / 4G LTE / IoT) |
| Gain / VSWR | 3dBi / < 2.0 |

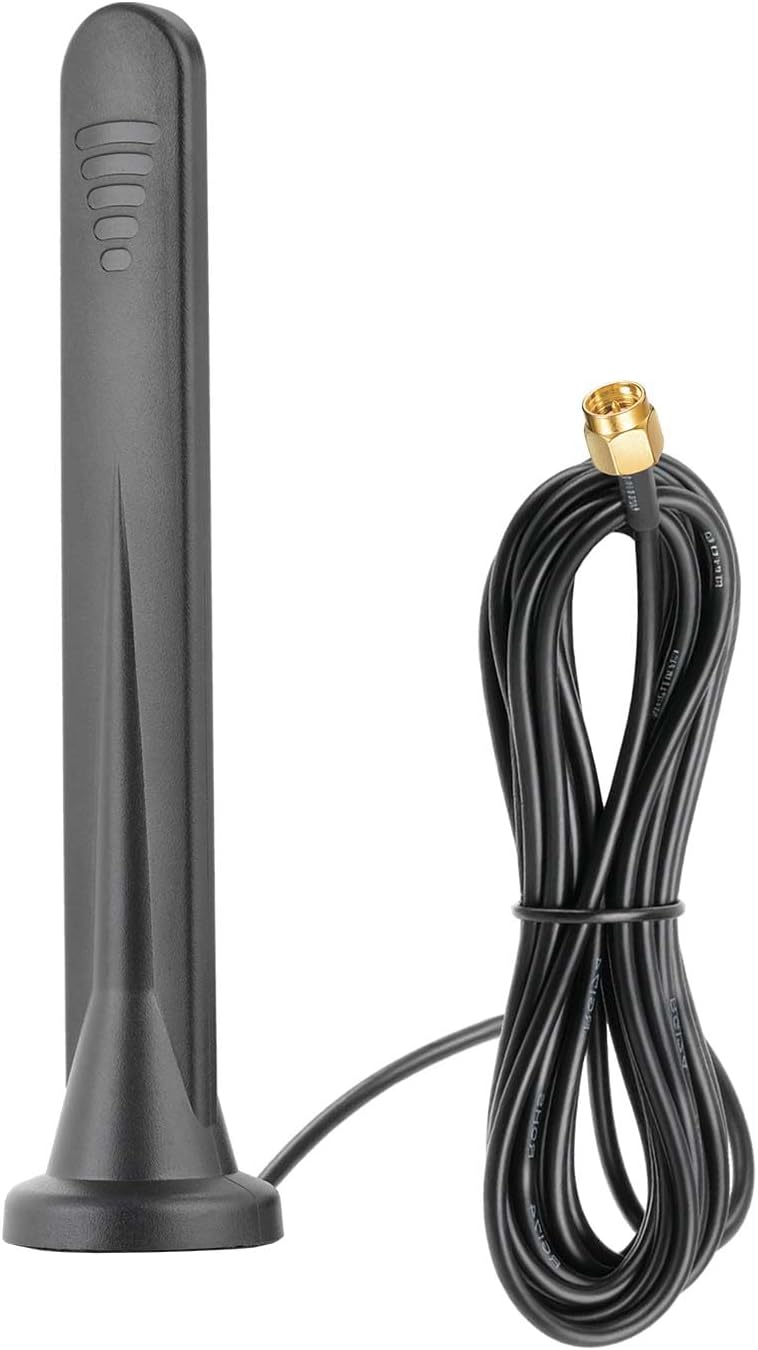

| Connector Type | SMA Male (Includes 1x RP-SMA Male Adapter) |
| Cable Length/Type | 10 Feet (3 Meters) / RG174 Coaxial |
| Dimensions | Antenna Height: 158mm | Base Diameter: 36mm |
| Durability | ROHS Compliant | Operating Temp: -20°C to +80°C |
✔ Universal Compatibility:

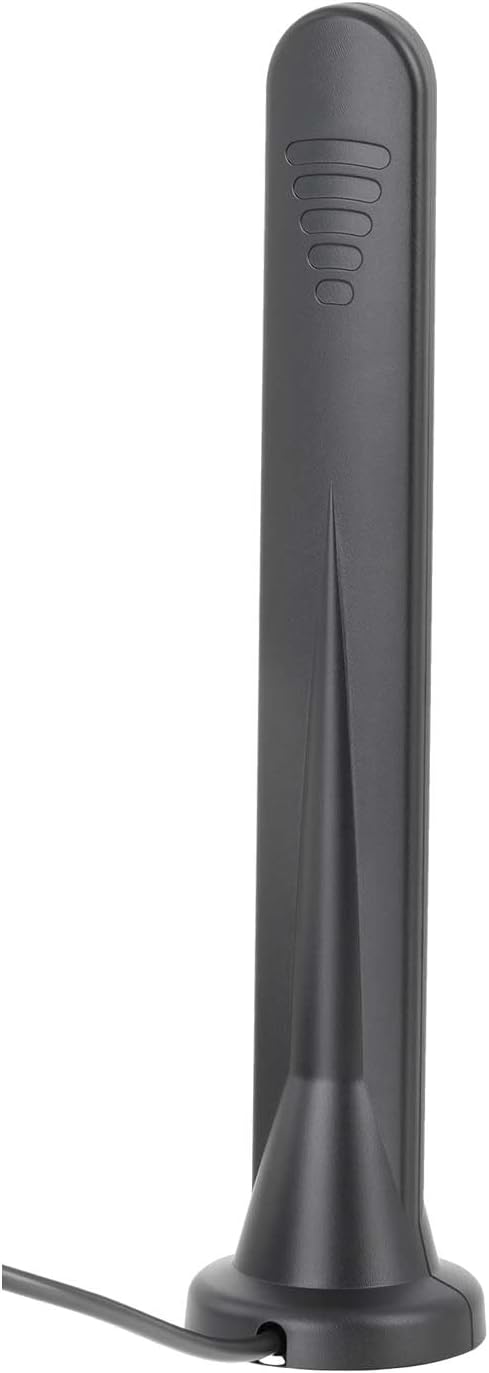

Works with Cellular Routers, Modems, Hotspots, Gateways, Trail Cameras, and Industrial 4G/5G equipment with SMA or RP-SMA ports.📦 What's in the box:
- 1 x Magnetic 5G/LTE Antenna
- 1 x RP-SMA Male Adapter
