Description
Unleash the Power of WiFi 6/6E

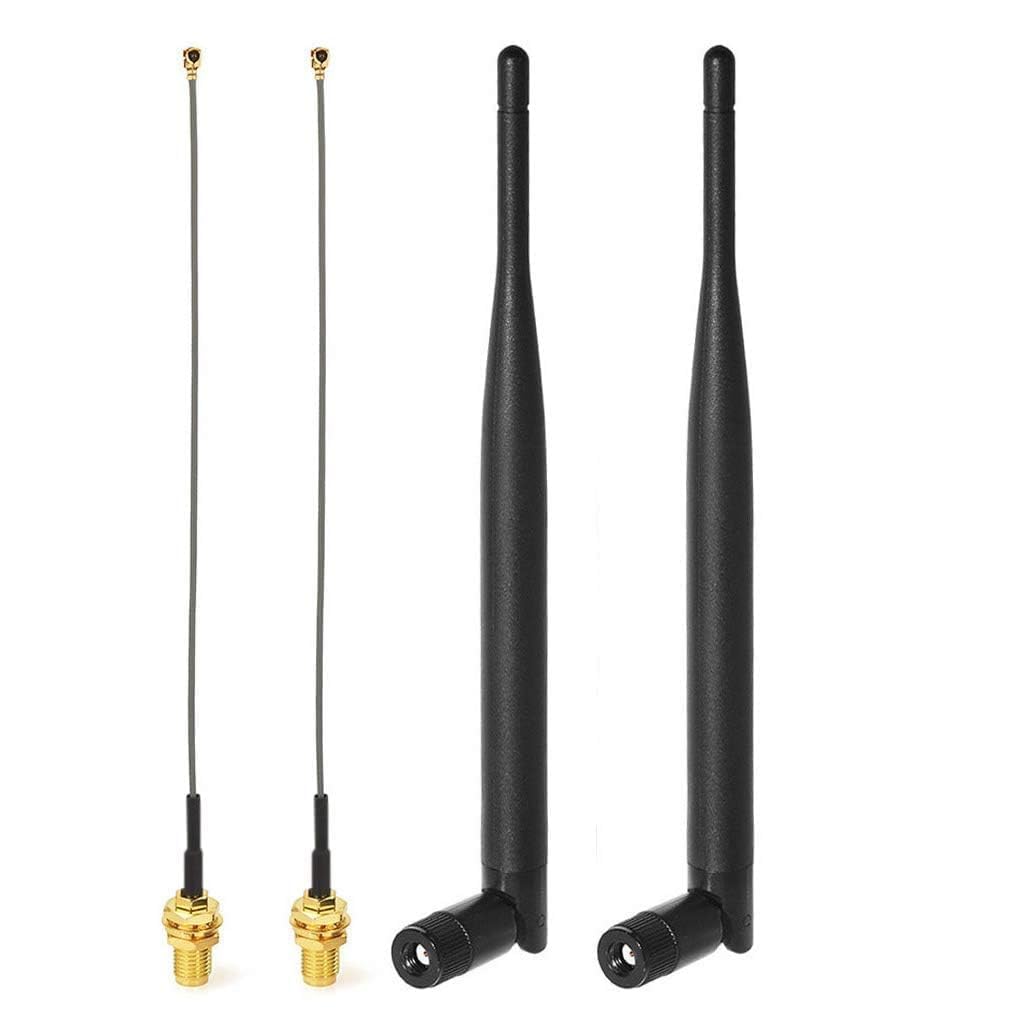

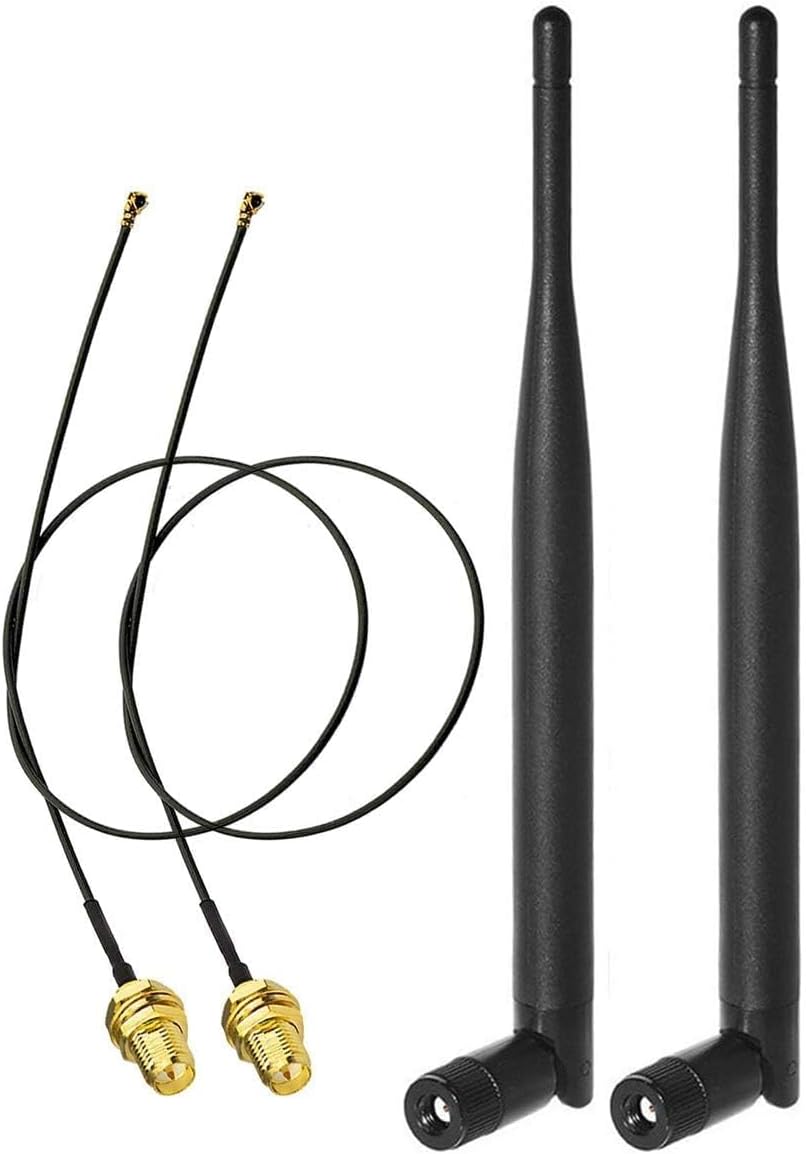

Standard internal laptop antennas or small 3dBi stubs often bottleneck your high-speed M.2 network card. The Bingfu 6dBi High-Gain Kit provides the necessary signal amplification to penetrate walls and reduce latency, making it the ultimate upgrade for Intel AX210 and AX200 builds.
⚡ Tech Check: MHF4 / IPEX4 Connector

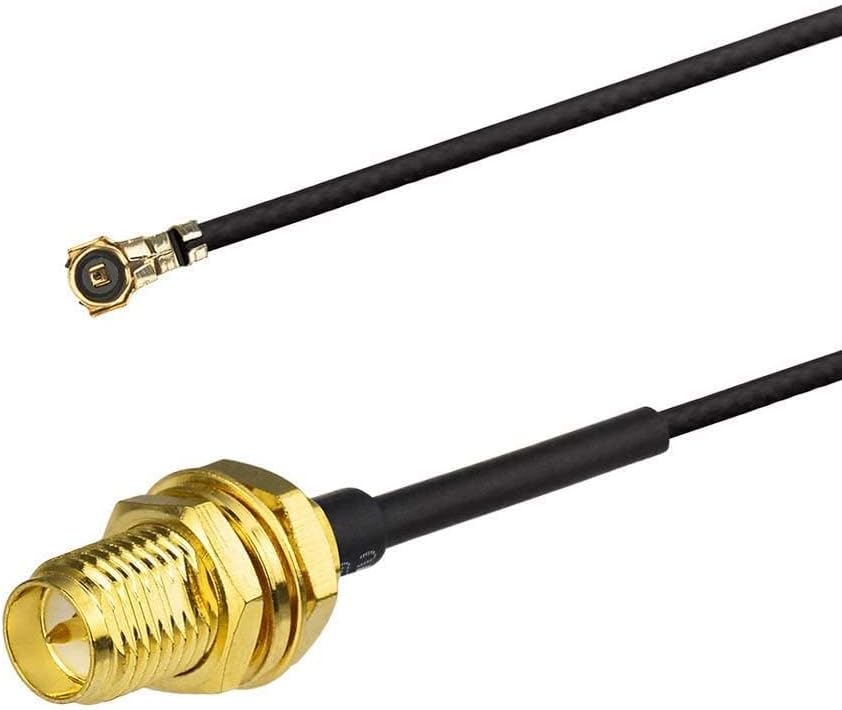

This kit features MHF4 (IPEX4) connectors, which are the modern standard for M.2 (NGFF) interface cards. They are significantly smaller than the older IPEX U.FL style.
- COMPATIBLE WITH: Intel AX211, AX210, AX201, AX200, 9560, 9260, 8265, 8260.
- NOT COMPATIBLE: Older Mini PCI-E cards (these require IPEX U.FL / IPEX1).
Why Upgrade to this 6dBi MHF4 Kit?
- Extreme 6dBi Gain: Nearly double the height of standard antennas, providing a much stronger signal "reach" for multi-room apartments.
- Dual-Band & 6GHz Ready: Fully optimized for 2.4GHz, 5GHz, and the new 6GHz band used in WiFi 6E and WiFi 7 standards.

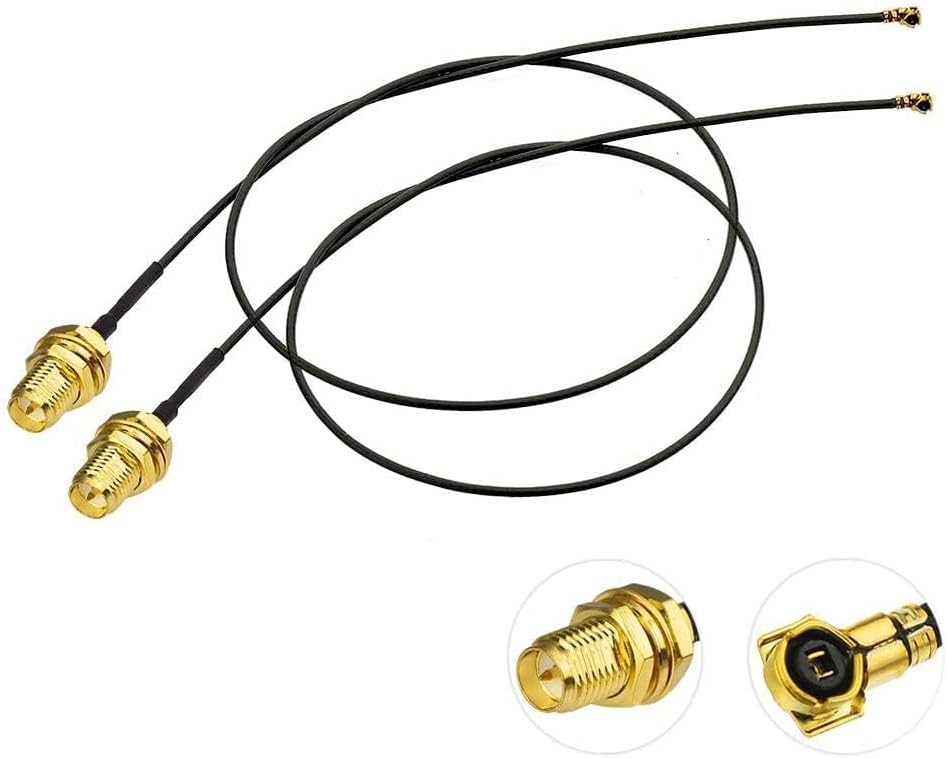

- Silver-Plated Coax Integrity: The 20cm (8 inch) RG178 pigtails use premium shielding to prevent signal leakage inside your PC chassis.
- MIMO Optimized: 2-Pack set enables full 2x2 MIMO spatial streaming for maximum throughput.
Technical Specifications
| Antenna Gain | 6dBi High-Gain |
| Internal Connector | MHF4 (IPEX4) - Tiny Size |

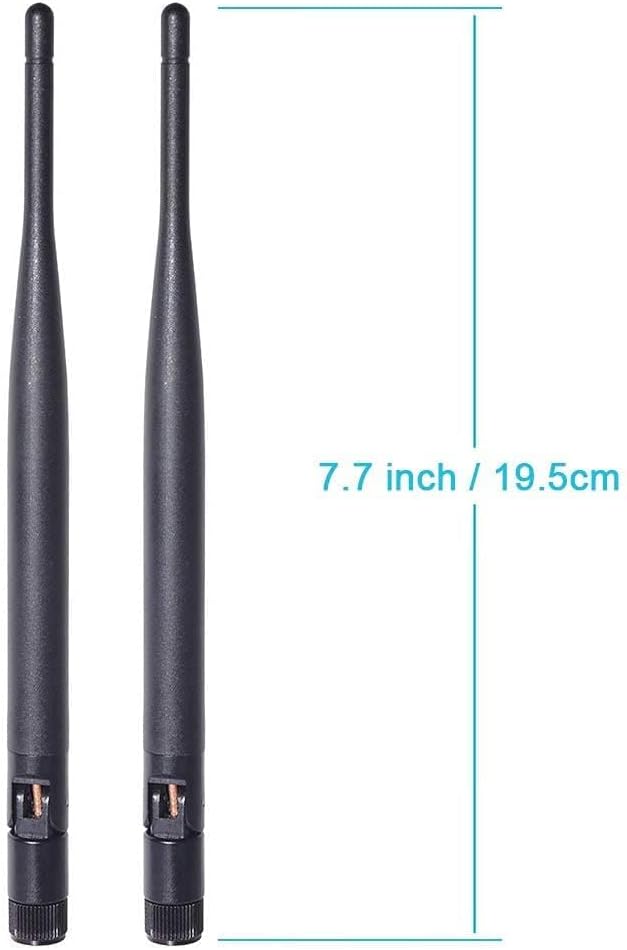

| Antenna Height | 19.5cm / 7.7 inches |
| Frequency Support | 2.4GHz, 5GHz, 5.8GHz, 6GHz |
💡 Installation Pro Tip: Use a pair of plastic tweezers to align the MHF4 connector over the card's port. Press straight down until you hear a tiny 'click.' Do not use excessive force.
