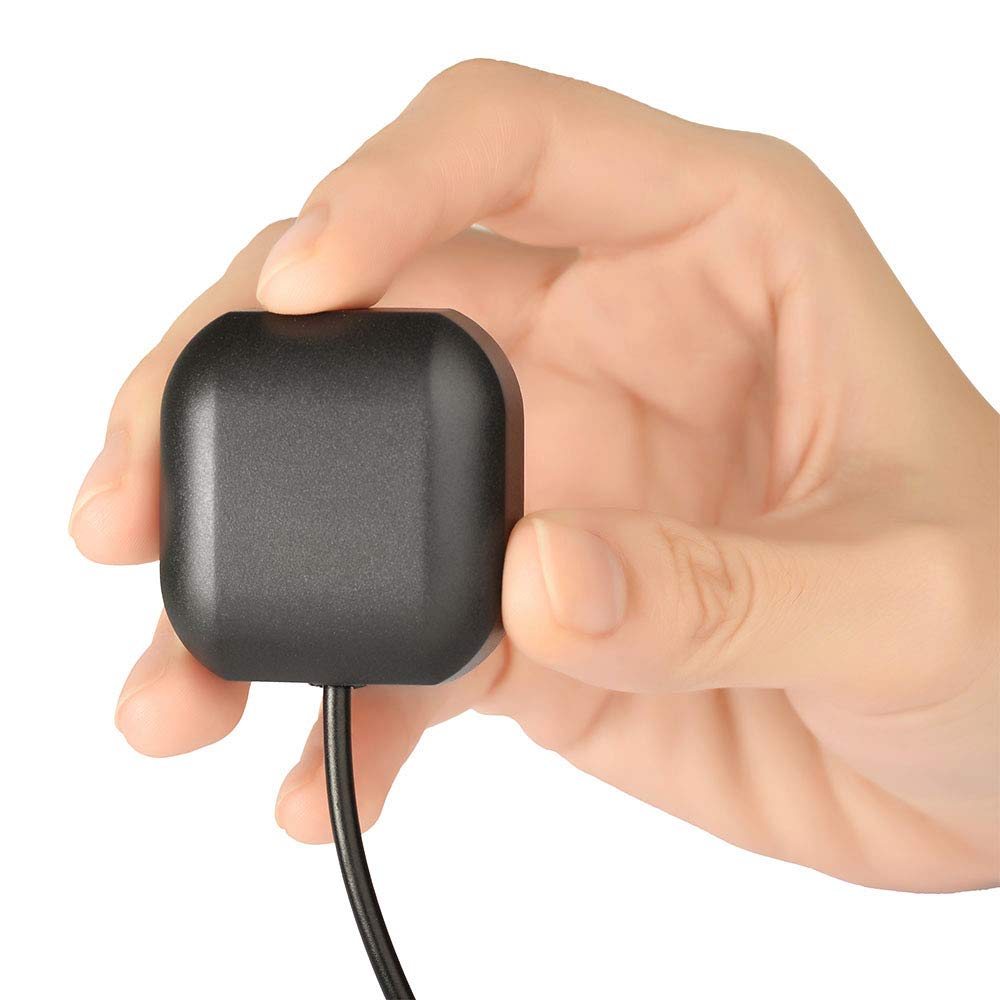

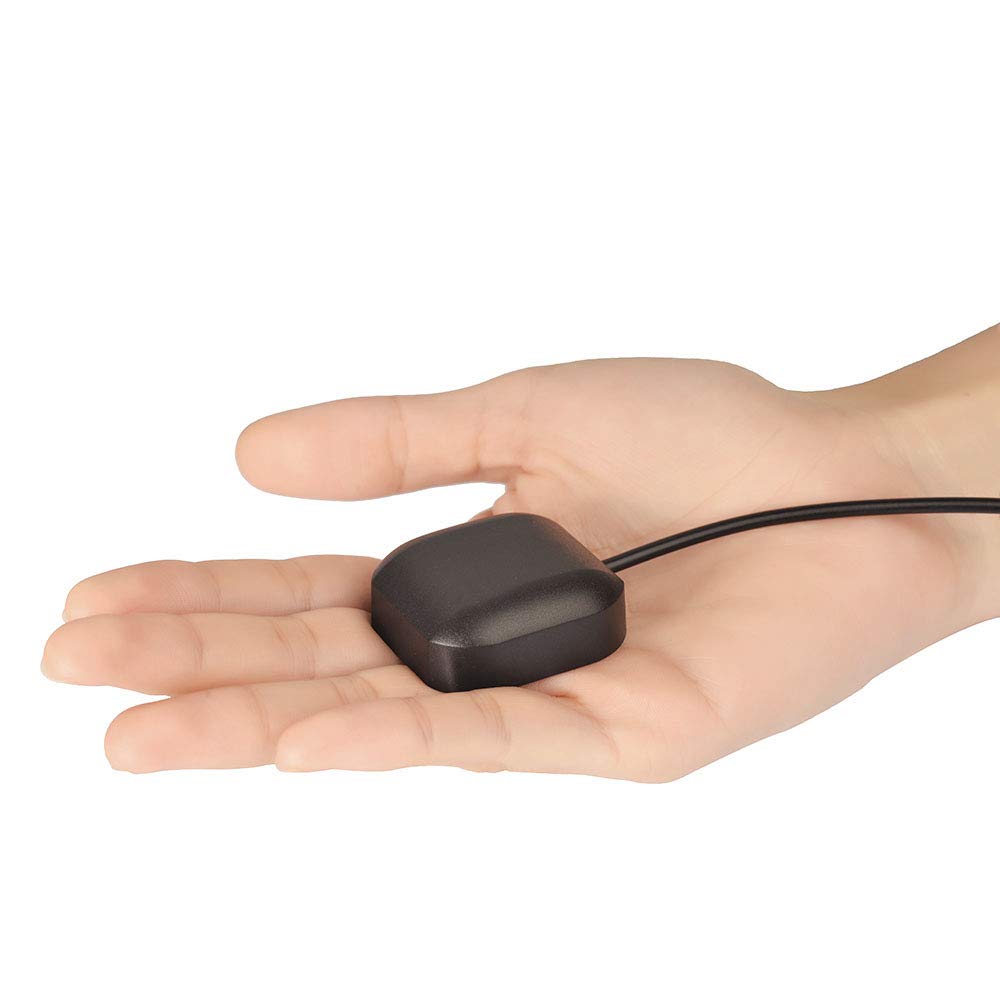

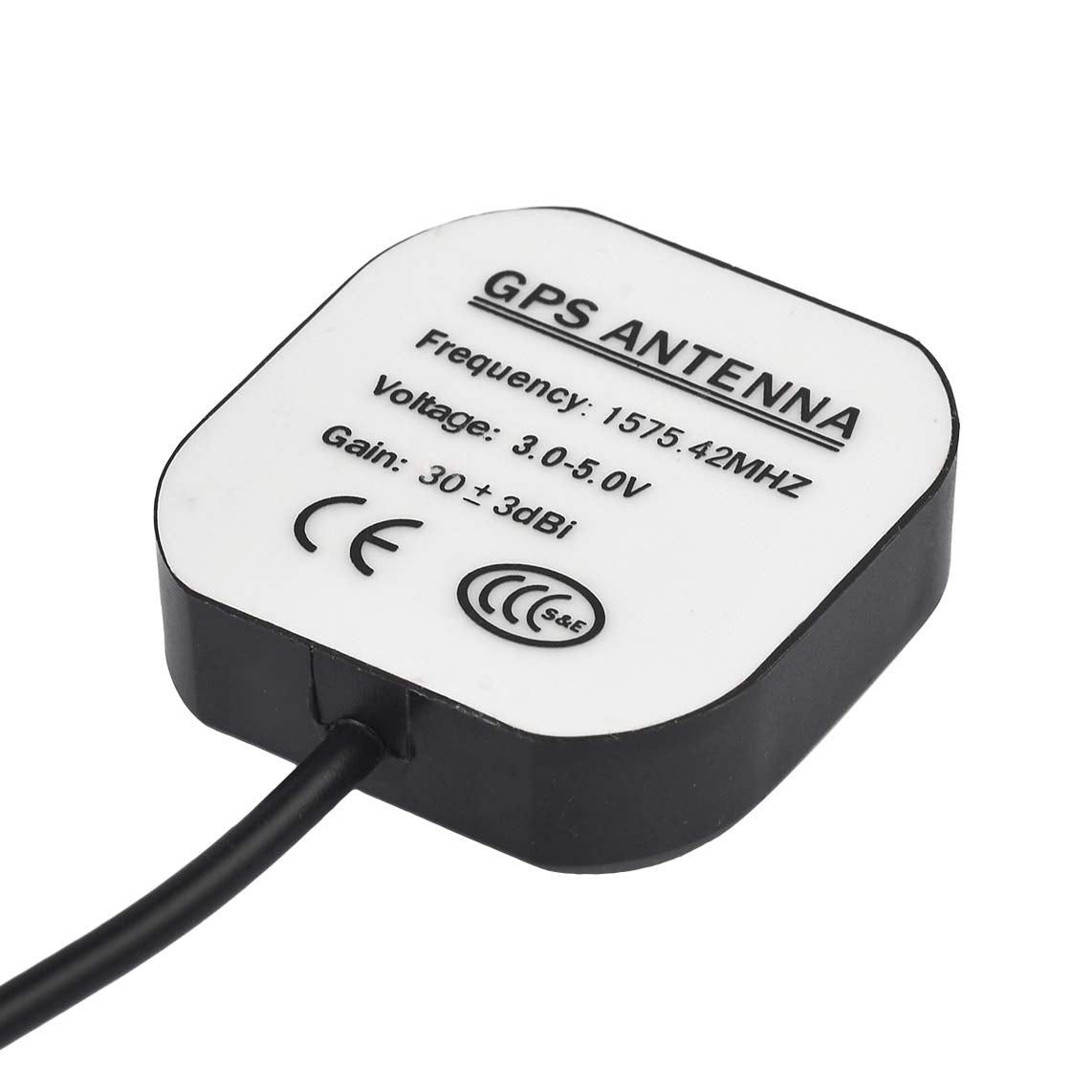

High-sensitivity active GPS receiver with a magnetic waterproof base, designed for concealed dashboard or external vehicle mounting
High-sensitivity active GPS receiver with a magnetic waterproof base, designed for concealed dashboard or external vehicle mounting

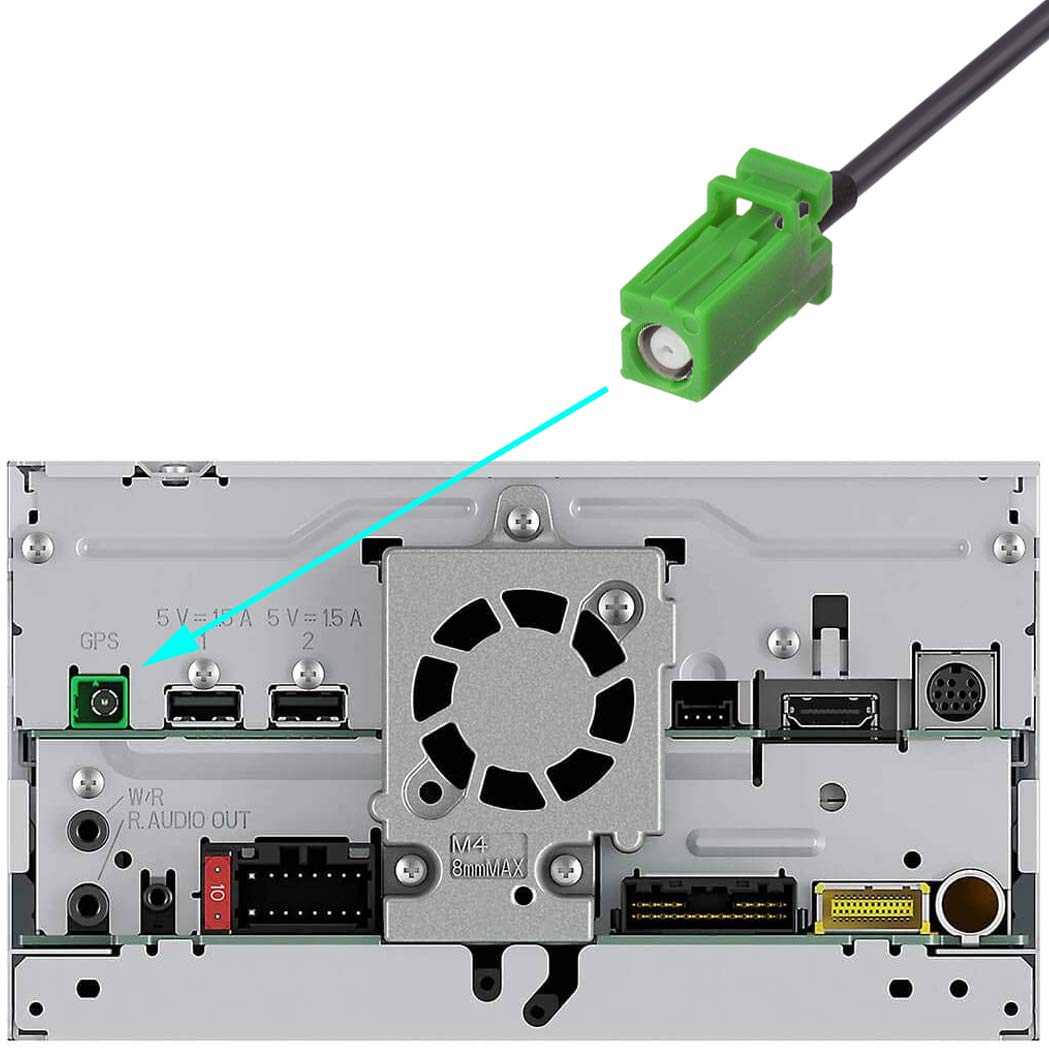

High-precision GPS connector perfectly matched for Pioneer AVIC-NEX receivers

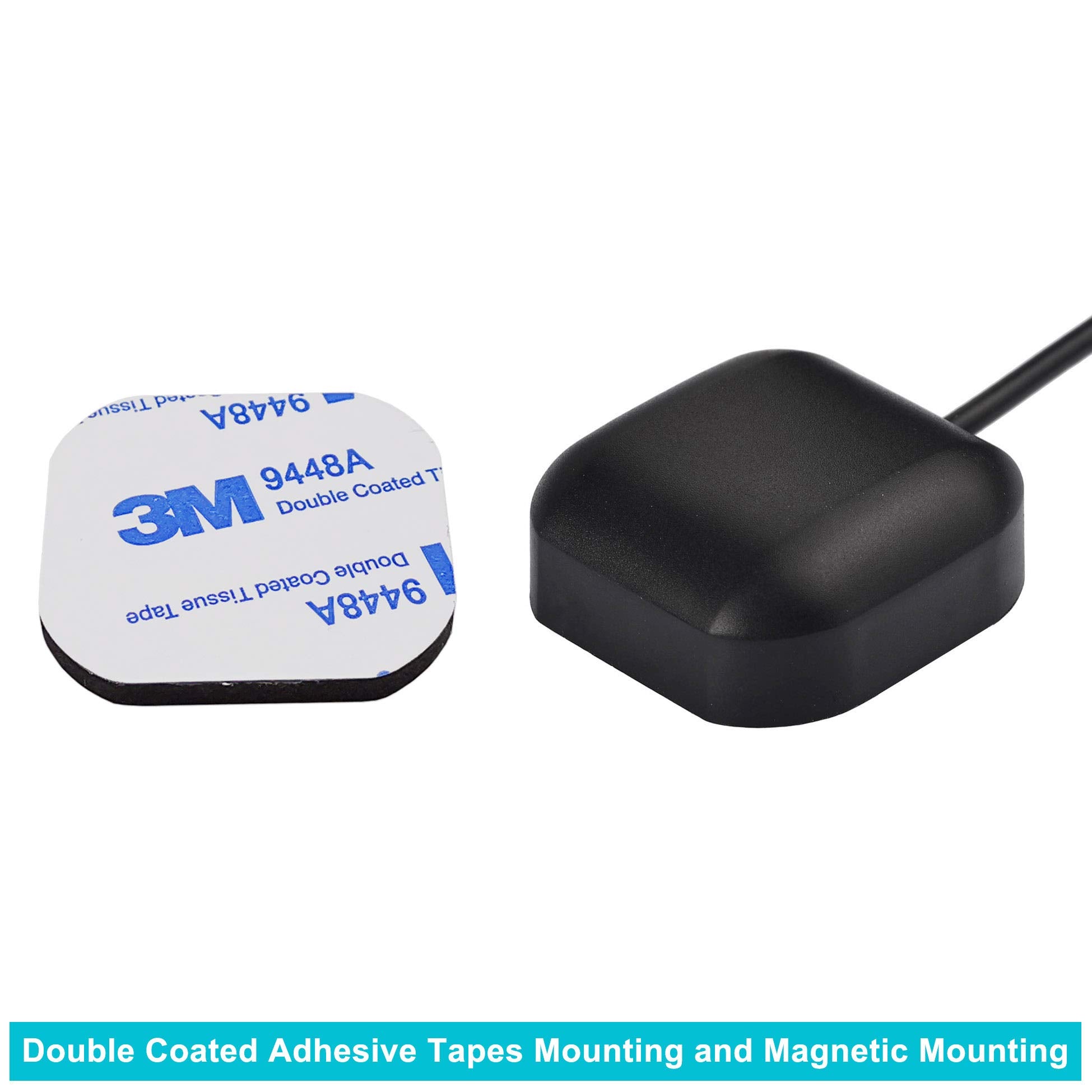

Close-up of the waterproof housing and high-sensitivity GPS receiver patch
Technical diagram showing the 3m cable length and the compact 45mm x 38mm GPS module dimensions.
High-sensitivity active GPS receiver with a magnetic waterproof base, designed for concealed dashboard or external vehicle mounting.
High-sensitivity active GPS receiver with a magnetic waterproof base, designed for concealed dashboard or external vehicle mounting.
Bingfu active GPS antenna for Pioneer AVIC navigation units featuring the characteristic square green plug and 3-meter (10ft) coaxial cableHigh-sensitivity active GPS receiver with a magnetic waterproof base, designed for concealed dashboard or external vehicle mountingHigh-sensitivity active GPS receiver with a magnetic waterproof base, designed for concealed dashboard or external vehicle mountingHigh-precision GPS connector perfectly matched for Pioneer AVIC-NEX receiversClose-up of the waterproof housing and high-sensitivity GPS receiver patchTechnical diagram showing the 3m cable length and the compact 45mm x 38mm GPS module dimensions.High-sensitivity active GPS receiver with a magnetic waterproof base, designed for concealed dashboard or external vehicle mounting.High-sensitivity active GPS receiver with a magnetic waterproof base, designed for concealed dashboard or external vehicle mounting.

Bingfu Active GPS Antenna with Square Green Connector for Pioneer AVIC Navigation - 30dBic High Gain 3m RG174 Cable - Compatible with Pioneer NEX Series (8000NEX 7000NEX) & AVIC-F AVIC-Z AVIC-X

BingfuSKU: BFUSAN0143
Price:
€8,95

Bulk Pricing

Custom Services

Description

Bingfu Pioneer AVIC GPS Antenna

High-Precision GPS Antenna for Pioneer AVIC Systems

Specially designed for Pioneer premium AVIC and NEX series systems. Features a unique dedicated green connector and delivers 30dBic peak gain to eliminate positioning delays and weak satellite reception issues.

🛰️ 30dBic Industrial-Grade Gain

Equipped with an ultra-low-noise amplifier (LNA), improving signal sensitivity by more than 20% compared to standard antennas. Maintains stable satellite locking even in forested roads or dense urban environments.

🔌 100% Dedicated Green Connector

Precisely matches Pioneer’s proprietary green square connector design with no wire cutting required for a damage-free installation. The secure locking mechanism effectively withstands strong vehicle vibrations during driving.

GPS Antenna Gain Feature

Technical Specifications

Specification Item Details
Frequency Range 1575.42 MHz (GPS L1)
Peak Gain 30dBic (Built-in Active Amplifier)
Cable Specification 3m (10ft) RG174 High-Shielded Coaxial Cable
Waterproof Rating IP67 Fully Sealed Waterproof & Corrosion Resistant
Installation and Support

✅ Ultimate Compatibility Assurance:

NEX Series: 8200NEX, 8100NEX, 8000NEX, 7200NEX, 7100NEX, 7000NEX, 6200NEX, 6100NEX, 6000NEX, 5200NEX, 5100NEX, 5000NEX, 4200NEX, 4100NEX
AVIC-F Series: F900BT, F90BT, F700BT, F7010BT, F910BT, F9110BT
AVIC-Z/X/D Series: Z110BT, Z120BT, Z130BT, Z140BH, Z150BH, X910BT, X920BT, X930BT, X940BT, X710BT, AVIC-D3

Engineer Tip: During installation, ensure the antenna faces the sky directly (with no metal obstruction above). It can be discreetly mounted beneath the plastic dashboard cover.
