Description
Ultra-Compact Dual-Band Performance

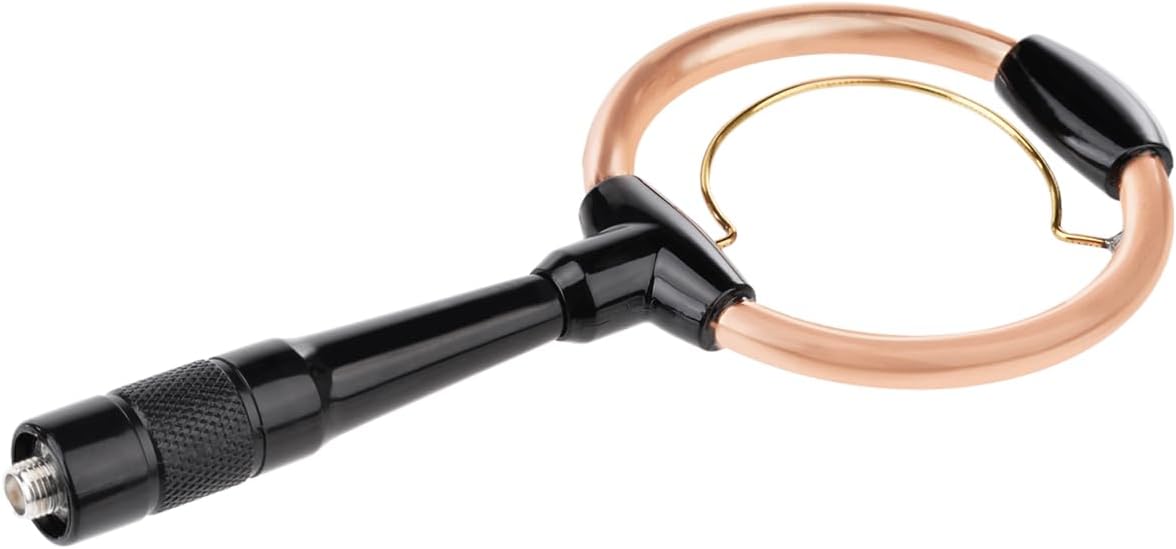

Experience clarity in a pocket-sized package. The Bingfu Dual-Loop Antenna is engineered for tactical portability, providing reliable VHF/UHF coverage without the snagging risks of traditional whip antennas.
๐ก Professional Signal Clarity
Optimized with 1.8/2.8dBi gain and VSWR < 1.5, ensuring minimal signal loss during transmission and reception in both 144/430MHz bands.
๐ EDC Optimized Design

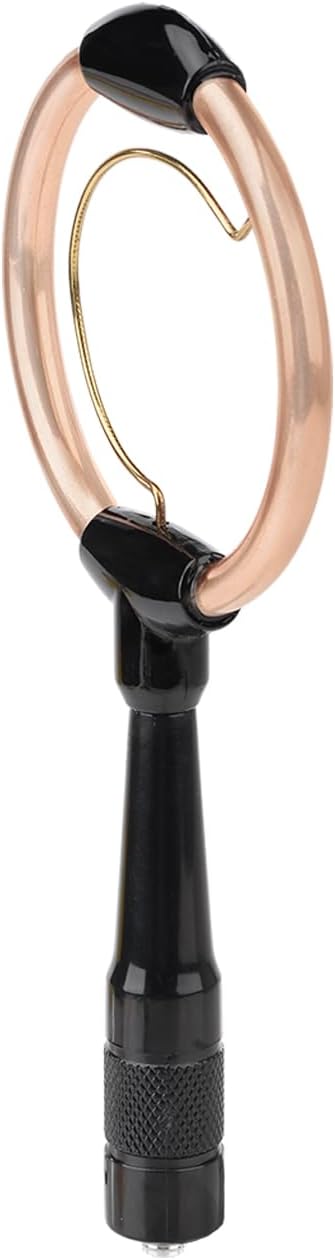

At only 150mm (5.9"), this loop antenna is the ultimate "Every Day Carry" solution for hiking, camping, and tactical field use.
Technical Specifications
| Frequency | 136-174MHz / 400-470MHz |
| Gain | 1.8 / 2.8dBi |
| Connector | SMA-Female (Standard) |
| Max Power | 20 Watts |
| Height | 150mm (5.9 inches) |

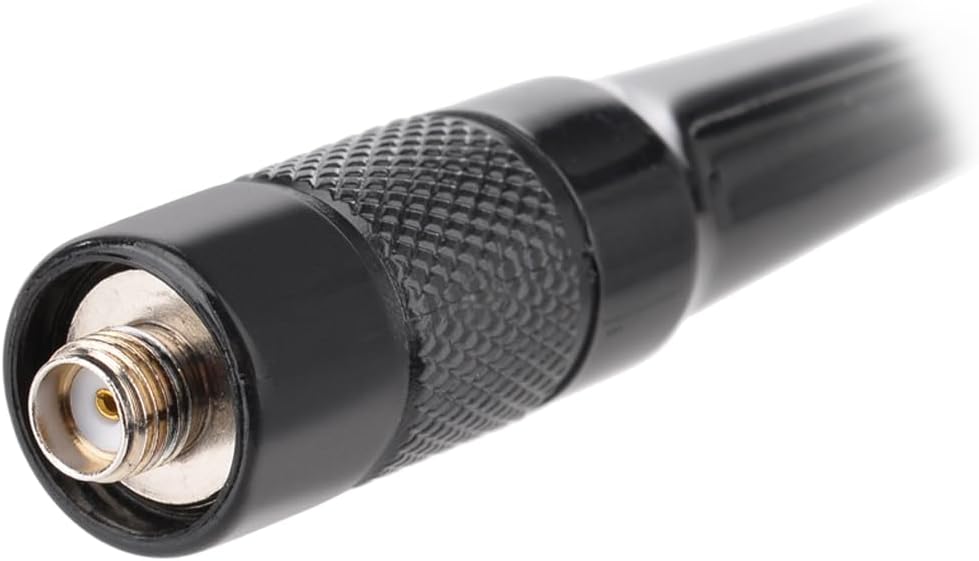

โ ๏ธ Compatibility Note: This antenna features an SMA-Female connector. Please verify your radio's port (e.g., Baofeng UV-5R uses SMA-Male) to ensure a perfect fit. If your radio has an SMA-Male pin, you may require an adapter.
