Description
Extra Length for Large Case Builds
Typical 6-inch cables often fall short in modern full-towe-r PC cases. The Bingfu BFN00586 Kit features 30cm (12-inch) pigtails, giving you the flexibility to route cables neatly behind motherboards or around large GPUs, ensuring a clean and professional WiFi installation.

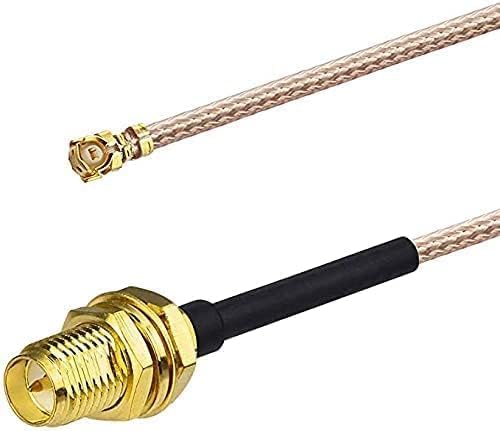

⚠️ Connector Check: IPEX U.FL (MHF1)
These cables use IPEX U.FL connectors, which are the standard for Mini PCI-E (mPCIe) cards.
- Compatible with: Intel 7260HMW, 6205, 6300, and many Industrial/Embedded boards.
- NOT for M.2: Modern M.2 (NGFF) cards like Intel AX210/AX200 require the smaller MHF4 connector. Please verify your card before ordering.
Why Choose the 30cm Long-Cable Kit?

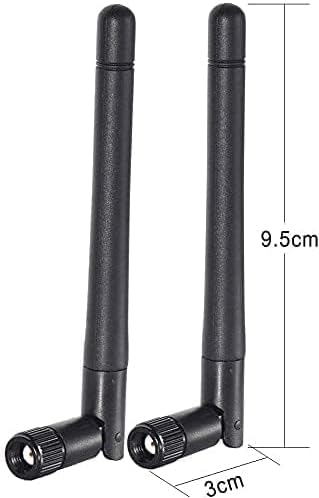

- 30cm (12") Reach: Perfect for large server chassis, workstation cases, or complex DIY router builds where extra cable management room is needed.
- Dual-Band MIMO: Fully supports 2.4GHz and 5.8GHz bands for a stable, high-speed connection with reduced interference.
- High-Flexibility RG178: Silver-plated coax cable offers superior heat resistance and minimal signal loss over the extended length.

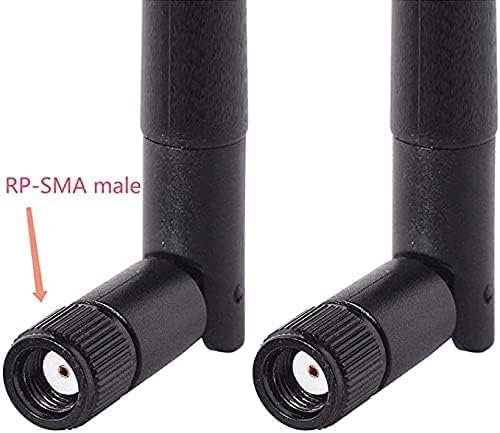

- Universal Bulkhead: Standard RP-SMA Female bulkhead mounts easily into pre-drilled PC chassis holes or custom brackets.
Technical Specifications
| Cable Length | 30cm / 12 inches |
| Internal Connector | IPEX U.FL (MHF1) |
| Antenna Gain | 3dBi (Dual-Band) |
| Quantity | 2x Antennas + 2x Cables |
💡 Pro Tip: Use small zip ties to secure the 30cm cable along the edge of your motherboard tray. This prevents the cable from interfering with CPU or GPU fans.
