Description
Product facture：
- Modular two-component system: this kit consists of two independent parts: a passive adhesive antenna and an active signal booster. The antenna can be used as a direct replacement alone or combined with the amplifier if required. This modular design allows flexible adaptation to the respective reception conditions of your vehicle.
- Optional signal amplification for weak reception ranges: The amplifier stabilizes FM/AM reception in areas with fluctuating signal strength. It compensates for signal loss between antenna and head unit - ideal for highways, highways, tunnels and other environments where signal strength is often unstable.

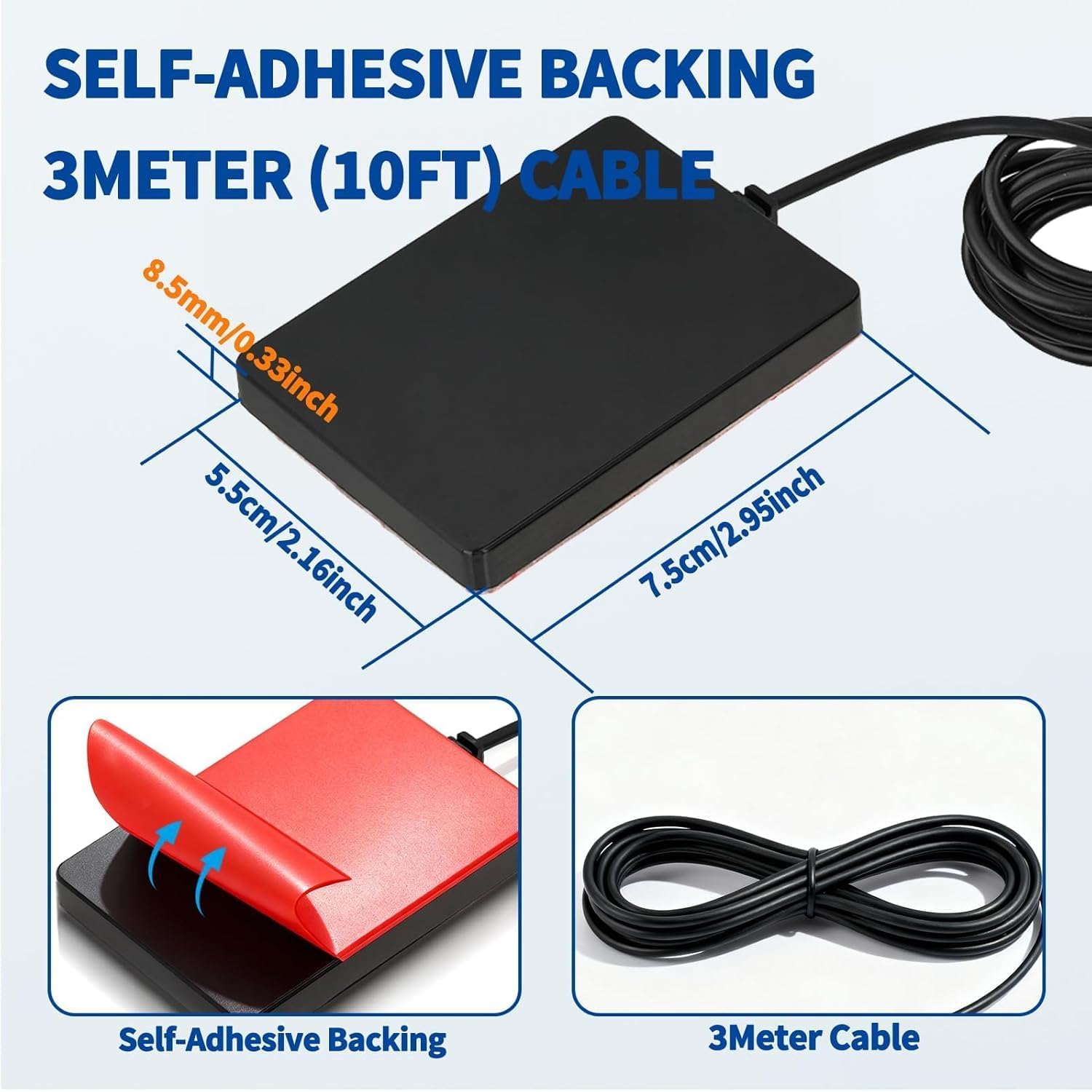

- Compact design for concealed installation: The slim patch antenna (75 × 55 × 7 mm) attaches discreetly to the windscreen or side windows thanks to the adhesive backing. It is the clean alternative to conventional rod antennas and supports standard FM (87.5-108 MHz) and AM (522-1710 kHz).

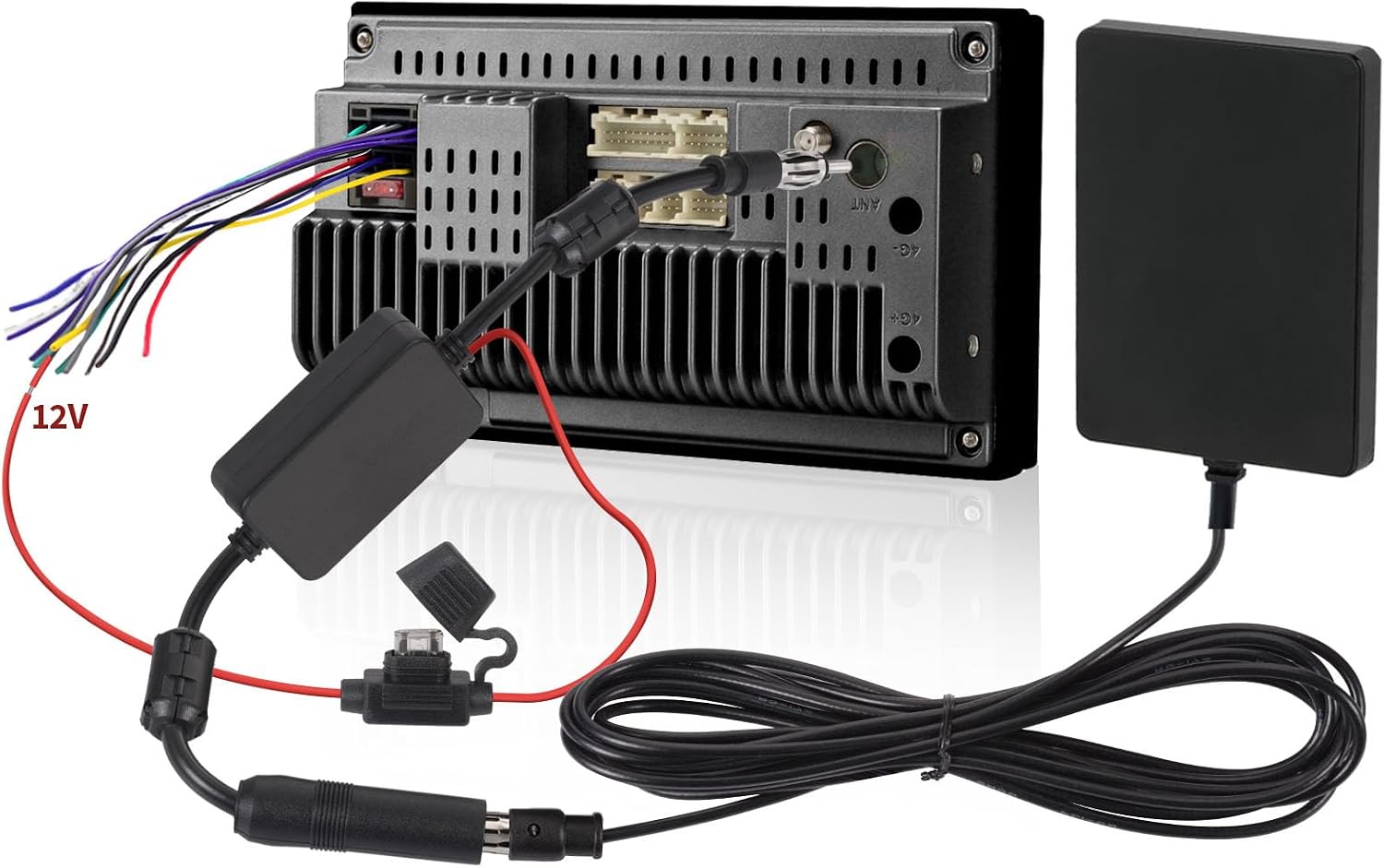

- WIDE COMPATIBILITY WITH STANDARD SYSTEMS Equipped with a DIN antenna connector, this system is compatible with most aftermarket and OEM car radios as well as marine receivers. Universal use for cars, trucks, SUVs and other 12V vehicle systems with standard antenna connection.

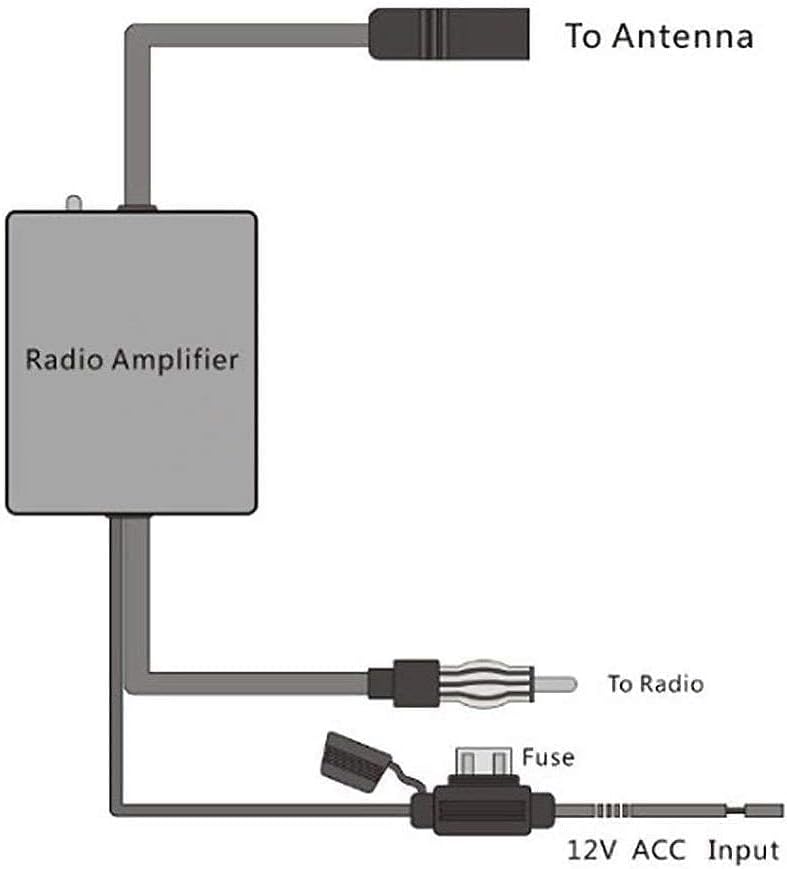

- Flexible mounting and stable power supply: the 3 metre long cable allows optimal positioning for best reception. The amplifier is simply connected to the 12V electrical system and operates with an extremely low power consumption (10-30 mA), which guarantees efficient and permanently stable operation.
Product description
Technical data:
1. antennae
Frequency range: AM: 522-1710KHz / FM: 87.5-108MHz
Dimensions: 75 x 55 x 7 mm.
Cable length: 3 metres.
Connection: DIN plug.
Colour: black.
Installation: self-adhesive.

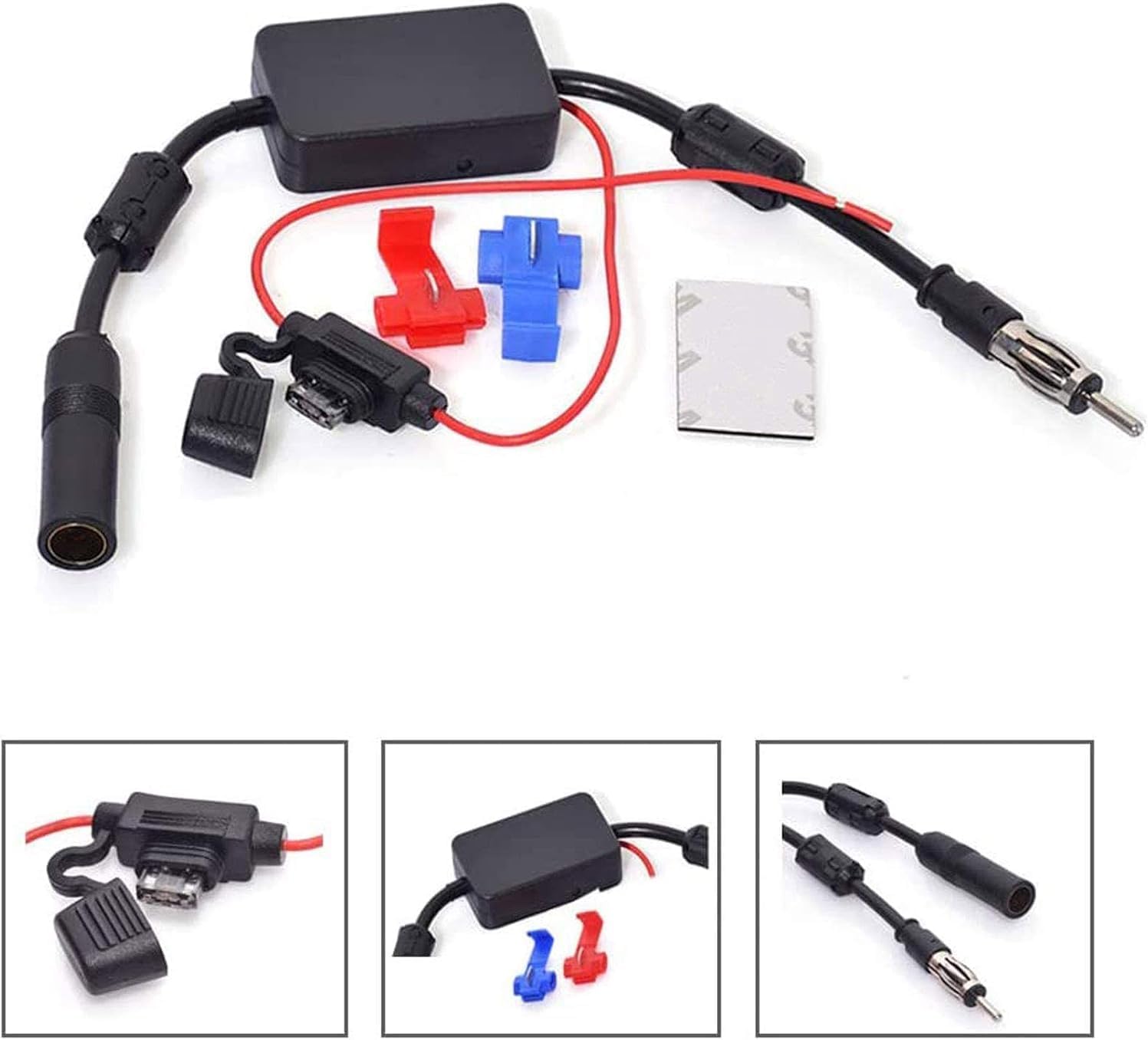

2. Amplifier
VSWR: <2.0:1.
Operating Current: 10mA - 30mA
Operating voltage: DC 10.5 V - 16 V.
Antenna connection: DIN plug.
Weight: 70g

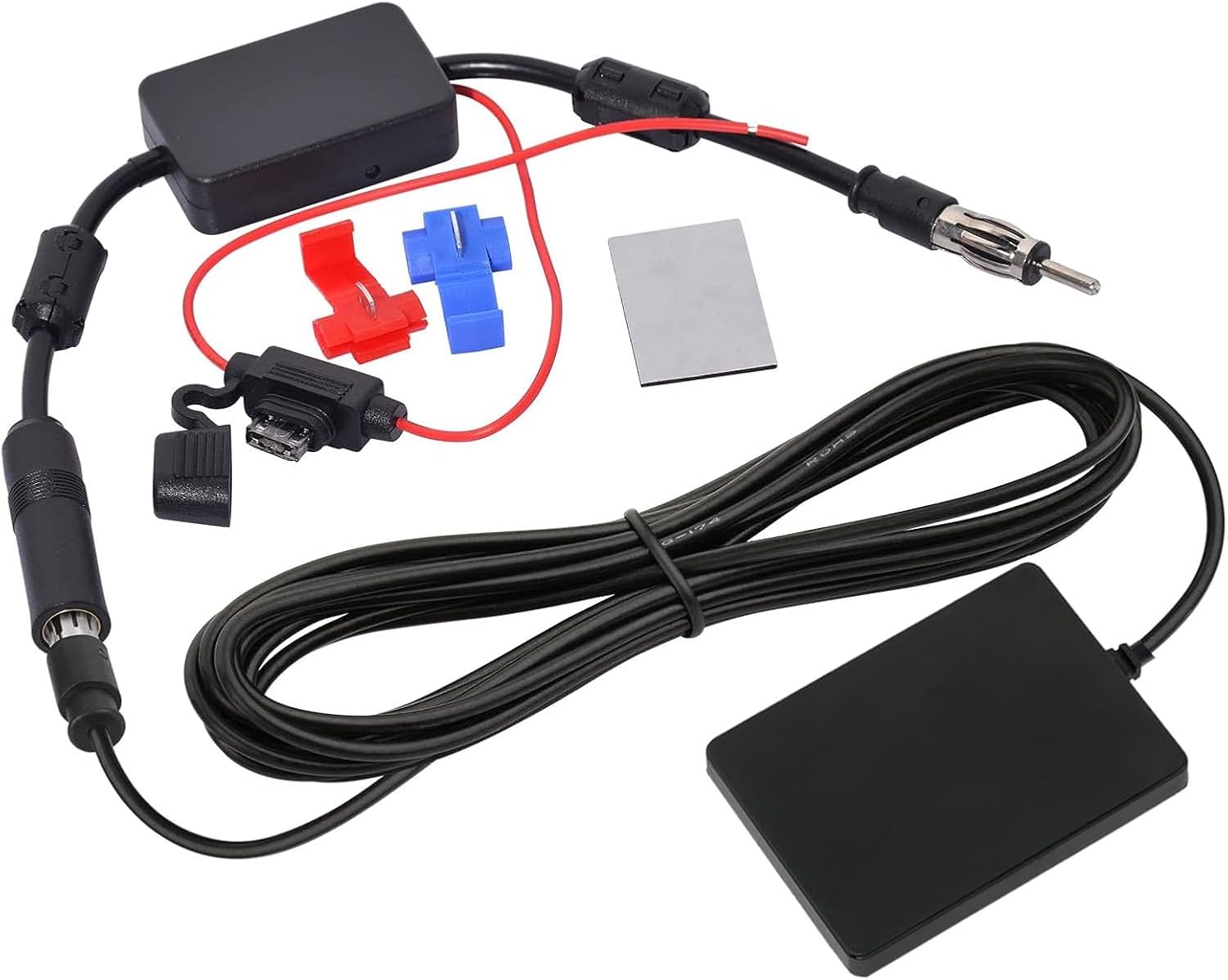

Package includes:
1 x passive FM/AM disc antenna.
1 x signal amplifier
