Description
Bingfu Professional Marine GPS Active Antenna โ Ultra-Stable Offshore Positioning
Experience uncompromised accuracy on the open water with the Bingfu Marine GPS Active Antenna. Specially designed for the rigorous demands of maritime navigation, this antenna provides your chartplotter, fishfinder, or AIS system with a consistent, high-sensitivity satellite lock, ensuring safety and precision even in heavy swells or extreme weather.
๐ Engineered for the Ocean
- Salt-Spray Resistant: Fully sealed IP67 housing protects against corrosion, UV rays, and heavy rain.
- High-Gain 28dB LNA: Integrated low-noise amplifier ensures lightning-fast satellite acquisition (TTFF).
โ Flexible Deployment
- Extra-Long 5m Cable: 16.4ft of high-grade RG174 cable allows for easy routing from the deck to the cabin.
- BNC Precision: Nickel-plated BNC male connector provides a secure, vibration-proof connection to your hardware.
Technical Specifications
| Frequency | GPS L1 (1575.42 MHz) |
|---|---|
| LNA Gain | 28dB (Active) |
| Cable & Length | Low-Loss RG174 / 5 Meters (16.4ft) |
| Connector Type | BNC Male (Plug) |
| Power Input | 3V - 5V DC (Phantom Power via Coax) |
Wide Compatibility List:
Ideal for legacy and modern marine devices with a BNC antenna port:
- Garmin: GPSMAP 176, 176C, 196, 296, 376C, 496
- Furuno: GP-30, GP-31, GP-32, GP-35, GP-36, GP-37
- Matsutec: HP-33A, HP-528, AIS Receivers
- Others: Northstar, Raymarine, Trimble (BNC models)

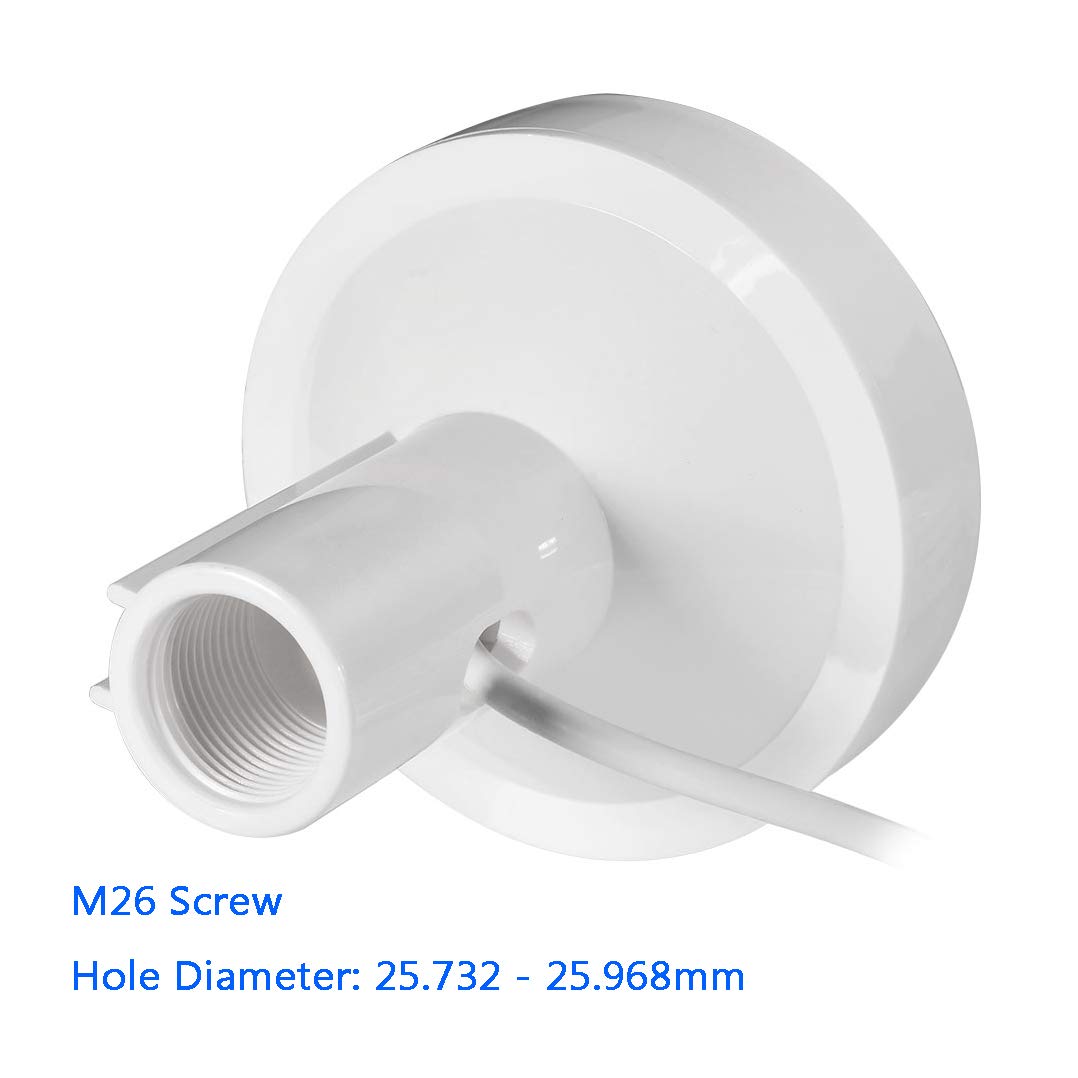

Marine Installation Tip: For best results, mount the antenna with a clear 360ยฐ view of the sky. The magnetic base is ideal for steel decks, while the adhesive option works perfectly on fiberglass (GRP) hulls.
