Description

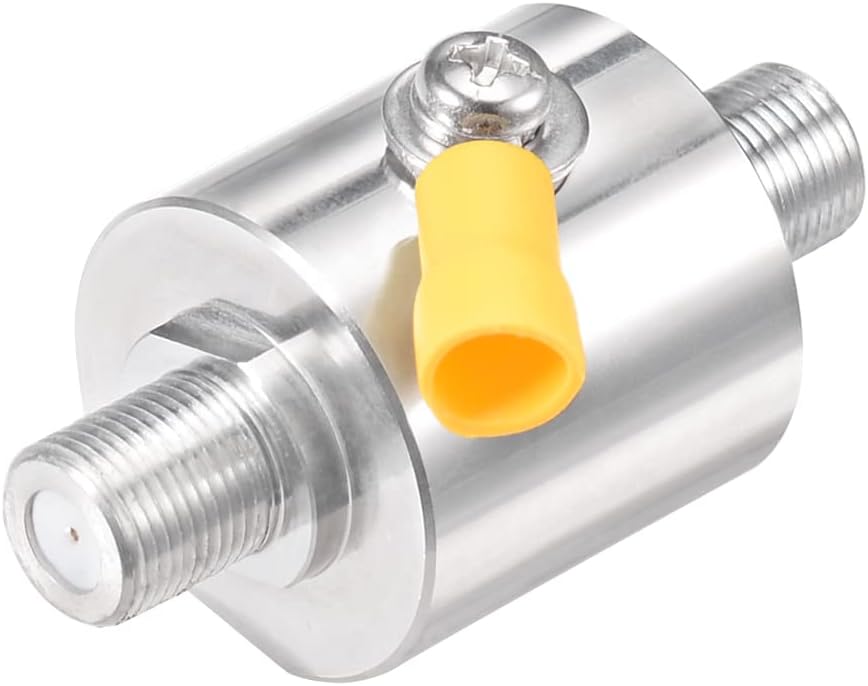

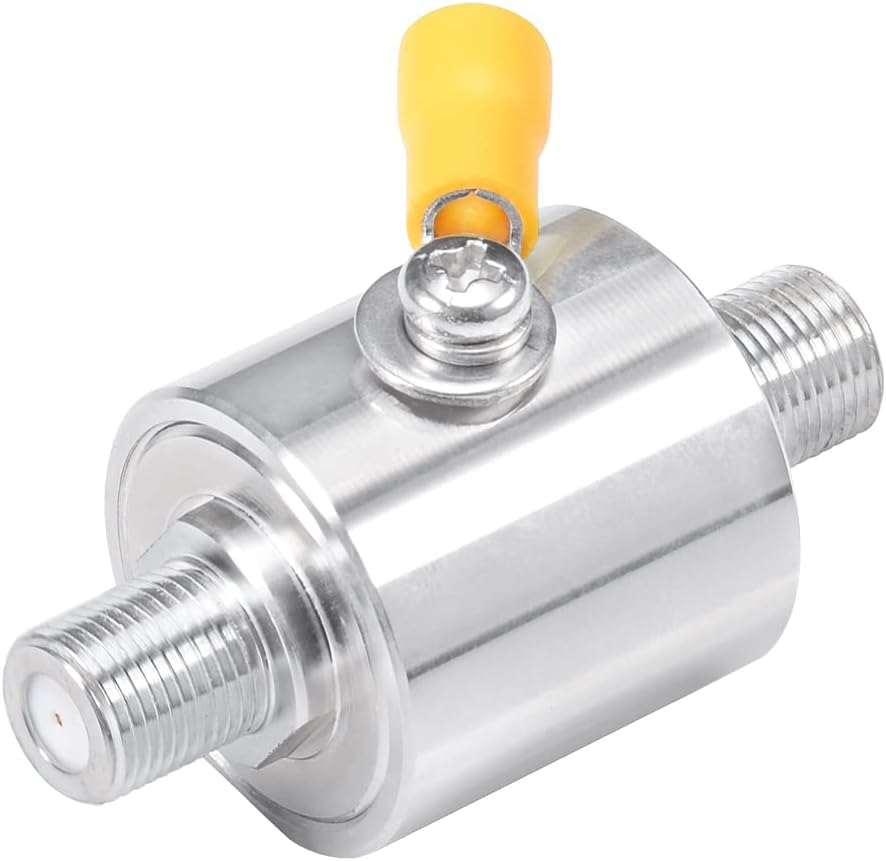

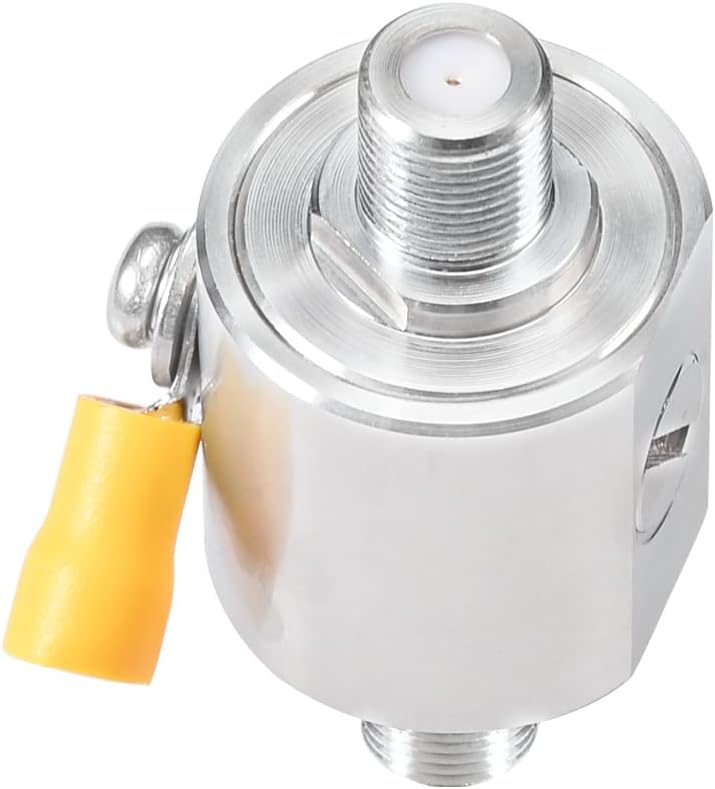

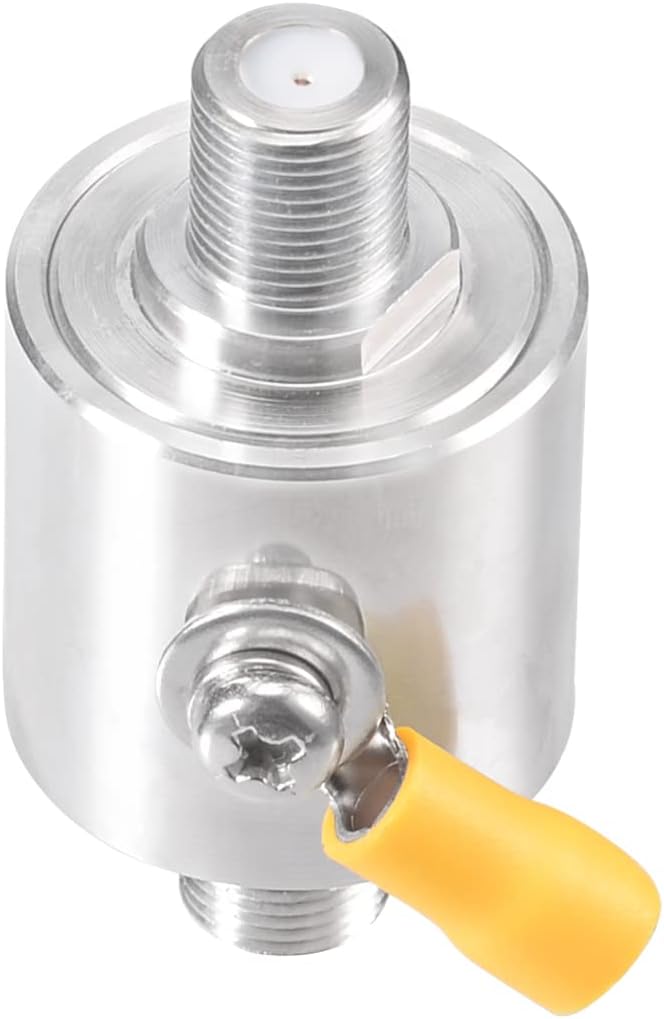

- Reliable broadband performance (DC~3GHz) protects Internet, Digital TV, Satellite, Antenna connections and other F type communication systems Inline coaxial surge protection
- HIGH QUALITY CONSTRUCTION: Bi-directional 90V inert gas surge arrester Can be mounted outdoors.
- Lightning surge protector has very low RF insertion loss (<0.2dB signal attenuation) - 75 ohm impedance - DC passage

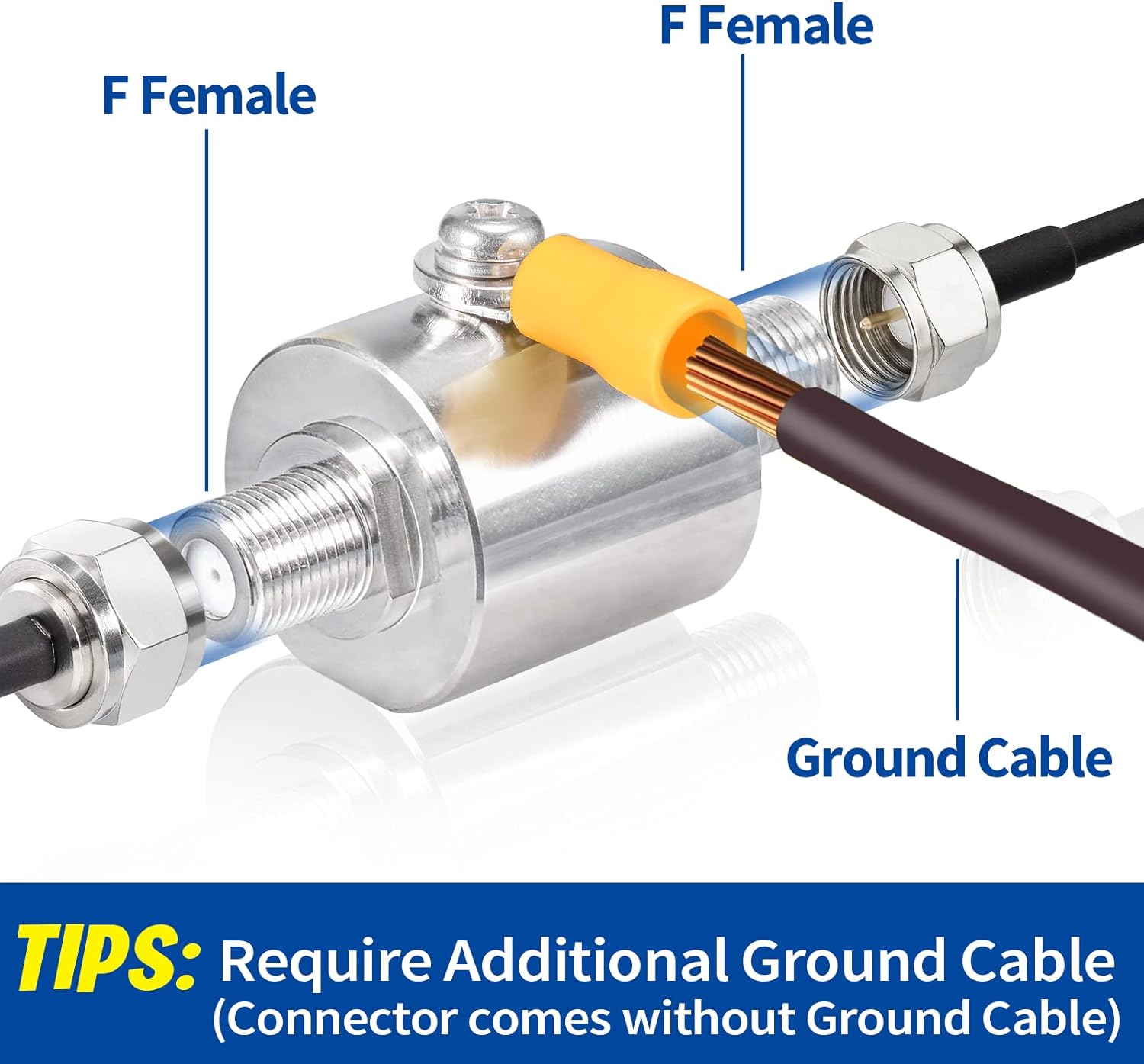

- Gas discharge tube with multi-strike capability shunts harmful surges, transients and lightning strikes to ground, connect to antenna coax feed line and grounding. Requires additional ground cable (connection is supplied without earth wire)
- Lightning Protector Should be Installed as Close a Possible to the Equipment to be Protected, often at the Point Where the Coax Cable Enters the Building. They Can Also be Installed Near the Antenna for Additional Protection
Specifications:

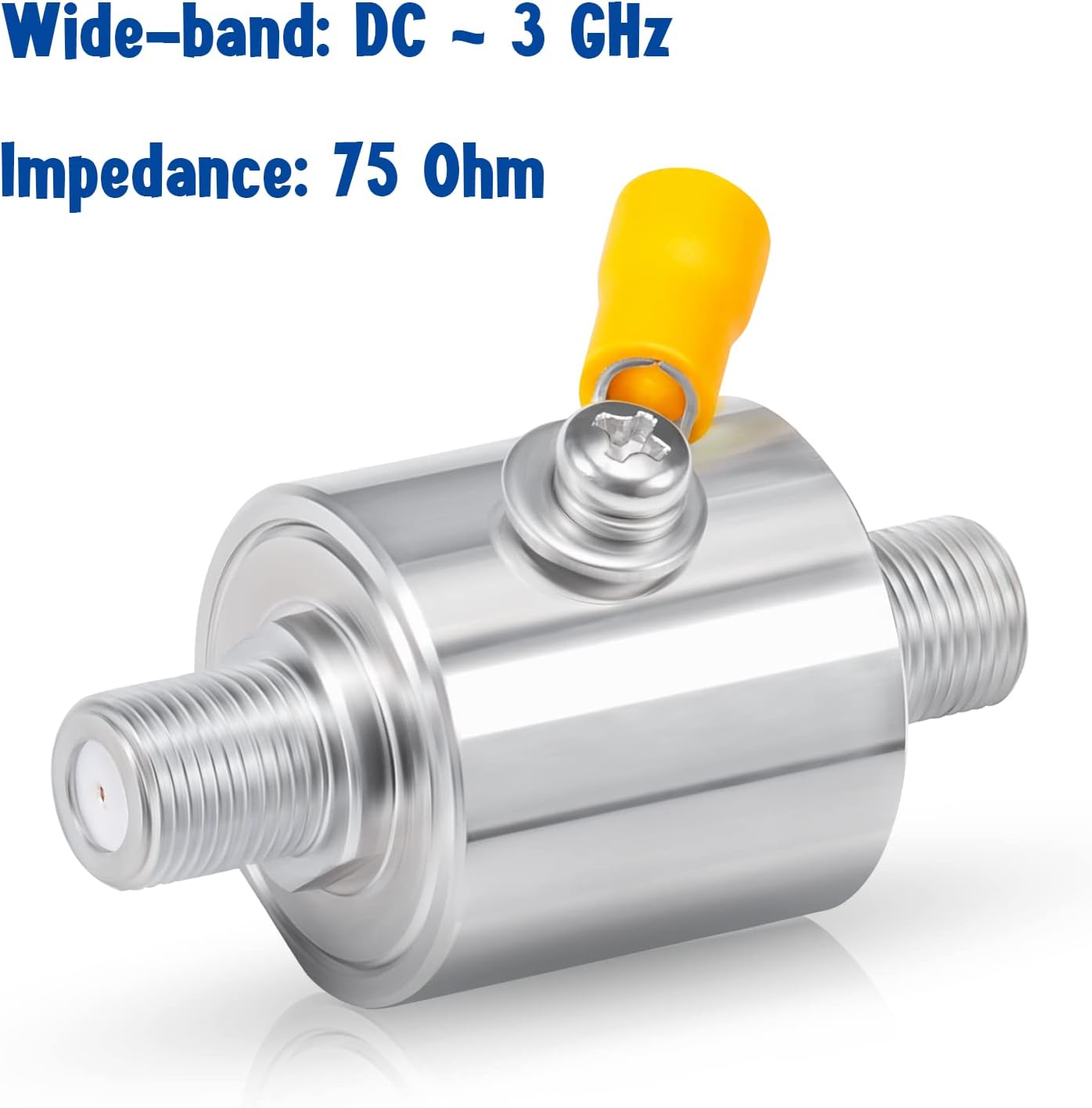

Frequency range: 0 - 3 GHz.
Impedance: 75 ohms.
Discharge voltage: DC 90 V.
Insertion loss: <0.2 dB.
VSWR: <1.2.
Material: nickel-plated brass housing, Teflon (PTFE) insulator.

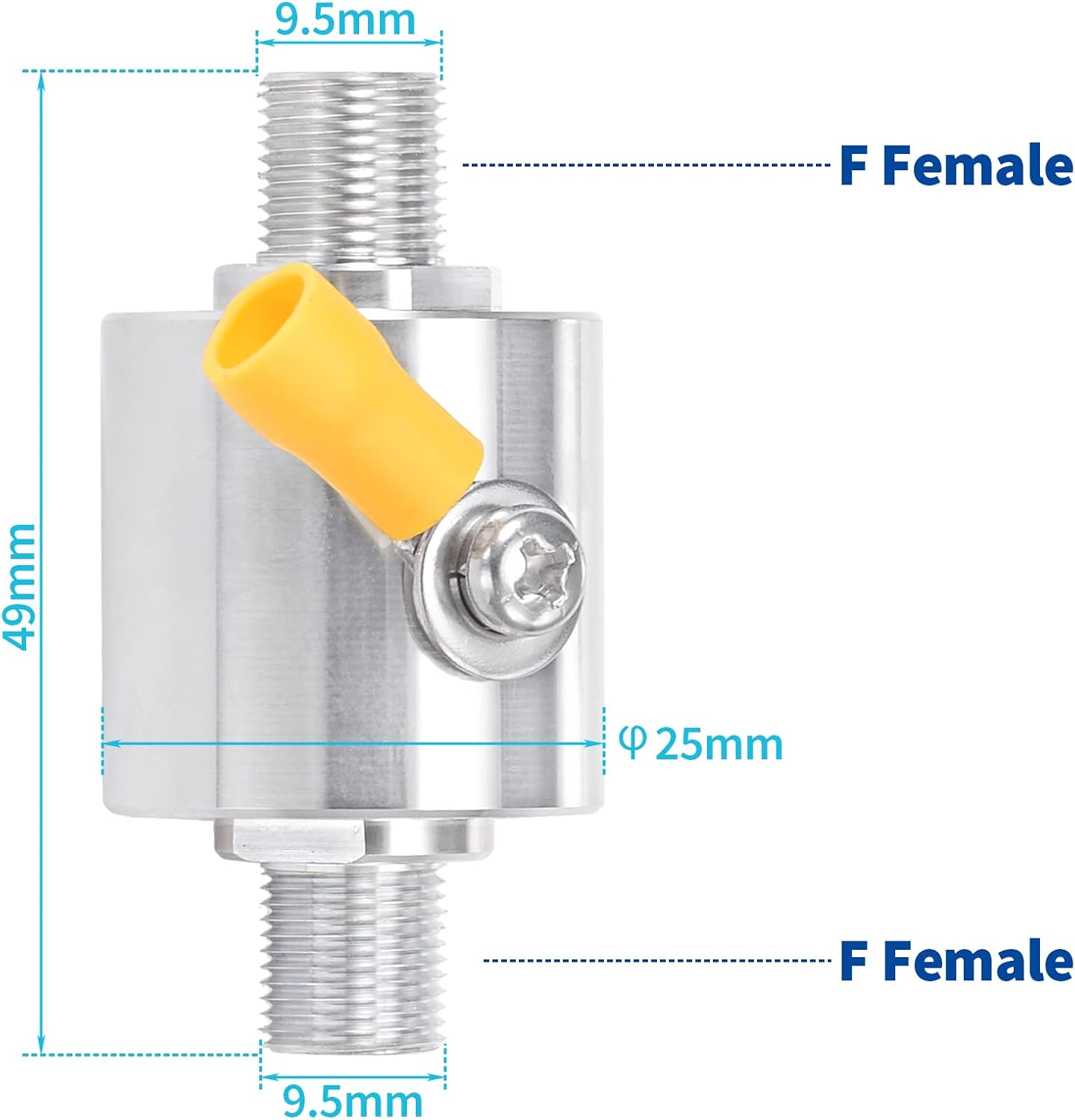

F Connectors: F Female to F Female
Contact resistance: inner conductor ≤ 1.5 mΩ, outer conductor ≤ 1 mΩ.
Maximum power: 50 W Discharge current capacity (kA at 8/20 μS): 10
Insulation resistance: ≥5000 MΩ.
Shelf life: ≥500 cycles.
Temperature range: -40°C to +85°C
